Introduction

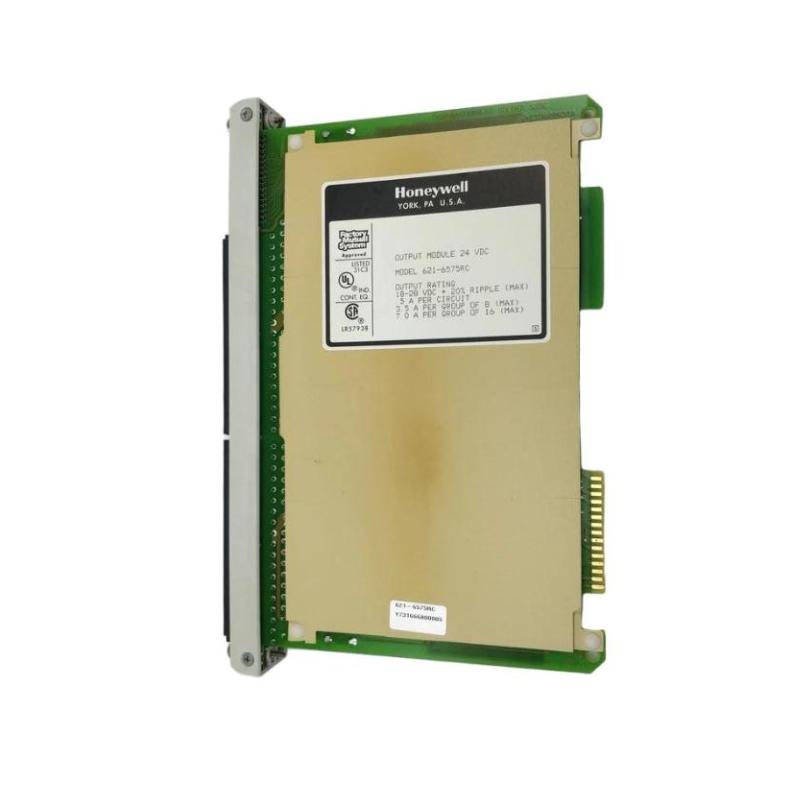

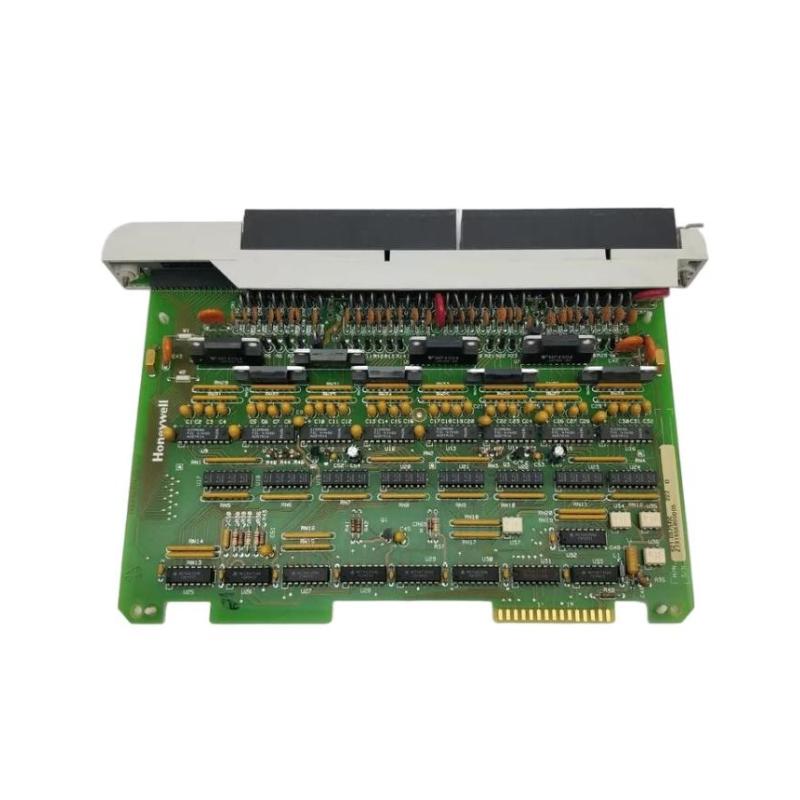

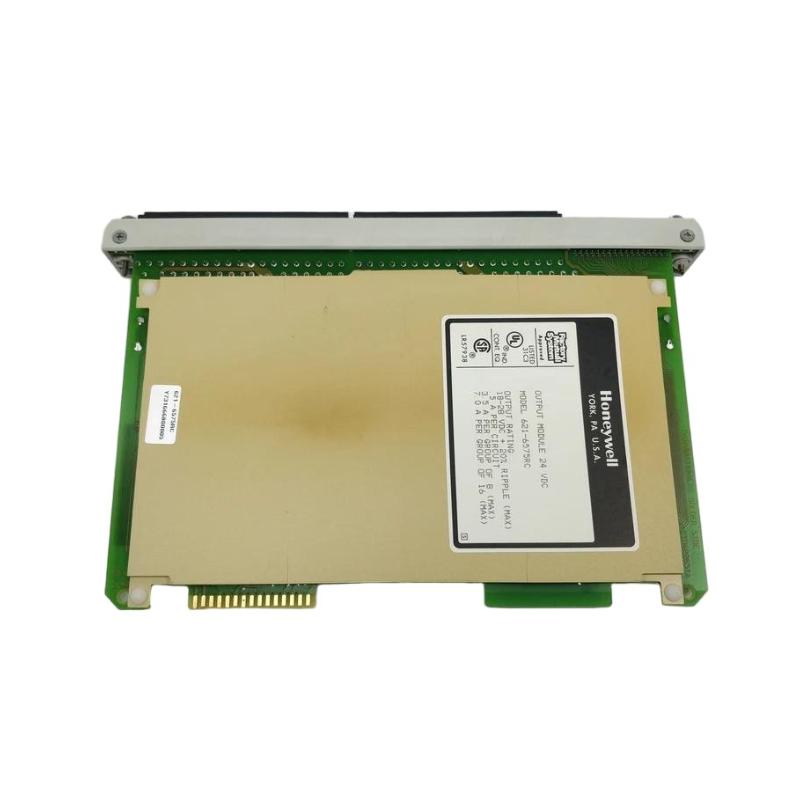

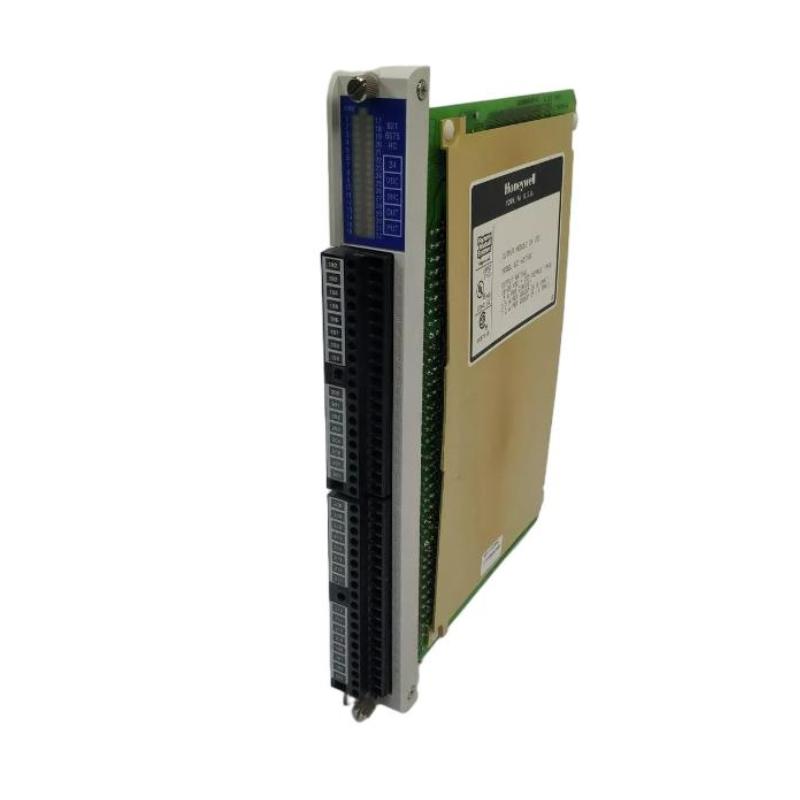

The Honeywell 621‑6575RC Output Module is a high‑density, industrial‑grade discrete output interface designed for reliable actuation and control within modular automation systems. As part of Honeywell’s 621‑series I/O family, this module delivers dependable switching of field devices such as solenoids, relays, indicators, contactors, and actuators. With robust electrical isolation and solid relay outputs, the 621‑6575RC is built for long‑term performance in demanding manufacturing, process, and utility environments where stable output control directly impacts system reliability and safety.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Name | Honeywell 621‑6575RC |
| Module Type | Discrete Output Module |
| Compatible Systems | Honeywell PLC/DCS/IPC platforms with 621‑series I/O support |
| Output Format | Discrete relay outputs |
| Number of Output Points | 16 independent outputs |
| Output Voltage Range | Up to 230 VAC (system dependent) |
| Nominal Output Current | Approx. 2 A per channel |
| Electrical Isolation | Channel‑to‑system isolation for improved signal integrity |
| Mounting | Rack or chassis mount within control panel |
| Power Supply | Bus‑powered via system backplane |
| Approx. Dimensions (H × W × D) | ~200 mm × 50 mm × 150 mm |
| Approx. Weight | ~0.52 kg |
| Operating Temp. Range | Industrial: ~0 °C to +55 °C |
| Environmental Capability | Designed for industrial noise, vibration, and temperature variation |
