Introduction

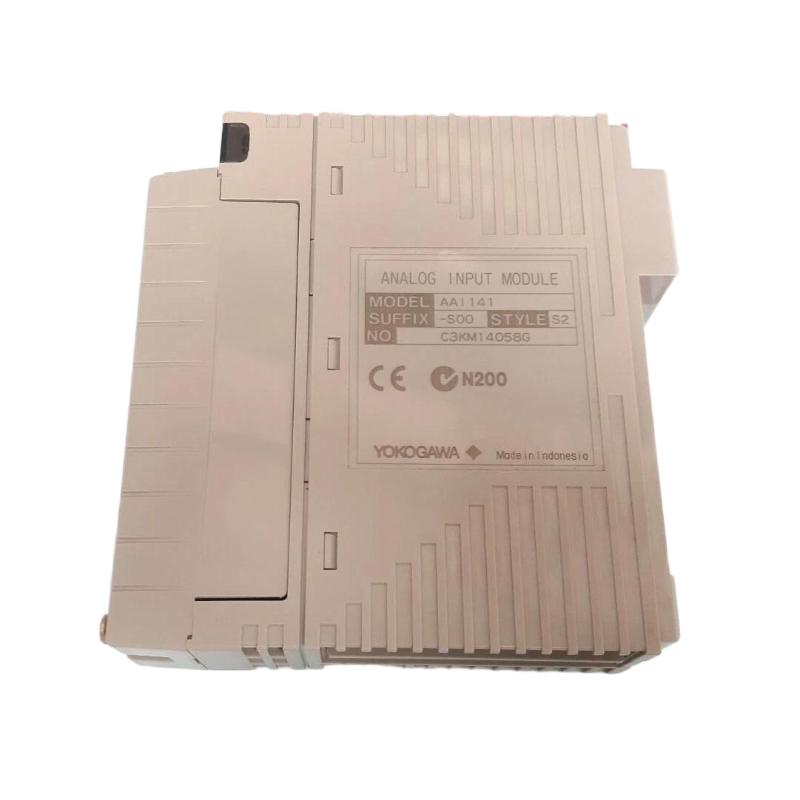

The Yokogawa AAI141-S00 Analog Input Module is an essential component for industrial automation and process control systems, designed to provide precise and reliable analog input capabilities. This module is part of Yokogawa’s Centum VP series and offers excellent performance in monitoring critical process parameters such as temperature, pressure, and flow. With its high accuracy and fast response time, the AAI141-S00 is ideal for use in industries such as power generation, petrochemicals, and manufacturing. It ensures that data from field instruments is accurately captured and processed, enhancing system performance and ensuring smooth, uninterrupted operations.
Technical Specifications
|
Specification |
Value |
|
Model Number |
AAI141-S00 |
|
Dimensions (L × W × H) |
107.5 × 32.8 × 130 mm |
|
Weight |
0.2 kg |
|
Input Channels |
8 (Voltage or Current Inputs) |
|
Power Supply |
24 VDC |
|
Signal Input Range |
±10 V, 0 to 20 mA, 4 to 20 mA |
|
Accuracy |
±0.1% of full scale |
|
Response Time |
10 ms |
|
Operating Temperature Range |
-20°C to 60°C |
|
Humidity Range |
5% to 95% (Non-condensing) |
|
Application |
Industrial Automation, Process Control, Monitoring Systems |
Applications
The Yokogawa AAI141-S00 Analog Input Module is widely used in industrial applications that require precise analog signal acquisition and processing:
-
Industrial Automation: Allows for the seamless collection of analog signals from sensors or instruments, converting them into digital data for automated control systems.
-
Process Control: Used in process control systems for measuring key process variables such as temperature, pressure, and flow, ensuring precise regulation and control.
-
Monitoring Systems: Ideal for continuous, real-time monitoring of critical parameters, alerting operators to any changes in process conditions that may require attention.
-
Power Generation: Supports the monitoring of rotating machinery, electrical signals, and other critical parameters in power plants, enhancing system reliability and reducing downtime.
-
Petrochemical Industry: Commonly used to monitor process conditions, enabling optimal performance and predictive maintenance in petrochemical plants.
Advantages
The Yokogawa AAI141-S00 Analog Input Module offers numerous advantages for industrial applications:
-
High Accuracy: With an accuracy of ±0.1% of full scale, it ensures highly accurate data acquisition, which is essential for critical process control.
-
Wide Input Range: The module supports multiple input signal types, including ±10 V, 0 to 20 mA, and 4 to 20 mA, making it versatile and adaptable to a variety of sensor types.
-
Compact Design: The small form factor allows easy installation in space-constrained environments, making it suitable for integration into existing systems with limited room.
-
Fast Response Time: With a response time of only 10 ms, the module enables quick data processing and is ideal for real-time monitoring and control.
-
Wide Temperature Range: Operating between -20°C to 60°C, the module can be used in both hot and cold environments, offering reliable performance in diverse industrial settings.
-
Durability: Built to withstand harsh industrial environments, the module is reliable and designed for long-term use, ensuring continuous and stable operation over time.
