Introduction

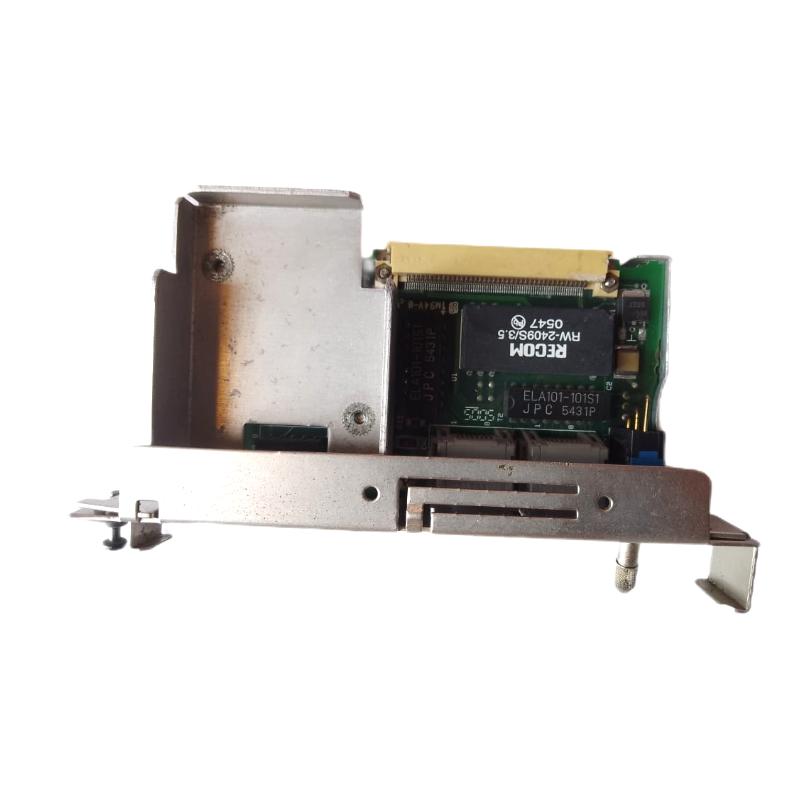

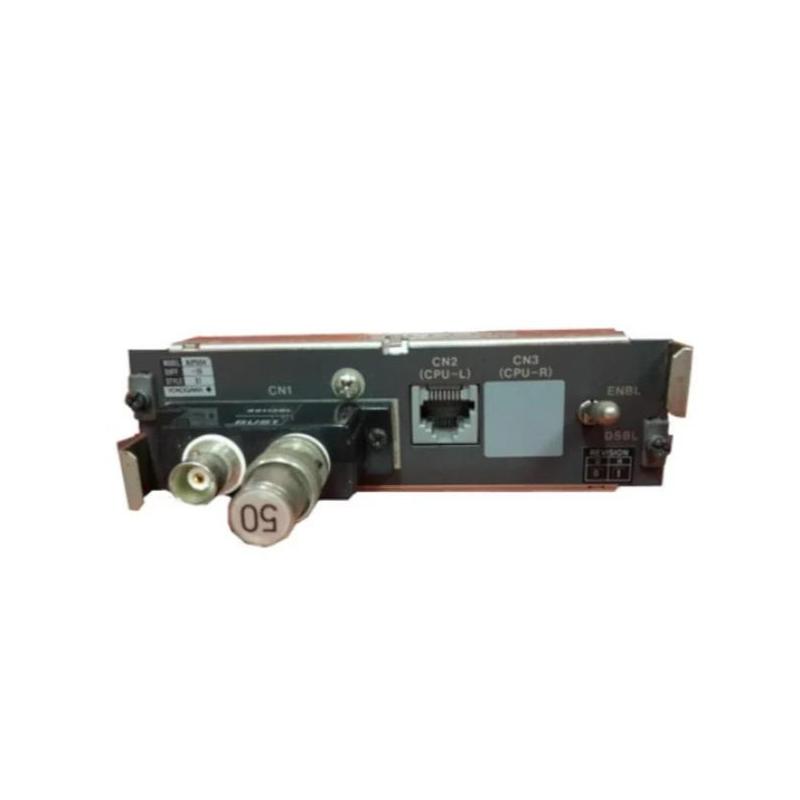

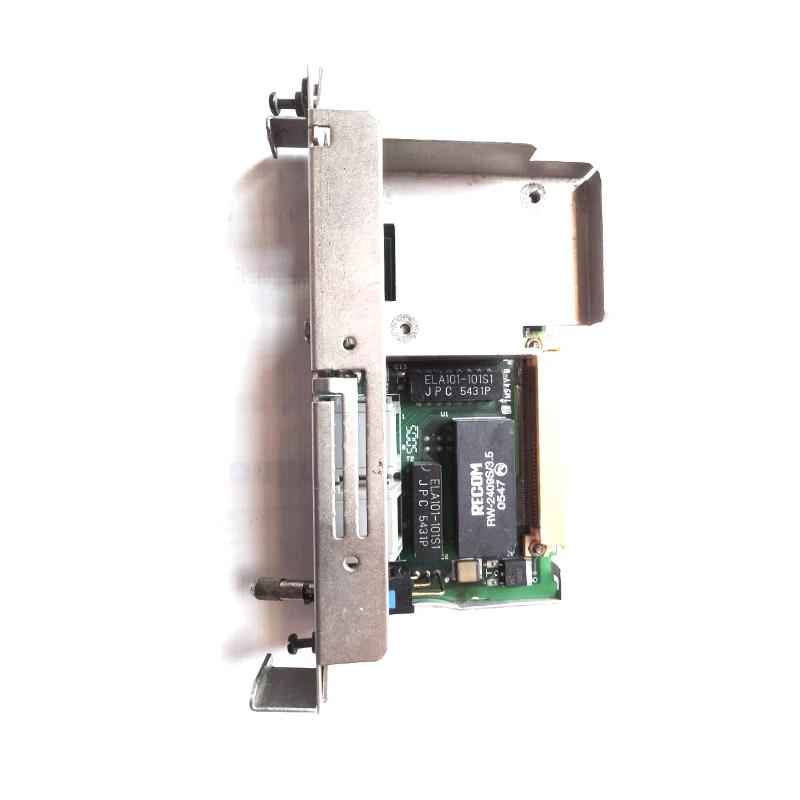

The YOKOGAWA AIP504‑10 V‑Net Coupler Unit is a specialized industrial interface module designed to bridge high‑speed fieldbus communication with Yokogawa distributed control systems (DCS). Engineered for reliable signal coupling and network integrity, this unit enables seamless communication between field I/O devices and central controllers over the V‑Net protocol. With robust construction and optimized signal conditioning, the AIP504‑10 supports efficient data exchange in demanding automation environments. This module is ideal for system integrators and engineers focused on building resilient, scalable control architectures with deterministic fieldbus performance.
Technical Specifications
| Specification | Detail |
|---|---|
| Model Name | YOKOGAWA AIP504‑10 |
| Module Type | V‑Net Coupler Unit |
| Protocol Support | Yokogawa V‑Net fieldbus standard |
| Function | Coupling fieldbus segments and interfacing with I/O racks |
| Compatible Systems | Yokogawa DCS and compatible field I/O networks |
| Mounting | Rack or DIN‑rail mount in Yokogawa I/O chassis |
| Power Requirements | Standard backplane power or system bus supply |
| Isolation | Channel‑to‑system electrical isolation |
| Operating Temperature | Standard industrial range |
| Approx. Dimensions | ~125 mm (H) × 60 mm (W) × 130 mm (D) |
| Approx. Weight | ~0.45 kg |
| Environmental Ratings | Industrial temperature, vibration, and noise tolerance |
