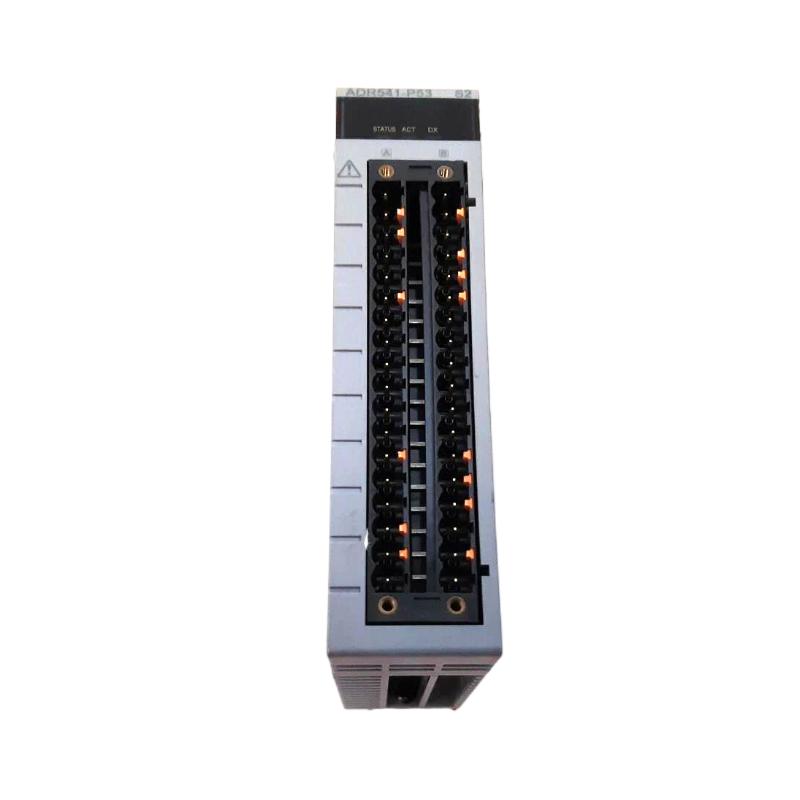

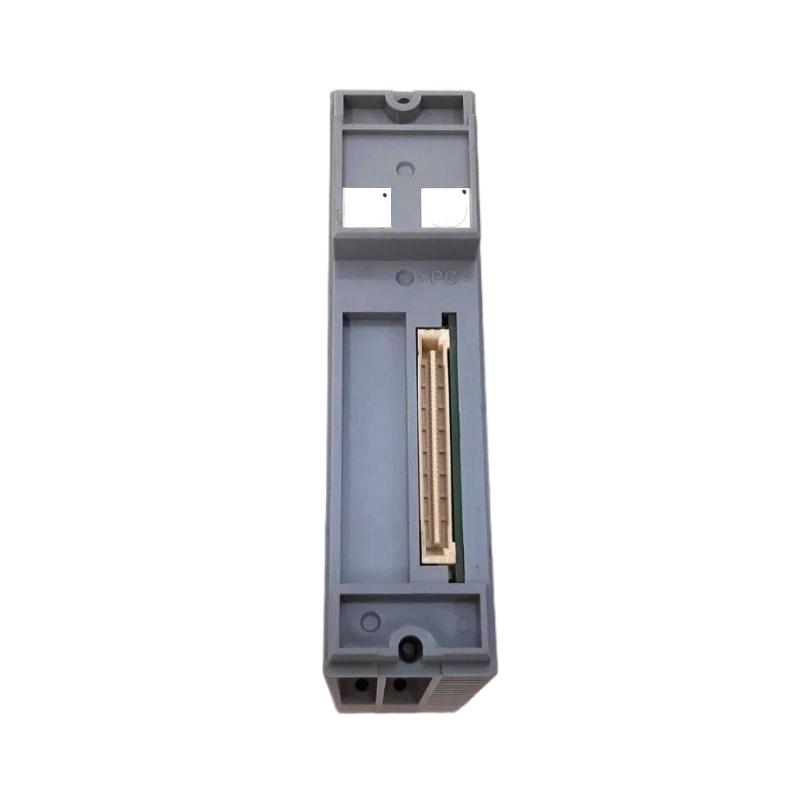

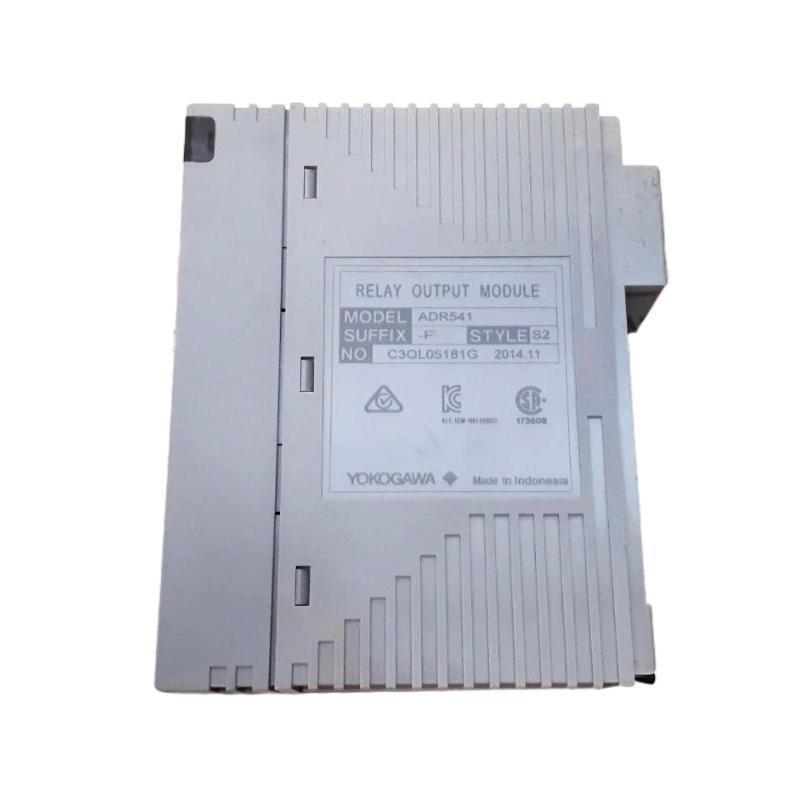

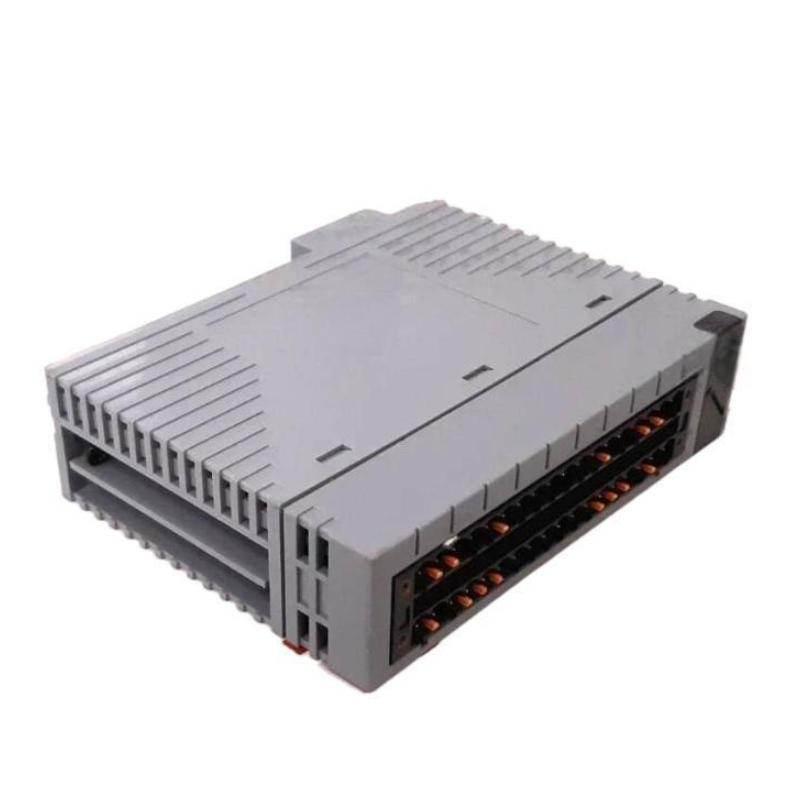

Yokogawa ADR541-P10 Relay Output Module

Name: Yokogawa ADR541-P10 Relay Output Module
Brand: Yokogawa Electric
SKU: 3379
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:ADR541-P10
Product Origin:Japan
Product Dimensions:130 x 32.8 x 107.5 mm
Product Weight:0.3 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa ADR541-P10 is a reliable and versatile relay output module designed for use in industrial automation systems. This module provides efficient and precise relay-based control of electrical devices such as actuators, valves, motors, and alarms. Built to handle industrial control demands, it offers a robust solution for applications requiring high switching capacity and reliable operation. The ADR541-P10 is ideal for environments where precise control and safety are paramount.

Technical Specifications

Parameter	Details
Model	Yokogawa ADR541-P10
Module Type	Relay Output Module
Dimensions (LxWxH)	130 x 32.8 x 107.5 mm
Weight	0.3 kg
Operating Temperature	-10°C to 60°C
Power Supply	24V DC ± 10%
Output Channels	Multiple relay output channels
Relay Output Capacity	2 A, 30 V DC / 250 V AC
Contact Type	SPDT (Single Pole Double Throw)
Connectivity Options	Direct wiring for relay outputs
Compliance	CE, UL Listed

Applications

Industrial Control Systems: The ADR541-P10 is ideal for controlling industrial systems such as PLCs, SCADA systems, and automated control systems that require relay-based output for controlling actuators, motors, and other electrical devices.
Factory Automation: This module is integrated into factory automation systems to provide reliable control for machine start/stop signals, safety interlocks, and alarm systems.
Energy and Power Systems: It is suitable for use in energy management systems, such as those used in solar and wind energy installations, where relay output is needed for controlling power distribution equipment.

Advantages

Compact and Efficient: The ADR541-P10’s compact size makes it an excellent choice for systems with limited space, while still offering powerful relay output control for a range of devices.
Durable and Reliable: With an operating temperature range from -10°C to 60°C, this module is built to withstand harsh environmental conditions, ensuring long-term reliability in demanding industrial settings.
Flexible Control: The module supports SPDT (Single Pole Double Throw) relays, providing flexible switching for controlling different circuits and devices in industrial applications.

Technical FAQs

What is the relay output capacity of the ADR541-P10?
- The ADR541-P10 can handle a relay output capacity of 2 A at 30 V DC or 250 V AC, making it suitable for controlling a variety of devices.
How many output channels does the ADR541-P10 support?
- The ADR541-P10 supports multiple relay output channels, providing flexibility to control multiple devices simultaneously.
What type of relay does the ADR541-P10 use?
- The module uses SPDT (Single Pole Double Throw) relays, offering versatile switching capabilities for various control needs.
Can the ADR541-P10 be used with non-Yokogawa systems?
- Yes, the ADR541-P10 can be integrated into any control system that supports dry contact relay inputs, allowing it to be used with third-party systems.
How is the module wired for relay outputs?
- The module allows for direct wiring to the relay outputs. Clear installation and wiring instructions are provided in the product manual for ease of use.
Does the ADR541-P10 offer output isolation?
- Yes, the module provides output isolation, ensuring protection from electrical noise and ensuring stable and reliable control.
Is the ADR541-P10 suitable for hazardous environments?
- Ensure the module meets the required certifications for hazardous locations before installation in such environments.
What certifications does the ADR541-P10 comply with?
- The ADR541-P10 is CE-certified and UL-listed, meeting international safety and quality standards for industrial applications.
What is the power consumption of the ADR541-P10?
- The ADR541-P10 operates at 24V DC, designed for minimal power consumption, offering energy-efficient operation.
What warranty is provided with the Yokogawa ADR541-P10?
- The module is covered by a standard manufacturer warranty, protecting against defects in materials and workmanship.
