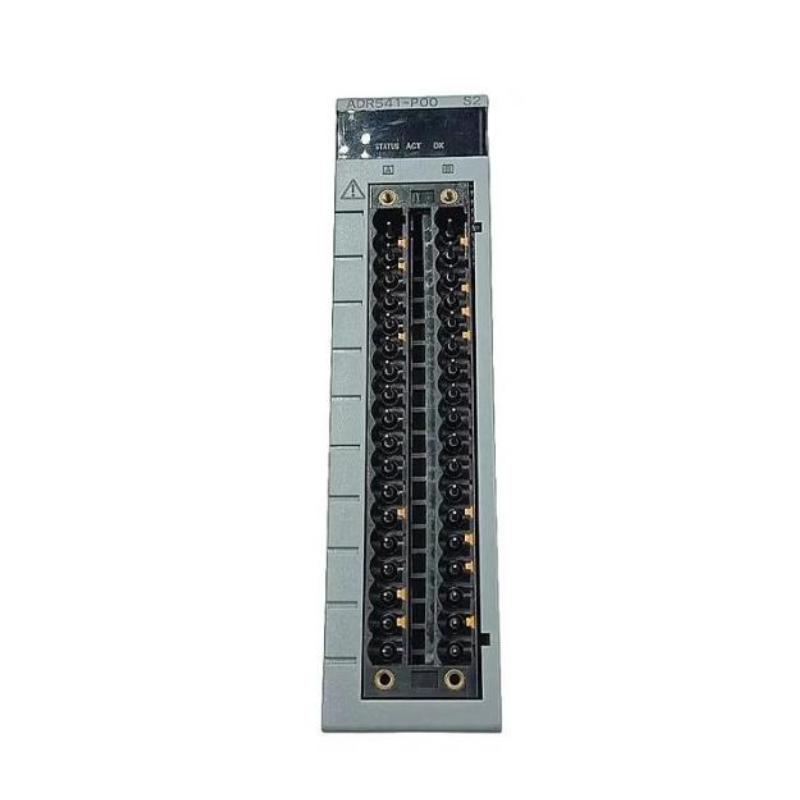

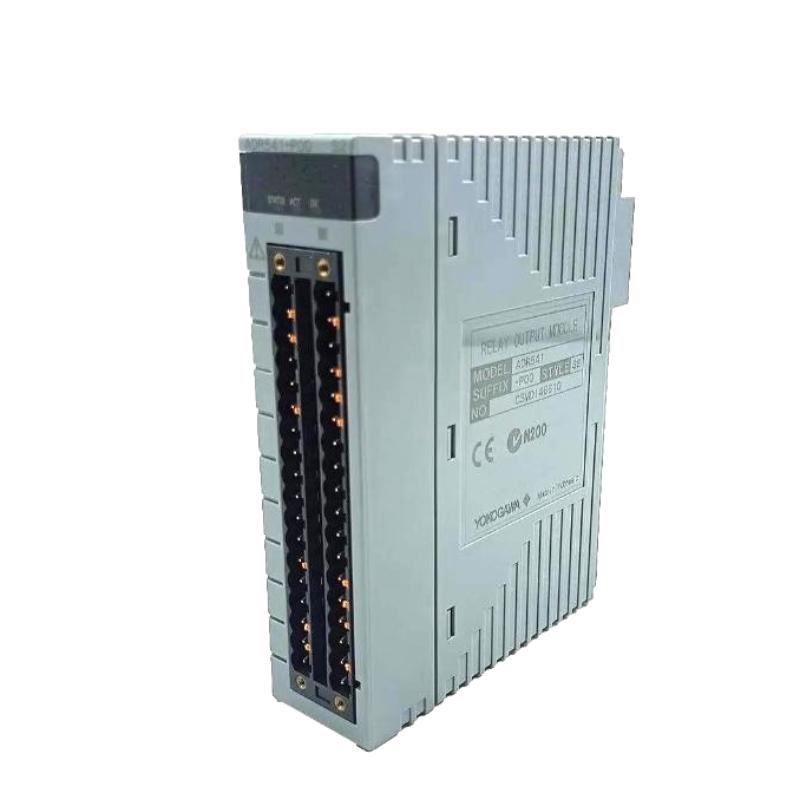

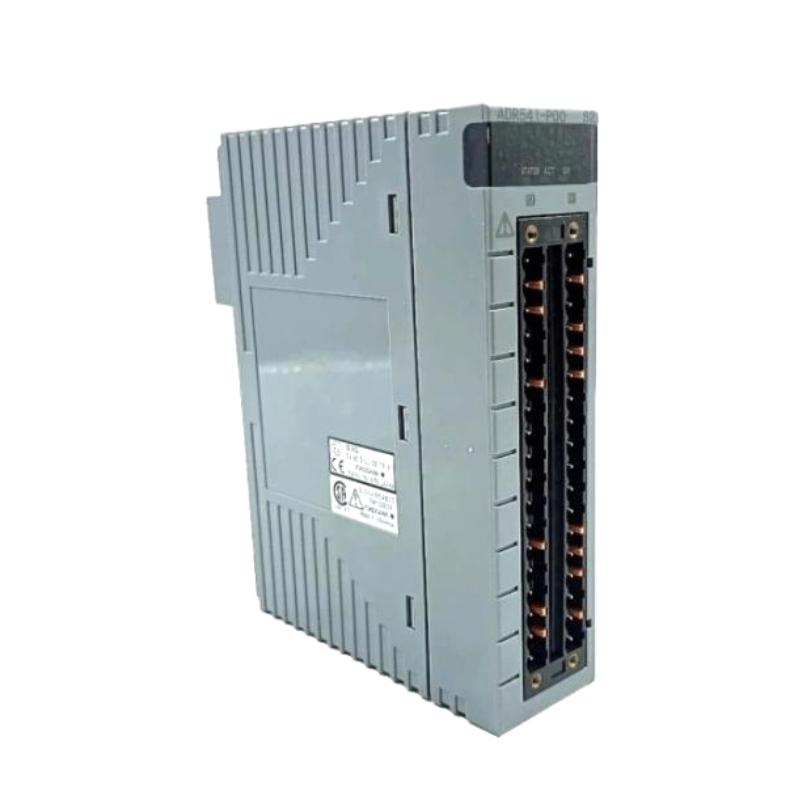

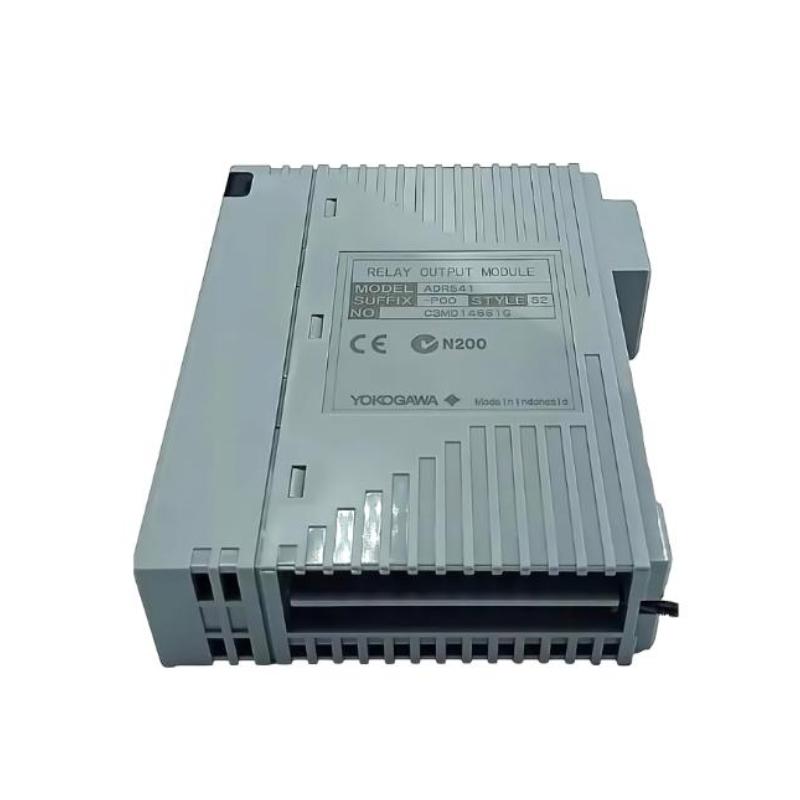

Yokogawa ADR541-P00 Relay Output Module

Name: Yokogawa ADR541-P00 Relay Output Module
Brand: Yokogawa Electric
SKU: 3378
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:ADR541-P00
Product Origin:Japan
Product Dimensions:130 x 32.8 x 107.5 mm
Product Weight:0.3 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa ADR541-P00 is a high-performance relay output module designed for industrial automation systems. It provides reliable switching capabilities for controlling various devices such as motors, valves, and safety systems. The module is built to meet the demanding needs of process control systems, offering high reliability and flexibility. With its compact design, the ADR541-P00 is ideal for installations where space is limited, while still delivering excellent performance and durability in harsh industrial environments.

Technical Specifications

Parameter	Details
Model	Yokogawa ADR541-P00
Module Type	Relay Output Module
Dimensions (LxWxH)	130 x 32.8 x 107.5 mm
Weight	0.3 kg
Operating Temperature	-10°C to 60°C
Power Supply	24V DC ± 10%
Output Channels	Multiple relay output channels
Relay Output Capacity	2 A, 30 V DC / 250 V AC
Contact Type	SPDT (Single Pole Double Throw)
Connectivity Options	Direct wiring for relay outputs
Compliance	CE, UL Listed

Applications

Industrial Control Systems: The ADR541-P00 is designed to be used in industrial control systems, providing reliable relay-based output control for various machinery, actuators, and electrical devices.
Factory Automation: Ideal for factory automation systems where relay control is necessary for managing equipment and systems, such as motor controllers, safety interlocks, or alarm systems.
Energy and Power Systems: The module is suited for energy management systems, including renewable energy systems like solar and wind, for controlling power distribution equipment through relay outputs.

Advantages

Compact Design: With its small footprint, the ADR541-P00 is easy to integrate into systems with limited space while maintaining high output performance and reliability.
Reliable Relay Control: The module provides high-quality relay outputs with a capacity of 2 A at 30 V DC or 250 V AC, ensuring efficient and stable operation for a variety of industrial control applications.
Wide Operating Temperature Range: The ADR541-P00 operates effectively in environments ranging from -10°C to 60°C, making it suitable for use in various industrial conditions, from cold storage to high-temperature processes.

Technical FAQs

What is the output capacity of the ADR541-P00?
- The module supports a relay output capacity of 2 A at 30 V DC or 250 V AC, making it suitable for controlling a wide range of devices and machinery.
How many output channels does the ADR541-P00 have?
- The ADR541-P00 provides multiple relay output channels, allowing for the control of several devices simultaneously.
What type of relay does the ADR541-P00 use?
- The module uses SPDT (Single Pole Double Throw) relays, providing flexibility in switching between different circuits.
Can this module be used with non-Yokogawa systems?
- Yes, the ADR541-P00 is compatible with other control systems that accept standard relay inputs, making it versatile for various industrial applications.
How is the module wired for relay outputs?
- The module provides direct wiring for relay outputs, and wiring instructions are available in the product manual for easy installation.
Does the ADR541-P00 provide isolation for the outputs?
- Yes, the module includes output isolation, ensuring protection against electrical surges and noise, and ensuring reliable system operation.
Can the ADR541-P00 be used in hazardous environments?
- Please verify that the module meets the necessary certifications for use in hazardous locations before installation.
What certifications does the ADR541-P00 comply with?
- The module is CE-certified and UL-listed, ensuring it meets global safety and quality standards for industrial use.
What is the power consumption of the ADR541-P00?
- The module operates on 24V DC and is designed to consume minimal power, ensuring efficient operation without excessive energy consumption.
What warranty is provided with the Yokogawa ADR541-P00?
- The ADR541-P00 is covered by a standard manufacturer warranty that protects against defects in materials and workmanship.
