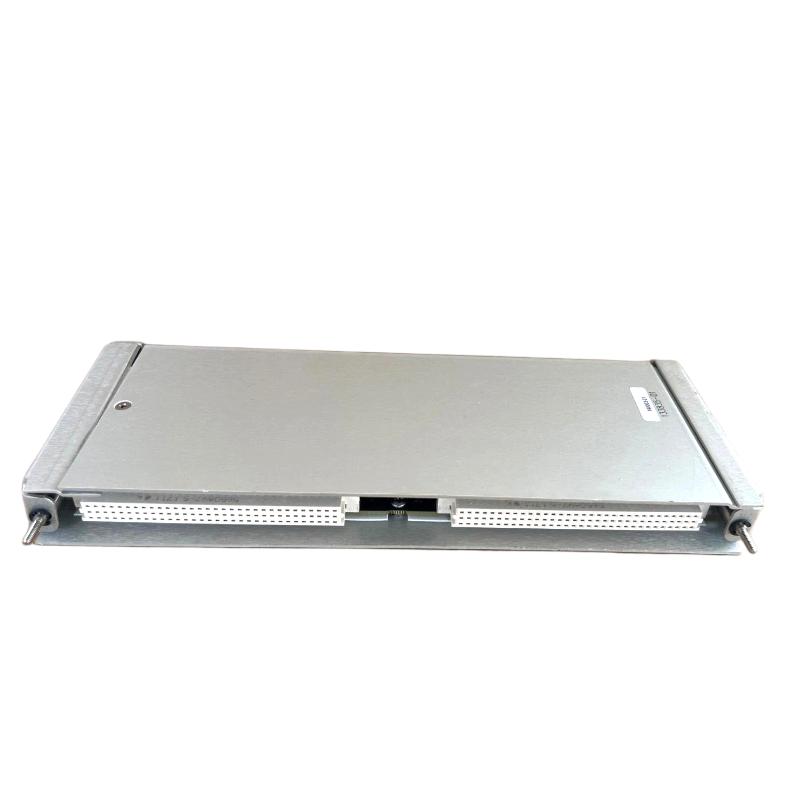

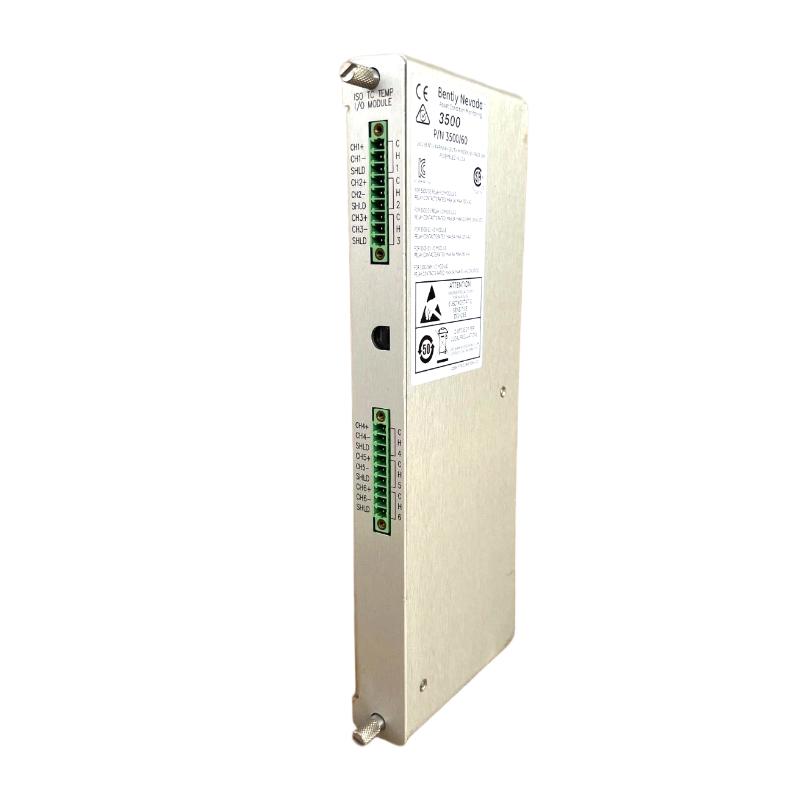

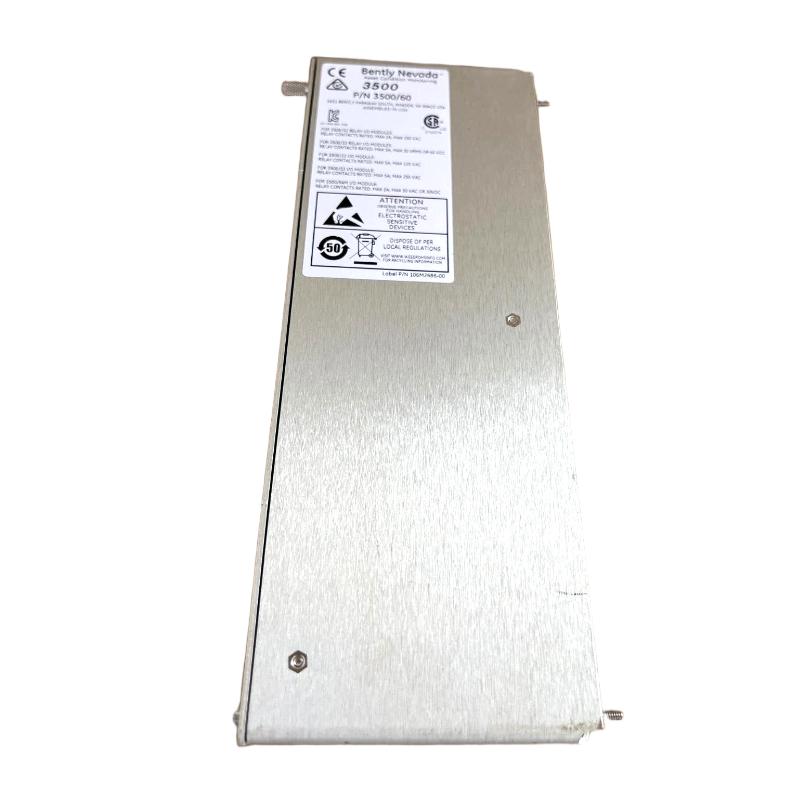

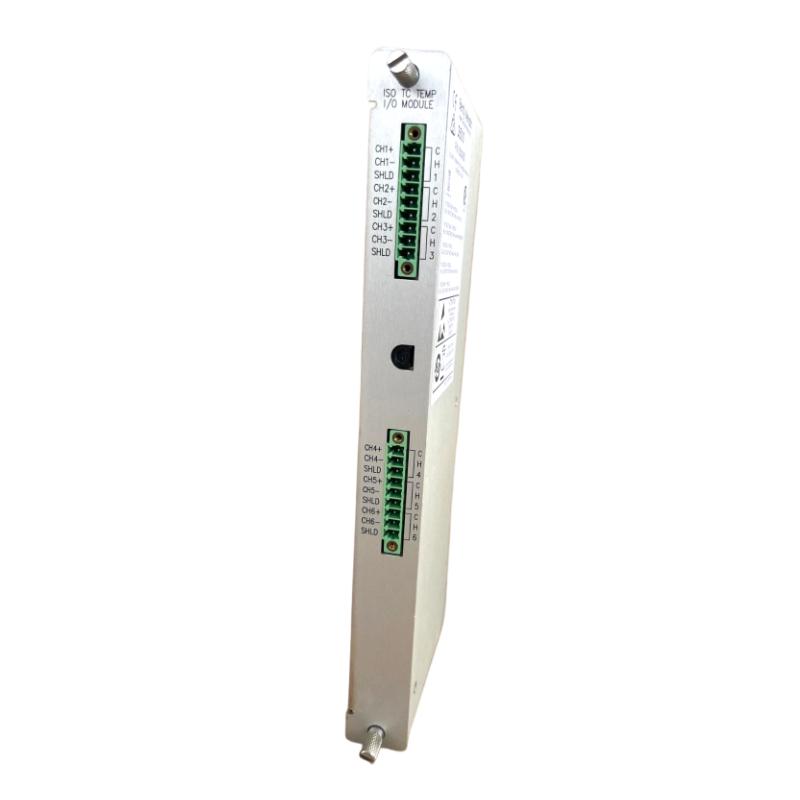

Bently Nevada 3500/60-03-00 133835-01 TC Isolated I/O Module Internal Terminal

Brand:Bently Nevada PLC
Item No.:3500/60-03-00
Product Origin:USA
Product Dimensions:241.3 x 24.4 x 99.1 mm
Product Weight:0.45 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Bently Nevada 3500/60-03-00 133835-01 TC Isolated I/O Module Internal Terminal is an essential component of the 3500 Series Machinery Protection and Monitoring Systems by Bently Nevada. This module is designed to provide isolated input/output (I/O) terminals for connection to temperature sensors, enabling safe and accurate data transmission between field devices and the monitoring system. The 3500/60-03-00 is specifically optimized for thermocouple (TC) applications, offering electrical isolation to prevent signal interference and ensure reliable temperature measurements. This module is widely used in industries such as power generation, oil & gas, and manufacturing, where precise temperature monitoring of rotating equipment is critical.

Technical Specifications

SpecificationDetails
Model Number3500/60-03-00 133835-01
Module TypeIsolated I/O Module (TC)
Dimensions241.3 x 24.4 x 99.1 mm
Weight0.45 kg
Input Power24V DC
Communication ProtocolBently Nevada 3500 Series Communication
Number of Channels4 (Temperature Inputs)
Operating Temp-40°C to +70°C
Storage Temp-40°C to +85°C
Humidity5-95% RH, non-cond.
Vibration Resistance2g RMS (10-500Hz)


Applications

  • Temperature Sensing: Ideal for interfacing with thermocouples (TC) to provide accurate and isolated temperature readings in rotating machinery.

  • Power Generation: Used in power plants for monitoring the temperature of critical machinery components like turbines, motors, and generators.

  • Oil & Gas: Essential for temperature measurement in high-stress environments, where accurate data is required for predictive maintenance and safety.

  • Manufacturing: Integrates into industrial automation systems to ensure reliable temperature monitoring in automated production processes.


Advantages

  • Electrical Isolation: Provides complete electrical isolation between the field sensors and the control system, preventing signal interference and ground loop issues.

  • Multiple Channels: Supports up to 4 temperature inputs, enabling efficient monitoring of multiple sensors within a single unit.

  • Compact Design: Despite its advanced capabilities, the module is compact and can be integrated seamlessly into existing machinery protection systems.

  • Wide Operating Temperature Range: With an operating range of -40°C to +70°C, the unit is suitable for use in a variety of industrial environments, including harsh conditions.


Technical FAQs

  1. What is the function of the 3500/60-03-00 Isolated I/O Module?
    The module provides isolated input/output terminals for thermocouples, enabling accurate temperature monitoring by isolating the field sensors from the control system.

  2. How many channels does the 3500/60-03-00 support?
    The unit supports 4 temperature input channels, allowing for the connection of multiple thermocouples.

  3. What power supply is required for the 3500/60-03-00?
    The unit operates on a 24V DC power supply.

  4. Can the 3500/60-03-00 be used in hazardous environments?
    The module is designed for standard industrial environments and should be certified appropriately for use in hazardous locations.

  5. What is the operating temperature range of the 3500/60-03-00?
    The operating temperature range is -40°C to +70°C.

  6. How does the 3500/60-03-00 provide isolation?
    The module uses electrical isolation to separate the field sensors from the control system, ensuring that any interference or ground loop issues do not affect the signal integrity.

  7. What types of sensors is the 3500/60-03-00 compatible with?
    The unit is specifically designed for use with thermocouple (TC) sensors for accurate temperature measurements.

  8. Does the 3500/60-03-00 provide redundancy in communication?
    Yes, the module supports redundant communication to ensure reliable operation.

  9. Is the 3500/60-03-00 compatible with other Bently Nevada systems?
    Yes, it integrates seamlessly with other components of the 3500 Series Machinery Protection and Monitoring Systems.

  10. How does the 3500/60-03-00 handle electrical surges?
    The module is designed with surge protection to safeguard against voltage spikes and transient electrical events.
