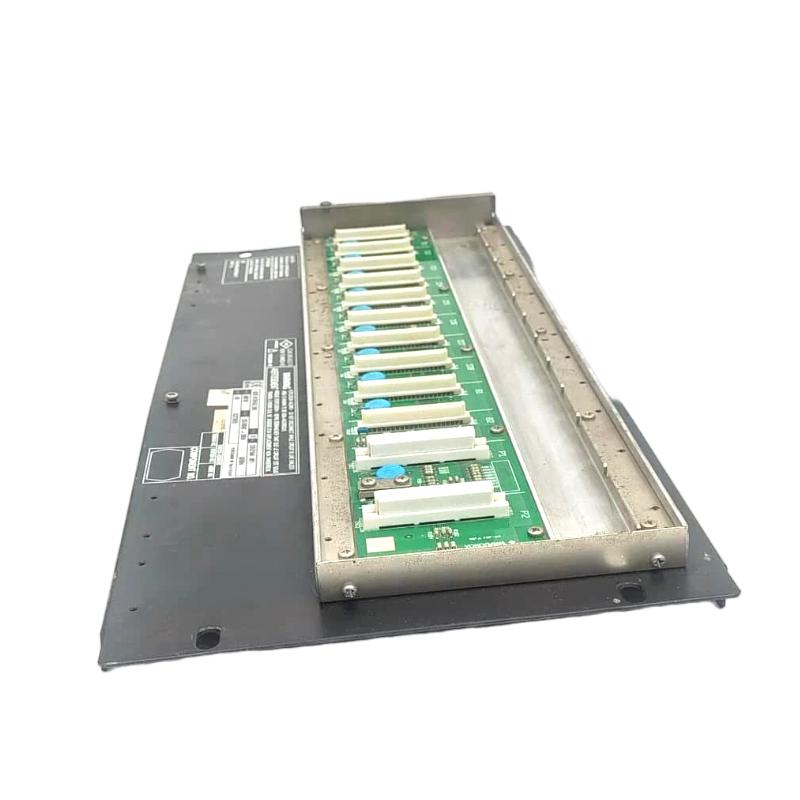

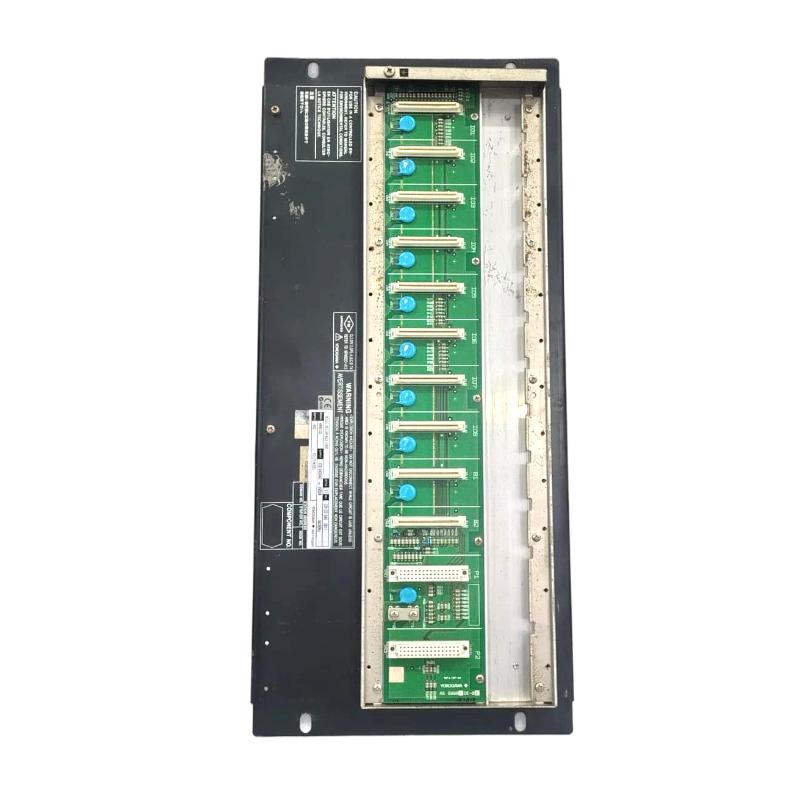

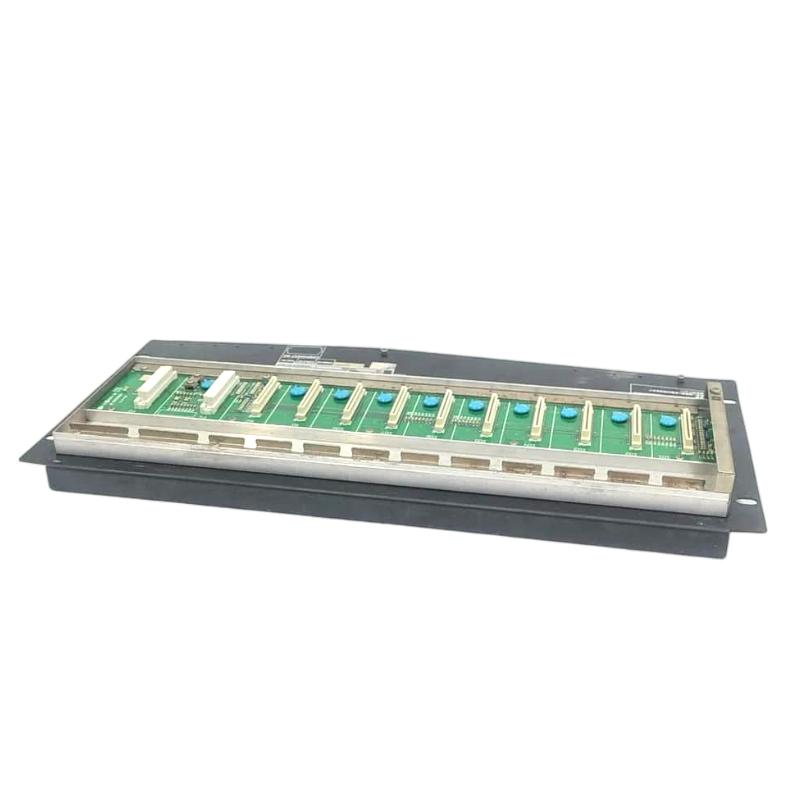

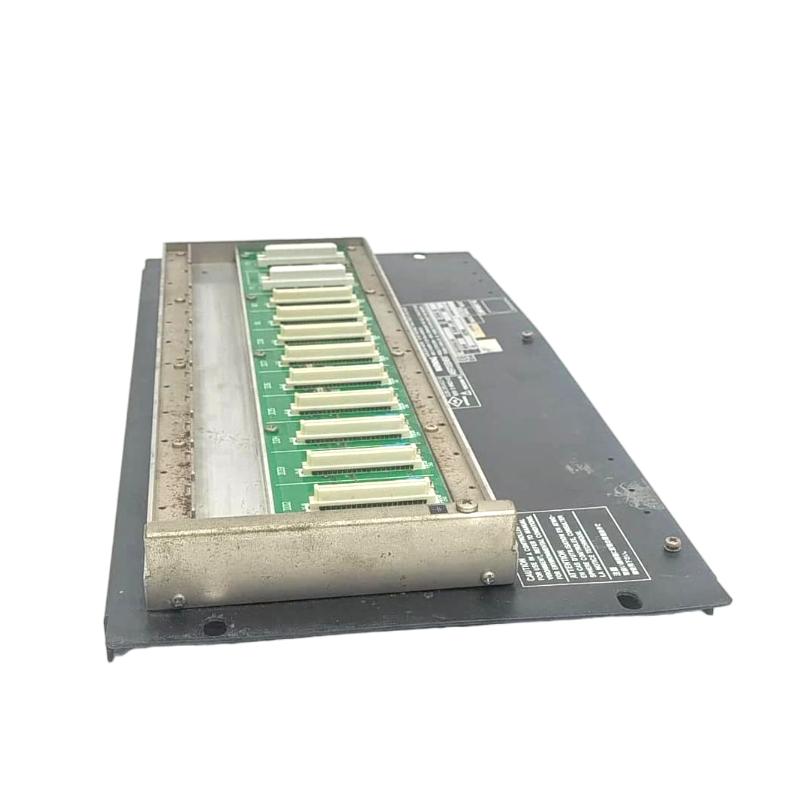

Yokogawa ANB10D-420/CU2N/NDEL ESB Bus Node Unit

Name: Yokogawa ANB10D-420/CU2N/NDEL ESB Bus Node Unit
Brand: Yokogawa Electric
SKU: 3301
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:ANB10D-420/CU2N/NDEL
Product Origin:Japan
Product Dimensions:482.6 × 221.5 × 205 mm
Product Weight:10 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa ANB10D-420/CU2N/NDEL ESB Bus Node Unit is an advanced communication module that integrates seamlessly into Yokogawa’s distributed control systems. Utilizing the Extended System Bus (ESB) communication protocol, the ANB10D-420/CU2N/NDEL ensures high-performance data exchange between controllers and I/O modules. It is designed to meet the rigorous demands of large-scale process automation systems, offering scalability, reliability, and robust performance in industries such as energy, petrochemical, and manufacturing.

Technical Specifications

Specification	Details
Model Number	ANB10D-420/CU2N/NDEL
Module Type	ESB Bus Node Unit
Dimensions	482.6 x 221.5 x 205 mm
Weight	10 kg
Input Power	24V DC
Bus Communication	ESB (Extended System Bus)
Number of Ports	2 (Communication Ports)
Operating Temp	0°C to +60°C
Storage Temp	-20°C to +70°C
Humidity	5-95% RH, non-cond.
Vibration Resistance	1.5mm amplitude, 10-55Hz

Applications

Process Automation: Ideal for large-scale process control systems, ensuring reliable communication between I/O devices and controllers.
Industrial Automation: Suitable for integration within complex automation systems in sectors like oil & gas, pharmaceuticals, and power generation.
Distributed Control Systems (DCS): Supports remote I/O modules, facilitating the expansion of DCS networks without compromising system performance.

Advantages

Reliable Communication: The ESB protocol ensures high-speed, fault-tolerant communication, making it perfect for critical control systems.
Flexibility and Scalability: Easily integrates additional I/O modules, enabling the system to grow as needs increase.
Durable Design: Built to withstand harsh industrial conditions, the unit provides reliable performance in challenging environments.

Technical FAQs

What communication protocol is used by the ANB10D-420/CU2N/NDEL?
The unit uses the ESB (Extended System Bus) communication protocol to connect controllers and I/O devices seamlessly.
How many communication ports does the ANB10D-420/CU2N/NDEL have?
It features 2 communication ports for linking system components.
What is the required power supply for the ANB10D-420/CU2N/NDEL?
The unit operates on a 24V DC power supply.
Can the ANB10D-420/CU2N/NDEL be used in hazardous environments?
It is designed for standard industrial environments and should not be used in hazardous areas.
What is the operating temperature range of the ANB10D-420/CU2N/NDEL?
The unit functions effectively in temperatures from 0°C to +60°C.
Does the ANB10D-420/CU2N/NDEL support communication redundancy?
Yes, the unit supports redundant communication paths to ensure continuous operation in case of a failure.
How is the ANB10D-420/CU2N/NDEL cooled?
The unit employs passive cooling, relying on its chassis design for efficient heat dissipation.
Is the ANB10D-420/CU2N/NDEL compatible with other Yokogawa devices?
Yes, it is fully compatible with other Yokogawa I/O modules and control systems.
Does the ANB10D-420/CU2N/NDEL feature built-in diagnostics?
Yes, it includes diagnostic functions that help detect faults and monitor system health in real-time.
How does the ANB10D-420/CU2N/NDEL handle electrical surges?
The unit is equipped with surge protection to safeguard against transient voltage spikes that may occur in industrial settings.
