ABB 5SHX2645L0004 3BHL000389R0104 Thyristor (IGCT) Module

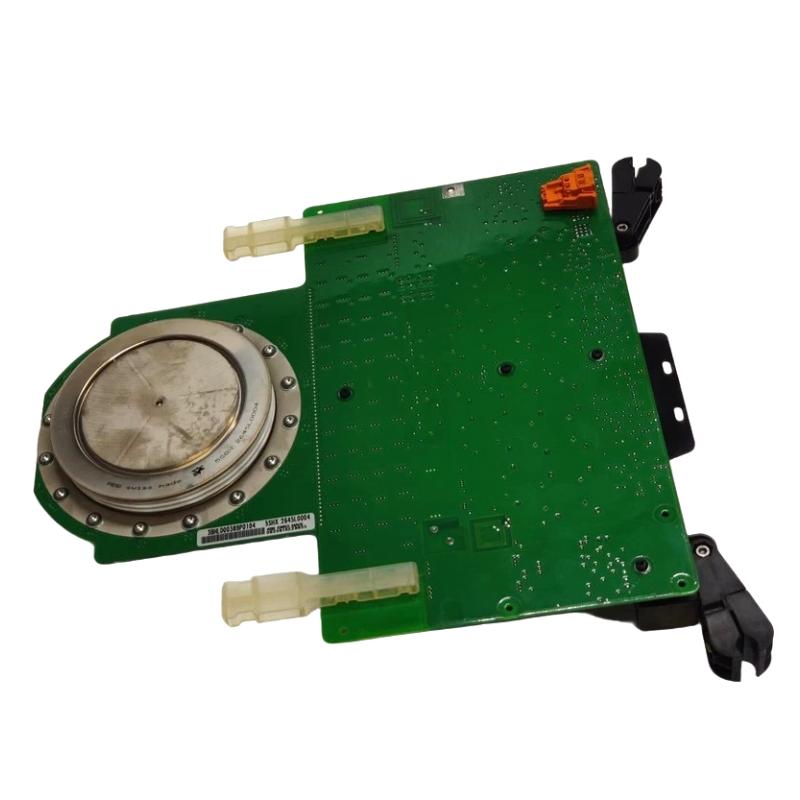

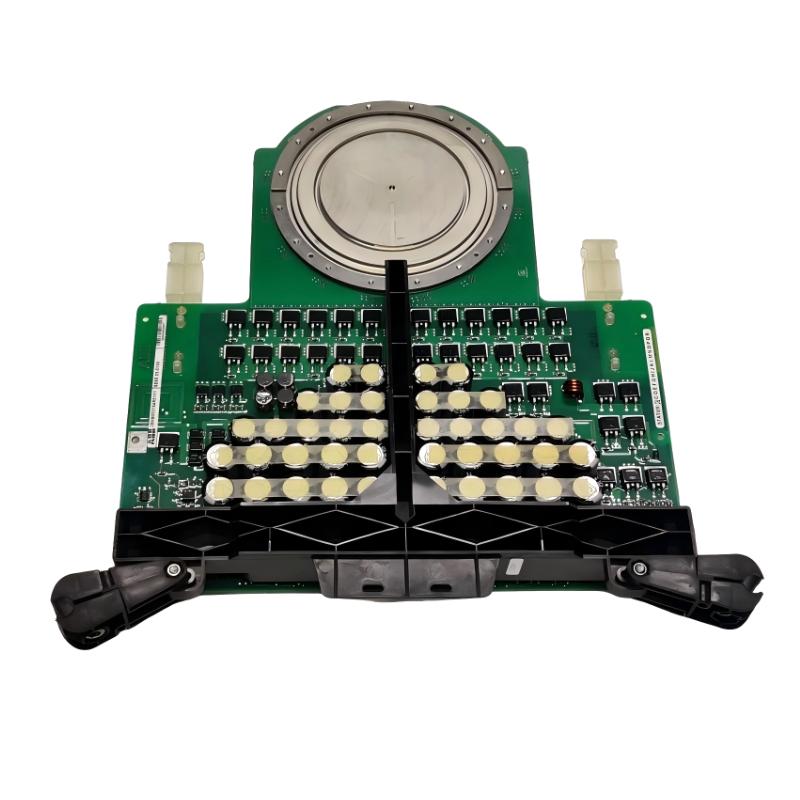

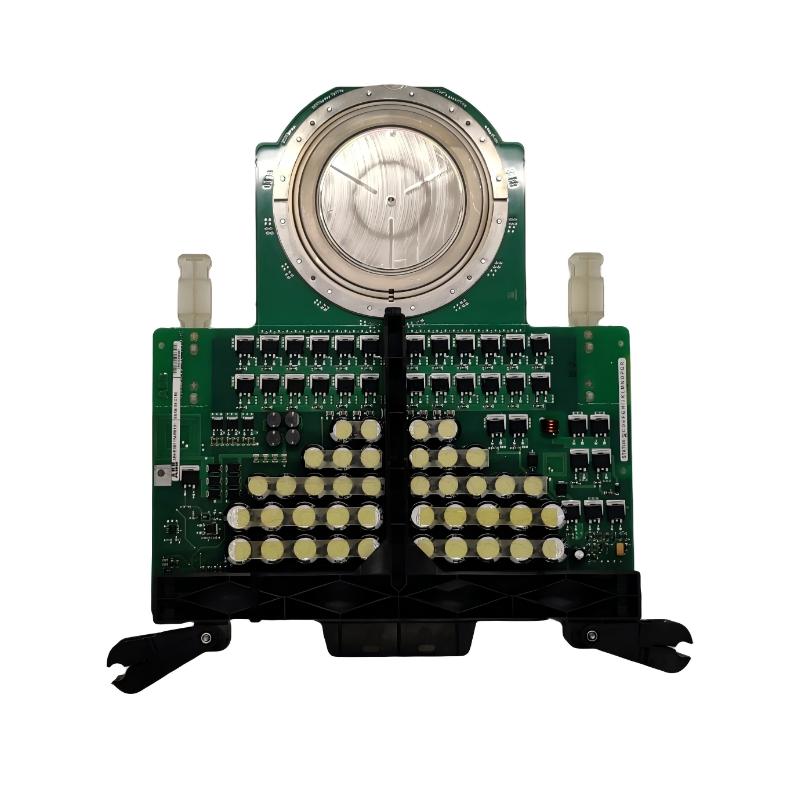

Name: ABB 5SHX2645L0004 3BHL000389R0104 Thyristor (IGCT) Module
Brand: ABB PLC
SKU: 3296
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:5SHX2645L0004 3BHL000389R0104
Product Origin:Sweden
Product Dimensions:140 × 62 × 30 mm
Product Weight:0.4 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB 5SHX2645L0004 3BHL000389R0104 Thyristor (IGCT) Module is designed for high-performance power conversion and control applications. Utilizing Integrated Gate Commutated Thyristor (IGCT) technology, it delivers precise switching for industrial drives, power controllers, and high-voltage applications where efficiency and reliability are critical.

From an engineering perspective, this module emphasizes fast switching, high current handling, and thermal stability. Its compact design allows integration into power electronic assemblies while maintaining optimal performance and system reliability under demanding industrial conditions.

Technical Specifications

Item	Specification
Product Type	Thyristor (IGCT) Module
Model Number	5SHX2645L0004 3BHL000389R0104
Function	High-speed switching and power control in industrial drives and converters
Technology	Integrated Gate Commutated Thyristor (IGCT)
Installation Environment	Power electronic assemblies, control cabinets
Dimensions	140 × 62 × 30 mm (H x W x D)
Weight	0.4 kg

Applications

High-power industrial motor drives
Power converters and rectifier systems
Controlled switching in medium- to high-voltage industrial equipment
Energy management and power regulation systems
Integration into modular power electronic assemblies
Supports reliable operation in continuous-duty industrial processes
Suitable for precise and fast power switching applications

Advantages

Provides high-speed and precise switching for industrial applications
Supports high current and voltage operation with stability
Compact design allows integration into power assemblies
Enhances overall system efficiency and reliability
Compatible with ABB power electronic platforms
Simplifies maintenance and module replacement
Well suited for long-term industrial operation

Technical FAQs

What is the primary function of the 5SHX2645L0004 module?
It performs high-speed switching and power control using IGCT technology.
Is this module suitable for industrial motor drives?
Yes, it is designed for high-performance motor control applications.
Can it handle high current and voltage?
Yes, it supports medium- to high-power industrial applications.
Is it compatible with ABB power electronic systems?
Yes, it integrates seamlessly into ABB power assemblies.
Can it be used in continuous-duty applications?
Yes, it is engineered for sustained industrial operation.
Does it support fast switching performance?
Yes, IGCT technology ensures rapid and precise switching.
How does it simplify maintenance?
Modular design allows easy replacement and integration into assemblies.
Is it suitable for energy management systems?
Yes, it can regulate and control power in industrial energy systems.
Can it support modular power electronic expansions?
Yes, it fits into scalable and modular industrial power systems.
Which industries commonly use this module?
Manufacturing, process automation, energy, and transportation sectors requiring high-performance power control.
