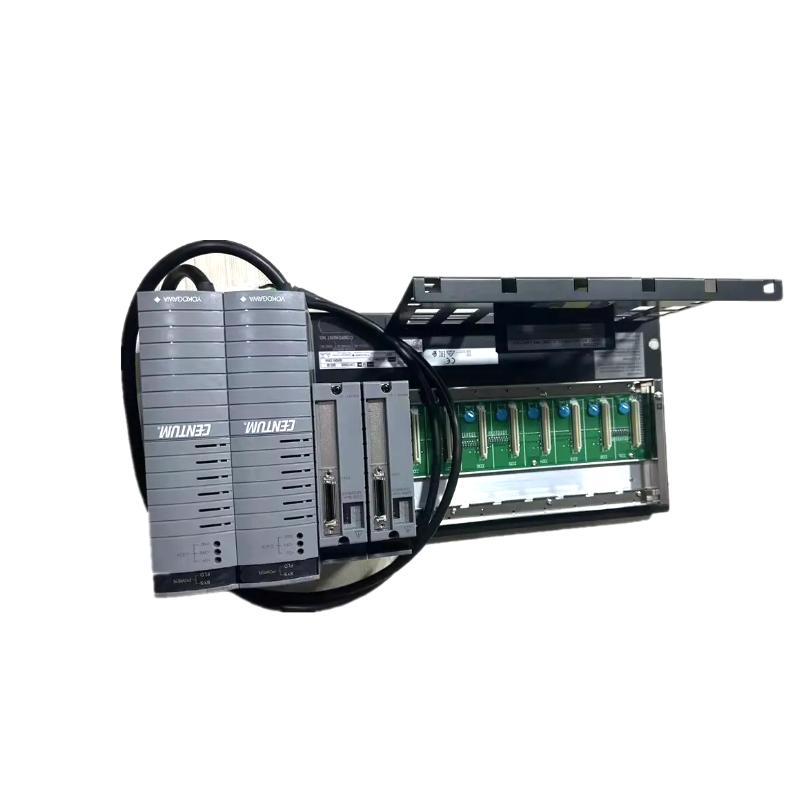

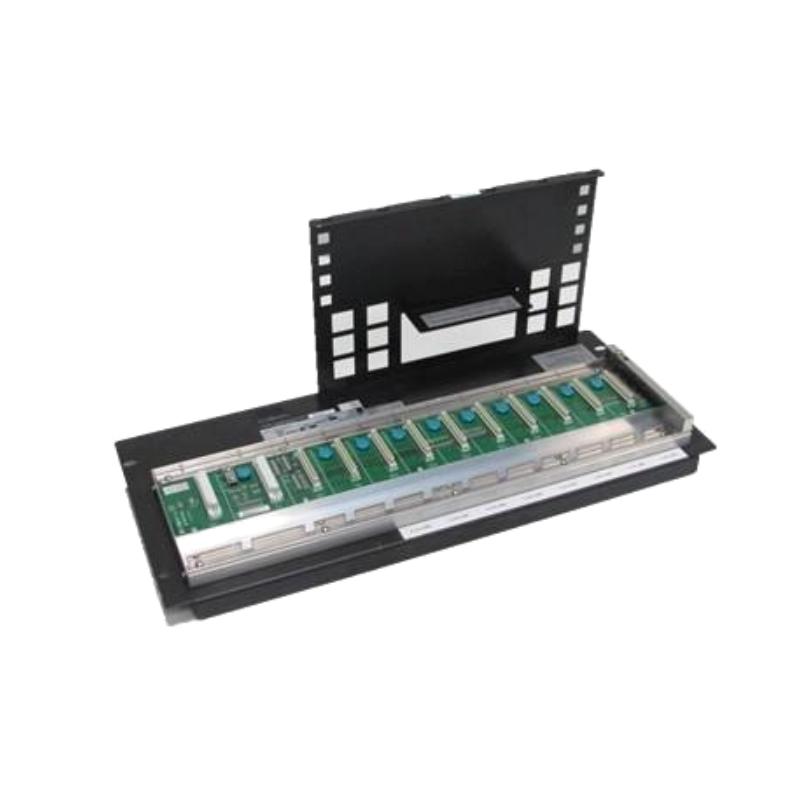

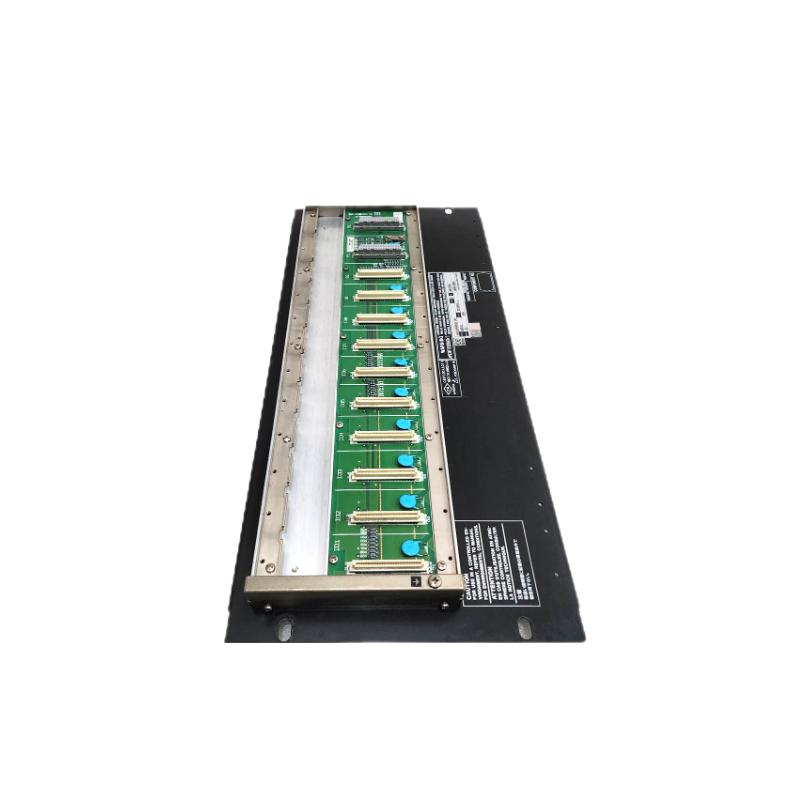

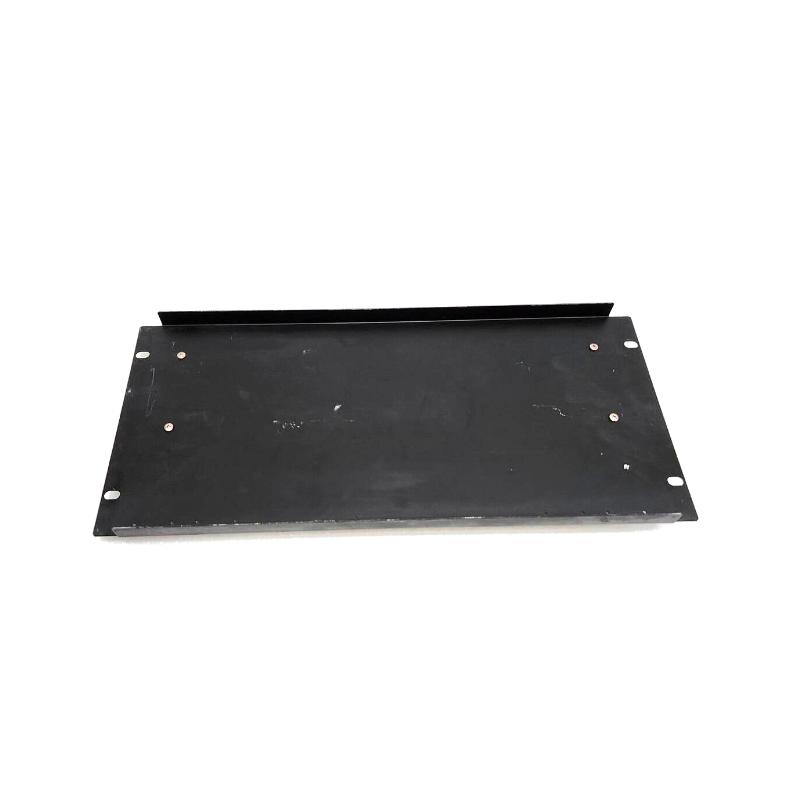

Yokogawa ANB10D-223 S2 ESB Bus Node Unit

Name: Yokogawa ANB10D-223 S2 ESB Bus Node Unit
Brand: Yokogawa Electric
SKU: 3289
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:ANB10D-223 S2
Product Origin:Japan
Product Dimensions:482.6 × 221.5 × 205 mm
Product Weight:10 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa ANB10D-223 S2 ESB Bus Node Unit is an advanced communication interface designed to connect controllers and I/O modules within Yokogawa's distributed control systems. Optimized for the Extended System Bus (ESB) network, this unit facilitates high-speed data exchange and ensures reliable performance in large-scale process automation environments. The ANB10D-223 S2 is ideal for industries such as power generation, petrochemical, and other industrial sectors that require scalable, high-performance control systems.

Technical Specifications

Specification	Details
Model Number	ANB10D-223 S2
Module Type	ESB Bus Node Unit
Dimensions	482.6 x 221.5 x 205 mm
Weight	10 kg
Input Power	24V DC
Bus Communication	ESB (Extended System Bus)
Number of Ports	2 (Communication Ports)
Operating Temp	0°C to +60°C
Storage Temp	-20°C to +70°C
Humidity	5-95% RH, non-cond.
Vibration Resistance	1.5mm amplitude, 10-55Hz

Applications

Process Control Systems: Essential for linking controllers and I/O devices in large-scale process automation systems.
Industrial Automation: Ideal for sectors like oil & gas, power, and chemicals, where high reliability and real-time control are paramount.
Distributed Control Systems (DCS): Enhances the communication between remote I/O devices, providing flexibility and scalability in distributed control setups.

Advantages

High-Speed Communication: The ANB10D-223 S2 supports rapid data transfer, ensuring real-time communication within the ESB network.
Scalable Design: Designed to easily integrate additional I/O modules, providing flexibility for expanding control systems.
Robust Durability: Built to withstand harsh industrial environments with a sturdy design and high resistance to vibrations and shocks.

Technical FAQs

What types of I/O modules are supported by the ANB10D-223 S2?
The unit supports a variety of Yokogawa I/O modules, including digital, analog, and specialized modules for diverse industrial applications.
What is the communication protocol used by the ANB10D-223 S2?
The unit uses the ESB (Extended System Bus) protocol, ensuring reliable communication between the central controller and connected devices.
How does the ANB10D-223 S2 handle redundant communications?
It supports communication redundancy, ensuring continuous data exchange even if one communication path fails.
What is the maximum power consumption of the ANB10D-223 S2?
The unit consumes approximately 18W during normal operation.
Can the ANB10D-223 S2 be used in outdoor installations?
While designed for industrial environments, it should be installed in protective enclosures when used outdoors to shield it from extreme weather.
What cooling mechanism does the ANB10D-223 S2 use?
The unit is passively cooled through its design, with natural heat dissipation.
Does the ANB10D-223 S2 have built-in diagnostic features?
Yes, it includes diagnostic capabilities to monitor system health and detect faults in real-time.
Is the ANB10D-223 S2 compatible with other Yokogawa control systems?
Yes, it is designed to seamlessly integrate with other Yokogawa systems, such as controllers and I/O modules.
How does the ANB10D-223 S2 handle electrical surges?
It is equipped with surge protection to safeguard against transient voltage spikes that might occur in industrial environments.
What is the expected lifespan of the ANB10D-223 S2?
With proper maintenance and operation within specified environmental conditions, the unit is expected to last 10+ years.
