Introduction

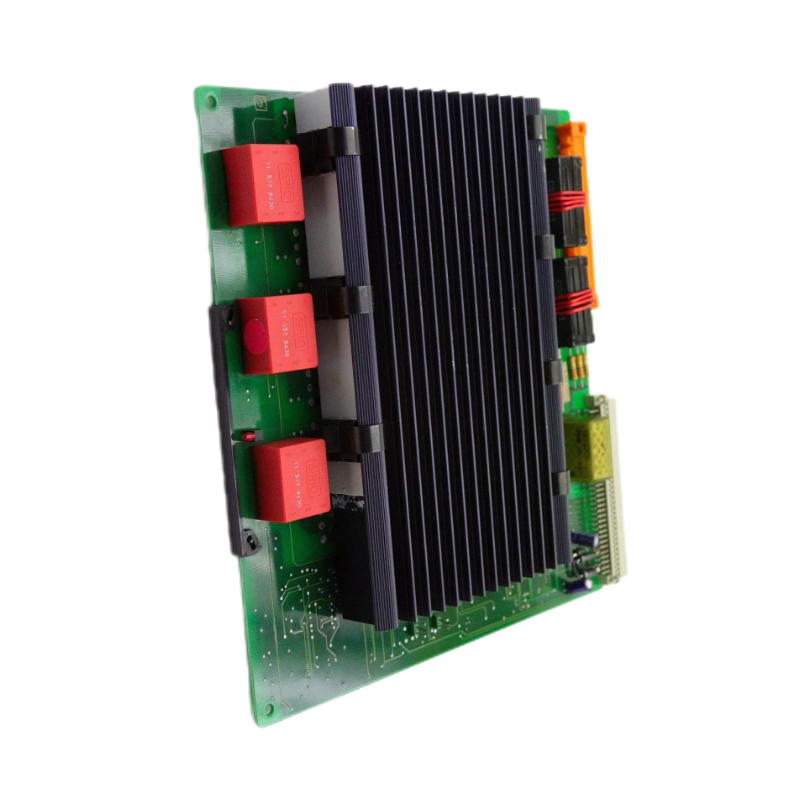

The ABB DSQC236G YB560103‑CD Servo Drive Control Board is a rugged, high-performance axis drive board engineered for precise servo motion control within ABB robotic systems. Designed to manage and synchronize servo motor axes, this board plays a pivotal role in translating motion commands into smooth, accurate movements for industrial robots and automated equipment. With a reliable interface and robust electrical design, the DSQC236G supports seamless integration with ABB controllers, helping to maximize uptime and productivity in demanding factory environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | DSQC236G YB560103‑CD |
| Module Type | Servo Drive Control Board / Robotics Axis Board |
| Primary Function | Servo axis motion control and feedback processing |
| System Compatibility | ABB IRC5, S4C+, and select legacy robot controllers |
| Electrical Supply | Typically 24 V DC from controller backplane |
| Signal Interfaces | Encoder feedback, motor control outputs, bus interface |
| Control Communication | Backplane and internal communications with CPU |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –40 °C to +70 °C |
| Humidity Tolerance | 5 %–95 % non-condensing |
| Mounting | Slot-mount inside robot controller chassis |
| Dimensions (HxWxD) | Approximately 254 mm × 25 mm × 245 mm |
| Weight | Approx. 0.4–0.5 kg (0.88–1.10 lb) |
