Product Overview

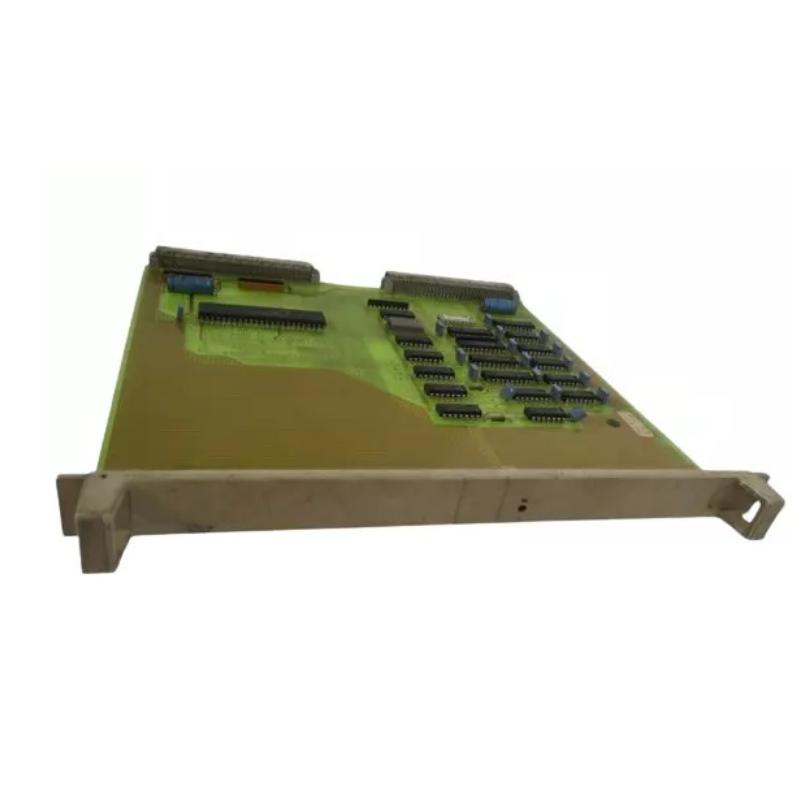

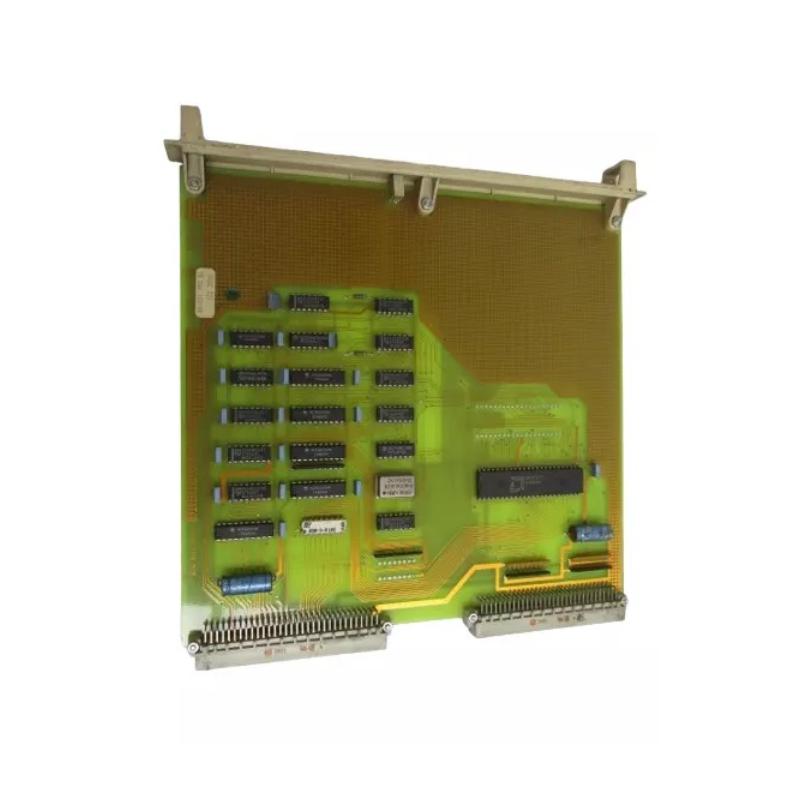

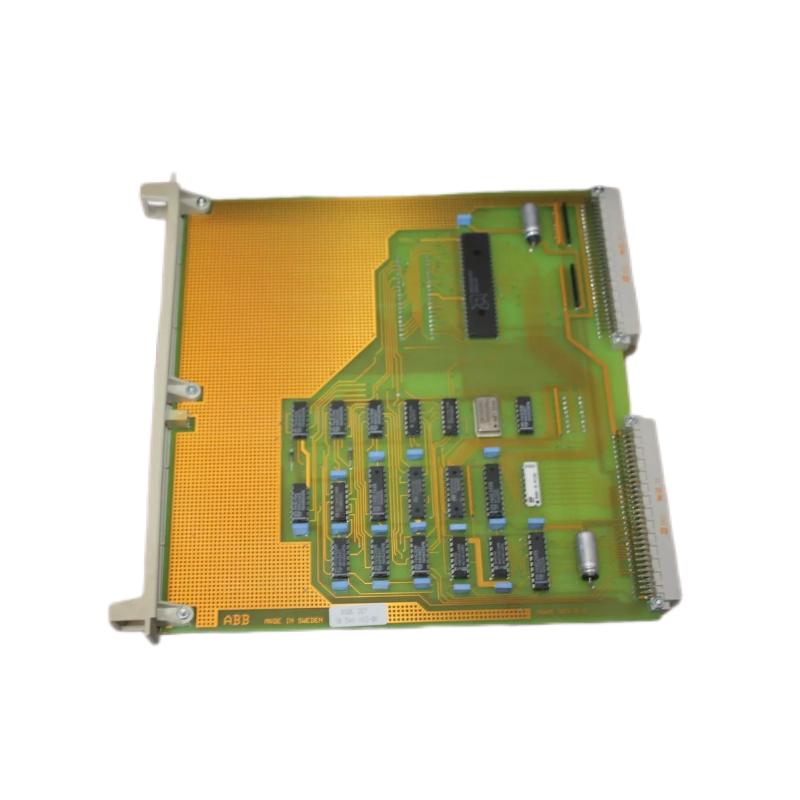

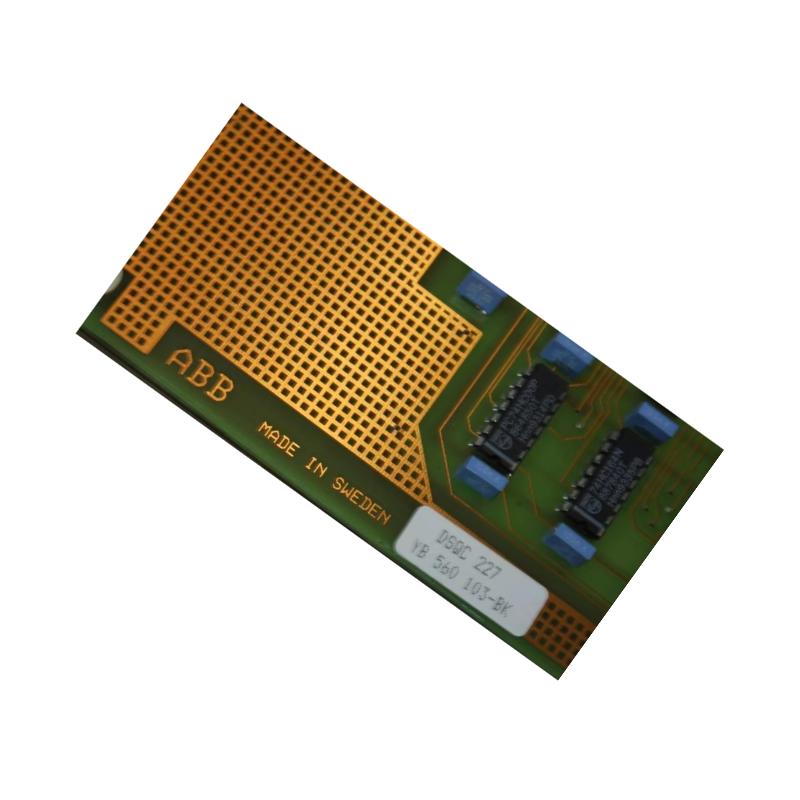

The ABB DSQC 227 YB560103‑BK Robot Circuit Board is a robust industrial interface module designed for seamless communication inside ABB robotic controllers. Commonly known as the Winchester Interface Board, this board plays a central role in managing data flow between robot CPU, I/O interfaces, and peripheral systems. With its compact form factor and reliable electrical characteristics, the DSQC 227 is ideal for automation engineers seeking dependable performance in factory robots and heavy‑duty motion systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | DSQC 227 YB560103‑BK |
| Module Type | Robot Circuit Board / Winchester Interface |
| Function | Communication & interface board for ABB robotic controllers |
| System Compatibility | S3, S4, S4C / selected IRC5 and legacy ABB systems |
| Power Supply | 24 V DC (controller backplane supplied) |
| I/O Count | Up to 16 digital inputs and 16 digital outputs |
| Communication Interfaces | Serial, discrete signals, encoder/feedback interfaces |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5%–95% non‑condensing |
| Mounting | Slot‑mount inside robot controller rack |
| Protection Rating | IP20 (internal use only) |
| Dimensions (HxWxD) | Approximately 22 mm × 124 mm × 126 mm |
| Weight | Approximate 0.10 kg (100 g) |
