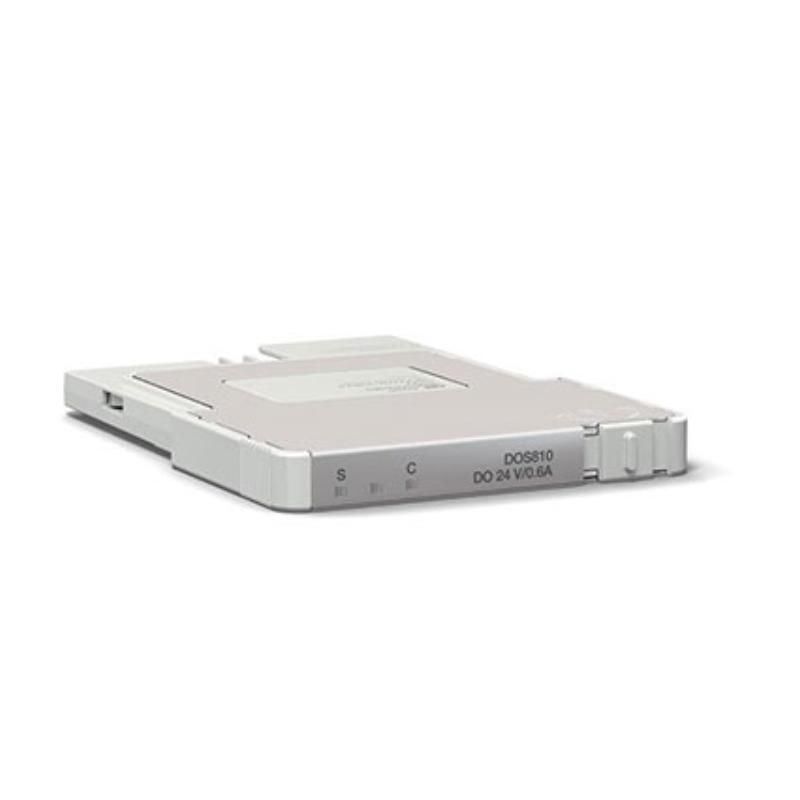

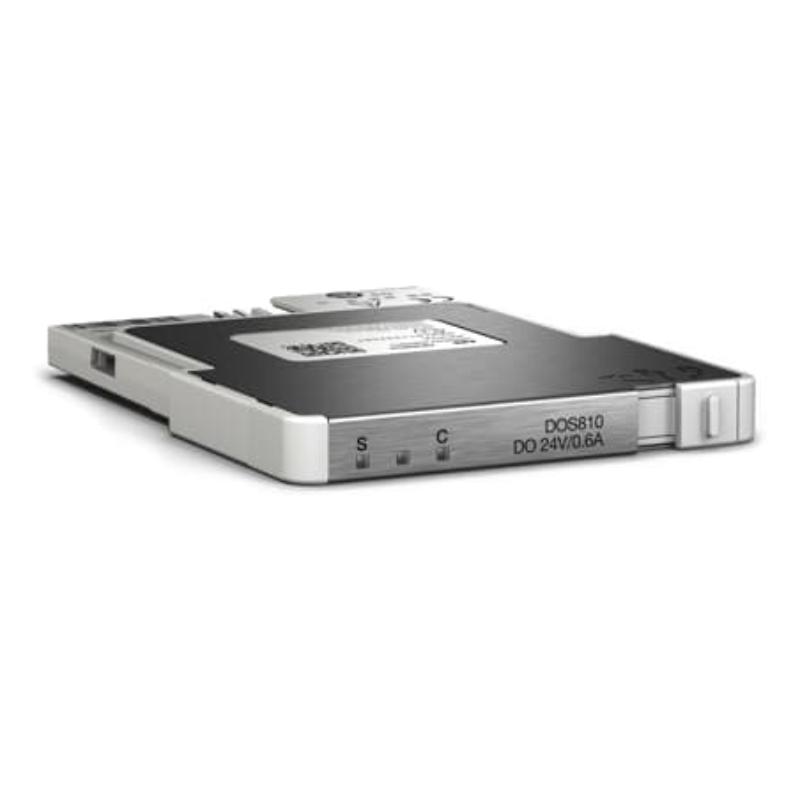

ABB DOS810 3BSE078768R1 Digital Output Modules

Name: ABB DOS810 3BSE078768R1 Digital Output Modules
Brand: ABB PLC
SKU: 3222
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DOS810 3BSE078768R1
Product Origin:Sweden
Product Dimensions:125*45*60mm
Product Weight:0.28 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB DOS810 3BSE078768R1 Digital Output Module is a rugged industrial interface designed to deliver precise, reliable digital control signals to field devices. Engineered for demanding automation systems, this module provides multiple discrete output channels with robust switching capabilities and status diagnostics. Its dependable performance makes it a core element in ABB distributed I/O and control architectures where dependable discrete control is required.

Technical Specifications & Physical Details

Specification	Description
Manufacturer	ABB
Model Number	DOS810 (3BSE078768R1)
Module Type	Digital Output Module
I/O System	Modular industrial control platforms (e.g., S800 Series)
Number of Outputs	8 discrete channels
Output Type	Solid‑state transistor outputs
Nominal Output Voltage	24 V DC
Load Current per Channel	Up to 0.5 A (typical)
Isolation	Channel‑to‑common with integrated protection circuitry
Switching Capability	High‑speed switching for discrete control
Diagnostics	Channel status and fault indication
Operating Temperature	–20°C to +60°C (industrial grade)
Mounting	Rack, chassis, or DIN rail compatible

Applications

The DOS810 module excels in industrial environments where discrete outputs are needed to control and signal field devices:

Energizing solenoid valves, pilot lights, and relays
Driving contactors and actuator inputs
Discrete outputs for PLC and DCS systems
Machine safety and interlock control circuits
Automated manufacturing lines and process control panels

Advantages

Reliable switching: Solid‑state transistor outputs deliver high‑speed and dependable control.
Compact form factor: Saves space in dense panel and rack installations.
Status diagnostics: Output channel indicators support maintenance and troubleshooting.
Industrial ruggedness: Designed for continuous operation under harsh conditions.
Flexible mounting: Suitable for rack, chassis, and DIN rail arrangements.
Seamless integration: Works with ABB control architectures and modular I/O racks.

Technical FAQs

How many output channels does the DOS810 provide?
It provides 8 discrete output channels.
What type of loads can it drive?
Typical loads include solenoids, pilot lights, relays, and contactor coils compatible with 24 V DC.
What is the maximum current per channel?
Each channel can handle up to approximately 0.5 A.
Is it suitable for fast switching applications?
Yes — solid‑state transistor outputs support rapid control cycles.
Does the module provide status feedback?
Yes — channel status indicators help with diagnostics and service.
What is the operating temperature range?
–20°C to +60°C for standard industrial use.
How is it mounted?
Designed for installation in racks, chassis, or DIN rail systems.
Is electrical isolation provided?
Yes — channel‑to‑common isolation improves noise immunity.
Can it interface with PLC or DCS systems?
Yes — it integrates seamlessly with industrial controllers.
Which industries commonly use this module?
Process automation, manufacturing, energy, utilities, and machinery control systems.
