Technical FAQs

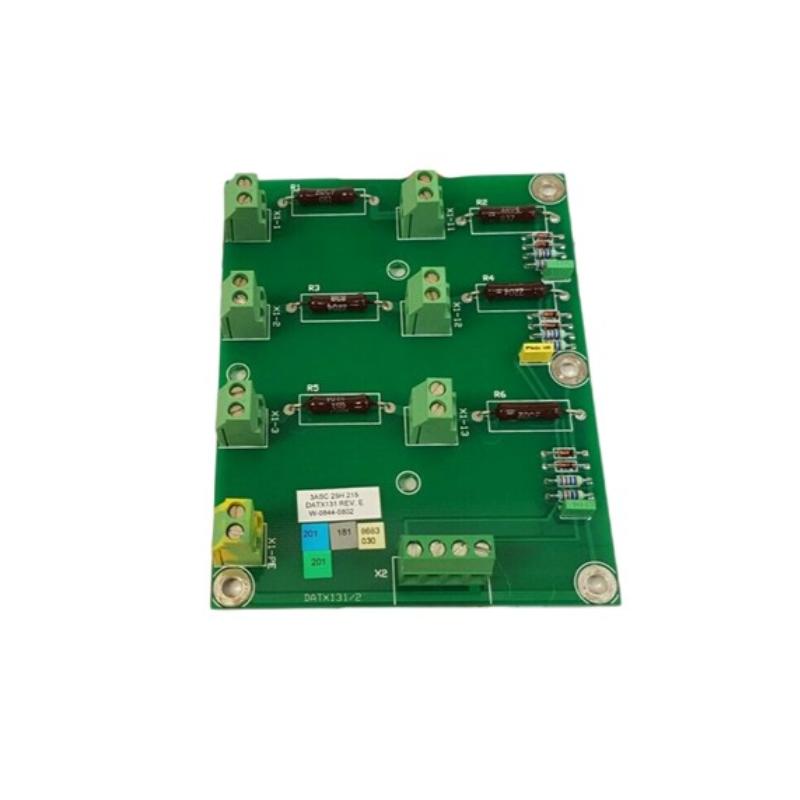

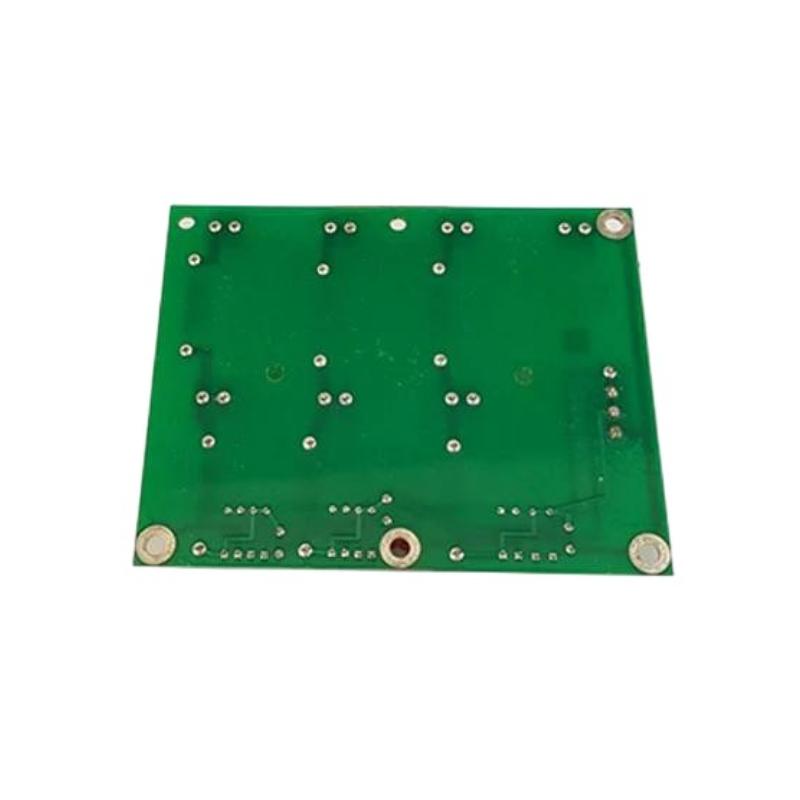

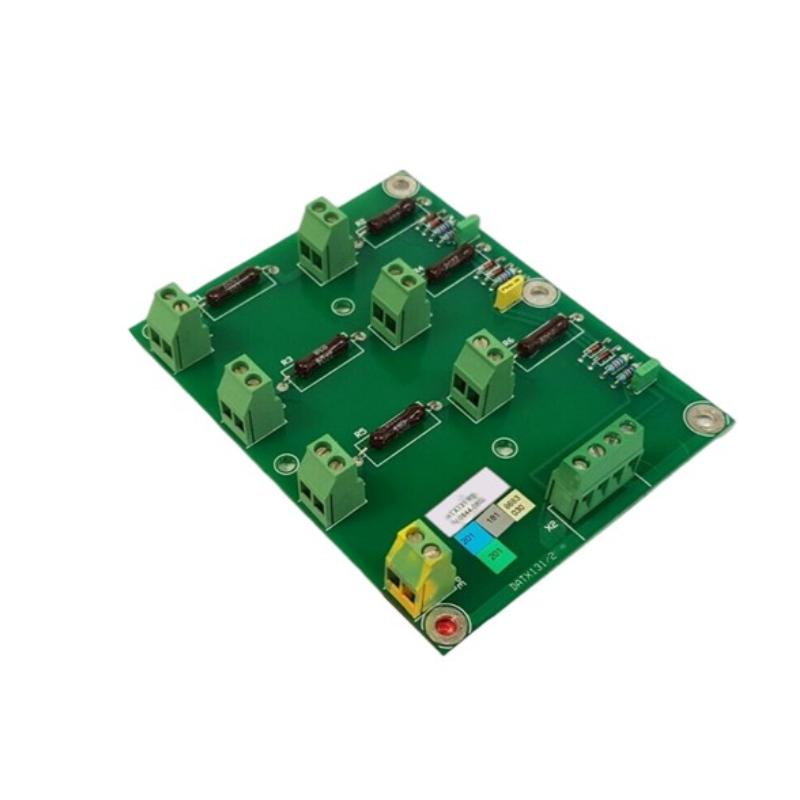

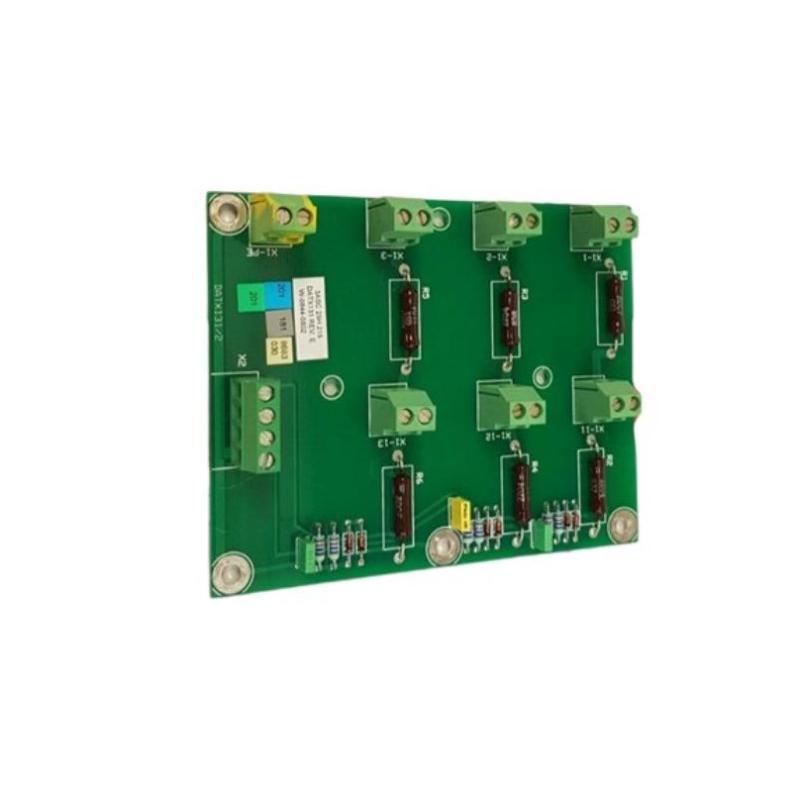

1. What is the purpose of the DATX131 board?
   It divides and scales higher‑voltage field signals down to levels compatible with ABB I/O modules.

2. Which signal types are supported?
   Low to medium voltage analog and digital signals such as 0–10 V or similar.

3. Where is it typically installed?
   Within a control cabinet on the S800 I/O rack or panel mount near field terminations.

4. Does it provide electrical isolation?
   Yes — standard industrial isolation ensures separation between field and control circuits.

5. What is the operating temperature range?
   –20°C to +60°C, suitable for typical industrial applications.

6. Does it require external power?
   It operates from field voltage levels and the I/O bus; no separate supply is usually needed.

7. Can it improve measurement accuracy?
   Yes — stable voltage division reduces errors before signal acquisition.

8. Is it suitable for mixed‑signal environments?
   Yes — compatible with both analog and digital signal translation needs.

9. Can it be used outside ABB systems?
   Electrically yes, but performance is optimized for S800 I/O integration.

10. Which industries use this module?
    Manufacturing, process automation, utilities, and machine control applications.
