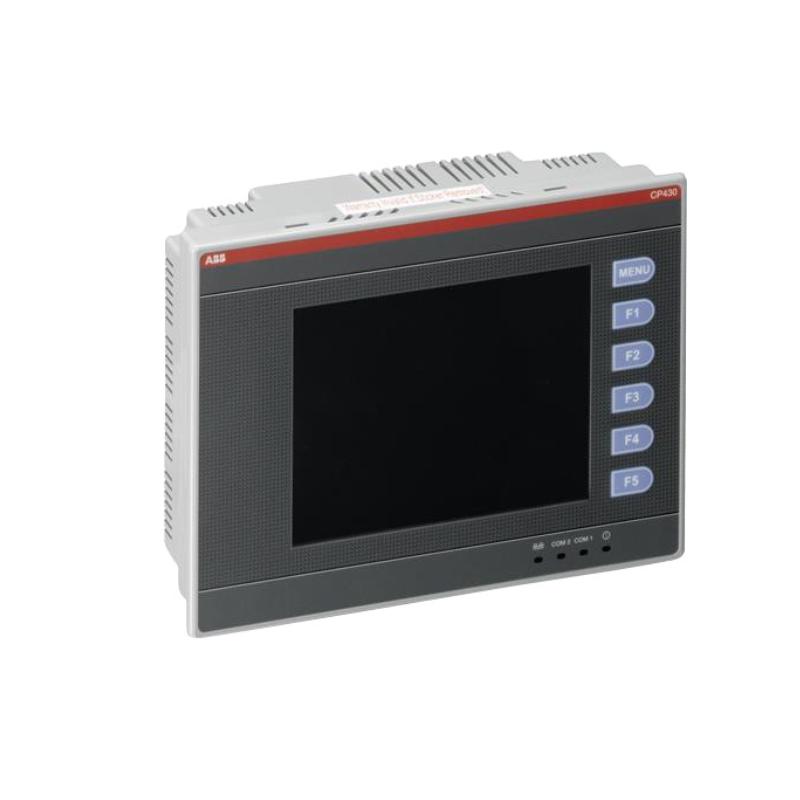

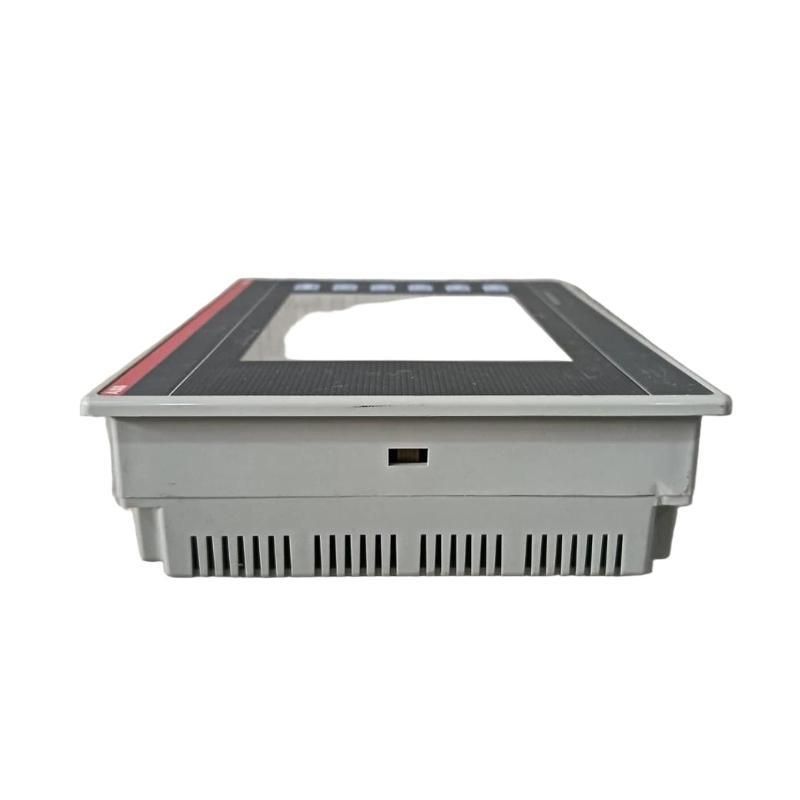

ABB CP430B 1SBP260183R1001 Touch Screen

Brand:ABB PLC
Item No.:CP430B 1SBP260183R1001
Product Origin:Sweden
Product Dimensions:60 x 145 x 195 mm
Product Weight:0.8kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

CP430B 1SBP260183R1001 (2)CP430B 1SBP260183R1001 (1)CP430B 1SBP260183R1001 (4)CP430B 1SBP260183R1001 (3)

Introduction

The ABB CP430B 1SBP260183R1001 Touch Screen is a rugged industrial human‑machine interface (HMI) developed for operator control and monitoring within automation and process control environments. Featuring a responsive touch display and intuitive navigation, the CP430B delivers efficient real‑time interaction with ABB controllers, distributed I/O systems, and operator workstations. Its sturdy construction and ergonomic design make it ideal for demanding industrial applications where reliability and visibility are crucial.

Technical Specifications & Physical Details

SpecificationDetails
ManufacturerABB
Model NumberCP430B (1SBP260183R1001)
Device TypeTouch Screen / HMI Panel
Display15‑inch color TFT touchscreen
Resolution1024 × 768 pixels (XGA)
User InterfaceGraphical HMI with multi‑touch support
Communication InterfacesEthernet, RS‑232/RS‑485, optional fieldbus connectivity
Power Supply24 V DC nominal
Operating Temperature0°C to +50°C (industrial grade)
MountingPanel‑mount or console installation
Environmental RatingIP65 front panel / industrial rugged enclosure


Applications

The CP430B Touch Screen excels in roles that demand intuitive control and real‑time data visibility:

  • Interactive monitoring of process variables in industrial automation

  • Operator control interface for PLCs, DCS, and S800 I/O systems

  • Real‑time alarms, trends, and diagnostics visualization

  • Panel integration for central control room or local machine interface

  • Flexible deployment across manufacturing, utilities, and energy systems


Advantages

  • Large, high‑resolution touchscreen: Enhanced visibility and operator interaction

  • Ergonomic design: Comfortable layout for extended operator use

  • Industrial reliability: IP65 front panel and rugged housing protect against dust and moisture

  • Flexible communications: Multiple interface options support diverse control architectures

  • Seamless system integration: Works with ABB controllers and distributed I/O modules

  • Real‑time process insights: Enables visualization of trends, alarms, and control actions


Technical FAQs

  1. What is the screen size and resolution of the CP430B?
    15‑inch TFT touchscreen with 1024 × 768 pixel resolution.

  2. Which communication interfaces are supported?
    Ethernet, RS‑232/RS‑485, and optional fieldbus connectivity.

  3. What is the operating temperature range?
    0°C to +50°C for industrial environments.

  4. How is the panel powered?
    Standard 24 V DC supply.

  5. Is the unit suitable for industrial environments?
    Yes — rugged design with an IP65 front panel for dust and moisture resistance.

  6. Can it display alarms and trends?
    Yes — full real‑time visualization of alarms, trends, and control data is supported.

  7. Does it support multi‑touch input?
    Yes — designed for responsive multi‑touch operation.

  8. Can it be wall or console mounted?
    Yes — panel or console mount options are supported.

  9. Is it compatible with ABB automation systems?
    Yes — integrates with PLCs, AC800M, S800 I/O, and distributed control systems.

  10. Which industries commonly use this touch panel?
    Manufacturing, energy, water/wastewater, process automation, and machine control environments.
