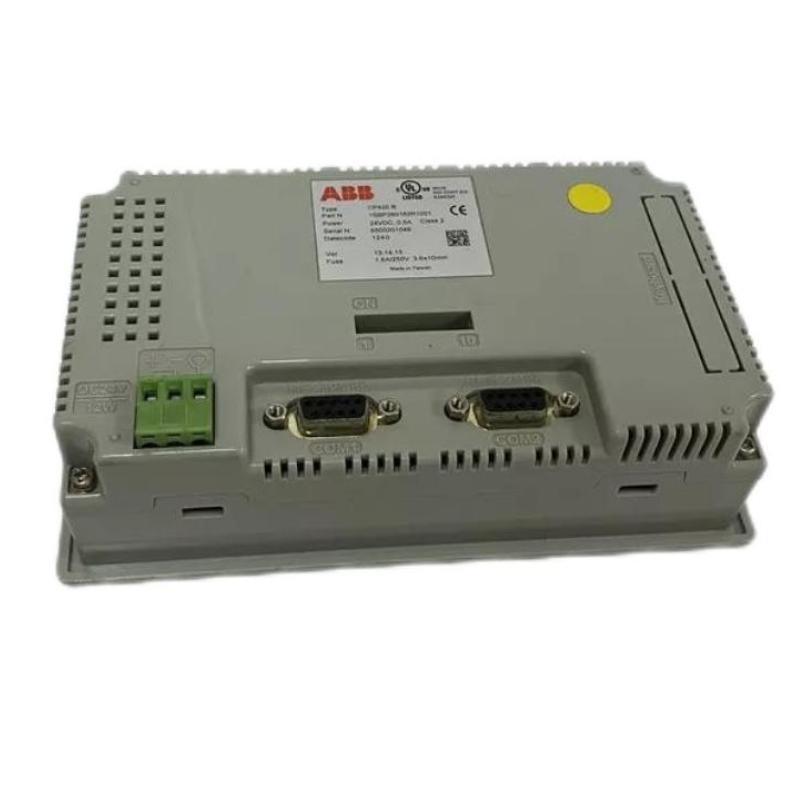

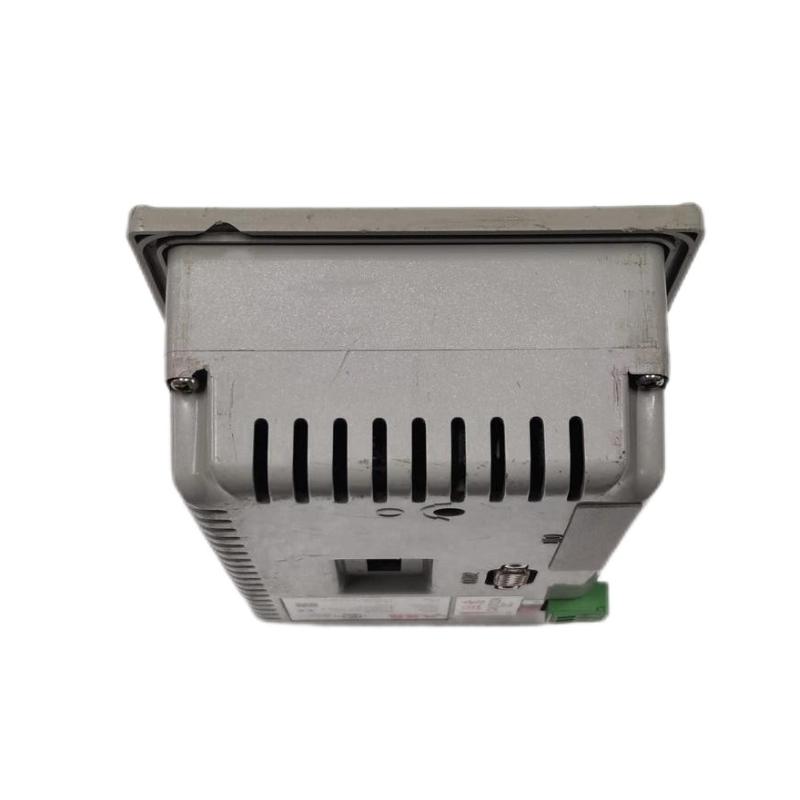

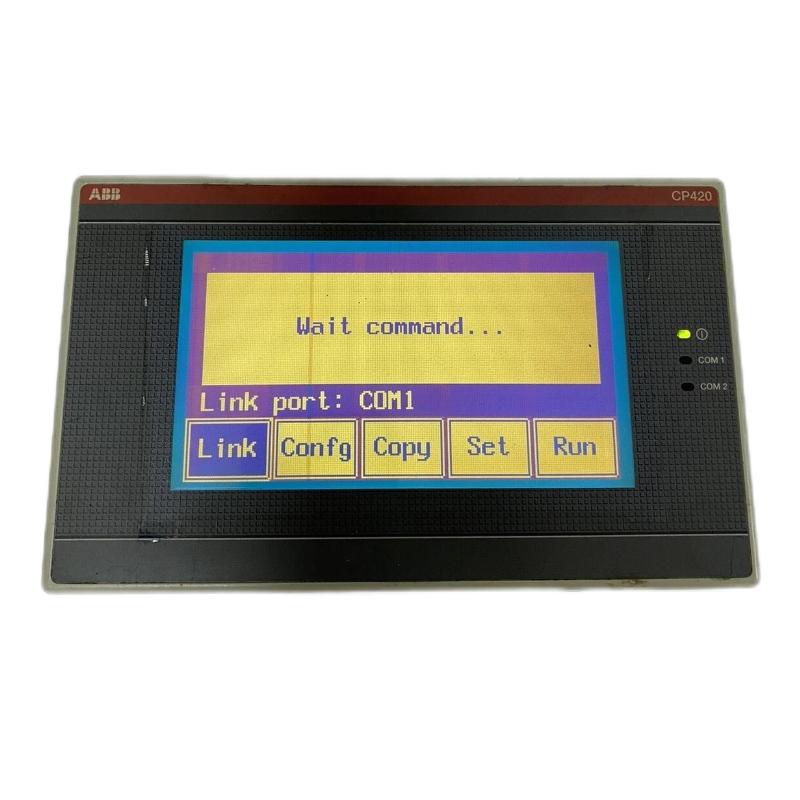

ABB CP420B 1SBP260182R1001 Touch Screen

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB CP420B 1SBP260182R1001 Touch Screen

Name: ABB CP420B 1SBP260182R1001 Touch Screen
Brand: ABB PLC
SKU: 3182
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:CP420B 1SBP260182R1001
Product Origin:Sweden
Product Dimensions:96 x 96 x 41 mm
Product Weight:0.2kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB CP420B 1SBP260182R1001 Touch Screen is a high-performance human-machine interface (HMI) designed for industrial automation and process control applications. It provides operators with an intuitive, responsive touchscreen interface for monitoring, control, and configuration of ABB controllers and distributed I/O systems. Built for rugged industrial environments, the CP420B combines reliability, precision, and ergonomic operation for efficient plant management.

Technical Specifications & Physical Details

Specification	Details
Manufacturer	ABB
Model Number	CP420B (1SBP260182R1001)
Device Type	Touch Screen / HMI Panel
Display	12.1-inch color touchscreen TFT LCD
Resolution	800 × 600 pixels (SVGA)
User Interface	Graphical HMI with multi-touch support
Communication Interfaces	Ethernet, RS232/RS485, optional fieldbus protocols
Power Supply	24 V DC nominal
Operating Temperature	0°C to +50°C
Mounting	Panel-mount or console installation
Environmental Rating	IP65 front panel, industrial-grade durability

Applications

The CP420B Touch Screen is used in environments where precise operator control and monitoring are essential:

Supervising ABB automation systems and distributed control systems (DCS)
Real-time monitoring of production lines, sensors, and process variables
Adjusting setpoints and controlling machinery through touch input
Integrating with S800 I/O, AC800M, or CMA-series panels
Industrial operations requiring ergonomic, reliable, and responsive operator interfaces

Advantages

Intuitive touchscreen operation: Multi-touch interface simplifies operator interaction
Robust industrial design: IP65 front panel and durable construction for harsh environments
Flexible connectivity: Supports Ethernet, serial, and optional fieldbus protocols
Real-time monitoring and control: Quick feedback for operators and process control
Seamless ABB integration: Compatible with S800 I/O, AC800M controllers, and DCS systems
Compact footprint: Optimized for panel or console mounting

Technical FAQs

What is the screen size and resolution of the CP420B?
12.1-inch color TFT touchscreen with 800 × 600 pixels (SVGA).
Which communication protocols are supported?
Ethernet, RS232/RS485, and optional fieldbus connections.
What is the operating temperature range?
0°C to +50°C.
How is the panel powered?
24 V DC nominal supply.
Is the panel suitable for industrial environments?
Yes — IP65 front panel and rugged design ensure durability.
Can operators adjust process parameters directly from the touch screen?
Yes — full control of setpoints, alarms, and system configuration is supported.
Is it compatible with ABB S800 I/O modules?
Yes — fully integrates with ABB distributed I/O systems.
Does it support multi-touch operation?
Yes — responsive multi-touch interface for intuitive operation.
Can it monitor alarms and events?
Yes — real-time alarm and event monitoring is provided.
Which industries commonly use the CP420B?
Manufacturing, energy, water treatment, chemical processing, and general industrial automation.
