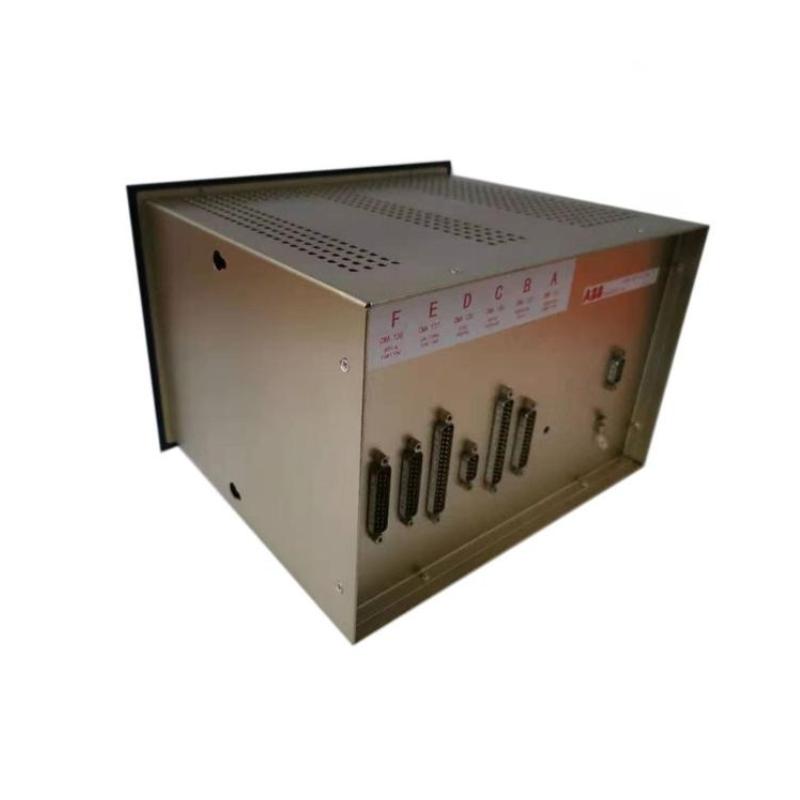

ABB CMA120 3DDE300400 Controller Panel

Brand:ABB PLC
Item No.:CMA120 3DDE300400
Product Origin:Sweden
Product Dimensions:90 x 75 x 25 mm
Product Weight:0.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

CMA120 3DDE300400 (2)CMA120 3DDE300400 (1)CMA120 3DDE300400 (1)(1)CMA120 3DDE300400 (2)(1)

Introduction

The ABB CMA120 3DDE300400 Controller Panel is a high-performance operator interface panel designed for industrial control applications. It provides intuitive monitoring, configuration, and control of ABB automation systems, allowing operators to interact efficiently with distributed control and process management setups. Built for rugged industrial environments, the CMA120 offers reliability, ergonomic design, and seamless integration with ABB controllers and I/O modules.

Technical Specifications & Physical Details

SpecificationDetails
ManufacturerABB
Model NumberCMA120 (3DDE300400)
Device TypeController Panel / Operator Interface
Display TypeColor LCD / touchscreen (system dependent)
User InterfaceGraphical HMI with pushbuttons and navigation keys
Communication InterfacesEthernet, RS232/RS485, optional fieldbus protocols
Power Supply24 V DC nominal
Operating Temperature0°C to +55°C (typical industrial)
MountingPanel-mount or console installation
Environmental RatingIndustrial-grade, dust and vibration resistant


Applications

The CMA120 panel is used in applications where operators require real-time process monitoring and control:

  • Supervising ABB automation and distributed control systems

  • Monitoring production lines, process variables, and safety alarms

  • Adjusting control parameters and setpoints in real time

  • Integrating with S800 I/O, DCS, and PLC systems for centralized control

  • Industrial plants requiring ergonomic and reliable operator interfaces


Advantages

  • Intuitive HMI: Graphical interface enables easy navigation and monitoring

  • Robust design: Withstands vibration, dust, and industrial operating conditions

  • Flexible connectivity: Supports Ethernet and serial communication with controllers

  • Seamless integration: Works with ABB controllers, S800 I/O, and other automation devices

  • Real-time monitoring: Enables quick response to process changes and alarms

  • Compact form factor: Optimized for panel or console installation without occupying excessive space


Technical FAQs

  1. What is the primary function of the CMA120?
    It serves as a user interface panel for monitoring and controlling ABB automation systems.

  2. What type of display does it have?
    Color LCD with graphical HMI and optional touchscreen capability.

  3. Which communication protocols are supported?
    Ethernet, RS232/RS485, and optional fieldbus protocols.

  4. What is the operating temperature range?
    0°C to +55°C.

  5. How is it powered?
    24 V DC nominal supply.

  6. Can it integrate with S800 I/O or DCS systems?
    Yes — fully compatible with ABB automation systems.

  7. Is it suitable for industrial environments?
    Yes — designed to withstand vibration, dust, and continuous operation.

  8. Does it support alarm monitoring?
    Yes — real-time alarm monitoring and process feedback is supported.

  9. Can operators adjust control parameters from the panel?
    Yes — full control of setpoints and system configuration is possible.

  10. Which industries commonly use the CMA120?
    Manufacturing, chemical processing, energy, water treatment, and process automation facilities.
