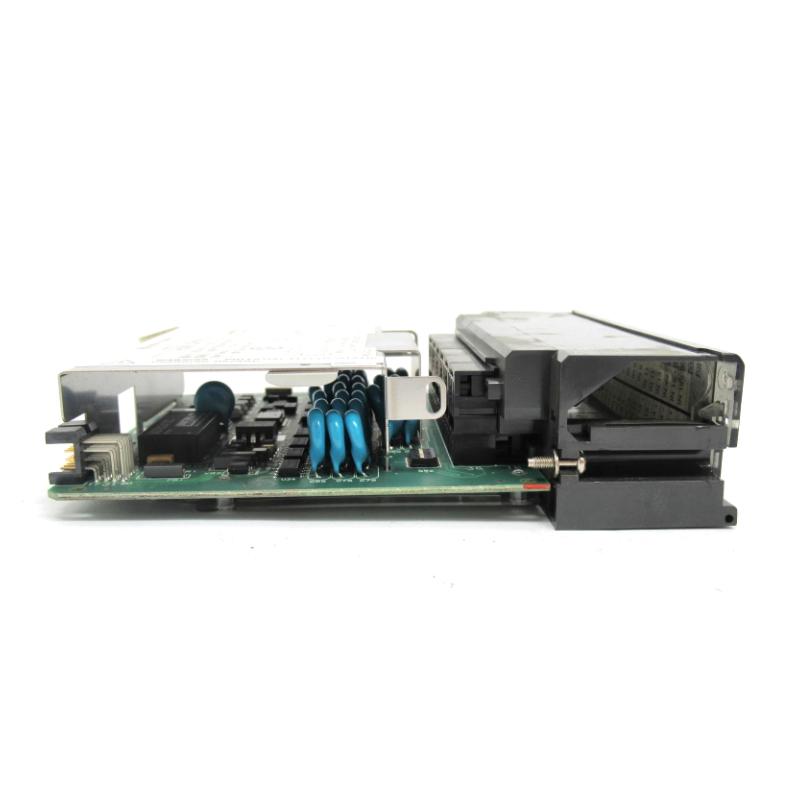

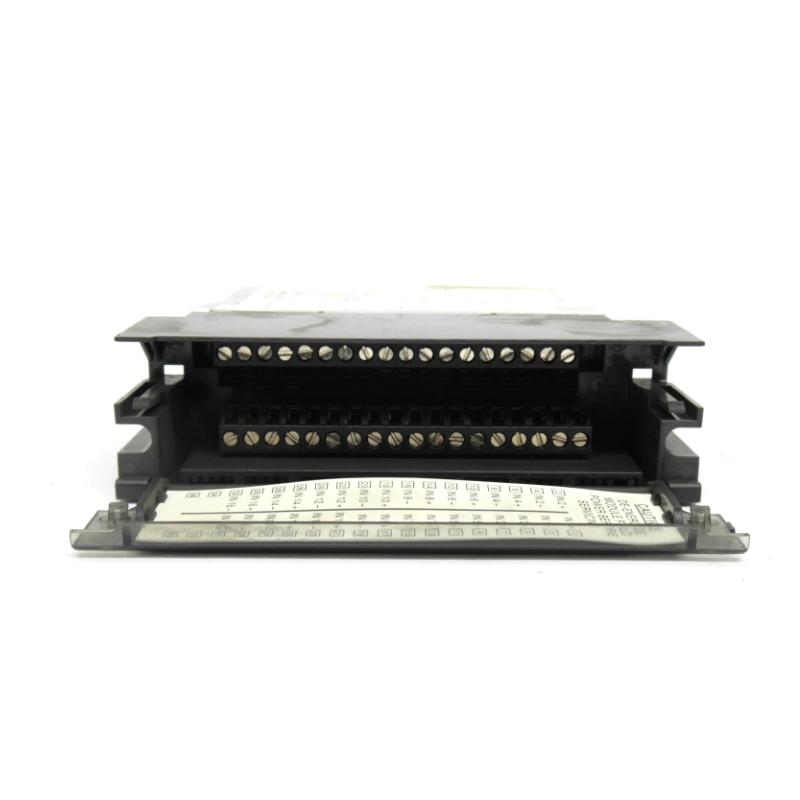

Honeywell 900A16-0106 HC900 High-Level Analog Input Module

Name: Honeywell 900A16-0106 HC900 High-Level Analog Input Module
Brand: Honeywell DCS
SKU: 3163
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Honeywell DCS
Item No.:900A16-0106 HC900
Product Origin:USA
Product Dimensions:137 x 35.6 x 137.16 mm
Product Weight:0.4kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Insight & Overview

The Honeywell 900A16‑0106 High‑Level Analog Input Module is a rugged, industry‑grade I/O component crafted for the ControlEdge HC900™ process control platform. This module is engineered to convert high‑level analog signals—such as voltage and current—from field sensors into precise digital data that a controller can act on. Designed for continuous industrial operations, it combines robust signal acquisition with excellent noise immunity for real‑time process measurement.

Core Specifications & Physical Details

Specification	Description
Manufacturer	Honeywell
Model Number	900A16‑0106
Module Type	High‑Level Analog Input Module
Supported Channels	Up to 16 isolated analog inputs
Signal Types	Voltage (V), Current (mA)
Input Isolation	Point‑to‑point galvanic isolation + backplane isolation
Input Impedance	>1 MΩ (voltage), 250 Ω (current)
Noise Rejection	Series: >31 dB; Common: >90 dB at 120 VAC
Conversion	Analog‑to‑digital conversion synchronized with controller scan
Operating Temp	–20°C to +60°C (typical industrial range)
Mounting	Modular rack or I/O shelf

Applications

The 900A16‑0106 module is ideal in installations where consistent analog measurement is essential. Typical applications include:

Process automation systems reading flow, level, or pressure transmitters
Industrial control panels monitoring analog loop signals
Distributed I/O racks for modular process controllers
Power and energy sub‑systems requiring high‑quality ADC performance
OEM process skids and packaged systems where accuracy matters

Advantages & Value Proposition

High channel density: Up to 16 isolated analog channels reduce system footprint.
Signal integrity: Superior isolation and noise rejection maintain clean signals in electrically noisy environments.
Flexible input handling: Configurable for voltage or current signal types.
Robust industrial design: Built to withstand extended operation in manufacturing or process industries.
Seamless HC900 integration: Works directly with Honeywell’s modular controller ecosystem.

Technical FAQs

How many analog inputs are supported on this module?
It supports up to 16 individually isolated analog input channels.
What types of signals can it read?
It accepts standard industrial voltage and current signals.
Does it provide galvanic isolation?
Yes — each channel has galvanic isolation plus backplane isolation to keep signals clean.
Is it compatible only with HC900 controllers?
It’s optimized for HC900 control platforms; integration with other systems depends on backplane compatibility.
What environment can it operate in?
Typical industrial temperature ranges from –20°C to +60°C.
How is the module powered?
It draws power from the HC900 backplane; no separate supply is usually needed.
Can field calibration be performed?
Yes — many HC900 analog modules support field calibration for precision.
Does it support noise filtering?
Yes, high common‑mode and series‑mode noise rejection characteristics are built in.
Is configuration software required?
Configuration is typically managed through the HC900 control software toolset.
What industries commonly use this module?
Commonly used in process, energy, manufacturing, chemicals, and power systems.
