Introduction

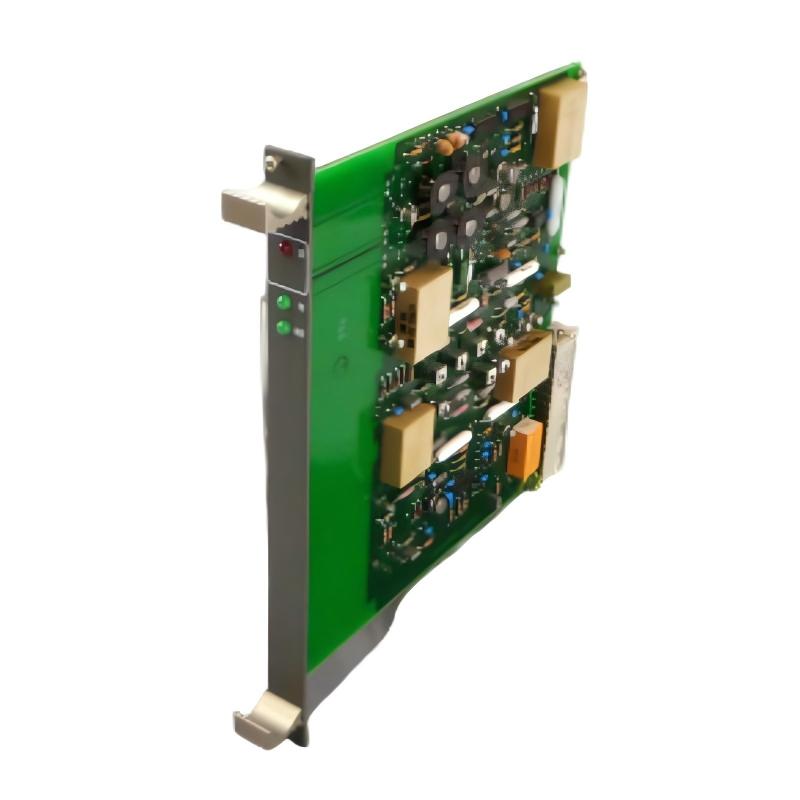

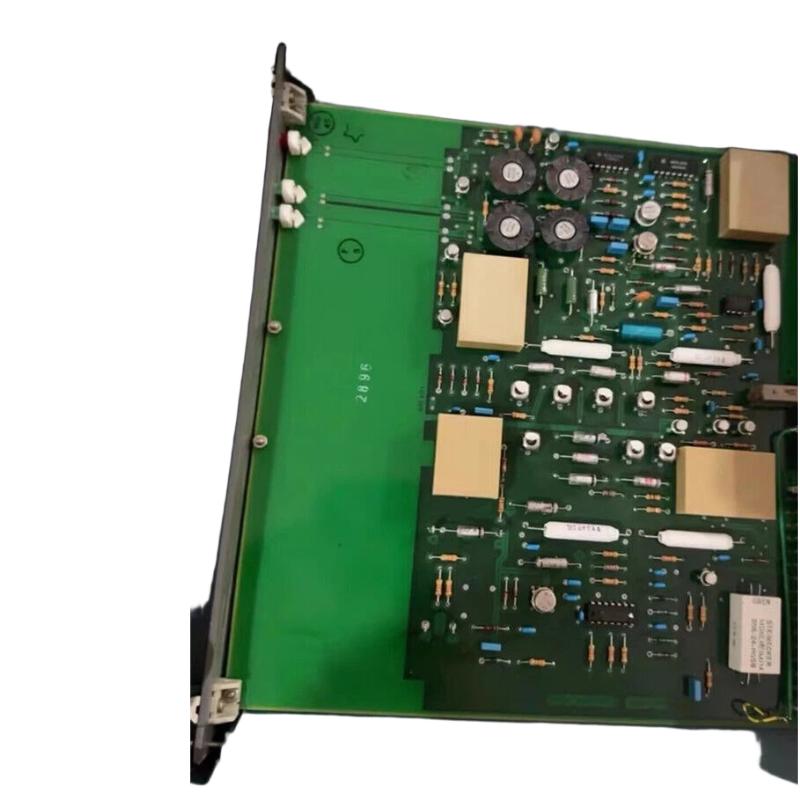

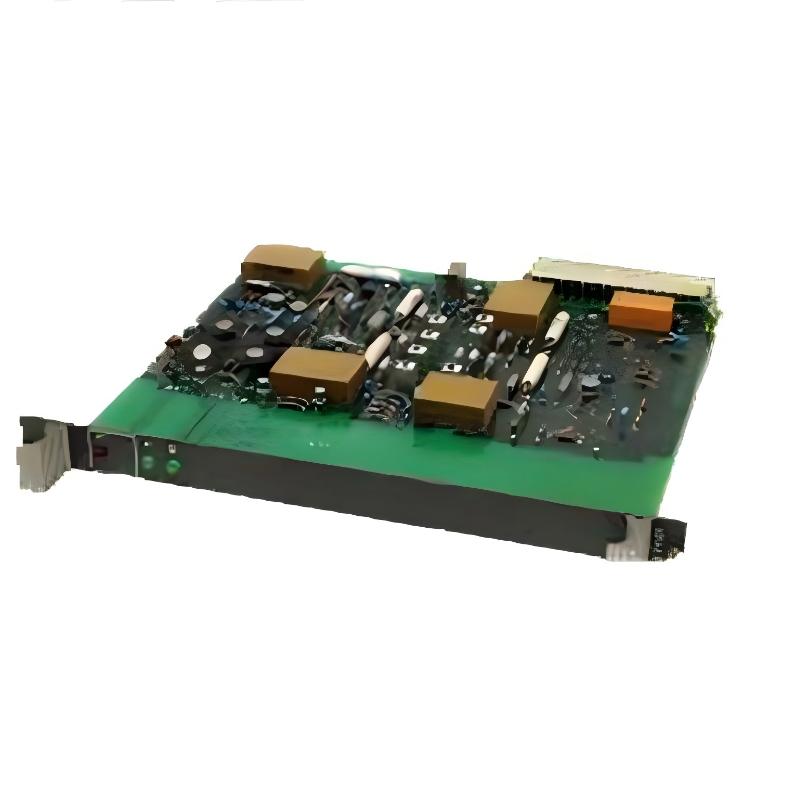

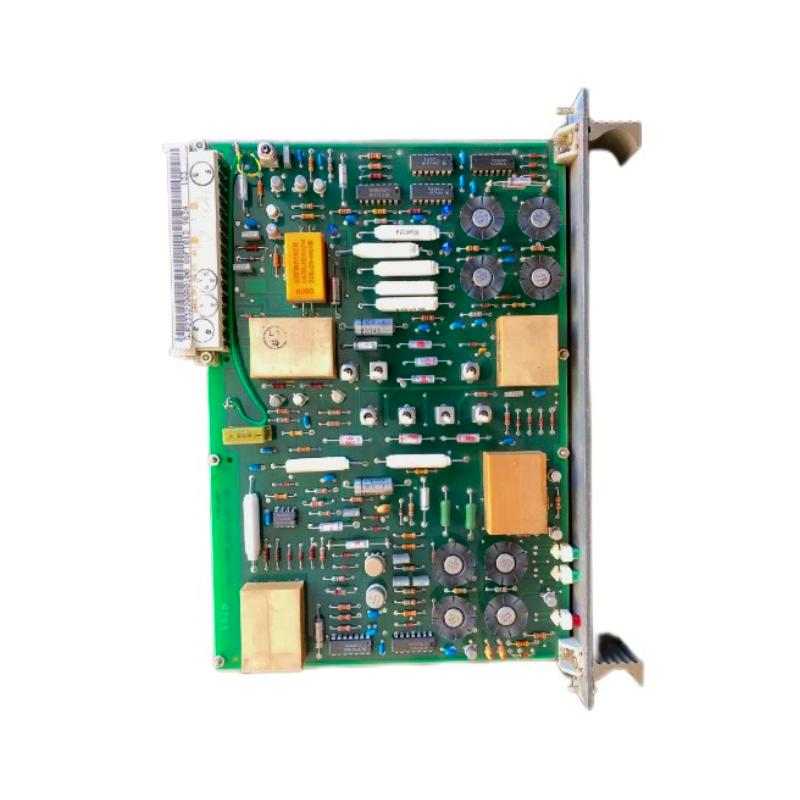

The ABB 88FV01F GJR2332300R0100 Control Board is a compact logic and signal-conditioning component designed for integration within ABB’s modular automation assemblies. Rather than acting as a simple interface card, this board functions as a micro-coordination layer—processing low-level control signals, stabilizing reference lines, and supporting subsystem interactions inside the larger control framework.
Its engineering focus centers on clean electrical behavior and predictable timing. Even with its small form factor, the 88FV01F employs isolation paths, buffered channels, and refined PCB layout strategies that ensure consistent performance in cabinets where noise, thermal fluctuation, and dense wiring are typical.
Technical Specifications
| Category | Details |
|---|---|
| Module Type | Control Board |
| System Compatibility | ABB control assemblies and modular rack-based systems |
| Primary Role | Signal buffering, logic execution support, subsystem coordination |
| Electrical Characteristics | Noise-resistant input stages and stabilized reference channels |
| Communication Method | Backplane interaction with system controllers and partner modules |
| Operational Design | Optimized for compact installations and continuous-duty use |
| Dimensions | 90 × 45 × 66 mm (H × W × D) |
| Weight | 0.35 kg |
