Introduction

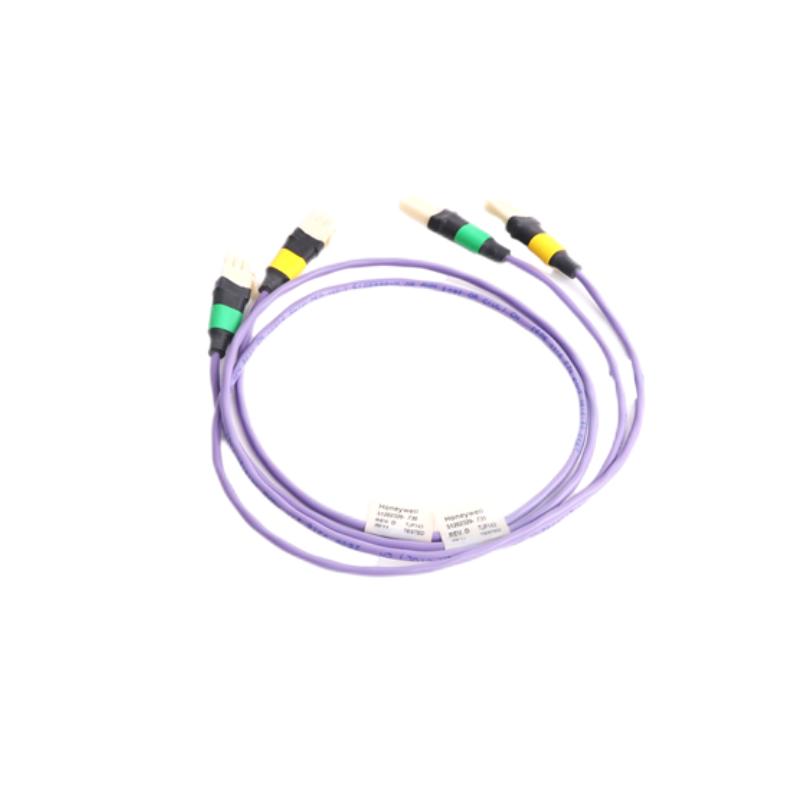

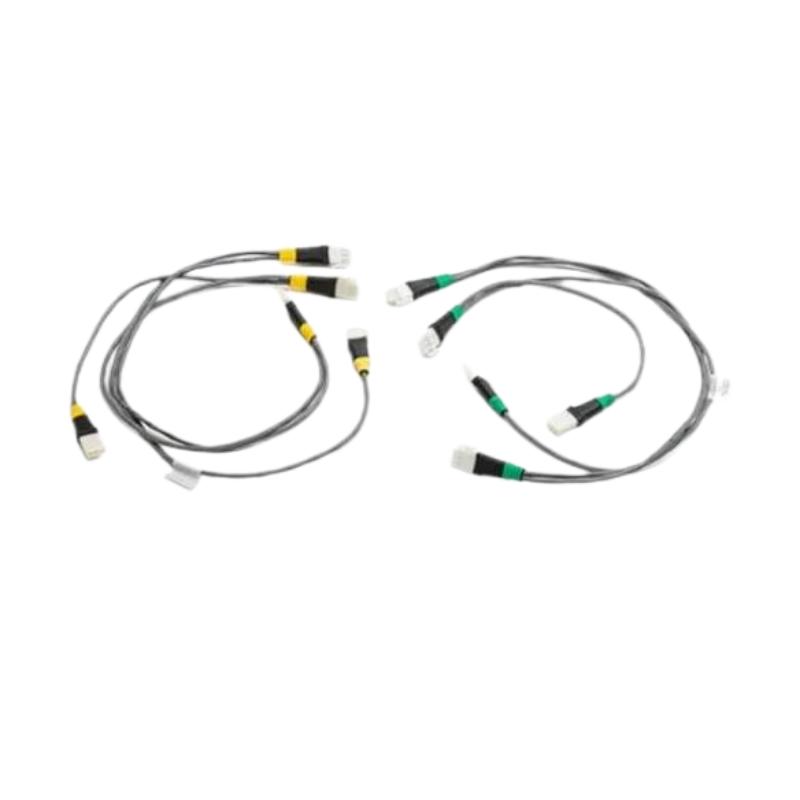

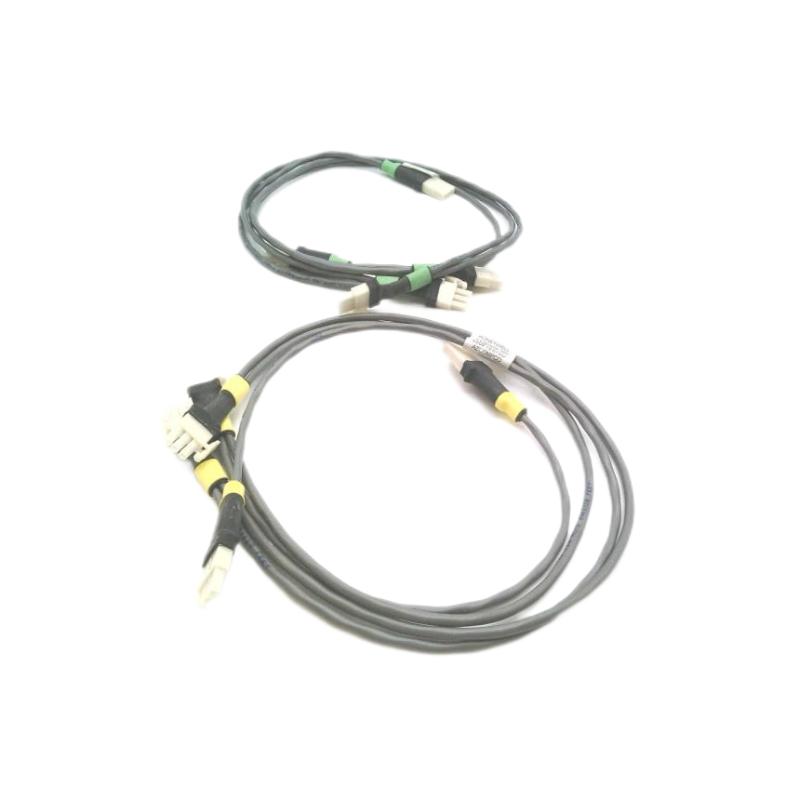

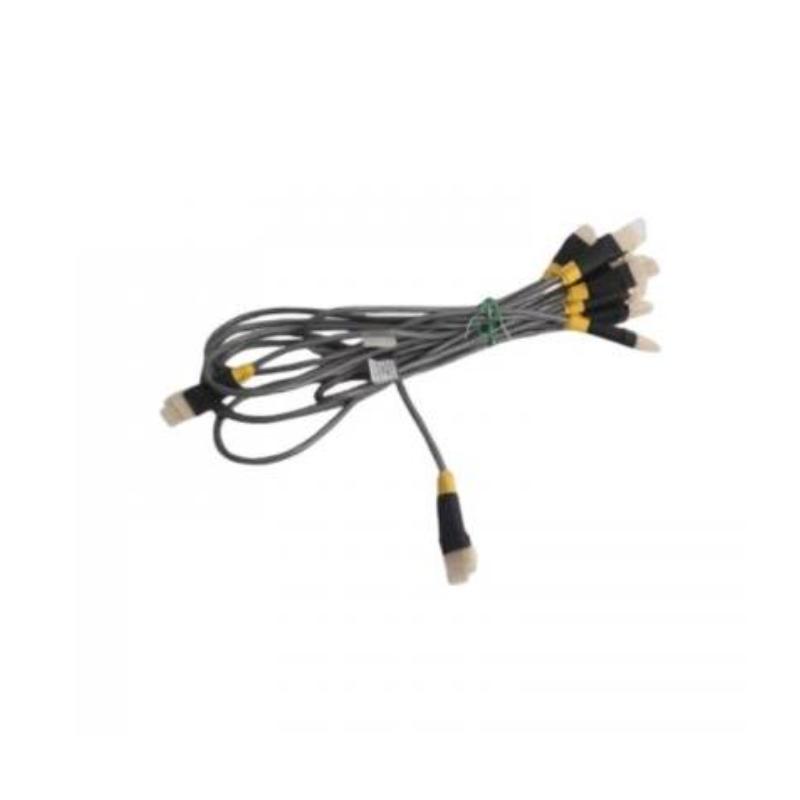

The Honeywell 51202329‑302 I/O Connection Cable is a durable industrial cable solution engineered for reliable connectivity between controllers, input/output modules, and field devices within automation and control systems. Designed with robust insulation and rugged construction, this cable supports accurate transmission of control and signal data in demanding environments. Its standardized specification makes it ideal for field‑to‑panel and module‑to‑module wiring in a wide range of industrial applications where organized, dependable connections are essential.
Technical Specifications (Including Dimensions & Weight)
| Specification | Details |
|---|
| Model | Honeywell 51202329‑302 |
| Cable Type | I/O Connection Cable |
| Conductors | Multicore (specific count determined by application) |
| Connector Configuration | Industrial‑grade connectors or bare ends based on configuration |
| Jacket Material | Industrial‑grade PVC or thermoplastic elastomer for abrasion and chemical resistance |
| Rated Voltage | Standard industrial control and signal levels |
| Cable Length | Factory standard 302 units (e.g., 302 feet/302 meters depending on factory specification) |
| Temperature Rating | –20 °C to +70 °C |
| Flexibility | Designed for fixed runs with occasional flexing |
| Environmental Resistance | Oil, dust, abrasion resistant |
| Weight | Approx. dependent on length and conductor configuration (e.g., ~0.80 kg for typical run) |
| Application | Control panel wiring, I/O module interconnects, sensor and actuator links |
Applications
The 51202329‑302 I/O Connection Cable is widely used where robust, high‑integrity wiring is vital:
-
Connecting PLC or DCS controllers to remote I/O modules
-
Linking sensors and actuators to I/O termination points
-
Wiring between distributed control racks and field junction boxes
-
Providing organized communication paths within control cabinets
-
Supporting signal and control transmission in manufacturing, processing, and utility systems
Its construction supports clear signal transmission and dependable connectivity across moderate cable distances in industrial settings.
Advantages
-
Industrial‑Grade Construction: Tough jacket and conductor design withstand mechanical and environmental stress.
-
Reliable Signal Integrity: Engineered for consistent signal and control transmission.
-
Adaptable Length: Standardized 302 length option simplifies system design and procurement.
-
Flexible Routing: Suitable for fixed installations with occasional movement.
-
Temperature and Contaminant Tolerance: Rated for typical industrial temperatures and resistant to oils and dust.
-
Compatibility: Works with a broad range of Honeywell controllers, I/O modules, and field devices.
These advantages make the cable an effective choice for structured and dependable automation wiring.
Technical FAQs
-
What is the primary use of the 51202329‑302 cable?
It is designed to provide reliable I/O connectivity between controllers, modules, and field devices.
-
What does the ‘302’ designation indicate?
It typically reflects the factory standard length, which may be in feet or meters depending on the regional product specification.
-
Can the cable carry both signal and control lines?
Yes — it supports transmission of control and discrete/analog signals within industrial voltage ranges.
-
Is the cable pre‑terminated?
Termination style depends on the specific configuration; it may include pre‑terminated connectors or bare ends for field termination.
-
What environments is this cable suitable for?
Industrial environments with exposure to oils, dust, and moderate mechanical stress.
-
What is the operating temperature range?
–20 °C to +70 °C, suitable for typical plant and factory conditions.
-
Is the cable flexible?
It is designed for fixed routing with occasional flex; it is not intended for constant dynamic motion.
-
Can it be used for long cable runs?
Yes, within the length specified and appropriate signal management practices.
-
Does the jacket resist contaminants?
Yes — the industrial jacket is resistant to oil, dust, and abrasion.
-
Is this cable compatible with Honeywell automation systems?
Yes, it interfaces with controllers, I/O modules, and field wiring in Honeywell systems.
