Introduction

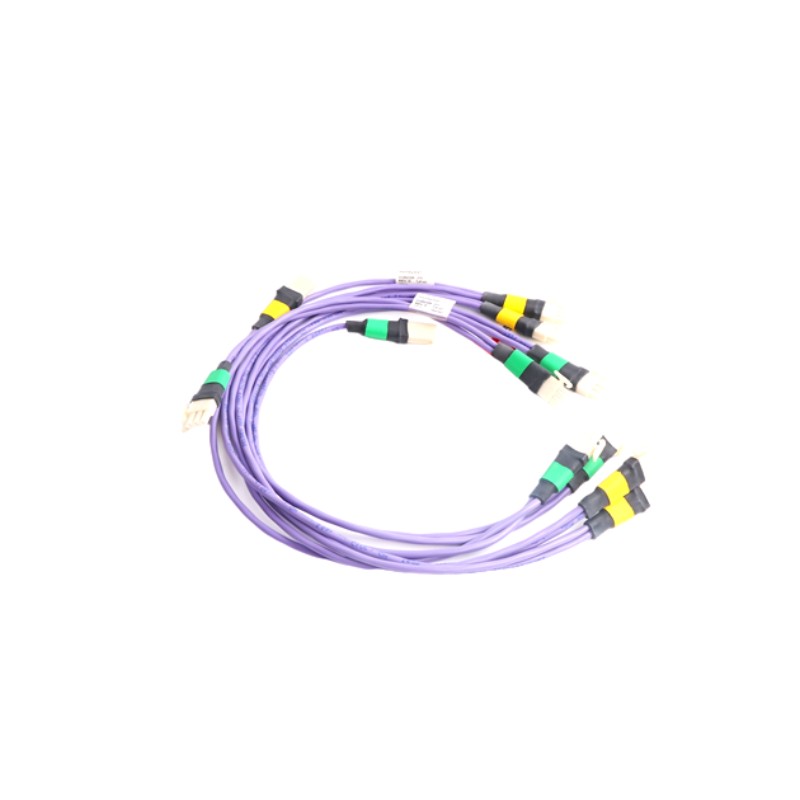

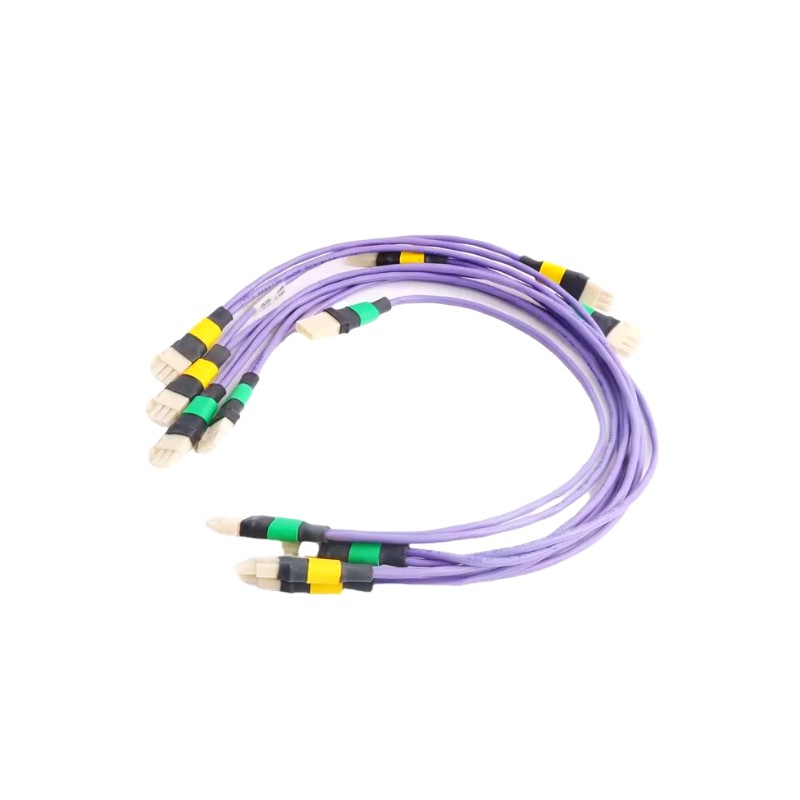

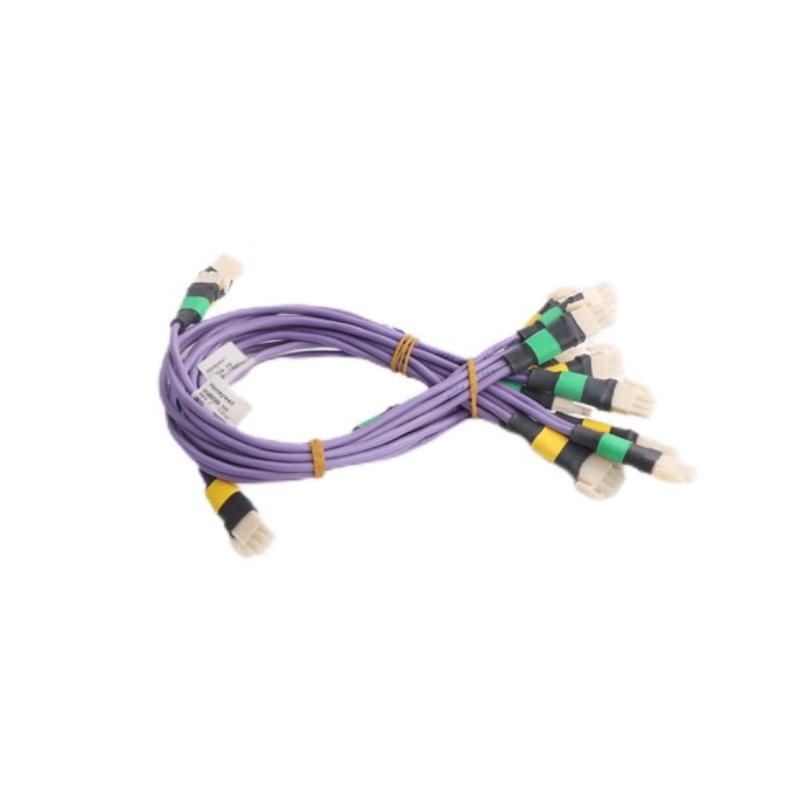

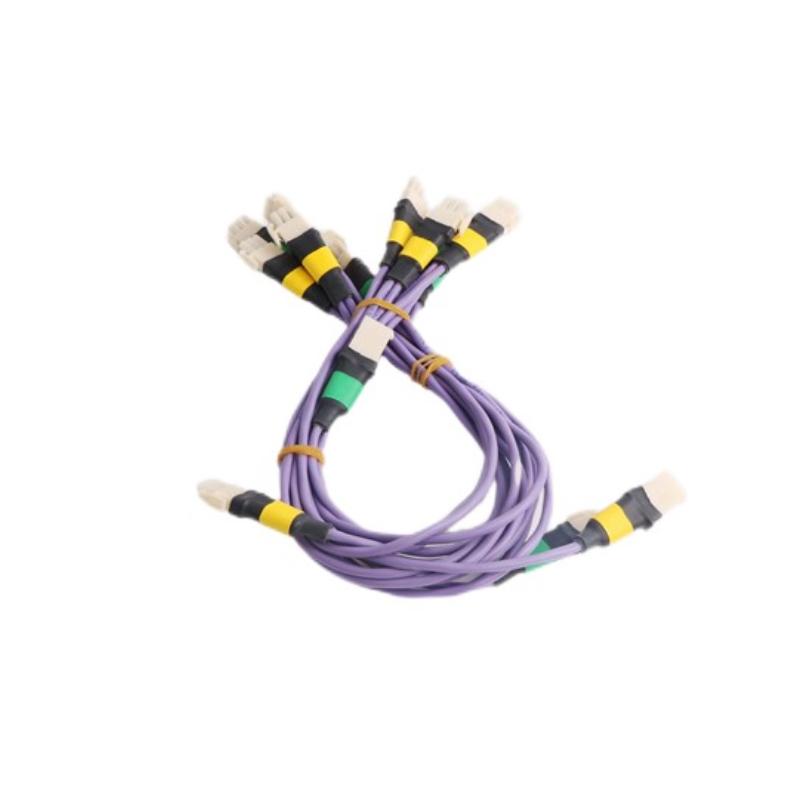

The Honeywell 51202329‑212 Violet Drop Cable is a purpose‑built industrial interconnect cable engineered for reliable signal and power transmission in automation and control systems. Its distinctive violet jacket provides easy identification in complex wiring environments, helping technicians quickly locate and trace connections during installation and maintenance. Built using durable materials and rugged construction, this cable is suited for factory automation, process plants, and distributed control systems where consistent performance and wiring clarity are critical.
Technical Specifications (Including Dimensions & Weight)
| Specification | Details |
|---|
| Model | Honeywell 51202329‑212 |
| Cable Type | Violet Drop Cable (Control/Signal Interconnect) |
| Conductor Configuration | Multicore (exact count per application) |
| Jacket Color | Violet (high‑visibility industrial insulation) |
| Connector Termination | Factory pre‑terminated connectors or bare ends (application dependent) |
| Rated Voltage | Industrial control and signal level (application specific) |
| Cable Length | 212 units (e.g., 212 feet / 212 meters, depending on specification) |
| Jacket Material | Industrial‑grade thermoplastic elastomer or PVC |
| Temperature Rating | –20 °C to +70 °C |
| Environmental Resistance | Oil, abrasion, dust resistant |
| Flexibility | Engineered for fixed runs with occasional movement |
| Weight | Approx. dependent on length and conductor configuration (e.g., 0.60 kg for 10 m nominal) |
| Application | Control panel wiring, drop‑wire interconnects, field device link |
Applications
The 51202329‑212 Violet Drop Cable is widely used in industrial automation scenarios where robust, visible wiring is necessary:
-
Interconnecting PLC and I/O modules in control cabinets
-
Drop wiring from main harness to field sensors and actuators
-
Linking remote junction boxes with controllers
-
Providing high‑visibility cabling in complex panel layouts
-
Supporting data, control, or discrete signal transmission
-
Industrial machine tool and processing system connectivity
Its violet jacket simplifies wiring organization and minimizes installation errors in dense harness environments.
Advantages
-
High Visibility: Violet insulation makes the cable easily distinguishable during installation and troubleshooting.
-
Industrial Durability: Designed to withstand abrasion, oils, dust, and typical plant contaminants.
-
Reliable Performance: Stable signal and control transmission over moderate distances.
-
Flexible Routing: Suitable for fixed installation with occasional flexing.
-
Versatile Compatibility: Works with a broad range of Honeywell modules, PLC systems, and field devices.
-
Temperature Tolerance: Rated to operate reliably across common industrial temperature ranges.
These features make the violet drop cable a practical choice for organized and dependable control system wiring.
Technical FAQs
-
What is the primary use of the 51202329‑212 cable?
It serves as a high‑visibility interconnect cable for control, signal, and drop‑wire applications.
-
What does the ‘212’ designation signify?
It typically denotes the standard factory length or specific product series; exact units depend on configuration.
-
Why is the jacket violet in color?
The violet jacket provides visual distinction from other wiring, aiding in identification and maintenance.
-
Is this cable pre‑terminated?
Termination style depends on the ordering configuration — some may be pre‑terminated, others supplied with bare ends.
-
What environments is it suitable for?
Industrial environments with exposure to oils, dust, and abrasion.
-
Can it carry power as well as signal?
Yes — within standard industrial control voltage ranges.
-
What temperature range can it operate in?
–20 °C to +70 °C typical industrial rating.
-
Is the cable flexible?
It is designed for fixed routing with some flexibility for occasional movement.
-
Does the violet color affect performance?
No — color is for identification; performance is determined by construction and conductor spec.
-
Is this cable compatible with Honeywell automation systems?
Yes — it integrates with controllers, I/O modules, and field devices in Honeywell control platforms.
