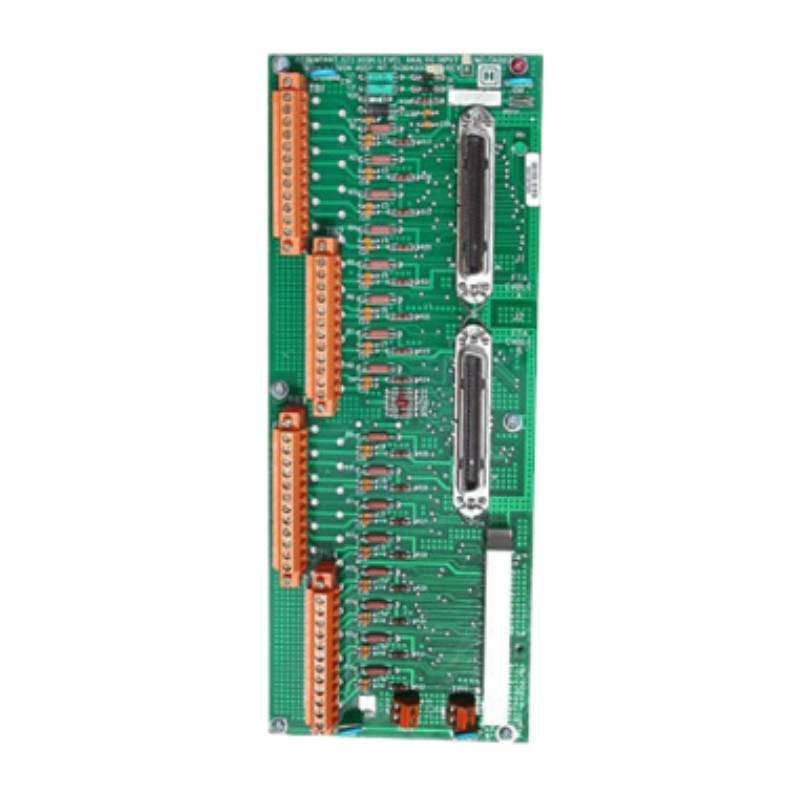

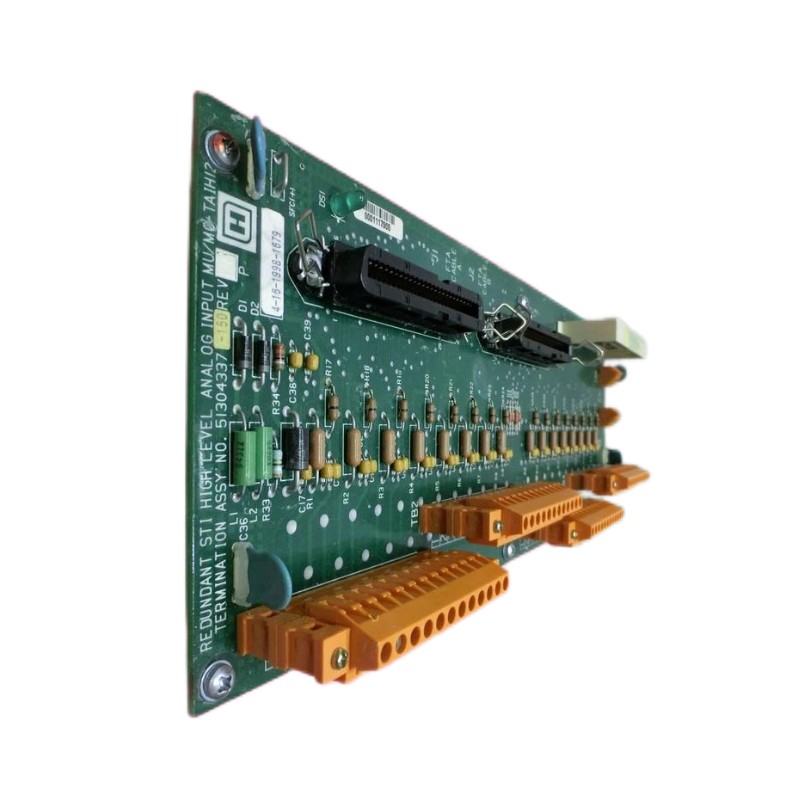

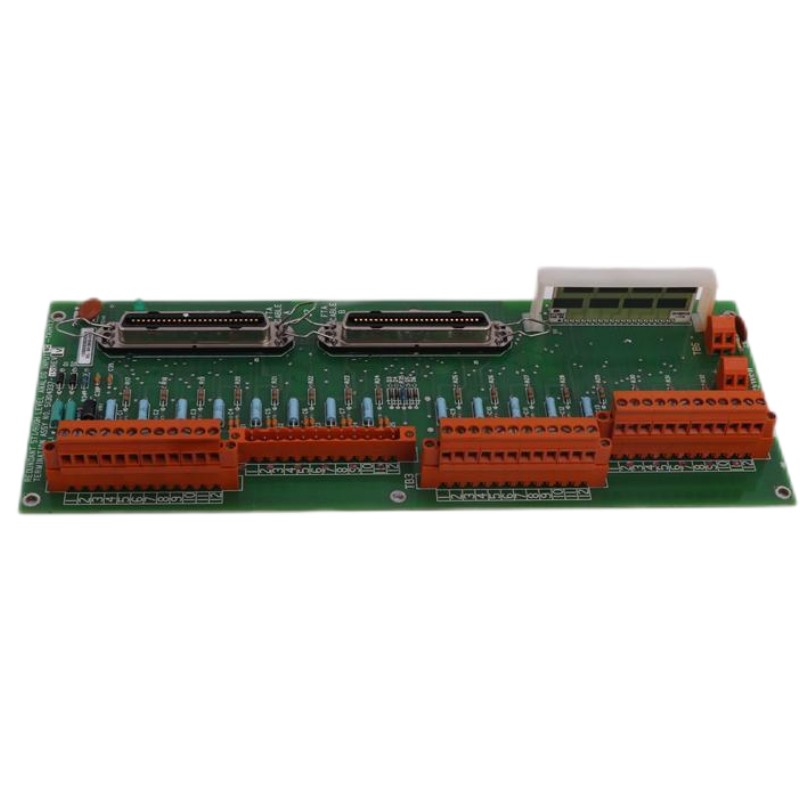

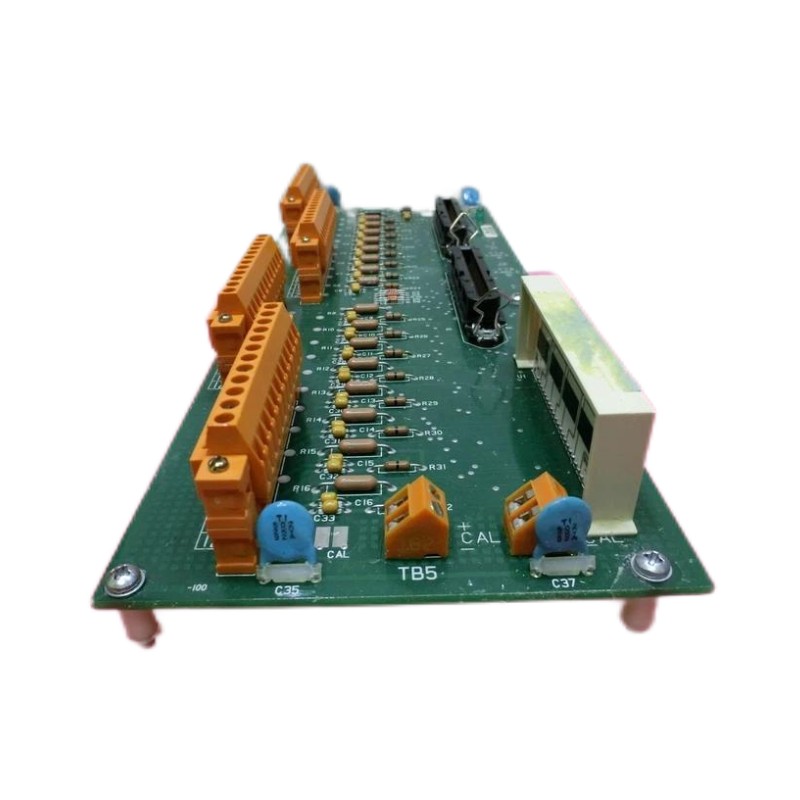

Honeywell MC-TAIH14 51305887-150 High Level Analog Input Module

Brand:Honeywell DCS
Item No.:MC-TAIH14 51305887-150
Product Origin:USA
Product Dimensions:75 × 100 × 70 mm
Product Weight:0.32kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

MC-TAIH14 51305887-150 (4)MC-TAIH14 51305887-150 (1)MC-TAIH14 51305887-150 (3)MC-TAIH14 51305887-150 (2)

Introduction

The Honeywell MC‑TAIH14 51305887‑150 High Level Analog Input Module is a precision signal interface designed to capture and process high‑level analog signals in industrial automation and control systems. Engineered for use within Honeywell control architectures, this module supports accurate, noise‑resistant acquisition of analog data from field instruments, transmitters, and sensors. With robust construction and stable performance, the MC‑TAIH14 helps ensure responsive monitoring and control in demanding process environments.

Technical Specifications (Including Dimensions & Weight)

SpecificationDetails
ModelHoneywell MC‑TAIH14 (Catalog 51305887‑150)
Module TypeHigh Level Analog Input Module
Input Channels14 high‑level analog inputs
Signal TypeVoltage or current analog inputs (configurable per system design)
Input RangeSystem‑dependent range (typically standard industrial ranges)
ResolutionHigh resolution for precise signal capture
IsolationGalvanic isolation between channels and system logic
Status IndicatorsLEDs for input activity and module status
MountingDIN rail or panel/rack mount
Dimensions (W × H × D)Approx. 75 × 100 × 70 mm
WeightApprox. 0.32 kg
Operating Temperature–20 °C to +60 °C
CompatibilityHoneywell control systems and PLC/DCS platforms


Applications

The MC‑TAIH14 High Level Analog Input Module is suitable for a wide range of industrial control scenarios where accurate analog measurement is required:

  • Collecting analog measurements from transmitters and field sensors

  • Monitoring process variables such as temperature, pressure, flow, and level

  • Feeding high‑resolution analog data into PLC or DCS logic

  • Supporting advanced process control strategies and feedback loops

  • Integrating analog instrumentation in manufacturing and processing systems

  • Enhancing distributed I/O solutions for large automation architectures

This module brings reliable analog data into control systems, helping operators and logic execute accurate decisions.


Advantages

  • High‑Resolution Analog Capture: Ensures precise measurement and control performance.

  • Electrically Isolated Channels: Galvanic isolation reduces noise and protects control logic.

  • Multiple Inputs: Fourteen channels support extensive sensor networks without requiring additional modules.

  • LED Status Indicators: Built‑in indicators provide quick visual feedback on module and channel activity.

  • Robust Industrial Design: Engineered for continuous operation in harsh environments.

  • Flexible Mounting: Compatible with DIN rail or panel/rack installations to suit varied cabinet layouts.

The MC‑TAIH14 is ideal for engineers needing accurate and resilient analog input performance in complex control applications.


Technical FAQs

  1. What is the primary function of the MC‑TAIH14 module?
    It captures and conditions high‑level analog signals for processing in control systems.

  2. How many analog input channels are available?
    Fourteen analog input channels are provided.

  3. What types of signals can it accept?
    It supports high‑level analog inputs, typically voltage or current, depending on system configuration.

  4. Is there electrical isolation between inputs and logic?
    Yes — galvanic isolation helps reduce noise and protects system logic.

  5. Does the module support LED status feedback?
    Yes, individual indicators show module activity and channel status.

  6. What is the typical operating temperature range?
    –20 °C to +60 °C for standard industrial environments.

  7. How is the module mounted?
    It can be mounted on DIN rail or in panel/rack arrangements.

  8. Is this module compatible with Honeywell PLC and DCS platforms?
    Yes, it integrates with compatible Honeywell control system architectures.

  9. Can it be used in distributed I/O systems?
    Yes, the module is suitable for use in distributed I/O networks.

  10. What benefit does galvanic isolation provide?
    It minimizes electrical noise and ground loop effects, improving measurement accuracy.
