Introduction

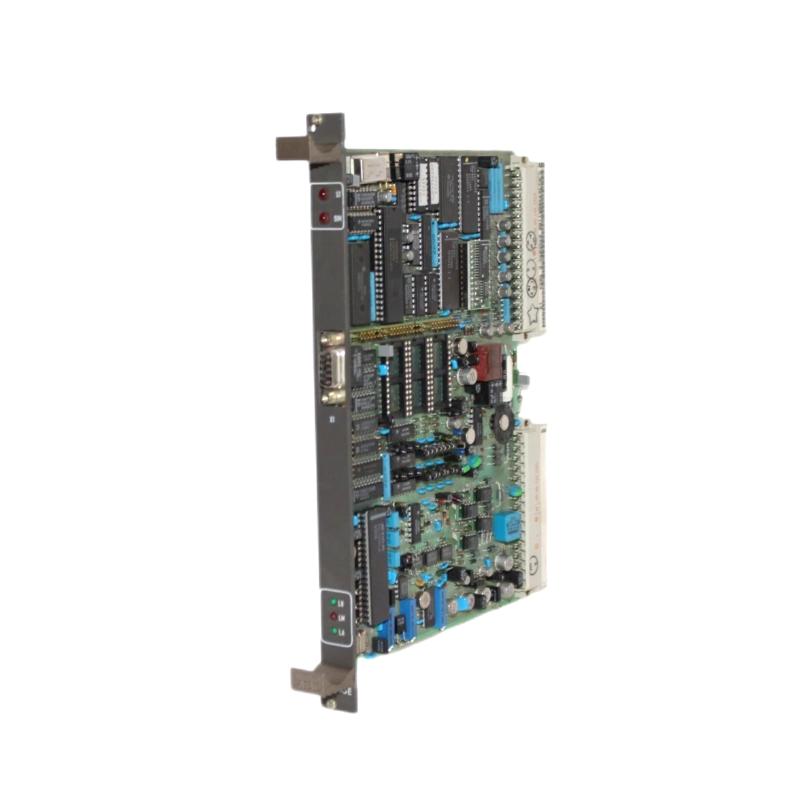

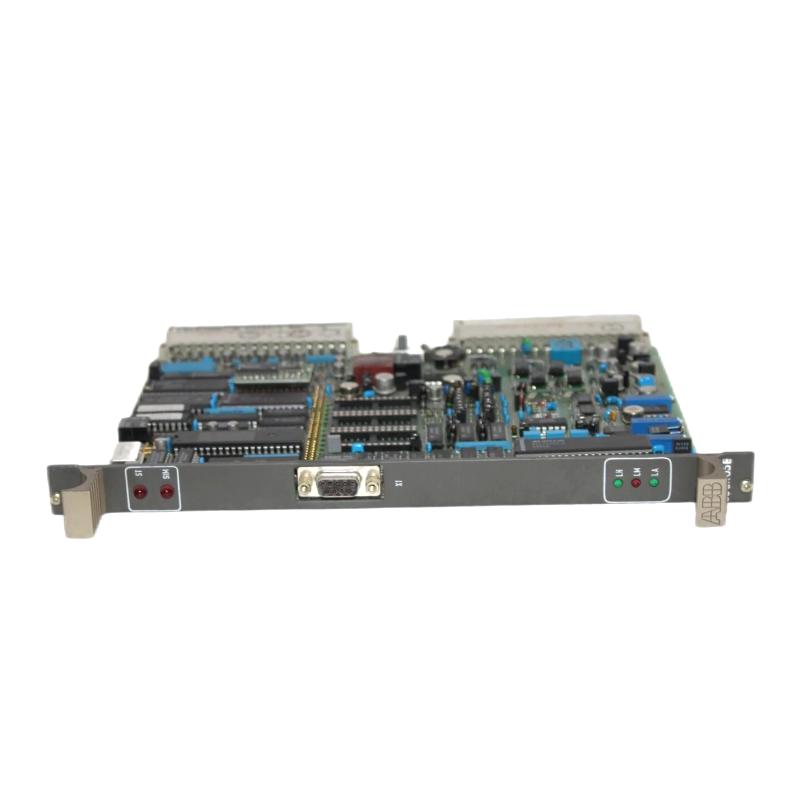

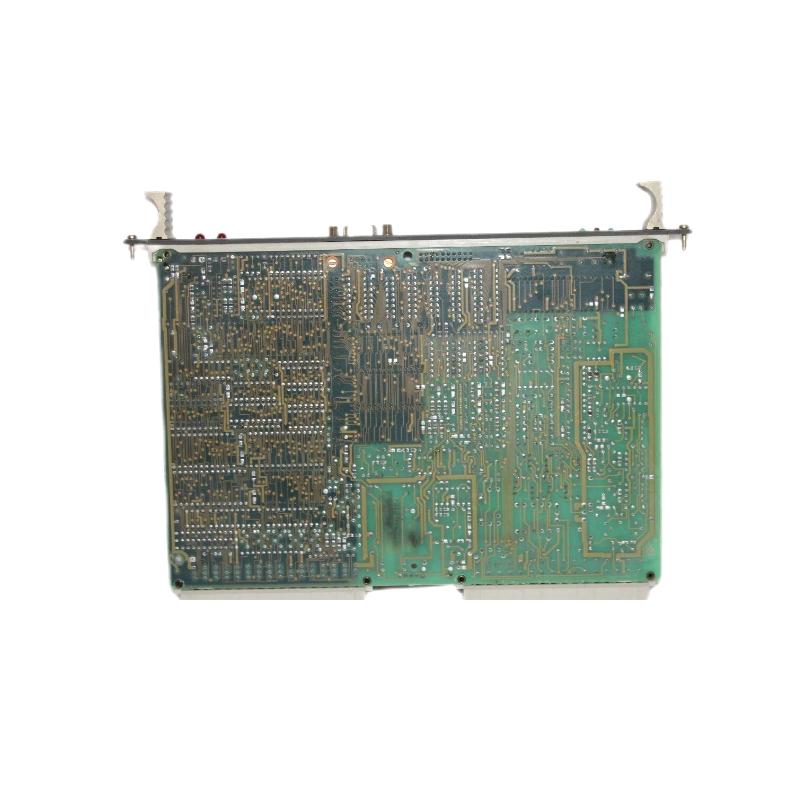

The ABB 83SR05E GJR2369900R1100 Control Card serves as a core logic and signal-processing element within ABB’s industrial control assemblies. In field maintenance scenarios, technicians value this module for its clear signal paths, predictable processing behavior, and stable operation under long duty cycles.
Rather than focusing solely on its role as a circuit-level component, this control card is better understood as an orchestration layer—managing the interaction between sensors, drive elements, and supervisory control systems. Its internal architecture emphasizes electrical robustness and processing determinism, which are essential in environments where interruptions or signal misreads can translate directly into production losses.
Technical Specifications
| Category | Details |
|---|---|
| Module Type | Industrial Control Card |
| System Compatibility | ABB control racks and drive/control assemblies |
| Core Function | Signal processing, internal logic execution, subsystem coordination |
| Electrical Design | High-noise-tolerant circuitry with stable reference channels |
| Communication Method | Backplane-based signaling with internal controller integration |
| Thermal Handling | Passive dissipation suitable for compact card housings |
| Diagnostics | Supports module-level fault indication and status reporting |
| Dimensions | 132 × 53 × 65 mm (H × W × D) |
| Weight | 0.75 kg |
