Technical FAQs

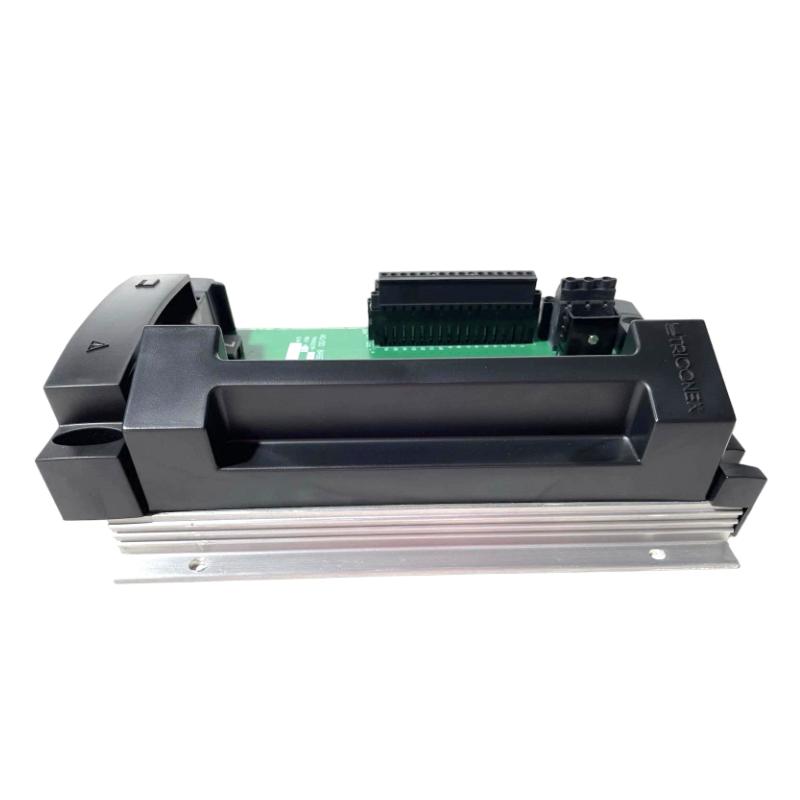

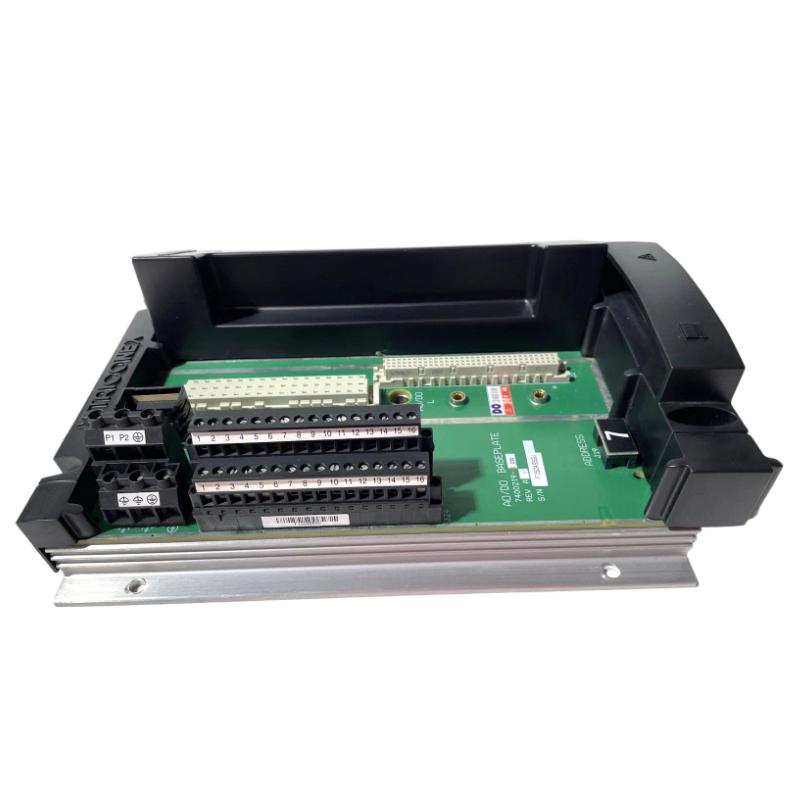

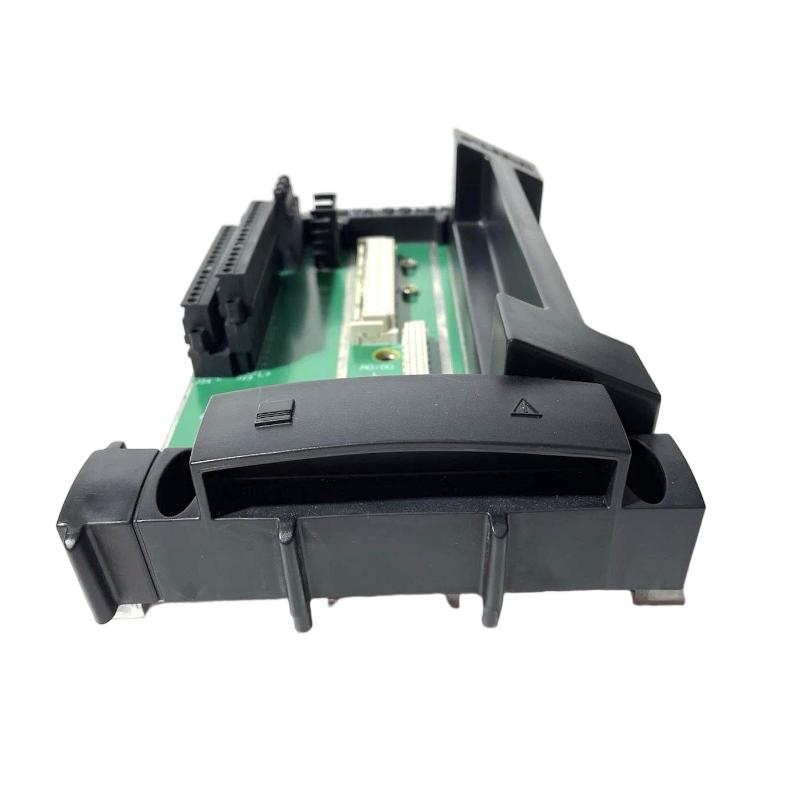

1. What is the function of the Triconex DO 2401H AO/DO Baseplate?

   • It serves as a signal distribution baseplate, supporting both analog and digital output modules for reliable signal transmission in industrial applications.

2. How are the analog and digital signals handled by the baseplate?

   • The baseplate is designed to manage both analog and digital output signals, ensuring accurate data transmission for control and automation systems.

3. Can this baseplate be used in safety-critical systems?

   • Yes, it is suitable for use in Safety Instrumented Systems (SIS), ensuring the proper functioning of safety-critical applications.

4. What certifications does the baseplate hold?

   • It is UL, CE, and CSA certified, ensuring compliance with international standards for safety and reliability.

5. How does the baseplate ensure signal integrity in noisy environments?

   • The baseplate is designed with built-in EMI shielding to minimize signal distortion, ensuring stable performance in environments with high electromagnetic interference.

6. Can the baseplate be used in redundant system configurations?

   • Yes, the baseplate is compatible with redundant configurations to enhance system reliability and prevent downtime.

7. What protection mechanisms are included with the baseplate?

   • It includes overcurrent protection and transient suppression to safeguard against electrical faults and ensure system integrity.

8. What operating temperature range does the baseplate support?

   • It operates within a temperature range from -20°C to +60°C, making it suitable for a variety of industrial applications.

9. What diagnostic features does the baseplate offer?

   • The baseplate supports diagnostics to detect faults in signal transmission, helping with maintenance and troubleshooting.

10. How often should the baseplate be maintained?

    • Routine inspections are recommended to check for proper signal integrity and connection health, ensuring continued performance over time.
