Technical FAQs

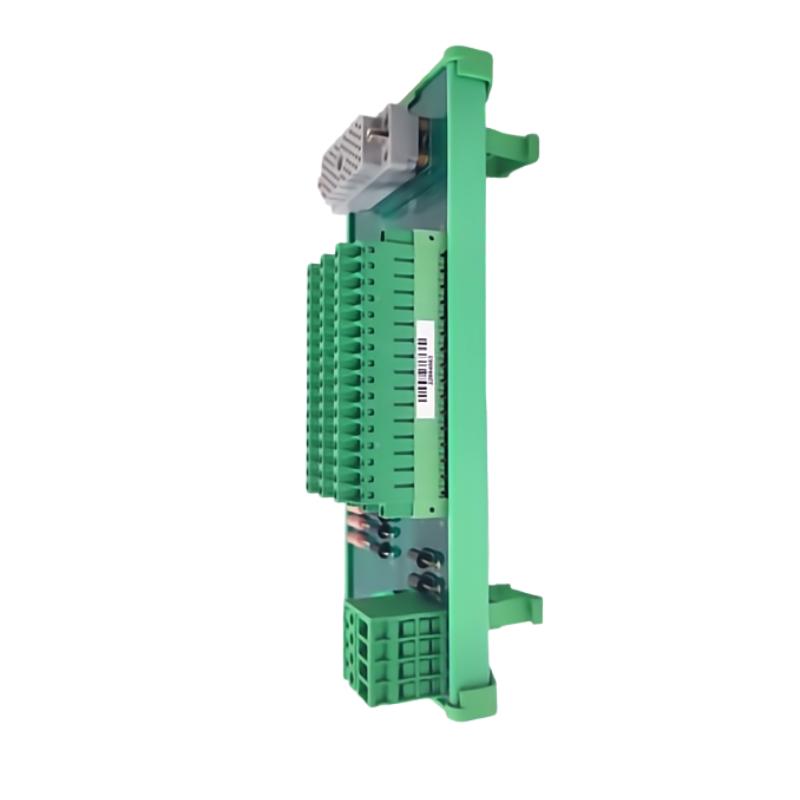

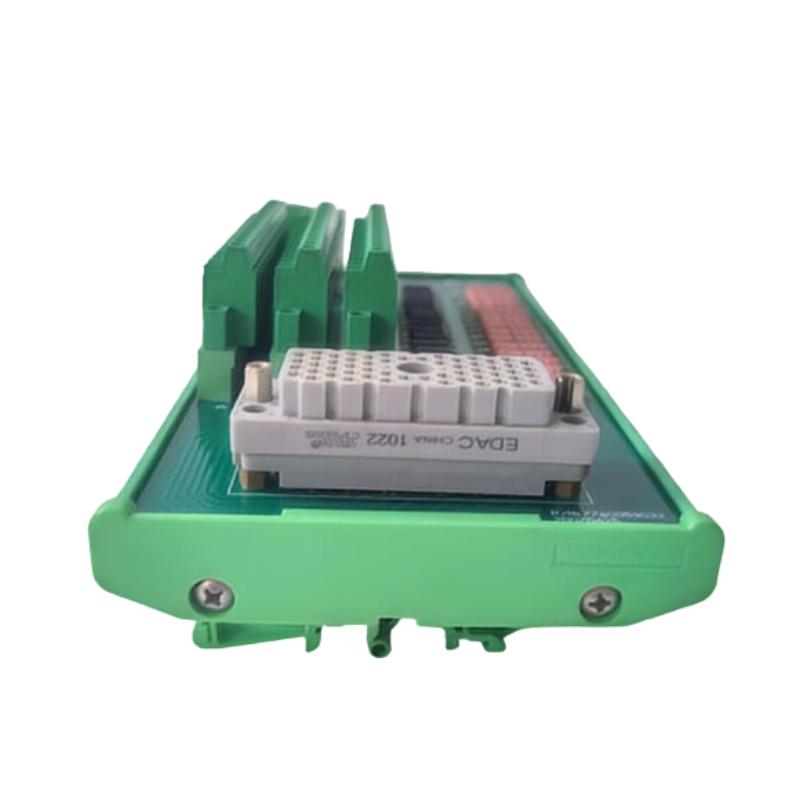

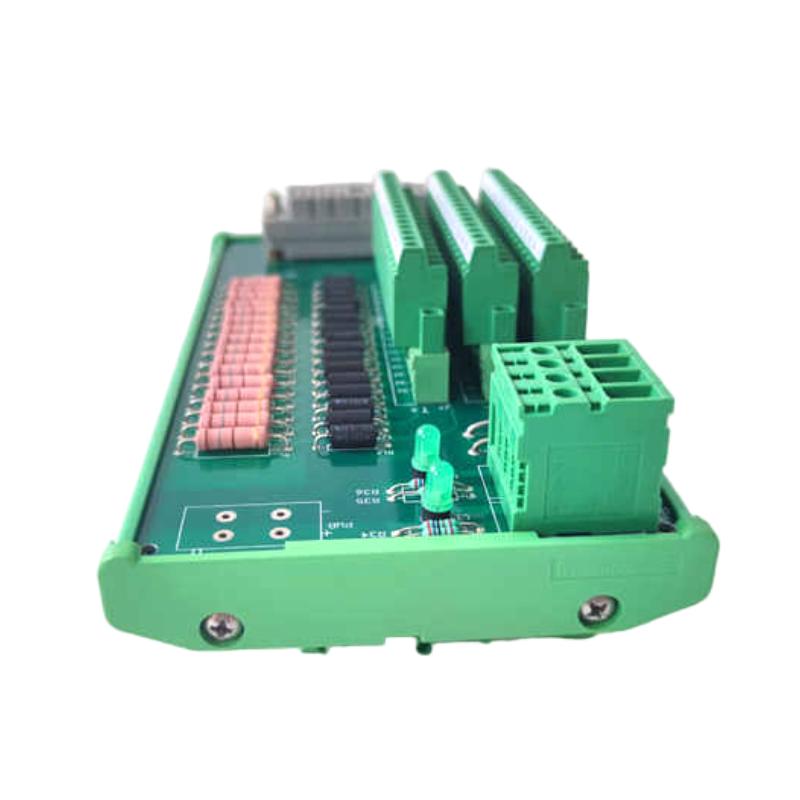

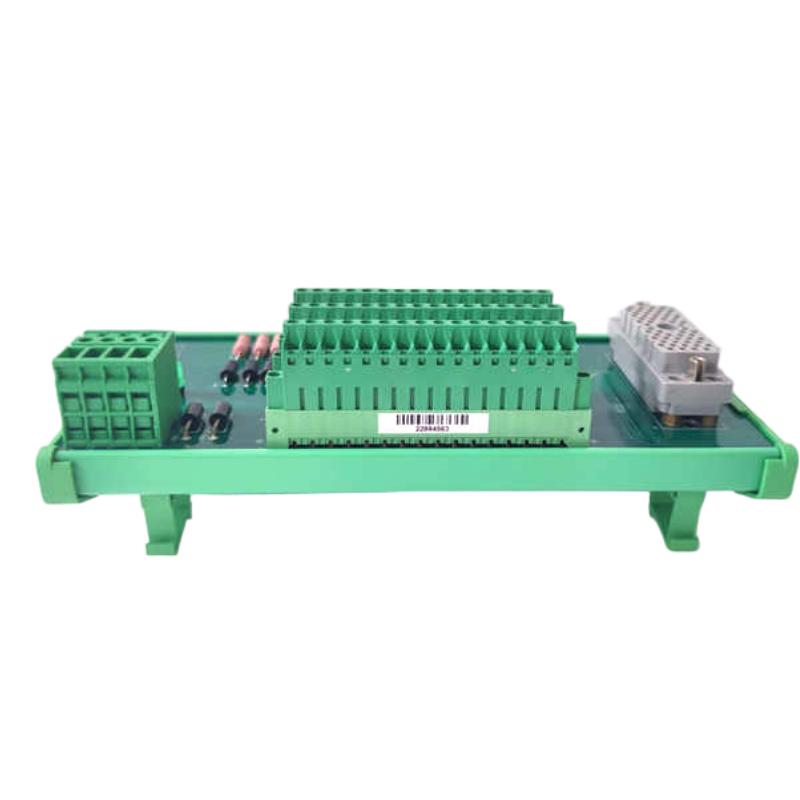

1. What is the primary function of the Triconex 9771-220 Analog Input Terminal Block?

   • It connects field devices to the Triconex control system, providing secure and accurate termination for analog signals.

2. How are the input and output connections configured?

   • The terminal block uses configurable terminal blocks, allowing flexibility in connecting various types of analog input devices.

3. What I/O configurations can the terminal block support?

   • It supports various analog input configurations, easily customizable to suit specific system requirements.

4. Can the terminal block be used in redundancy setups?

   • Yes, it can be integrated into redundant configurations to ensure continuous operation in critical applications.

5. What certifications does the terminal block hold?

   • The terminal block is UL, CE, and CSA certified, ensuring compliance with global safety and quality standards.

6. How does the terminal block manage electromagnetic interference (EMI)?

   • It features built-in EMI shielding to ensure stable and accurate signal transmission even in environments with high electromagnetic interference.

7. What protection features are included in the terminal block?

   • The terminal block includes overcurrent protection and transient suppression, safeguarding against electrical faults and surges.

8. Can the terminal block operate in extreme temperatures?

   • Yes, it is designed to operate across a wide temperature range of -20°C to +60°C, making it suitable for various industrial environments.

9. What diagnostic capabilities does the terminal block support?

   • The terminal block supports diagnostic features to detect issues such as open connections and voltage irregularities, aiding in troubleshooting and maintenance.

10. What maintenance is required for the terminal block?

    • Routine inspections for connection integrity and performance are recommended to ensure reliable long-term operation.
