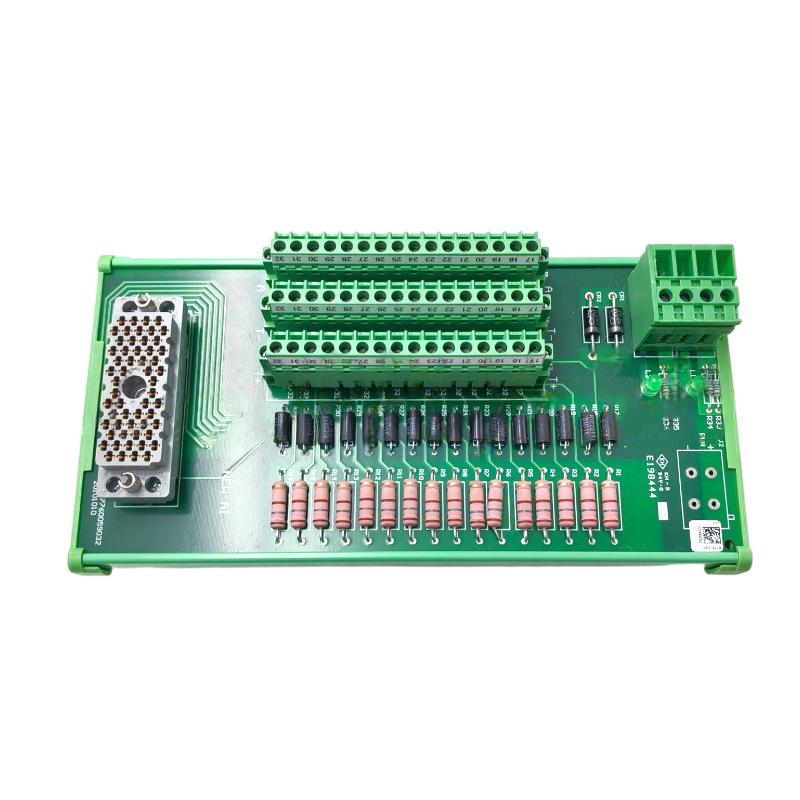

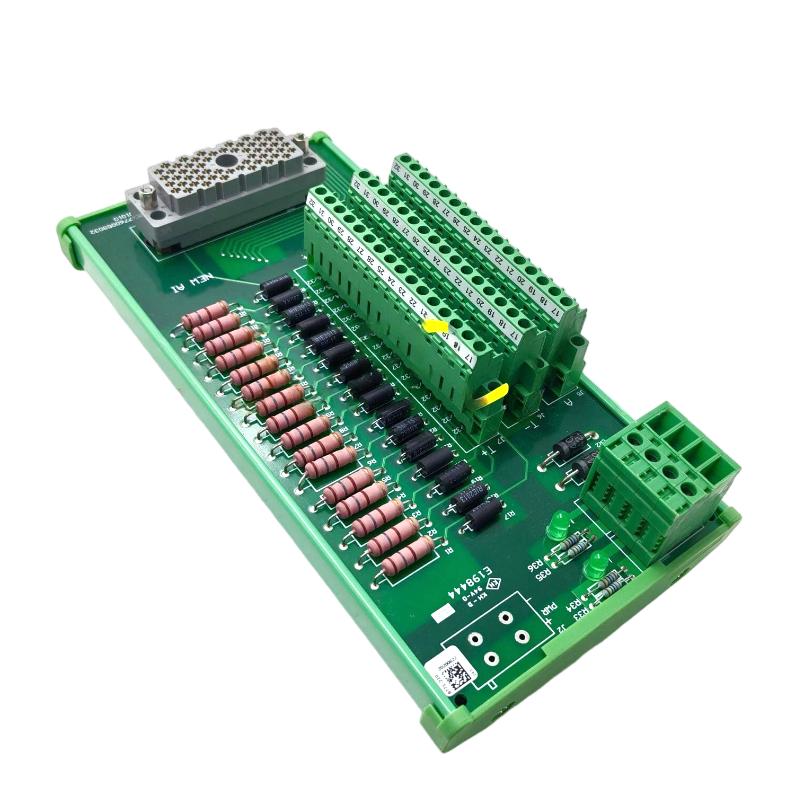

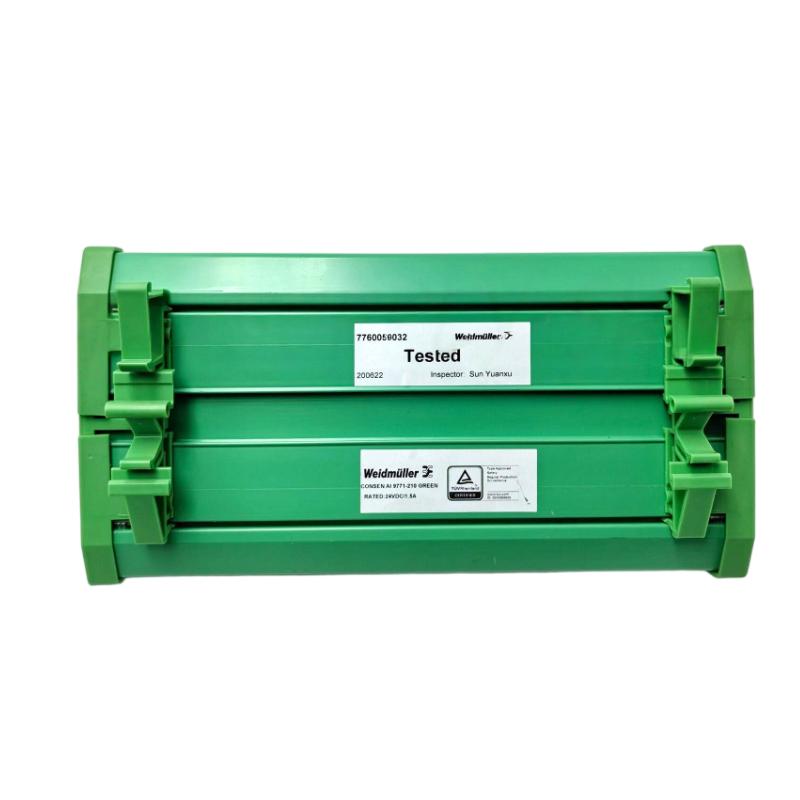

Triconex 9771-210 7760059032 Analog Input Terminal Block

Name: Triconex 9771-210 7760059032 Analog Input Terminal Block
Brand: Invensys Triconex
SKU: 2983
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Invensys Triconex
Item No.:9771-210
Product Origin:USA
Product Dimensions:114.3 × 145.52 × 107.95 mm
Product Weight:0.9 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Triconex 9771-210 7760059032 Analog Input Terminal Block is designed to interface field sensors and devices with the Triconex control system, ensuring accurate termination of analog signals. Built for use in safety-critical and process control applications, this terminal block guarantees reliable data transmission and robust performance in industries such as oil & gas, chemical processing, and power generation. Its flexible I/O configuration and rugged design make it ideal for real-time monitoring and control in automated industrial environments.

Technical Specifications

Specification	Value
Model Number	Triconex 9771-210 7760059032
Module Type	Analog Input Terminal Block
Dimensions (L × W × H)	114.3 × 145.52 × 107.95 mm
Weight	0.9 kg
Input/Output Connections	Configurable terminal blocks
Power Consumption	24V DC ± 10%
Mounting Type	DIN rail mounting
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Certifications	UL, CE, CSA

Applications

Safety Instrumented Systems (SIS): Provides precise analog signal termination for safety systems, enabling accurate monitoring and control in hazardous environments.
Industrial Automation: Ensures seamless integration of field sensors with control systems, enhancing the efficiency of automated processes.
Process Control: Used in critical industrial applications for monitoring and controlling analog signals in real-time, such as in chemical plants or power stations.

Advantages

Accuracy: Delivers high-precision analog signal termination for optimal data transmission in real-time applications.
Versatility: Supports a wide range of field devices, allowing for flexible integration with various control systems.
Durability: The compact design and rugged construction ensure reliable performance even in harsh industrial environments.

Technical FAQs

What is the purpose of the Triconex 9771-210 Analog Input Terminal Block?
- It provides accurate and secure analog signal termination between field sensors and the Triconex control system, ensuring reliable data transmission.
How do I configure the input and output connections?
- The terminal block uses configurable terminal blocks, offering flexibility in connecting different types of analog input devices.
What I/O configurations can the terminal block support?
- The terminal block supports various analog input configurations, customizable based on the specific needs of the system.
Can the terminal block be used in redundant configurations?
- Yes, it is designed to function in redundant configurations, ensuring continuous operation in critical applications.
What certifications are available for the terminal block?
- The terminal block is UL, CE, and CSA certified, meeting international safety and quality standards.
How does the terminal block handle EMI (Electromagnetic Interference)?
- Built-in EMI shielding ensures stable operation, reducing the risk of signal distortion in high electromagnetic interference environments.
What protection features are built into the terminal block?
- It includes overcurrent protection and transient suppression, safeguarding against electrical faults and surges.
Is the terminal block suitable for use in extreme temperatures?
- Yes, it operates within a wide temperature range from -20°C to +60°C, making it suitable for a variety of industrial applications.
What diagnostic features does the terminal block support?
- The terminal block offers diagnostic capabilities to identify faults such as open circuits and voltage irregularities.
How often should the terminal block be maintained?
- Regular checks for connection integrity and overall system performance are recommended to ensure continued reliable operation.
