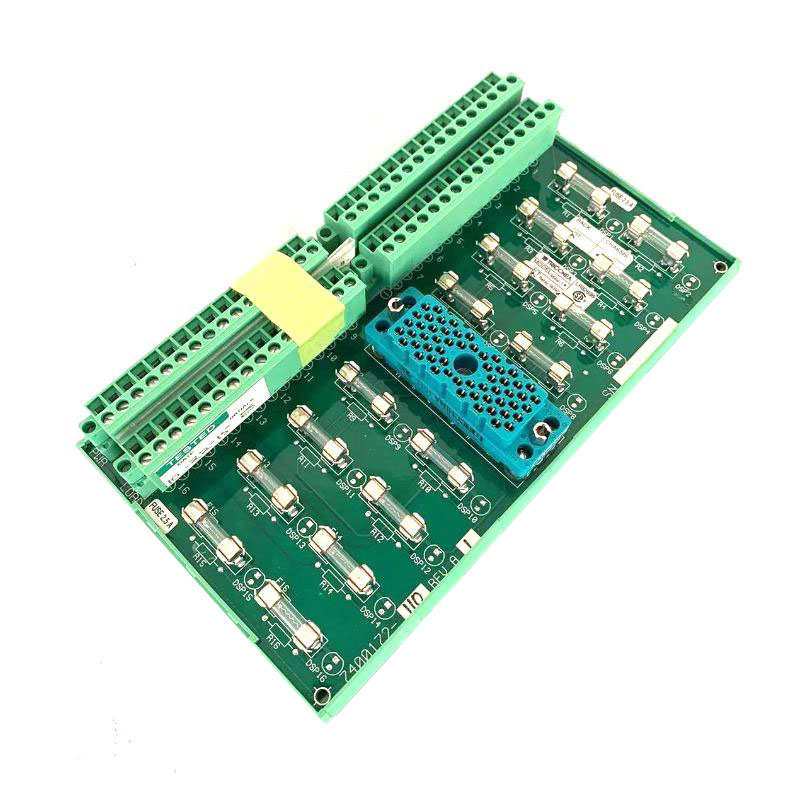

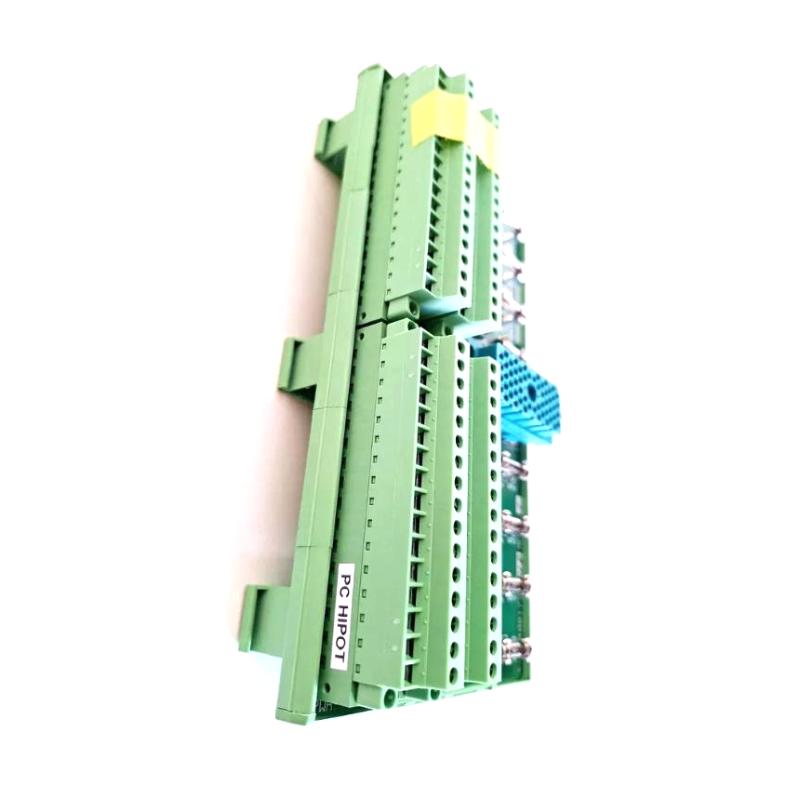

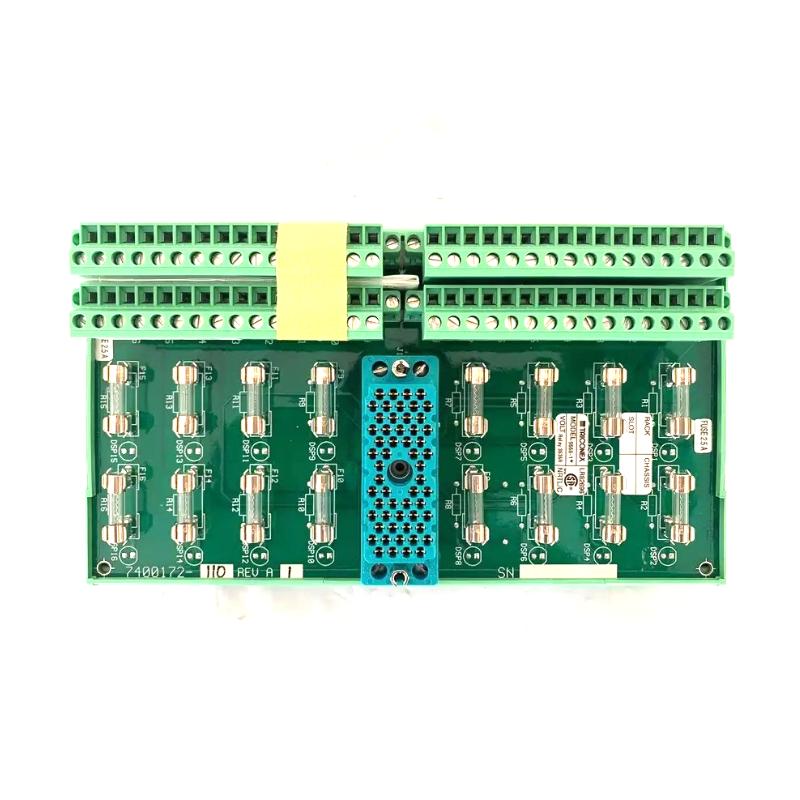

Name: Triconex 9668-110NJ 7400172-110 Terminal Board
Brand: Invensys Triconex
SKU: 2973
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Invensys Triconex
Item No.:9668-110NJ
Product Origin:USA
Product Dimensions:114.3 ×196.85 × 107.95 mm
Product Weight:0.95 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Triconex 9668-110NJ 7400172-110 Terminal Board is a highly reliable and efficient interface for connecting field devices to Triconex control systems. Designed for use in safety-critical applications, this terminal board ensures the accurate transmission of signals in environments where safety and system integrity are paramount.

Ideal for industries such as energy, petrochemicals, and manufacturing, the terminal board supports flexible I/O configurations and is engineered to withstand harsh conditions. Its compact design and high reliability make it essential for mission-critical operations where performance and uptime are non-negotiable.

Technical Specifications

Specification	Value
Model Number	Triconex 9668-110NJ 7400172-110
Module Type	Terminal Board
Dimensions (L × W × H)	114.3 × 196.85 × 107.95 mm
Weight	0.95 kg
Input/Output Connections	Configurable terminal blocks
Power Consumption	24V DC ± 10%
Mounting Type	DIN rail mounting
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Certifications	UL, CE, CSA

Applications

Safety Instrumented Systems (SIS): Critical for safety monitoring and protection in high-risk environments, ensuring compliance with safety regulations.
Industrial Automation: Enables seamless integration and control of field devices, improving system efficiency in industrial processes.
Emergency Shutdown Systems: Facilitates quick and reliable signal distribution to initiate emergency shutdowns, reducing the risk of accidents.

Advantages

High Reliability: The terminal board is built to perform reliably in demanding, safety-critical environments, ensuring the continued operation of key systems.
Flexible Integration: Configurable terminal blocks allow for easy customization of input and output configurations, adapting to specific system needs.
Compact and Space-Saving: Its small form factor ensures easy installation in control panels with limited space, optimizing panel organization.

Technical FAQs

What is the purpose of the Triconex 9668-110NJ Terminal Board?
- It serves as an interface between field devices and Triconex control systems, providing reliable signal termination and distribution in safety-critical applications.
How do I configure the input and output connections?
- The terminal board uses configurable terminal blocks, offering flexibility in configuring I/O connections to meet system requirements.
What I/O configurations does the terminal board support?
- The terminal board supports a wide range of I/O configurations, which can be customized based on the specific needs of the system.
Can the terminal board be used in redundant setups?
- Yes, the terminal board is designed to function in redundant configurations, ensuring operational continuity in the event of a failure.
What safety certifications does the terminal board hold?
- It is UL, CE, and CSA certified, ensuring it meets high safety standards required for industrial and safety-critical environments.
How does the board handle electromagnetic interference (EMI)?
- The terminal board features built-in EMI shielding, ensuring stable and reliable performance in environments with high electromagnetic interference.
What protection mechanisms are included in the terminal board?
- The board is equipped with overcurrent protection and transient suppression to safeguard against electrical faults and surges.
Can the terminal board be used in extreme environmental conditions?
- Yes, it is designed to operate in a wide range of temperatures, from -20°C to +60°C, making it suitable for diverse industrial environments.
What diagnostic features are available for troubleshooting?
- The terminal board supports diagnostic features that allow for quick identification of faults, including connection issues and voltage irregularities.
Is there a recommended maintenance routine for the terminal board?
- Regular inspections for connection integrity and overall performance are recommended to ensure the board operates efficiently over time.
