Introduction — Reliable Analog Input Terminal for Triconex Systems

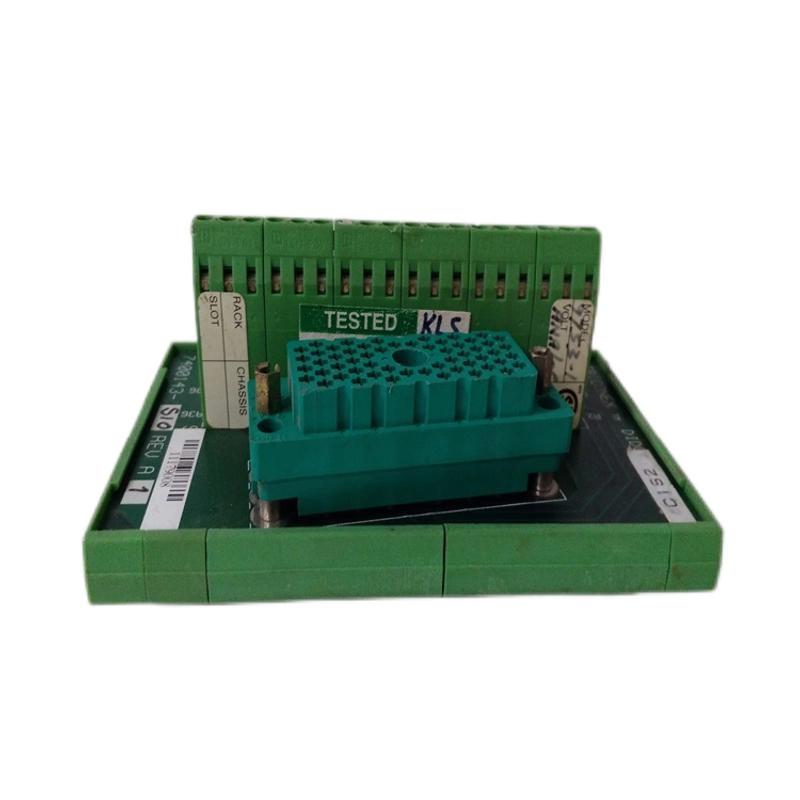

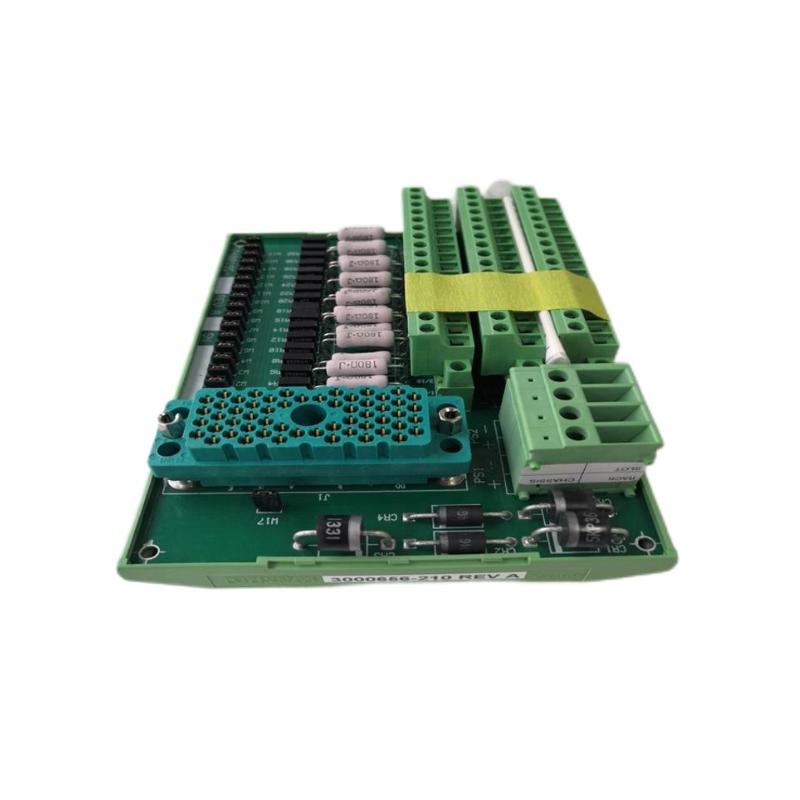

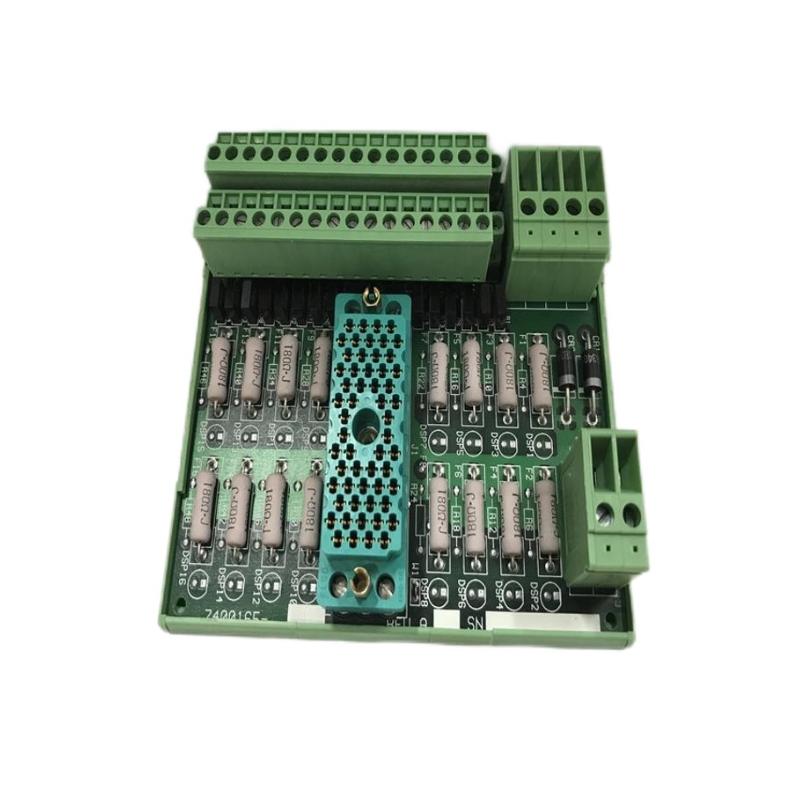

The Triconex 9771-2XX 7400195-210 is a high-quality Analog Input Terminal Board designed for Triconex safety and control systems. This terminal board provides a secure and organized interface for connecting analog field devices, such as sensors and transmitters, to Triconex controllers. Engineered for industrial reliability, it ensures accurate signal acquisition, electrical protection, and simplified wiring for process, energy, and manufacturing environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 9771-2XX / 7400195-210 |
| Module Type | Analog Input Terminal Board |
| Compatible Systems | Triconex Tricon, Tricon, and Tricon Safety Systems |
| Number of Channels | 16 analog input channels (standard) |
| Signal Type | 4–20 mA or 0–10 V analog input signals |
| Input Impedance | 250 Ω nominal |
| Voltage Rating | 300 V AC / DC |
| Current Rating | 5 A max per terminal |
| Operating Temperature | -20 °C to +70 °C |
| Mounting | DIN rail or panel mount compatible |
| Dimensions (W×H×D) | 180 mm × 90 mm × 40 mm |
| Weight | ~0.5 kg |
| Material | Industrial-grade insulating material and copper terminals |
| Compliance | CE, UL, and industrial safety standard |
