Introduction — Reliable Communication Modem for Honeywell Systems

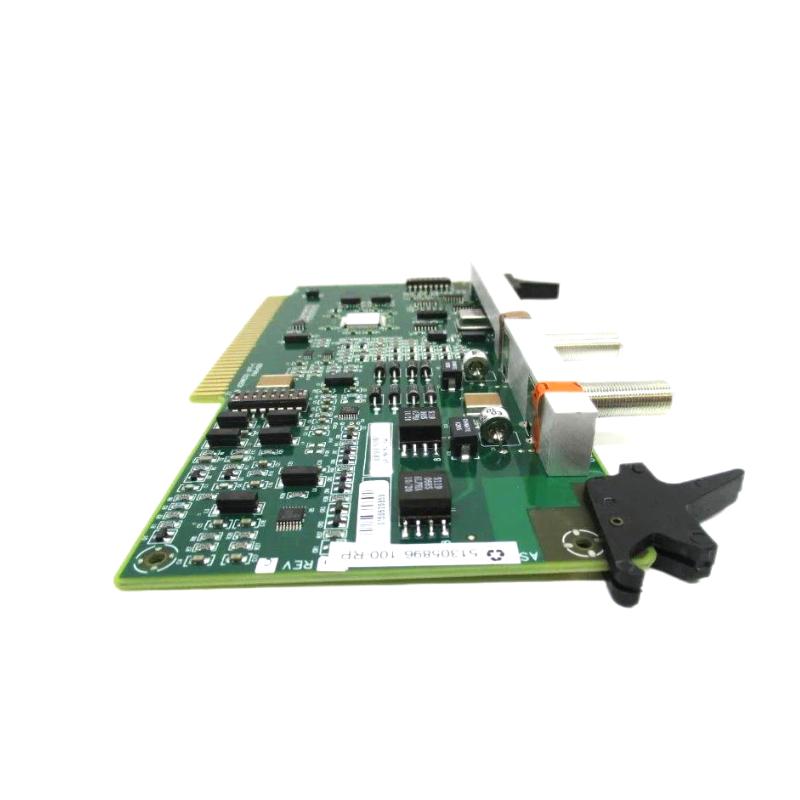

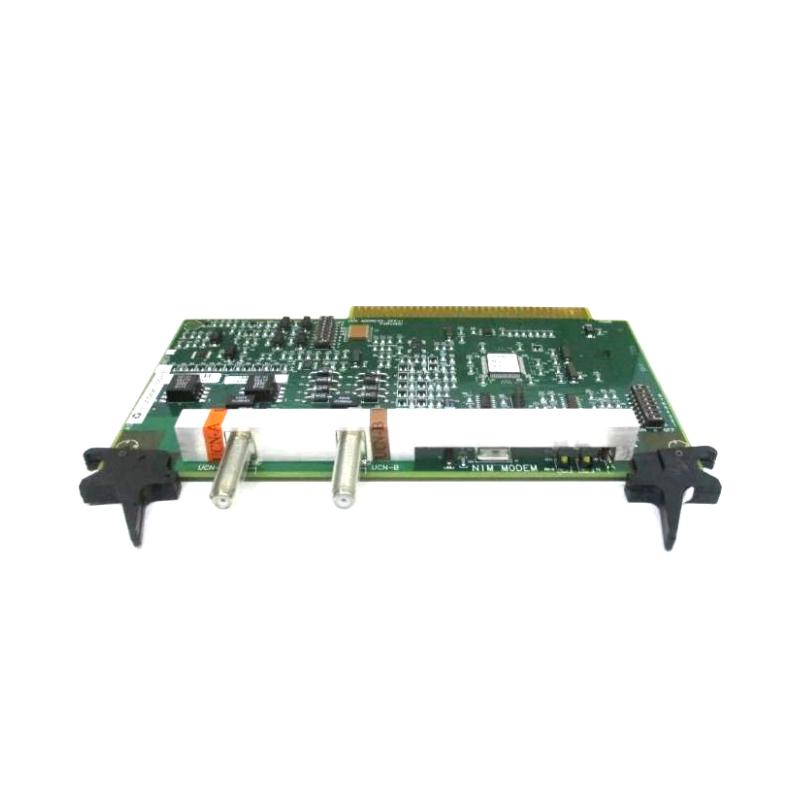

The Honeywell 51305896-100 is a high-performance PWA NIM Modem designed for integration with Honeywell TDC 3000, Experion LS, and FS series control systems. This modem module provides secure and reliable network interface communication between controllers and field devices or remote systems. Engineered for industrial performance, the PWA NIM Modem ensures low-latency data transfer, signal integrity, and easy integration in control cabinets and racks, making it ideal for process, energy, and manufacturing environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 51305896-100 |
| Module Type | PWA NIM Modem |
| Compatible Systems | Honeywell TDC 3000, Experion LS, FS series |
| Function | Network interface modem for communication between controllers and field devices |
| Data Rate | Up to 19.2 kbps (system dependent) |
| Operating Voltage | 24 V DC nominal |
| Operating Temperature | 0 °C to +60 °C |
| Mounting | Rack-mounted or panel-mounted in system chassis |
| Dimensions (W×H×D) | 120 mm × 90 mm × 35 mm |
| Weight | ~0.34 kg |
| Isolation | Electrically isolated signals to protect the controller |
| Material | Industrial-grade PCB with protective coating |
This modem ensures reliable communication and data transfer between controllers and remote field devices while maintaining system integrity.
