Yokogawa SDV144-S63/PRP Digital Input Module

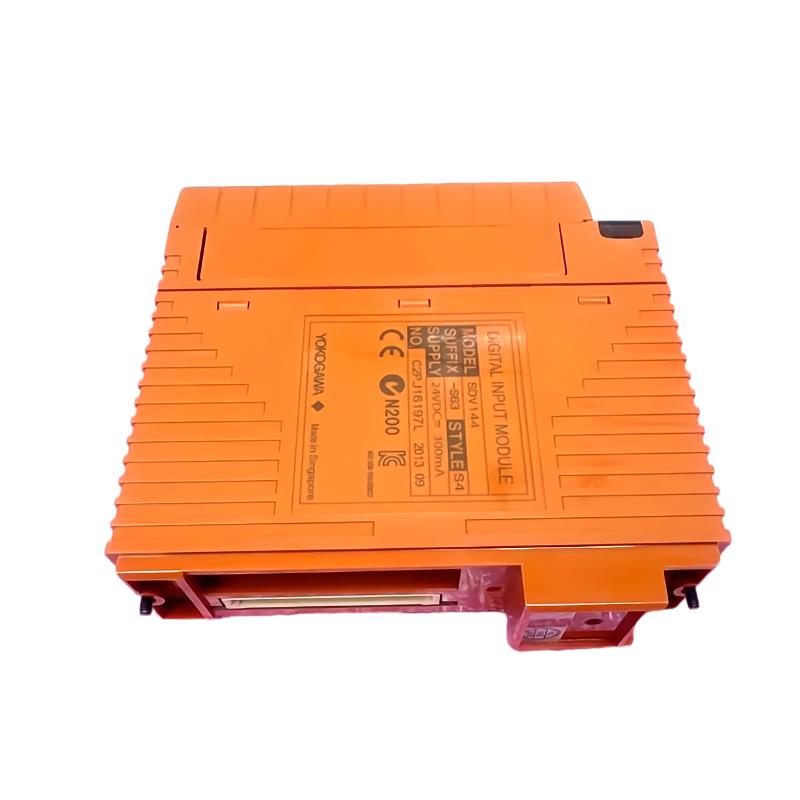

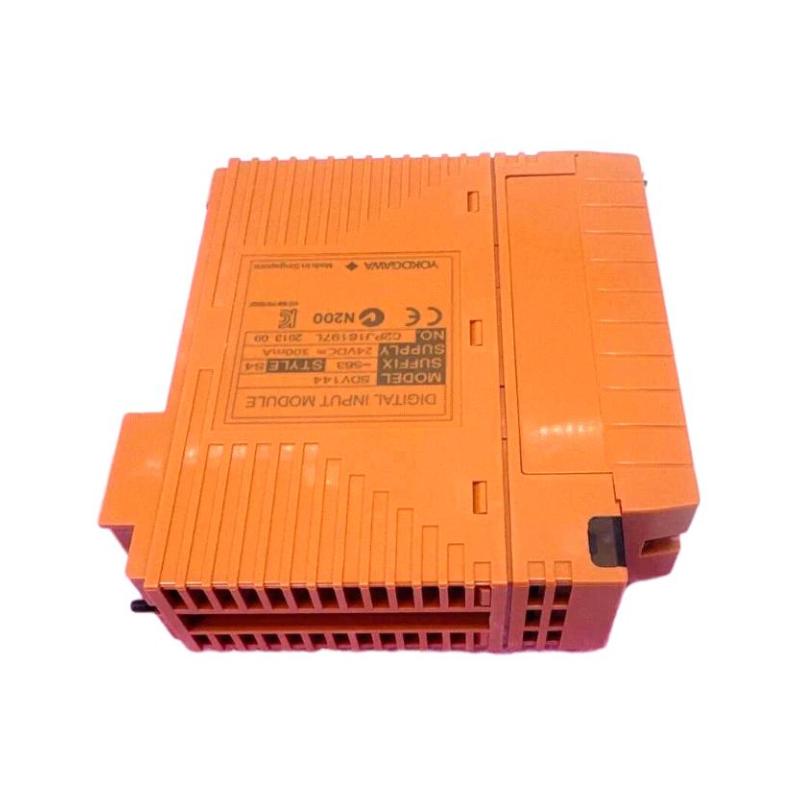

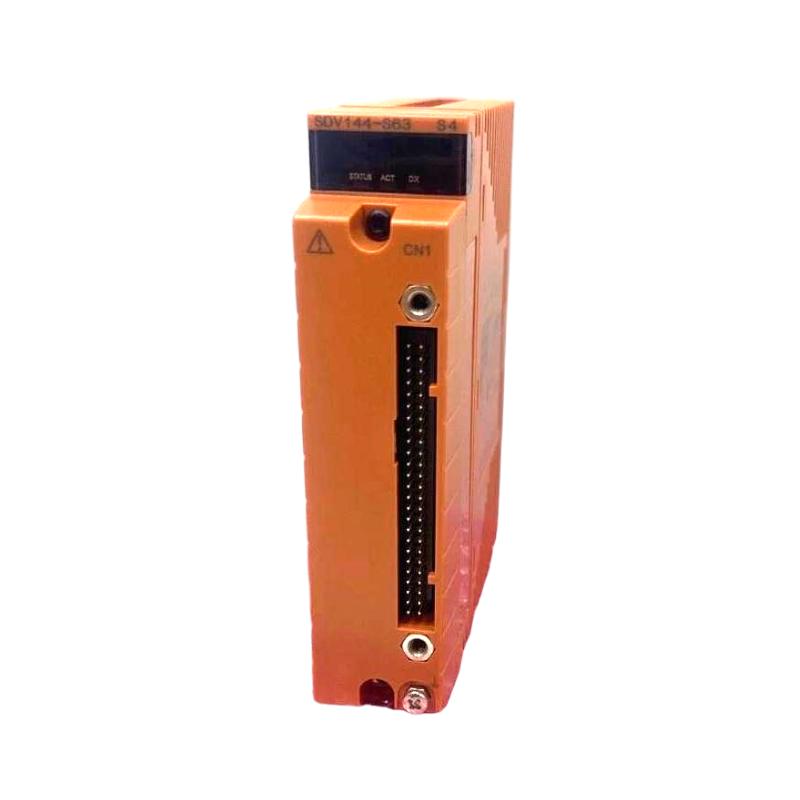

Name: Yokogawa SDV144-S63/PRP Digital Input Module
Brand: Yokogawa Electric
SKU: 2887
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:SDV144-S63/PRP
Product Origin:Japan
Product Dimensions:130 x 32.8 x 107.5 mm
Product Weight:0.41 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa SDV144-S63/PRP Digital Input Module is designed to provide accurate and high-speed digital input processing for industrial automation systems. Optimized for real-time monitoring and control, this module ensures seamless data transmission between field devices and control systems. By utilizing the PRP (Parallel Redundancy Protocol), it guarantees high availability and reliability, even in the event of network failures. Its compact and robust design makes it ideal for a variety of industrial applications, especially in environments that demand continuous operation and fault tolerance.

Technical Specifications

Specification	Value
Model	Yokogawa SDV144-S63/PRP
Dimensions	130 × 32.8 × 107.5 mm
Weight	0.41 kg
Power Supply	24 VDC
Mounting Type	DIN Rail
Operating Temperature	-20°C to +60°C
Relative Humidity	5% to 95% (non-condensing)
Input Channels	16 digital inputs
Communication Protocol	PRP (Parallel Redundancy Protocol)

Applications

Industrial Automation: The SDV144-S63/PRP module facilitates the reliable processing of digital input signals from sensors, switches, and other field devices, making it essential in automated control systems.
Process Control Systems: In critical process industries such as oil & gas, chemicals, and energy, the module ensures accurate and continuous data acquisition, contributing to effective real-time control.
Safety-Critical Applications: Designed for high availability, the module is suitable for safety-critical systems where reliable data processing and continuous system operation are paramount.

Advantages

Reliable Data Communication: The PRP (Parallel Redundancy Protocol) ensures redundant communication paths, providing uninterrupted data flow even in the event of network failures.
Compact and Efficient Design: The module’s small form factor allows it to be easily integrated into control panels with limited space, optimizing both installation and system performance.
Wide Temperature Range: The module operates effectively in extreme temperature conditions, ranging from -20°C to +60°C, making it suitable for diverse industrial environments.
High-Speed Input Processing: The SDV144-S63/PRP module processes digital input signals at high speed, ensuring timely and accurate responses for control systems.

Technical FAQs

What is the main function of the Yokogawa SDV144-S63/PRP Digital Input Module?
- The module captures digital input signals from field devices such as sensors and switches, and transmits them to the control system for further processing and real-time monitoring.
How does the PRP protocol enhance the reliability of the Yokogawa SDV144-S63/PRP?
- The PRP protocol provides redundant communication paths, ensuring that the module continues to function even in the event of network failures, thus ensuring continuous operation and reliable data transmission.
What devices can be connected to the Yokogawa SDV144-S63/PRP?
- The module is compatible with a variety of field devices that output digital signals, such as sensors, switches, and control relays, which are commonly used in industrial automation.
How is the Yokogawa SDV144-S63/PRP mounted in a control system?
- The module is designed for easy mounting on a DIN rail, which is a standard method for installing industrial control components in control panels.
What is the power supply requirement for the Yokogawa SDV144-S63/PRP?
- The module operates with a 24 VDC power supply, which is commonly used in industrial automation systems for powering digital input modules and other control components.
Can the Yokogawa SDV144-S63/PRP be used in hazardous environments?
- The module is designed for use in industrial environments, but additional certifications may be needed for use in hazardous areas, depending on the specific requirements of the application.
How does the Yokogawa SDV144-S63/PRP ensure fast data processing?
- The module is engineered to process digital input signals quickly, providing real-time data capture that is essential for fast decision-making and control in automated systems.
What are the benefits of using the Yokogawa SDV144-S63/PRP in industrial automation?
- The key benefits include reliable communication through the PRP protocol, high-speed input processing, compact design for space-efficient installation, and the ability to operate in a wide temperature range.
What kind of redundancy does the PRP protocol provide in the Yokogawa SDV144-S63/PRP?
- PRP provides parallel redundancy, ensuring that if one network path fails, the other will maintain communication, thereby preventing downtime or loss of data in critical systems.
What is the input channel capacity of the Yokogawa SDV144-S63/PRP?

The module has 16 digital input channels, allowing it to handle signals from multiple devices simultaneously, making it suitable for complex automation systems.
