Yokogawa SDV144-S33/PRP Digital Input Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

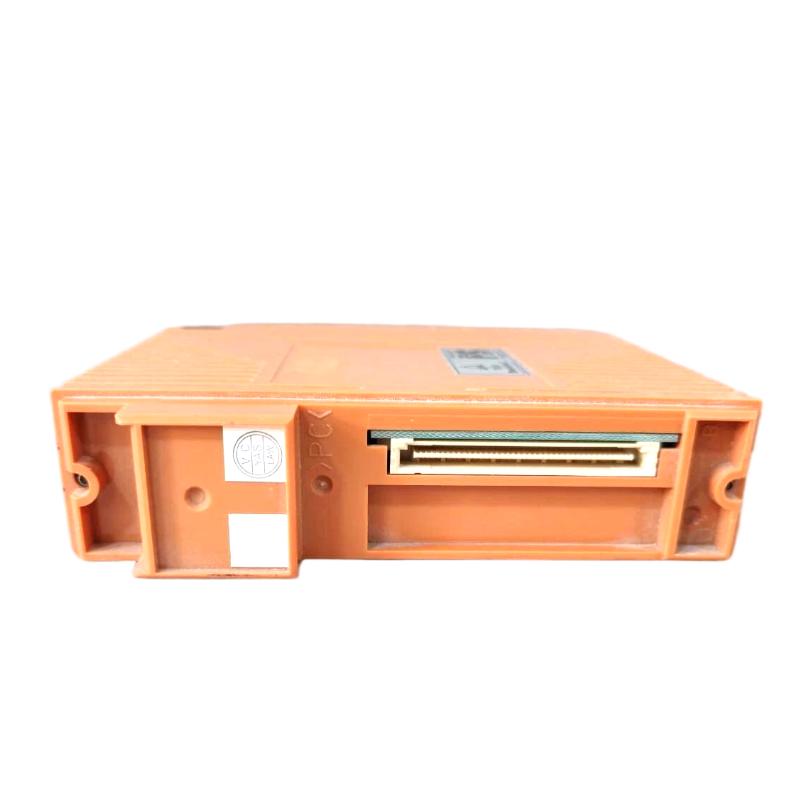

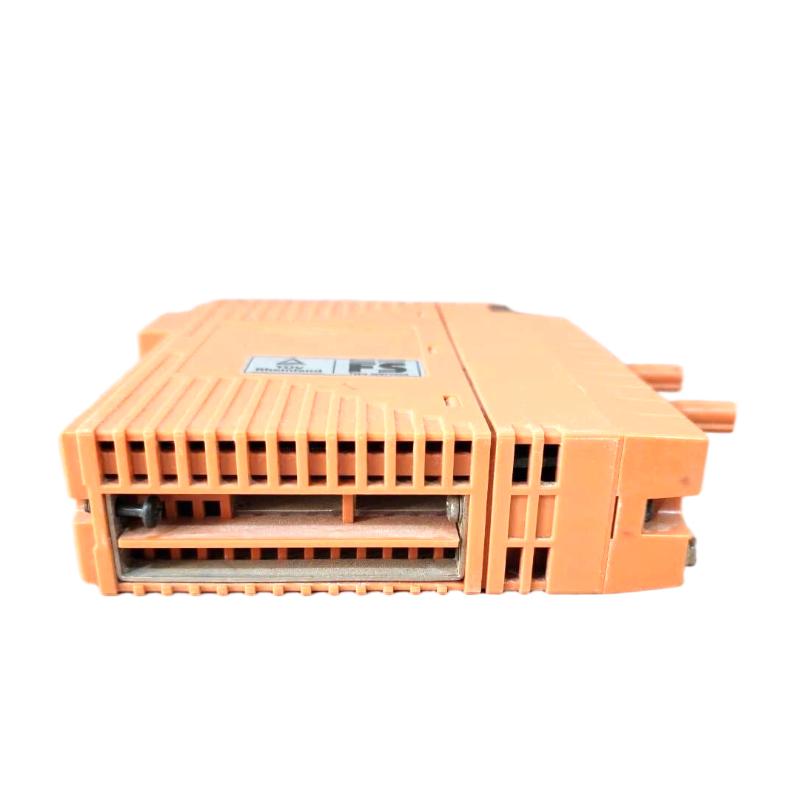

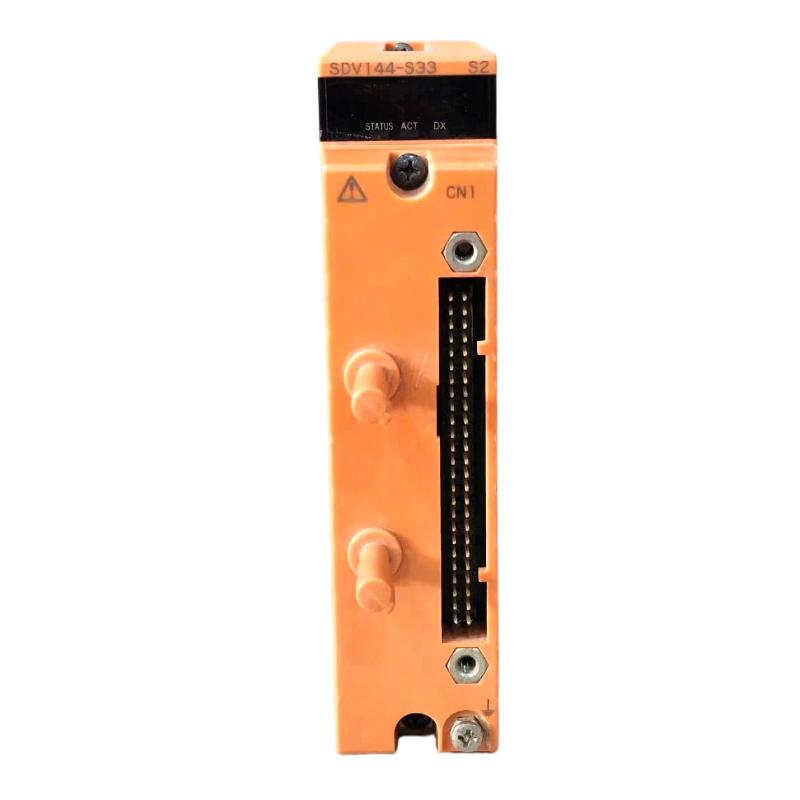

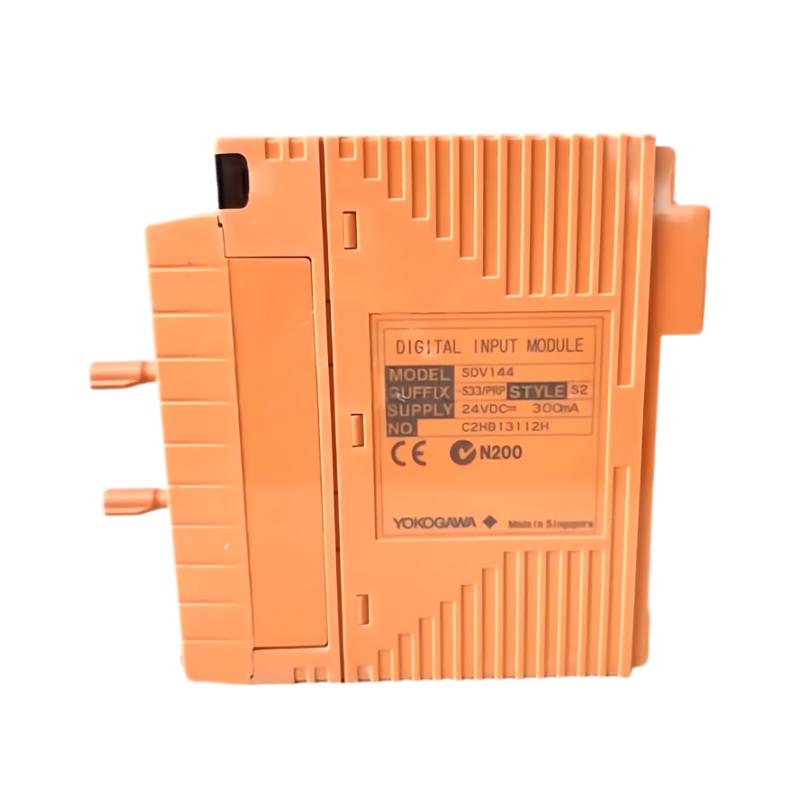

Yokogawa SDV144-S33/PRP Digital Input Module

Name: Yokogawa SDV144-S33/PRP Digital Input Module
Brand: Yokogawa Electric
SKU: 2886
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:SDV144-S33/PRP
Product Origin:Japan
Product Dimensions:130 x 32.8 x 107.5 mm
Product Weight:0.36 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa SDV144-S33/PRP Digital Input Module is designed to offer high-precision, reliable digital input processing for various industrial automation applications. This module interfaces seamlessly with Yokogawa's distributed control systems (DCS) and is optimized for use in environments that require robust data collection and system integration. It supports high-speed, accurate data acquisition, ensuring that digital signals from sensors and field devices are captured and transmitted reliably to the master system for real-time process control.

Technical Specifications

Specification	Value
Model	Yokogawa SDV144-S33/PRP
Dimensions	130 × 32.8 × 107.5 mm
Weight	0.36 kg
Power Supply	24 VDC
Mounting Type	DIN Rail
Operating Temperature	-20°C to +60°C
Relative Humidity	5% to 95% (non-condensing)
Input Channels	16 digital inputs
Communication Protocol	PRP (Parallel Redundancy Protocol)

Applications

Industrial Automation: The SDV144-S33/PRP module is essential in capturing and processing digital signals from field devices such as sensors and switches, ensuring efficient data transfer to control systems for automation tasks.
Process Control: In process industries such as chemicals, petrochemicals, and energy, it provides reliable input for monitoring and controlling processes in real-time.
Safety-Critical Applications: Designed to be highly reliable, this module is used in safety-critical applications where fast and accurate digital signal processing is required, such as in safety systems or critical control systems.

Advantages

High-Speed Data Acquisition: The module processes digital input signals quickly, ensuring real-time data collection and enabling timely responses in automated systems.
Reliable Communication: With support for the PRP (Parallel Redundancy Protocol), the module ensures high availability and reliability, providing continuous communication even in case of network failures.
Compact Design: Its small size allows easy installation within space-constrained control panels, providing flexibility for system integration.
Wide Environmental Tolerance: The SDV144-S33/PRP module operates effectively in temperatures ranging from -20°C to +60°C, making it suitable for a variety of industrial environments.

Technical FAQs

What is the function of the Yokogawa SDV144-S33/PRP Digital Input Module?
- The module captures digital input signals from field devices and sends them to the central control system for processing, ensuring real-time data acquisition and monitoring.
How does the PRP protocol benefit the Yokogawa SDV144-S33/PRP?
- The PRP (Parallel Redundancy Protocol) ensures continuous communication by providing redundant network paths, making the module highly reliable even in the case of network failures.
What types of devices can be connected to the Yokogawa SDV144-S33/PRP?
- The module connects to a variety of digital devices, including sensors, switches, and other field devices that provide binary signals.
How is the Yokogawa SDV144-S33/PRP installed?
- The module is mounted on a DIN rail, making it easy to integrate into existing control panels or automation systems.
What power supply is required for the Yokogawa SDV144-S33/PRP?
- The module operates with a 24 VDC power supply, which is standard for most industrial control systems.
Can the Yokogawa SDV144-S33/PRP be used in hazardous environments?
- The module is designed for industrial environments but may require additional certifications for use in hazardous areas, depending on the specific application.
How does the Yokogawa SDV144-S33/PRP ensure reliability in communication?
- By supporting the PRP (Parallel Redundancy Protocol), the module provides redundancy in the network, ensuring that communication remains uninterrupted even in case of a network failure.
What are the input channels of the Yokogawa SDV144-S33/PRP?
- The module features 16 digital input channels, allowing it to connect and process signals from multiple field devices simultaneously.
What is the operating temperature range of the Yokogawa SDV144-S33/PRP?
- The module operates within a temperature range of -20°C to +60°C, making it suitable for a wide range of industrial environments.
What are the main benefits of using the Yokogawa SDV144-S33/PRP in an automation system?

The key benefits include high-speed data acquisition, reliable communication through PRP, easy integration into control systems, and its ability to function in challenging industrial environments.
