Introduction

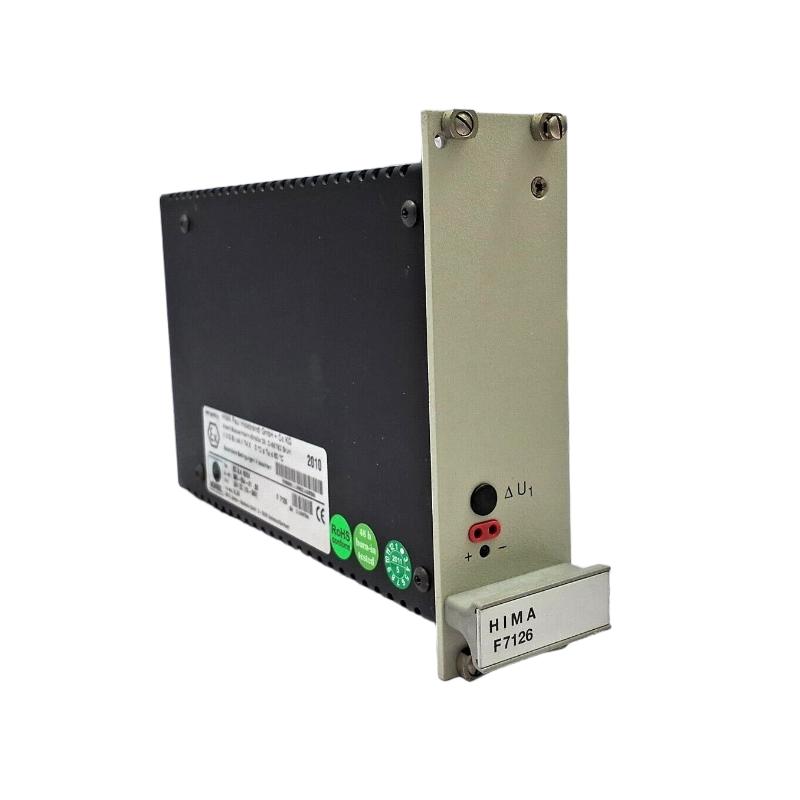

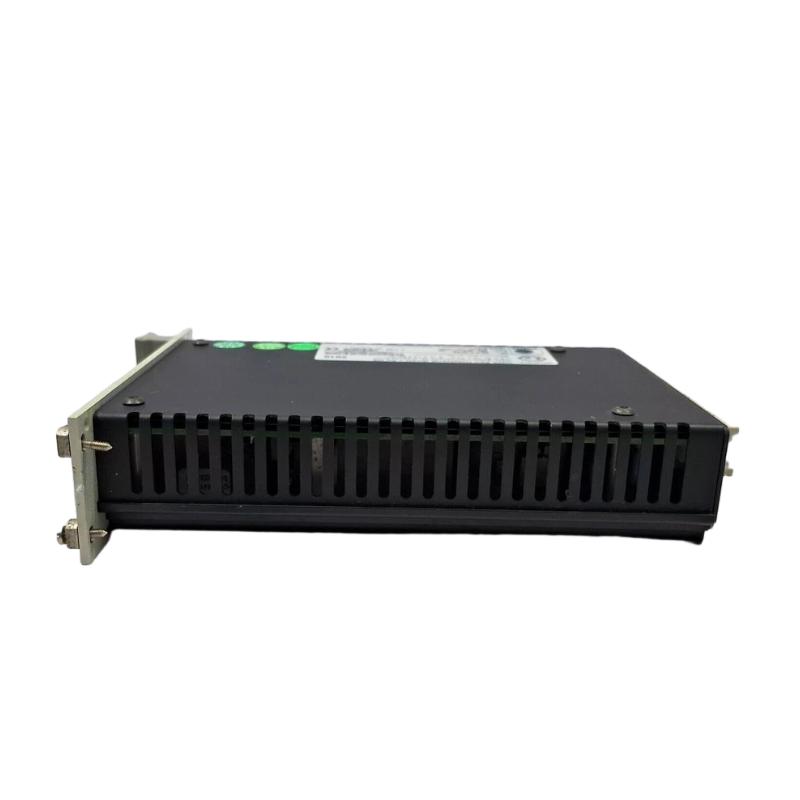

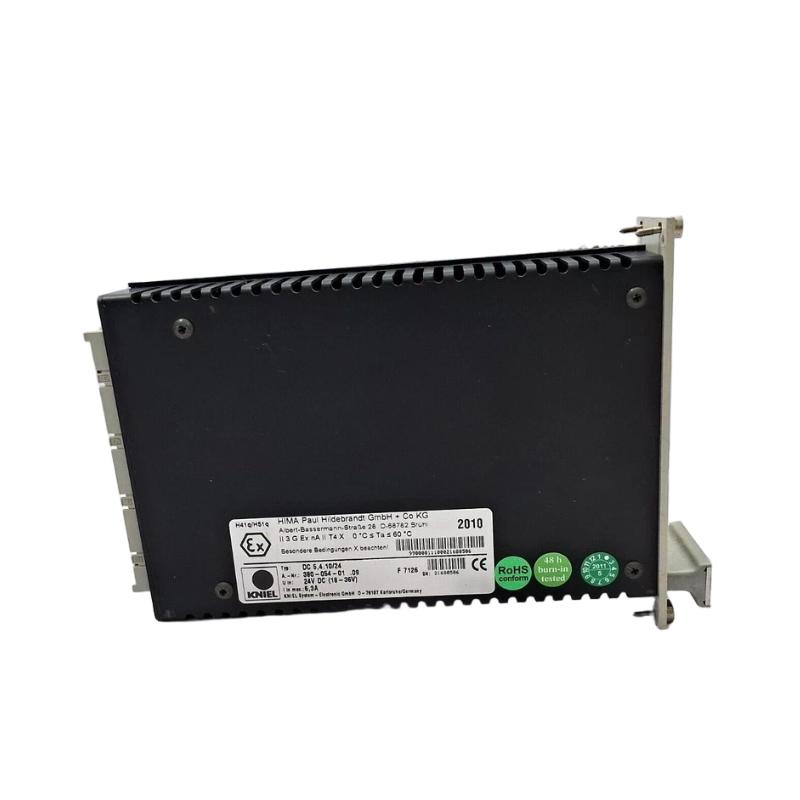

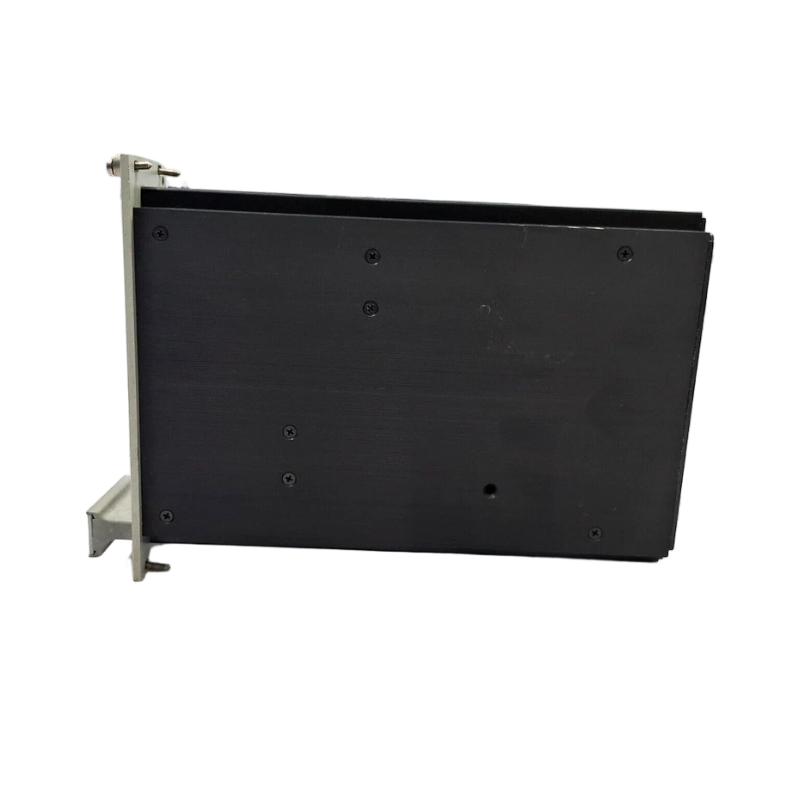

The HIMA F7126A is a safety-rated power supply module designed for use in HIMatrix and F3000 safety systems. It provides reliable, regulated power to safety controllers, I/O modules, and field devices while maintaining fail-safe operation and high availability. Engineered for critical industrial environments, this module ensures uninterrupted power, fault detection, and system protection in applications such as petrochemical plants, oil & gas facilities, power generation, and process automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | F7126A |
| Module Type | Power Supply Module |
| Output Voltage | 24 V DC (nominal) |
| Output Current | 5 A continuous |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Power Regulation | ±2 % typical |
| Efficiency | >85 % |
| Safety / Isolation | Safety-rated, providing isolation and fault detection |
| Mounting | Rack-mounted in HIMatrix or F3000 chassis |
| Operating Temperature | –20 °C to +60 °C |
| Dimensions (H × W × D) | 150 × 32 × 180 mm |
| Weight | 1.4 kg |
| Reliability Features | Overcurrent protection, short-circuit protection, built-in diagnostics |
