Technical FAQs

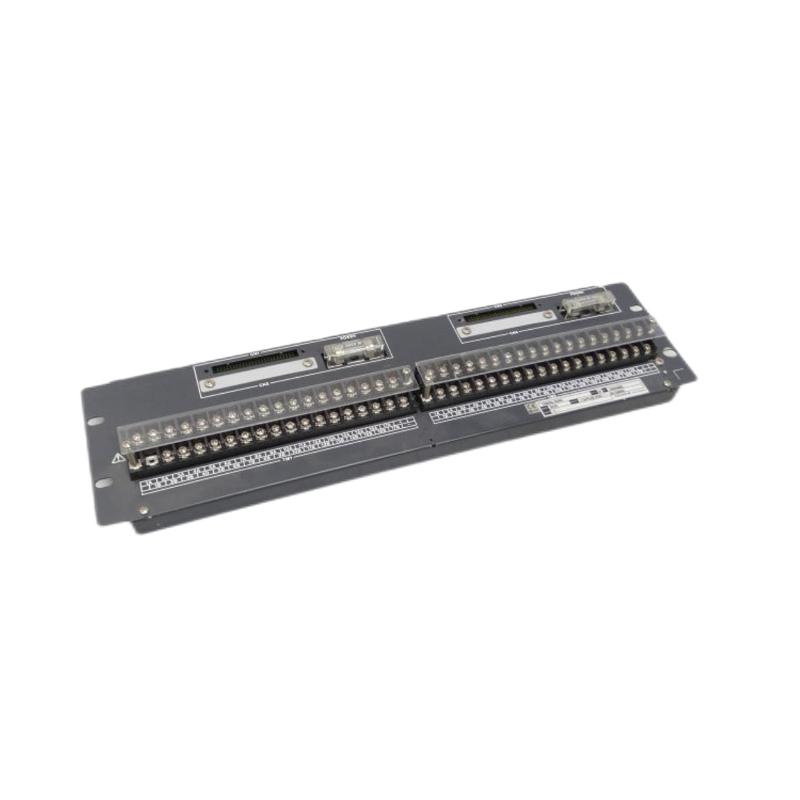

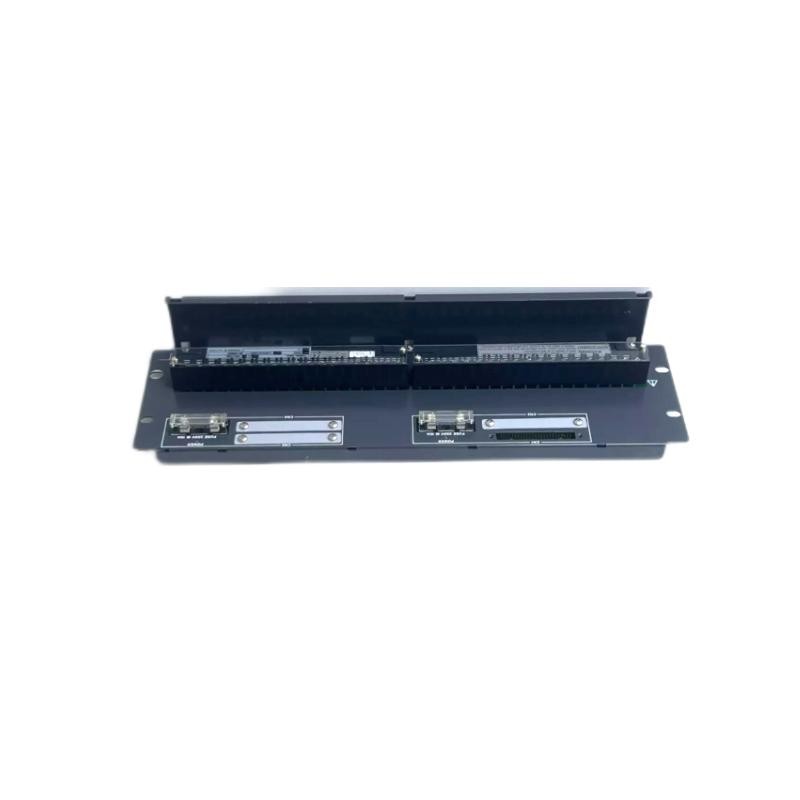

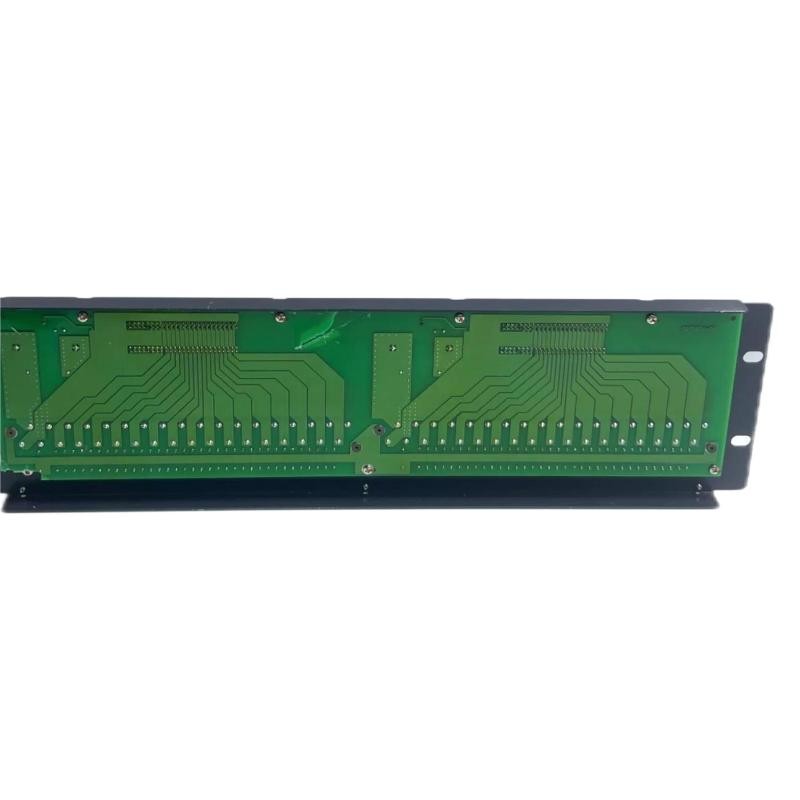

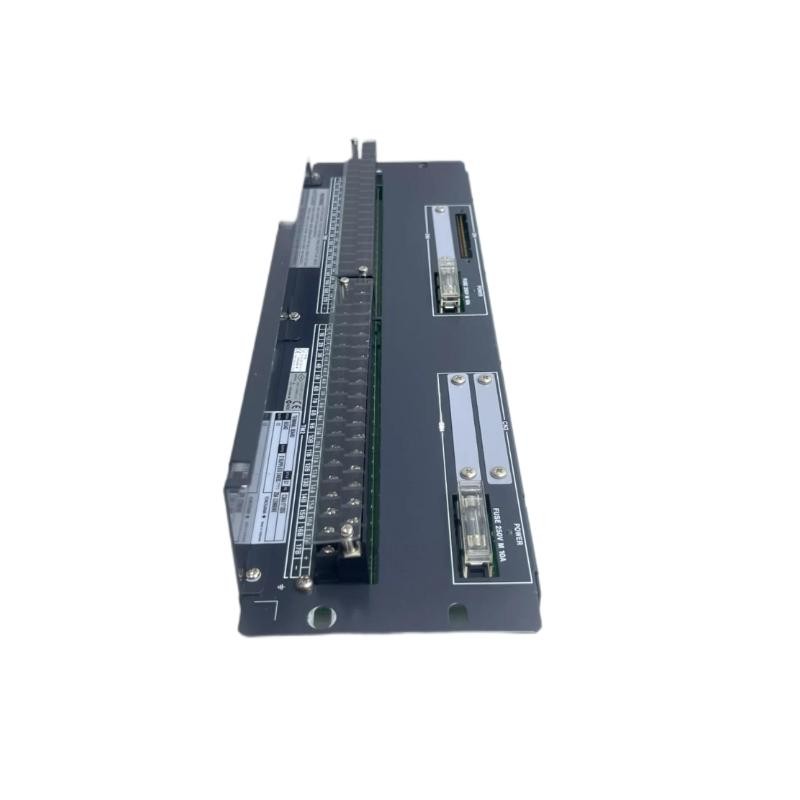

1. What is the main purpose of the SED4D‑11 board?
   It provides a dedicated termination point for discrete digital inputs and outputs between field devices and control modules.

2. What types of signals does it handle?
   It handles digital (on/off) input and output signal wiring.

3. Is labeling provided?
   Yes — terminals are clearly marked to aid installation and maintenance.

4. What wire sizes does it support?
   It supports standard industrial field wiring gauges commonly used for discrete signal circuits.

5. Where is this module installed?
   Mounted inside control cabinets, on panel frames, or within rack assemblies as part of automation wiring infrastructure.

6. Does it require any configuration software?
   No — it is a passive terminal interface and does not require configuration.

7. Can it be used in PLC panels outside Yokogawa systems?
   Yes — as long as discrete signal wiring standards are compatible.

8. Is this board suitable for harsh environments?
   It is designed for standard industrial control cabinets; additional protection may be used for harsher conditions.

9. Does it improve system diagnostics?
   Its organized layout and labeling help reduce errors during commissioning and maintenance.

10. Is special tooling required for installation?
    Standard industrial wiring tools suffice for field termination and installation.
