Technical FAQs

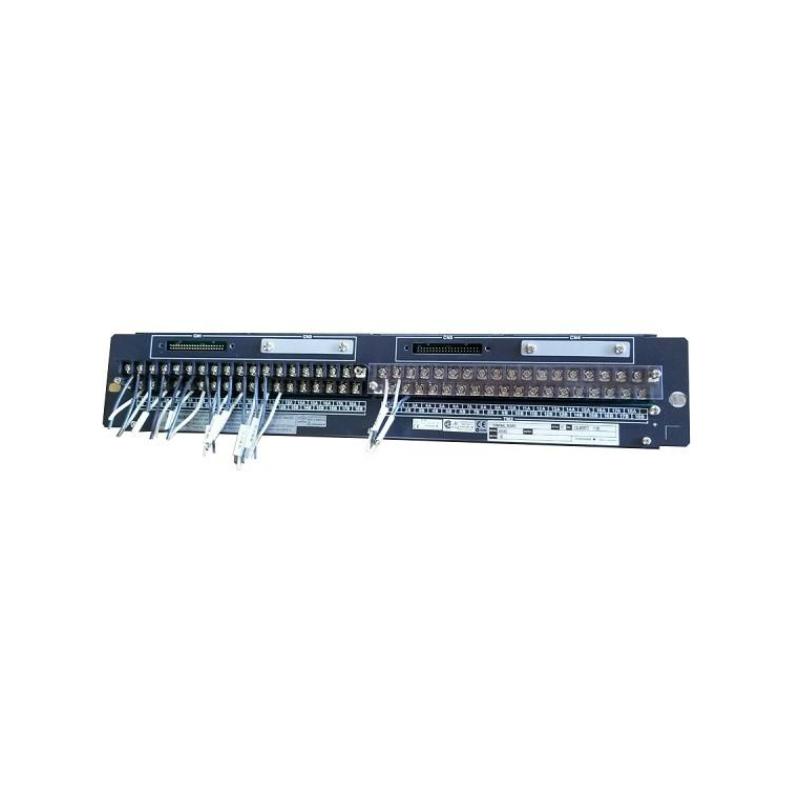

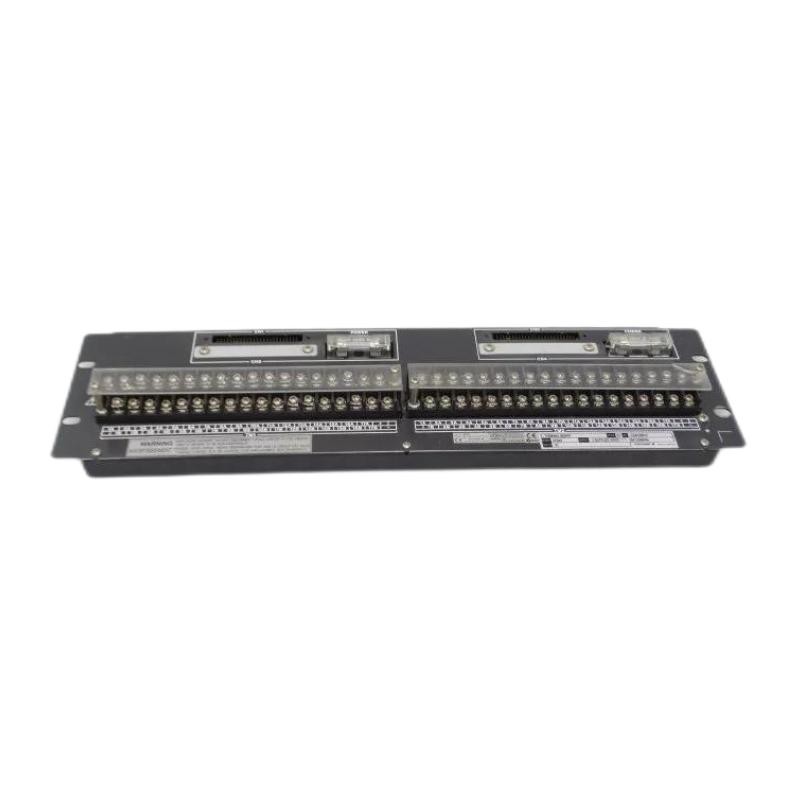

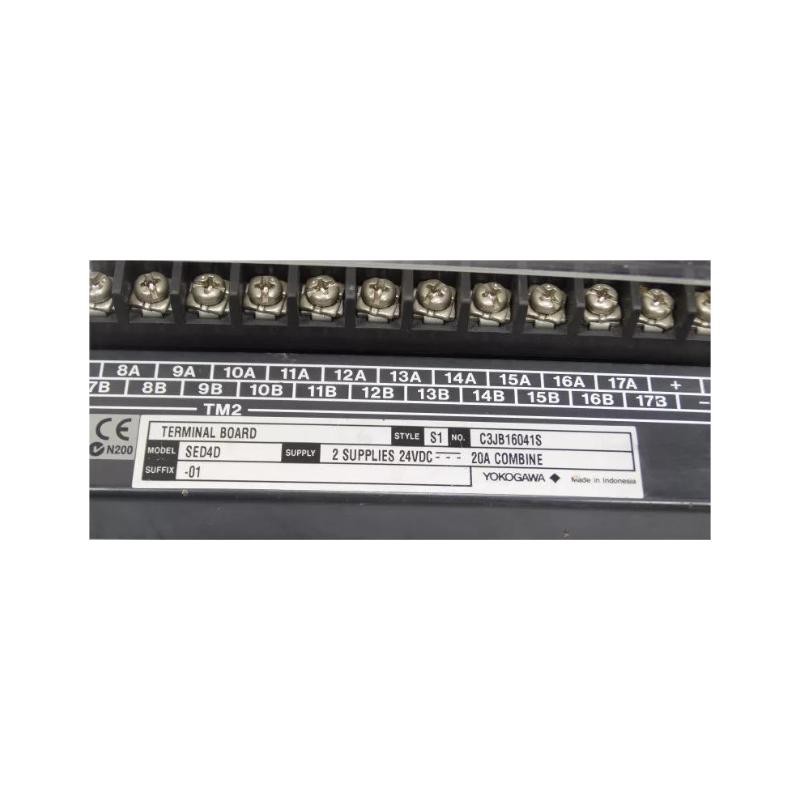

1. What is the main purpose of the SED4D‑01 board?
   It provides a central termination interface for digital input and output wiring between field devices and control modules.

2. Can it handle both inputs and outputs?
   Yes — it supports termination for multiple discrete digital signals, including both input and output circuits.

3. Is it compatible with Yokogawa systems?
   Yes — designed for use in Yokogawa control and automation cabinet setups.

4. What wire sizes does it support?
   It supports standard industrial field wiring gauges appropriate for discrete signal wiring.

5. Does it include labeling for connections?
   Yes — terminals are clearly identified to aid installation and maintenance.

6. Where is it typically installed?
   Mounted on control panels or racks within industrial automation cabinets.

7. Can it be used with third‑party PLC cabinets?
   Yes — as long as discrete signal wiring standards align with the controller I/O requirements.

8. Does it require configuration software?
   No — it is a passive wiring interface board and does not require software configuration.

9. Does it improve signal reliability?
   Yes — firm, organized connections reduce noise and connection issues.

10. Is it suitable for harsh environments?
    It is designed for typical industrial electrical rooms and cabinet conditions; additional enclosures may be used for harsher environments.
