Technical FAQs

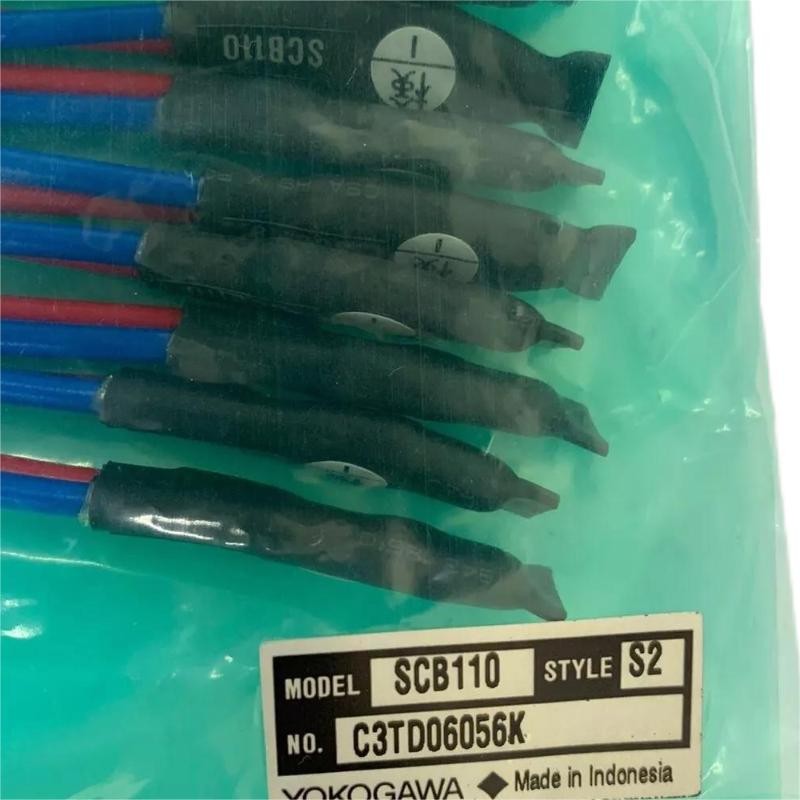

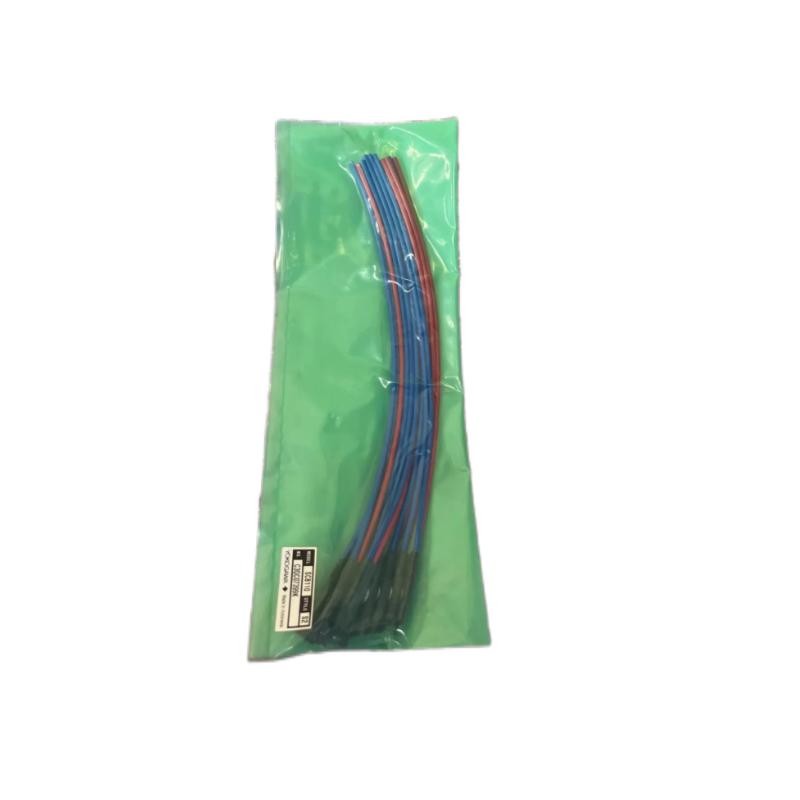

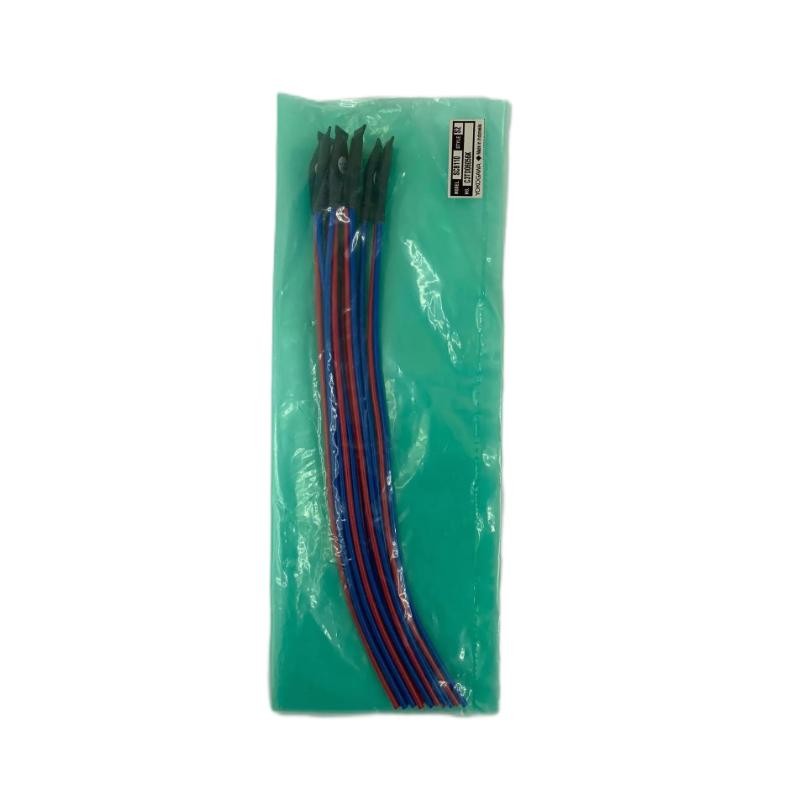

1. What is the main role of the SCB110‑S0?
   It is a wiring check adapter for detecting short‑circuit conditions in digital input wiring.

2. Where is this device typically used?
   In automation control systems — especially Yokogawa DCS or PLC wiring environments — to validate digital input connections.

3. Does it replace digital input modules?
   No — it is a test and diagnostic tool used alongside actual input modules.

4. What type of signals does it check?
   It checks “on” digital signals and identifies potential short circuits in input loops.

5. Is any power supply required?
   No — it is a passive adapter used in series with the wiring under test.

6. Can it detect open circuits?
   The SCB110‑S0 specifically aids in short‑circuit detection; other adapters (like SCB100 models) are used for open‑circuit checks.

7. Does it support multiple channels?
   It interfaces with digital input circuits; channel handling depends on the system wiring configuration.

8. Is it suitable for field maintenance?
   Yes — its compact design and straightforward use make it suitable for field diagnostics.

9. What environments is it designed for?
   Standard industrial control cabinet and panel environments.

10. Can it be used outside Yokogawa systems?
    It can be used to check digital input wiring in systems with compatible logic levels and connectors.
