Allen Bradley 1336F-MCB-SP1F Drive Control Board

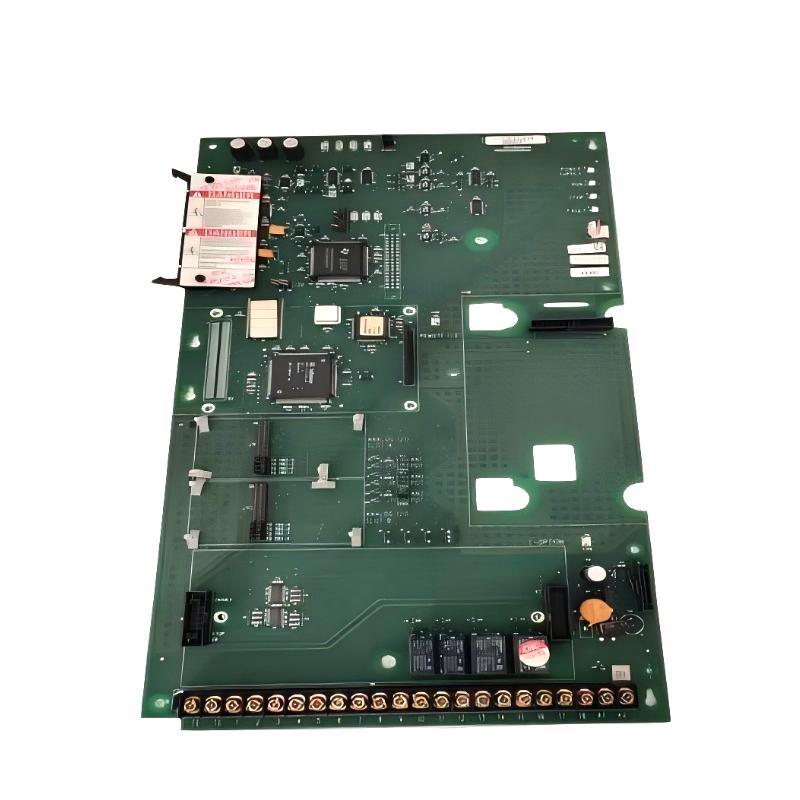

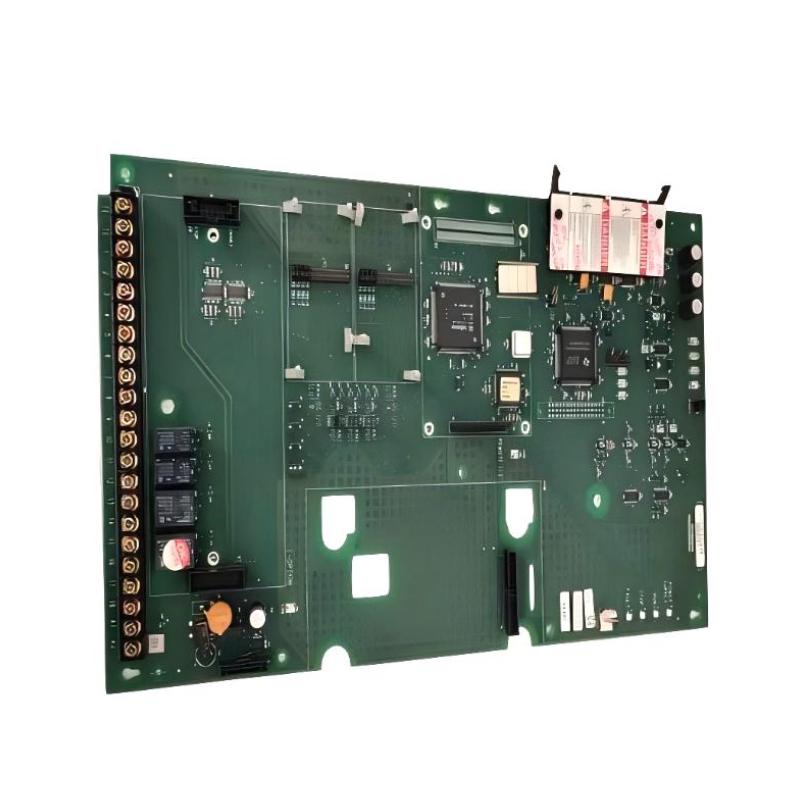

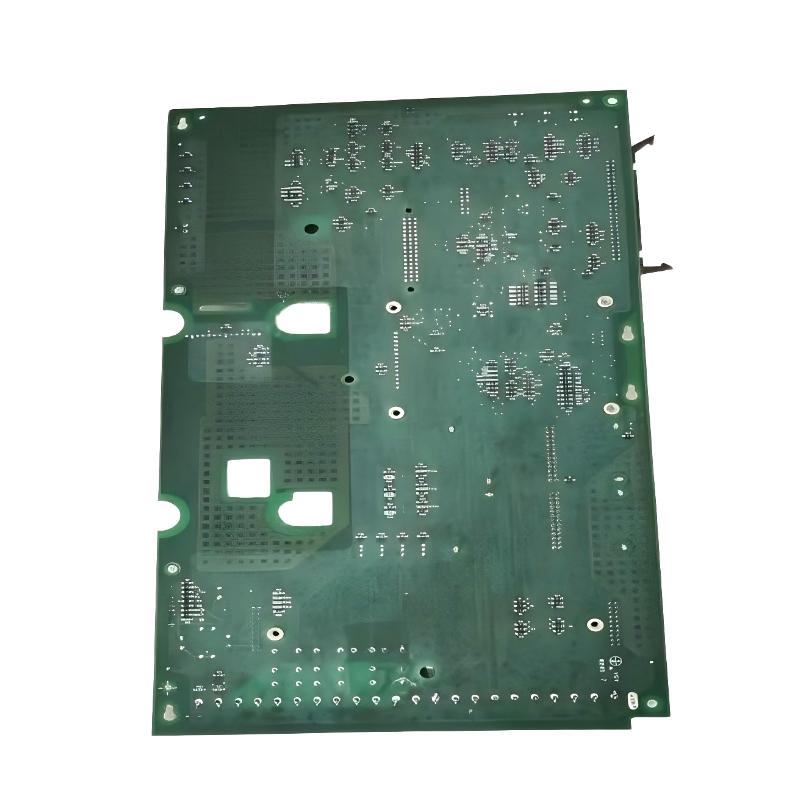

Name: Allen Bradley 1336F-MCB-SP1F Drive Control Board
Brand: Allen Bradley PLC
SKU: 2809
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Allen Bradley PLC
Item No.:1336F-MCB-SP1F
Product Origin:USA
Product Dimensions:200 × 50 × 150 mm
Product Weight:2.27 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Allen Bradley 1336F-MCB-SP1F Drive Control Board is a high-performance control module designed for use in motor control applications. It provides precise control and protection for variable frequency drives (VFDs) in industrial environments. This control board is essential for optimizing the performance of AC motors, ensuring smooth and reliable operation in demanding applications such as conveyors, pumps, and fans. With its robust design and compatibility with Allen Bradley systems, it is ideal for industries like manufacturing, material handling, and process control.

Technical Specifications

Specification	Details
Model Number	1336F-MCB-SP1F
Module Type	Drive Control Board
Dimensions (W x D x H)	200 × 50 × 150 mm
Weight	2.27 kg
Input Voltage	380-480 VAC
Operating Frequency	0-400 Hz
Mounting Type	Panel Mount
Operating Temperature	-10°C to +60°C
Compliance	CE, UL certified

Applications

Variable Frequency Drives (VFDs): Used in VFD systems for precise motor control in applications such as pumps, fans, and conveyors.
Motor Protection: Provides built-in protection mechanisms for motors and drive systems, preventing damage due to overvoltage, overheating, and overcurrent.
Industrial Automation: Widely used in automated manufacturing and processing systems where precise motor control is essential for process efficiency.

Advantages

Enhanced Motor Control: The board enables smooth and efficient motor control, offering precise adjustment of speed and torque for various industrial applications.
Reliable Operation: With a broad operating temperature range of -10°C to +60°C, the control board operates reliably in harsh industrial environments.
Compact Design: The panel mount design allows for easy integration into control panels, saving space while maintaining high performance.

Technical FAQs

What is the primary function of the 1336F-MCB-SP1F Drive Control Board?
- The board is designed for motor control applications, providing precise regulation of motor speed, torque, and protection in VFD systems.
What is the operating frequency range of the 1336F-MCB-SP1F?
- The control board operates within a frequency range of 0-400 Hz, making it suitable for a wide range of motor speeds.
What input voltage is required for the 1336F-MCB-SP1F?
- The board operates with an input voltage of 380-480 VAC, which is typical for industrial motor control systems.
What temperature range does the 1336F-MCB-SP1F support?
- The board operates in environments with temperatures ranging from -10°C to +60°C, ensuring reliability in various industrial settings.
What industries use the 1336F-MCB-SP1F Drive Control Board?
- The board is widely used in manufacturing, material handling, and process control, where motor control is critical to operational efficiency.
How is the 1336F-MCB-SP1F mounted?
- The board is designed for panel mounting, simplifying integration into existing control systems and ensuring a secure installation.
What protections are built into the 1336F-MCB-SP1F?
- The control board provides motor protection against conditions like overvoltage, overcurrent, and overheating, ensuring safe and reliable operation.
Can the 1336F-MCB-SP1F be used with different motor types?
- Yes, the board is designed to work with a wide range of AC motors, providing flexible control in various applications.
What certifications does the 1336F-MCB-SP1F have?
- The board is CE and UL certified, meeting international standards for safety and performance.
How does the 1336F-MCB-SP1F improve motor performance?
- By providing precise motor speed and torque control, the board optimizes motor performance, improving energy efficiency and reducing wear and tear.
