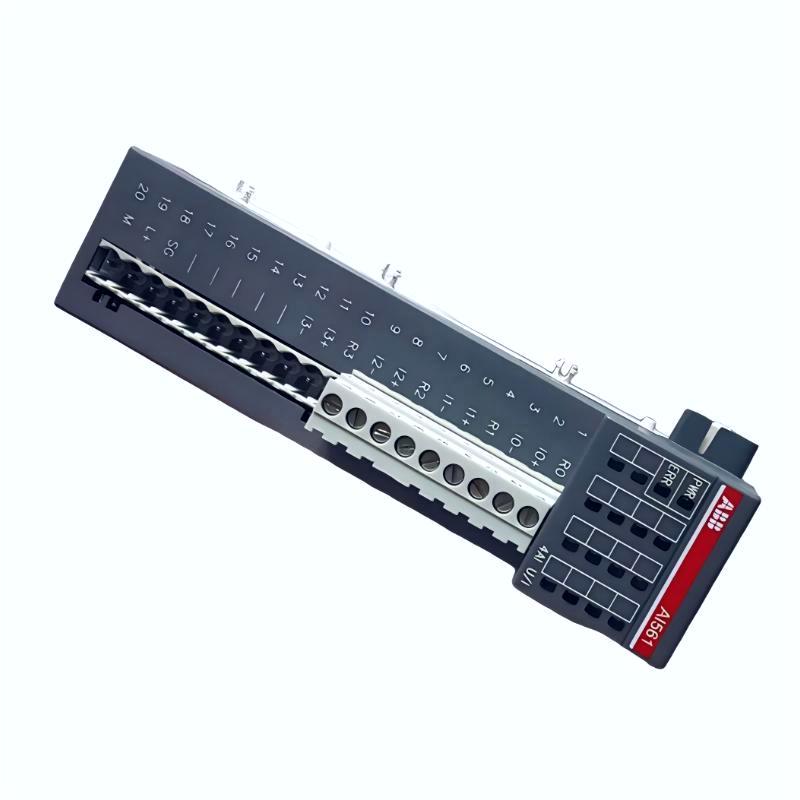

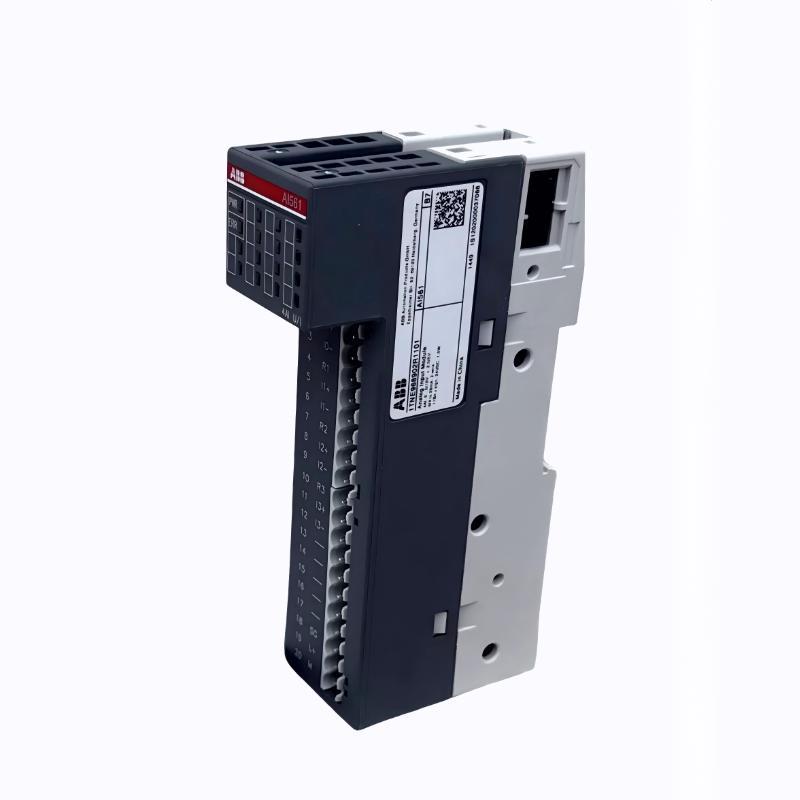

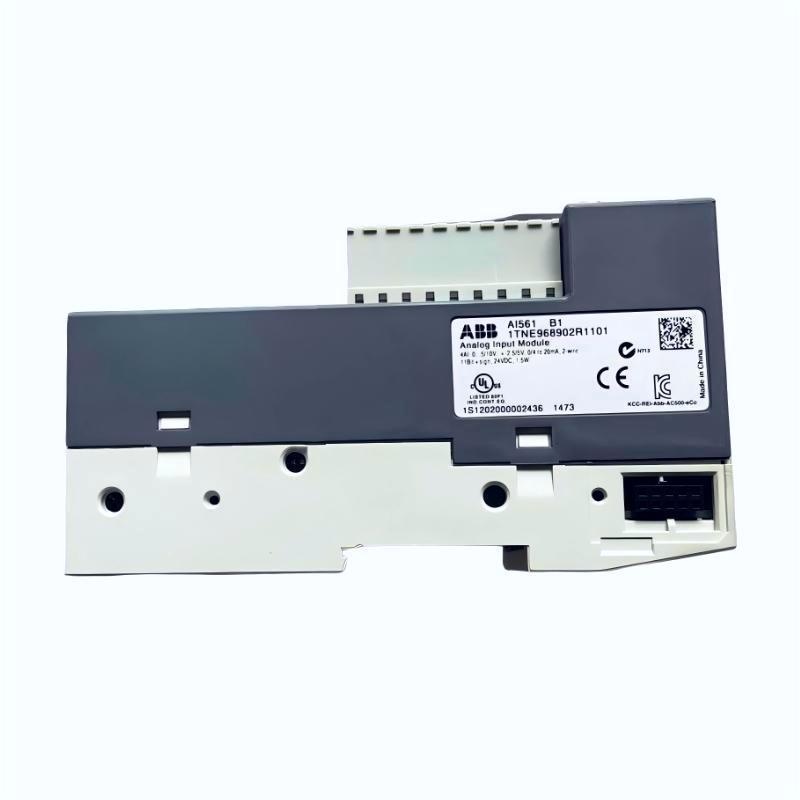

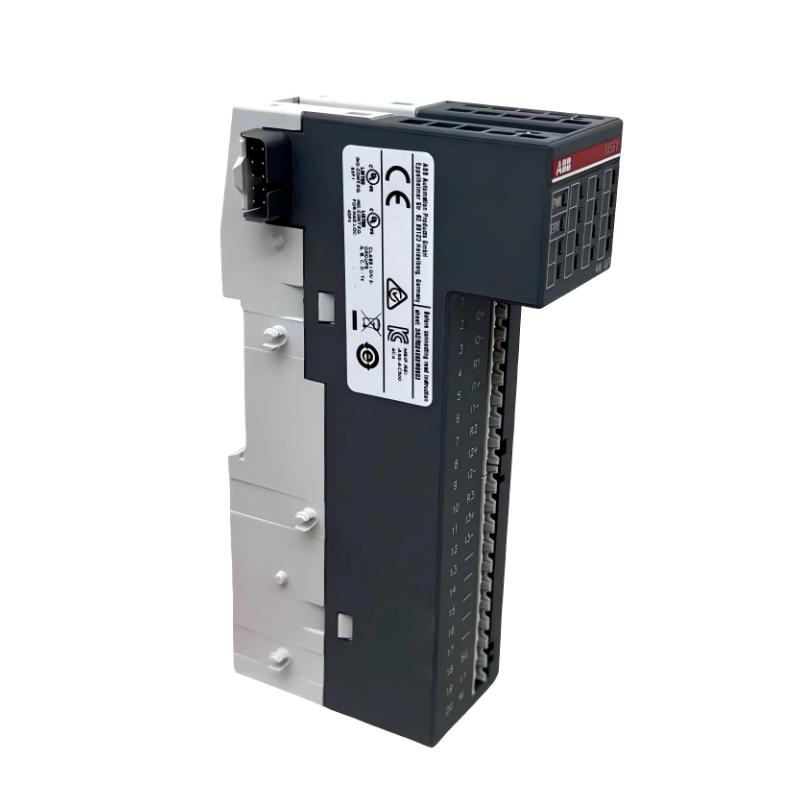

ABB AI561 1TNE968902R1101 Analog Input Module

Name: ABB AI561 1TNE968902R1101 Analog Input Module
Brand: ABB PLC
SKU: 2747
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:AI561 1TNE968902R1101
Product Origin:Sweden
Product Dimensions:135 x 74 x 34 mm
Product Weight:0.12 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB AI561 1TNE968902R1101 Analog Input Module is designed to deliver precise and reliable acquisition of analog signals in industrial automation environments. It connects to a variety of field devices such as sensors and transmitters, converting process variables into electrical signals suitable for PLCs or distributed control systems. Its slim, compact design allows integration in constrained panel spaces while ensuring consistent signal quality for process monitoring and control.

Technical Specifications

Item	Specification
Product Type	Analog Input Module
Function	Acquisition of analog signals from field devices
Input Range	Voltage and current compatible (based on configuration)
Signal Types	4–20 mA, 0–10 V, thermocouple, RTD (depending on setup)
System Compatibility	ABB PLC and automation systems
Installation Type	DIN rail or panel-mounted
Dimensions	135 × 74 × 34 mm (H × W × D)
Weight	0.12 kg

Applications

Collects analog signals from sensors and transmitters in automation systems
Interfaces with PLCs for process monitoring and control
Supports temperature, pressure, flow, and level measurement integration
Enables modular and distributed control system layouts
Facilitates accurate data acquisition for process logging and analysis
Provides a reliable input source for both standard and mission-critical operations

Advantages

High-accuracy signal conversion for reliable process control
Slim and compact design ideal for space-constrained panels
Compatible with a variety of analog signal types
Simplifies system integration and expansion
Supports modular and distributed automation system architectures
Enhances overall system reliability and process monitoring efficiency

Technical FAQs

What is the primary purpose of the AI561 module?
It converts analog signals from field devices into electrical data for PLCs and control systems.
Which analog signal types are supported?
4–20 mA, 0–10 V, thermocouples, and RTDs depending on the configuration.
Can it be used in both centralized and distributed systems?
Yes, it is compatible with multiple automation architectures.
Does it require calibration?
Basic configuration may be required to match sensor parameters; otherwise, it operates plug-and-play.
Is it suitable for electrically noisy industrial environments?
Yes, it is designed to maintain signal integrity under typical industrial conditions.
How does it improve process monitoring?
By delivering accurate and consistent analog input data to control systems.
Can multiple AI561 modules be installed together?
Yes, multiple modules can be used to expand analog input capacity.
What mounting options are supported?
DIN rail or panel mounting are supported for flexible installation.
Is hot-swapping supported?
Modules should be installed or replaced with the system powered down for safety.
What is the long-term benefit of using this analog input module?
Consistent and reliable signal acquisition, scalable system integration, and enhanced process control.
