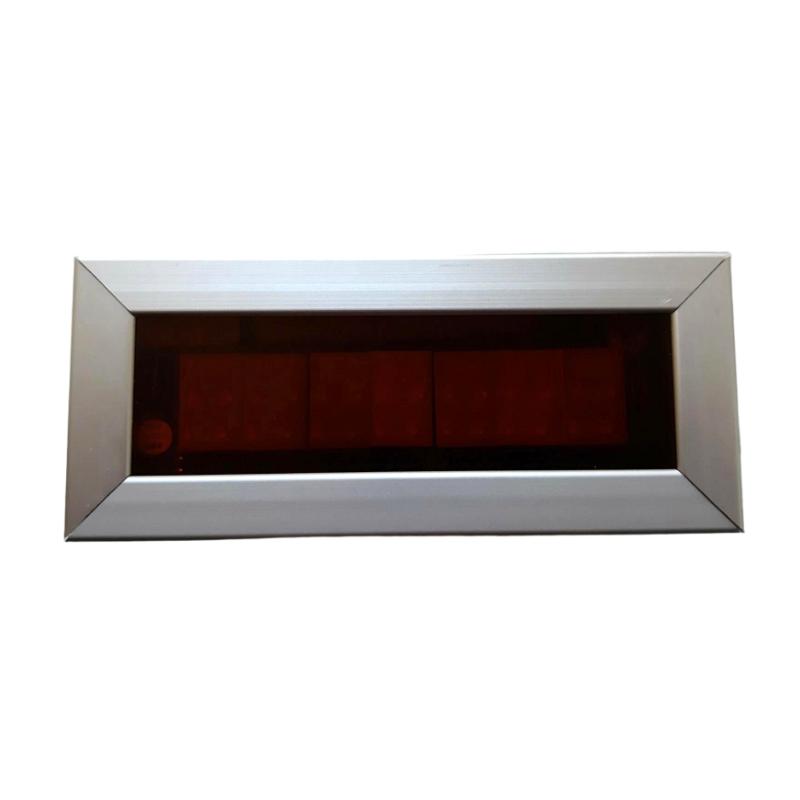

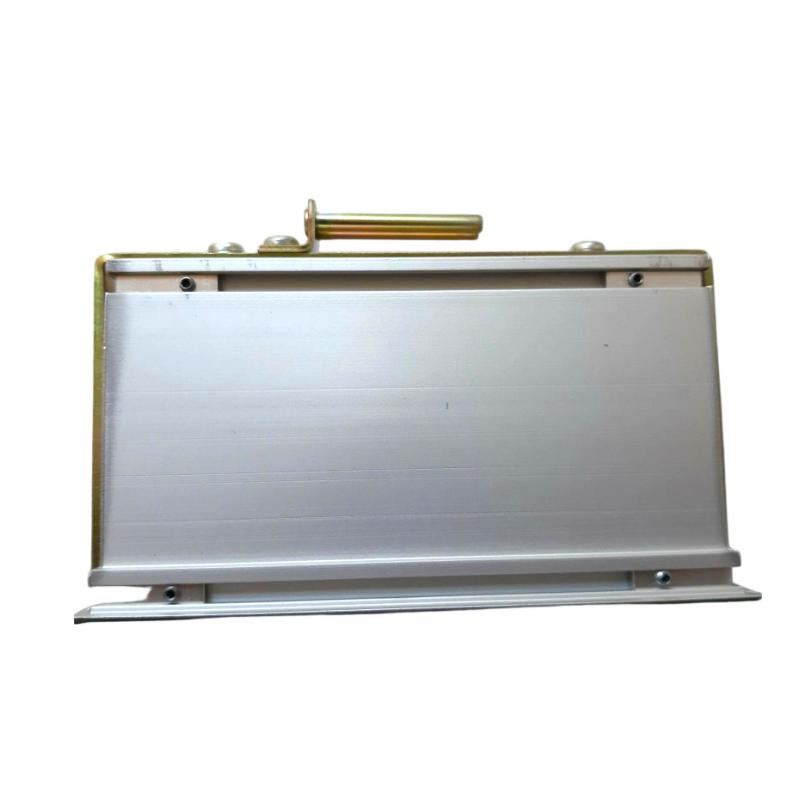

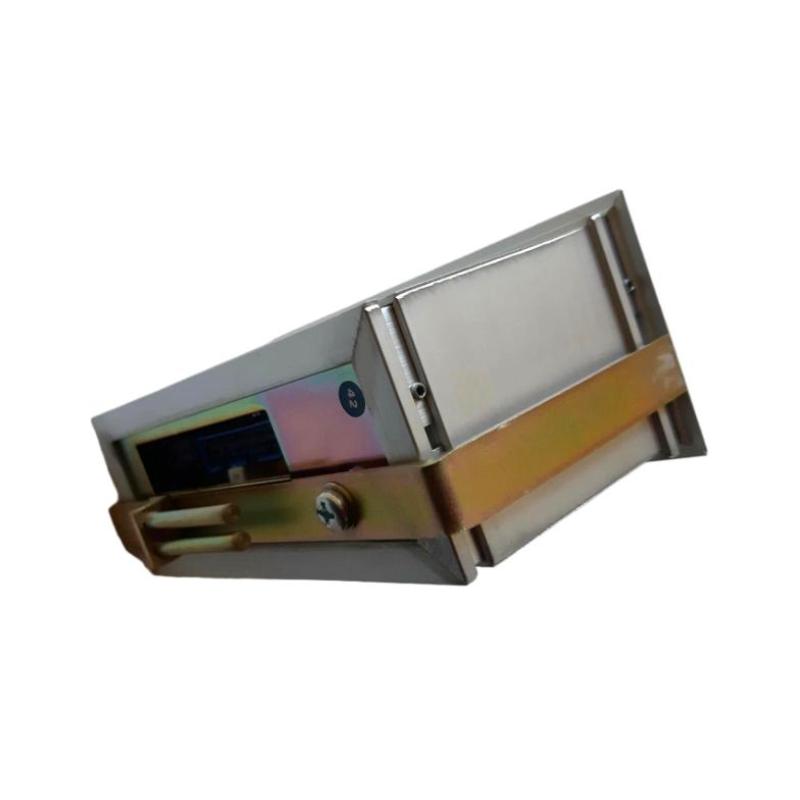

ABB DSHM 110 5735095-A Display Unit

Brand:ABB PLC
Item No.:DSHM 110
Product Origin:Sweden (SE)
Product Dimensions:220 x 110 x 60 mm
Product Weight:0.5 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The ABB DSHM 110 5735095-A Display Unit is a high-performance HMI (Human-Machine Interface) designed for industrial control systems. It provides clear and intuitive visualization of real-time data, allowing operators to monitor, control, and configure processes with ease. The DSHM 110 is specifically built to integrate with ABB automation systems, offering seamless interaction between operators and control systems. Whether used in process industries, manufacturing, or power generation, this display unit ensures operators can quickly assess system status and make timely decisions, improving overall operational efficiency and safety.

Technical Specifications

SpecificationDetails
ModelDSHM 110 5735095-A
Dimensions220 x 110 x 60 mm
Weight0.5 kg
Display TypeLCD
Operating Temperature Range-20°C to 60°C
Voltage Rating24V DC
Resolution800 x 480 pixels
Interface TypeTouchscreen
Communication ProtocolMODBUS, Ethernet
CertificationCE, UL


Applications

  • Human-Machine Interface (HMI): The DSHM 110 is primarily used as an HMI for monitoring and controlling industrial systems. Its touchscreen interface allows operators to interact directly with control systems, providing intuitive access to real-time data.

  • Process Control: This display unit is ideal for use in process control applications, where quick access to system information is critical for maintaining smooth operations and addressing potential issues.

  • Manufacturing Automation: The DSHM 110 offers visual representation of system status in manufacturing environments, allowing operators to monitor production processes and adjust settings for optimal performance.


Advantages

  • Clear Visualization: The DSHM 110 features a high-resolution LCD display with 800 x 480 pixels, offering crisp and clear visibility of system data and control parameters in real time.

  • User-Friendly Interface: Equipped with a touchscreen interface, the DSHM 110 simplifies interaction, allowing operators to quickly access system controls, settings, and diagnostic information.

  • Wide Operating Range: With an operating temperature range of -20°C to 60°C, the display unit is designed to perform reliably in both extreme cold and hot industrial environments.

  • Seamless Integration: The DSHM 110 integrates easily with other ABB automation systems, utilizing protocols like MODBUS and Ethernet for efficient communication and control.

  • Global Compliance: The unit is CE and UL certified, meeting international standards for safety, quality, and performance, ensuring reliable operation across various industrial sectors.


Technical FAQs

  1. What is the operating temperature range for the DSHM 110 Display Unit?

    • The DSHM 110 operates efficiently in temperatures ranging from -20°C to 60°C, making it suitable for a wide variety of industrial environments.

  2. What type of display does the DSHM 110 use?

    • The unit uses a high-resolution LCD display with a resolution of 800 x 480 pixels, providing clear and sharp visual feedback to operators.

  3. How does the touchscreen interface benefit the DSHM 110?

    • The touchscreen interface makes it easier for operators to interact with the system, offering quick access to system settings, control options, and diagnostic information with simple touches.

  4. What communication protocols are supported by the DSHM 110?

    • The DSHM 110 supports MODBUS and Ethernet communication protocols, ensuring seamless integration with ABB control systems and other industrial networks.

  5. What is the voltage rating for the DSHM 110?

    • The DSHM 110 operates on a 24V DC voltage rating, which is standard for industrial display units and control systems.

  6. Can the DSHM 110 be used in hazardous environments?

    • Yes, the DSHM 110 is designed for use in industrial environments, including hazardous ones, as long as the temperature and environmental conditions fall within the specified range.

  7. How does the DSHM 110 improve operational efficiency?

    • By providing real-time, easy-to-understand visualizations of system data, the DSHM 110 allows operators to make informed decisions quickly, enhancing overall operational efficiency and reducing downtime.

  8. Is the DSHM 110 compatible with other ABB control systems?

    • Yes, the DSHM 110 is designed to integrate seamlessly with ABB control systems, supporting both MODBUS and Ethernet protocols for efficient communication and control.

  9. What certifications does the DSHM 110 have?

    • The DSHM 110 is CE and UL certified, ensuring compliance with international standards for safety and performance in industrial applications.

  10. How does the DSHM 110 enhance user experience?

  • The DSHM 110 provides an intuitive touchscreen interface, allowing operators to easily access real-time data and adjust system parameters, improving the overall user experience and ease of use.
