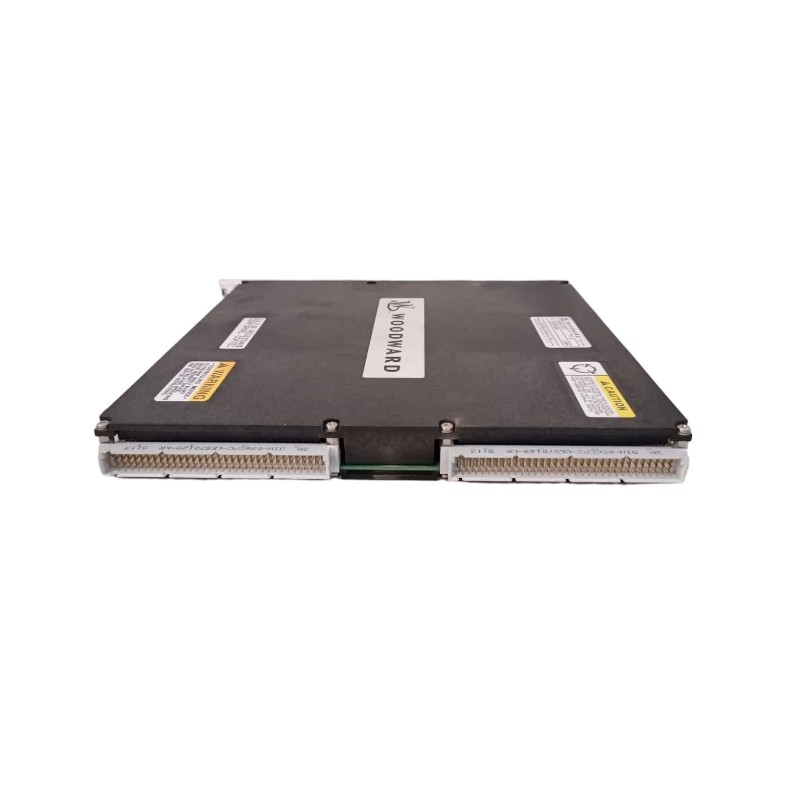

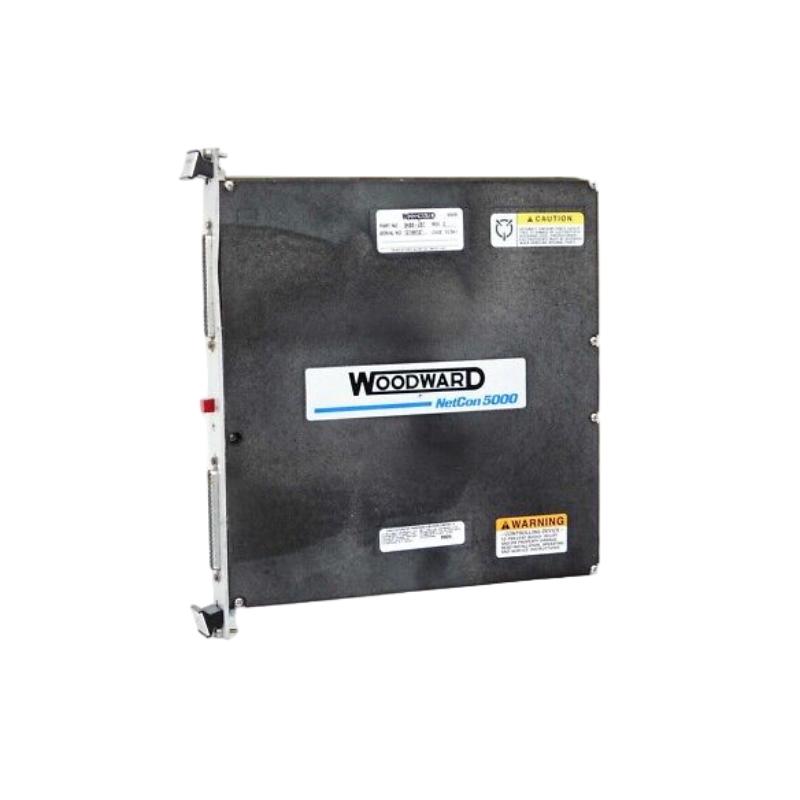

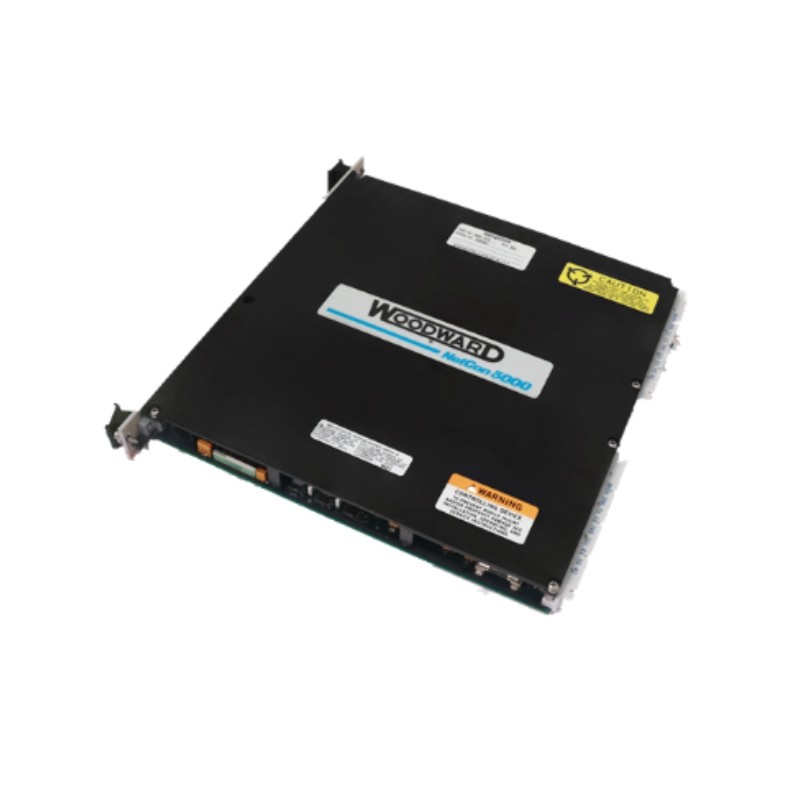

Woodward 5466-257 High Density Analog I/O Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Woodward 5466-257 High Density Analog I/O Module

Name: Woodward 5466-257 High Density Analog I/O Module
Brand: Woodward
SKU: 266
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Woodward
Item No.:5466-257
Product Origin:USA
Product Dimensions:152 × 32 × 185 mm
Product Weight:0.55 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Woodward 5466-257 is a High Density Analog I/O Module designed for 5466-series MicroNet and TMR control systems. This module provides precise and reliable analog signal acquisition and output, allowing tight control of turbines, engines, and generator systems. Its high-density architecture enables multiple analog channels in a compact form factor, making it ideal for applications where space is limited but extensive analog interfacing is required.

Technical Specifications

Parameter	Specification
Model Number	5466-257
Module Type	High Density Analog I/O Module
Power Input	24 V DC nominal
Analog Inputs	Multiple high-precision analog input channels (current and voltage)
Analog Outputs	High-accuracy analog outputs for actuator control or feedback loops
Digital I/O	Optional discrete inputs/outputs depending on system configuration
Communication	Backplane interface compatible with 5466-series racks
Operating Temperature	–40 °C to +70 °C
Mounting	Rack-mounted within standard 5466-series chassis
Dimensions (H × W × D)	152 × 32 × 185 mm
Weight	0.55 kg

Applications

High-density analog data acquisition for turbine, engine, and generator control
Precise actuator control for fuel, speed, and load regulation
Integration with analog sensors and transducers in industrial plants, power generation, and marine propulsion systems
Retrofit or replacement in legacy 5466-series control racks
Use in systems demanding high channel count and compact module footprint

Advantages

High channel density allows more analog I/O in a single module, reducing rack space requirements
Accurate and stable signal handling supports precise control loops
Compact, rack-mounted design facilitates integration into existing control systems
Industrial-grade reliability tolerates vibration, temperature extremes, and electrical noise
Flexible configuration supports both analog inputs and outputs as well as optional digital I/O

Technical FAQs

How many analog channels does the 5466-257 support?
It supports multiple analog input and output channels, typically optimized for high-density configurations.
What is the input power requirement?
Nominal 24 V DC.
Is it compatible with existing 5466-series racks?
Yes, it is fully compatible with standard 5466-series rack-mounted control systems.
Can it handle digital I/O signals as well?
Some configurations include optional digital inputs and outputs.
What is the operating temperature range?
–40 °C to +70 °C, suitable for industrial environments.
Is it suitable for retrofitting older systems?
Yes, it is commonly used to upgrade or replace legacy analog I/O modules.
What are the module’s dimensions and weight?
Dimensions: 152 × 32 × 185 mm; Weight: 0.55 kg.
Does it provide precise analog outputs for actuators?
Yes, it supports high-accuracy analog outputs for control loops.
Is it designed for harsh industrial conditions?
Yes, it tolerates vibration, temperature extremes, and electrical noise.
Which industries typically use this module?
Power generation, marine propulsion, oil & gas, and industrial automation requiring high-density analog control.
