Introduction

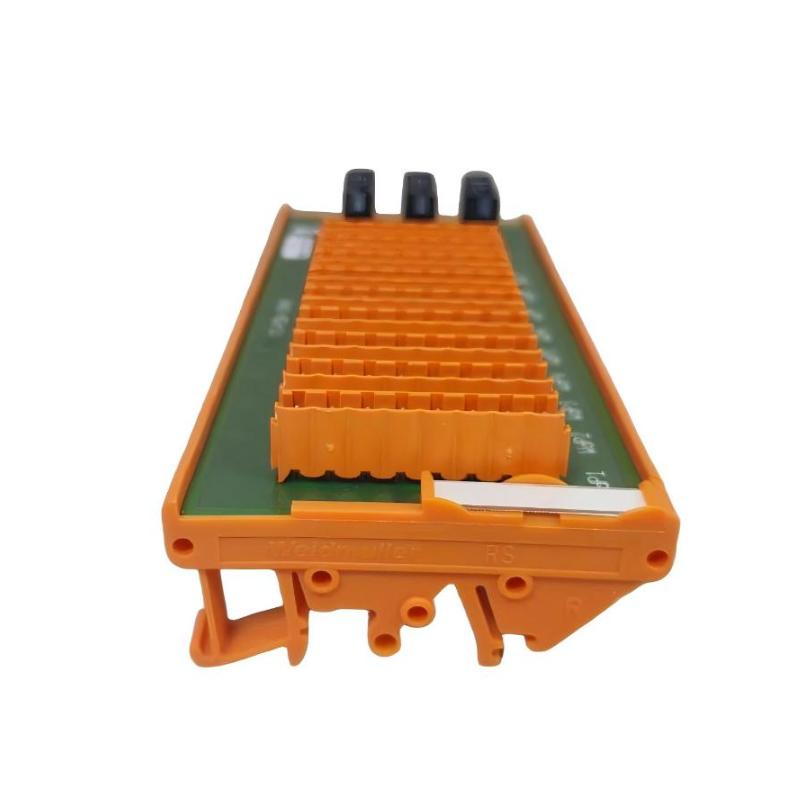

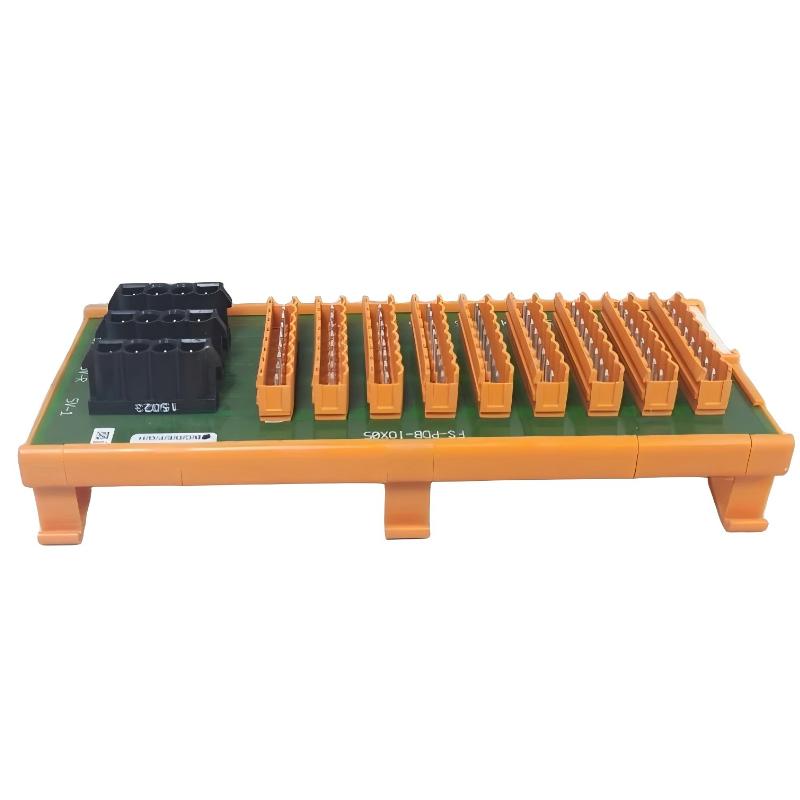

The Honeywell FS-PDB-IOX05 Power Distribution Board Extension is designed to expand the power delivery capabilities of existing Honeywell power distribution boards. It enables additional modules to be integrated into a control or safety system without compromising voltage stability or system reliability.
From a practical engineering standpoint, the FS-PDB-IOX05 emphasizes modularity, compactness, and reliable power handling. Its extension design allows for flexible cabinet layouts, making it ideal for industrial applications where space is limited but power requirements are growing.
Technical Specifications
| Parameter | Description |
|---|
| Module Type | Power Distribution Board Extension |
| System Role | Extends power distribution to additional Honeywell I/O and controller modules |
| Compatibility | Honeywell Safety and Control Systems |
| Mounting Method | Fixed installation within control cabinets |
| Enclosure | Insulated industrial-grade construction |
| Dimensions | 106 × 79 × 59 mm (H x W x D) |
| Weight | 4.8 kg |
Technical FAQs
1. What is the primary function of the FS-PDB-IOX05?
It extends the power distribution capability of existing Honeywell distribution boards to additional modules.
2. Can it handle high current loads?
Yes, it is designed to support the current requirements of additional connected modules.
3. How is the extension installed?
It is fixed inside control cabinets alongside the primary power distribution board.
4. Does it provide power independently?
No, it works in conjunction with a main power distribution board.
5. Is it suitable for modular cabinet designs?
Yes, it supports modular expansion and flexible layouts.
6. How does it improve system maintenance?
Organized connections make module addition and replacement straightforward.
7. Does it require special cooling or insulation?
No additional requirements; it comes with industrial-grade insulation for safe cabinet installation.
8. Can multiple extensions be used together?
Yes, multiple FS-PDB-IOX05 units can be integrated as the system expands.
9. Is it designed for continuous operation?
Yes, it is built for continuous industrial duty.
10. Who typically specifies this module?
Control engineers or system integrators specify it during cabinet or system expansion planning.
