Introduction

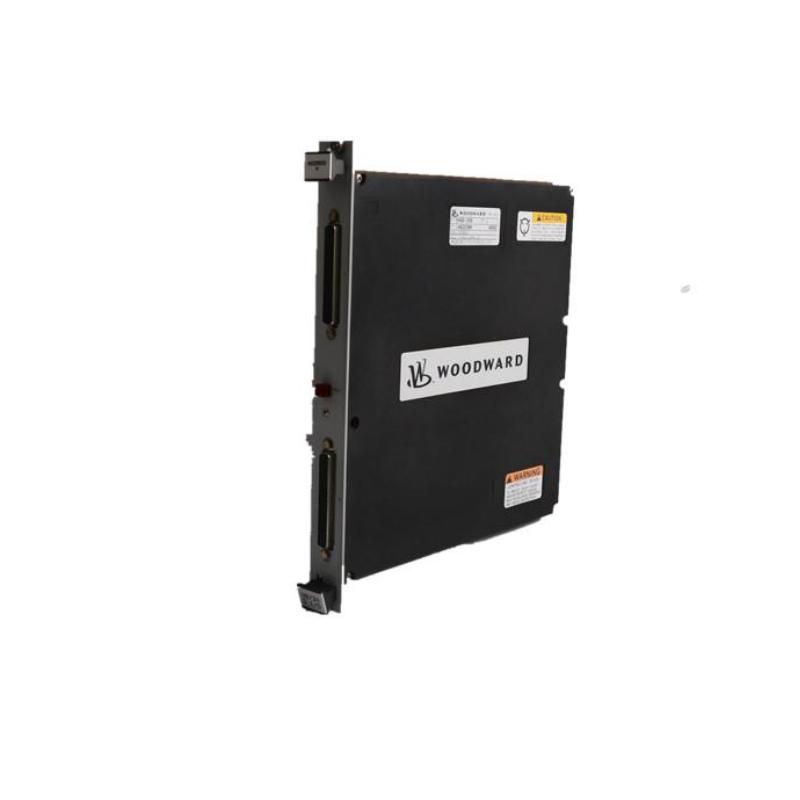

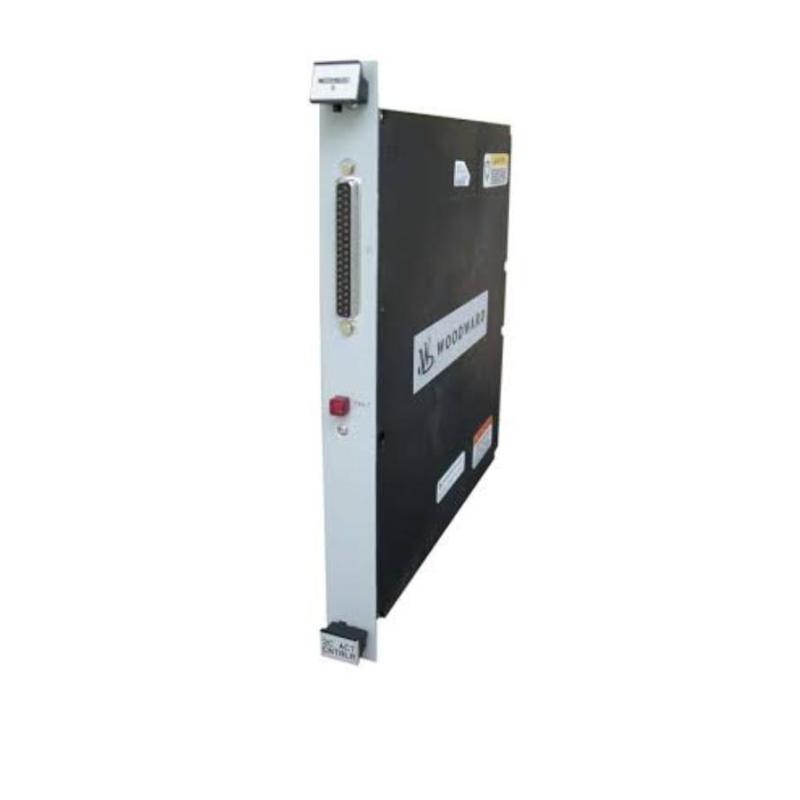

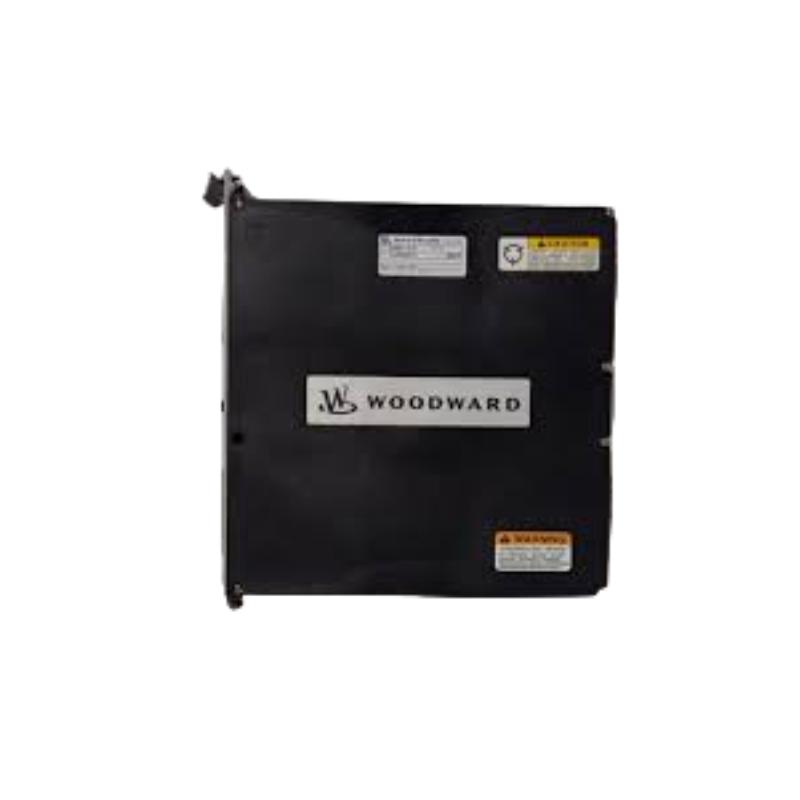

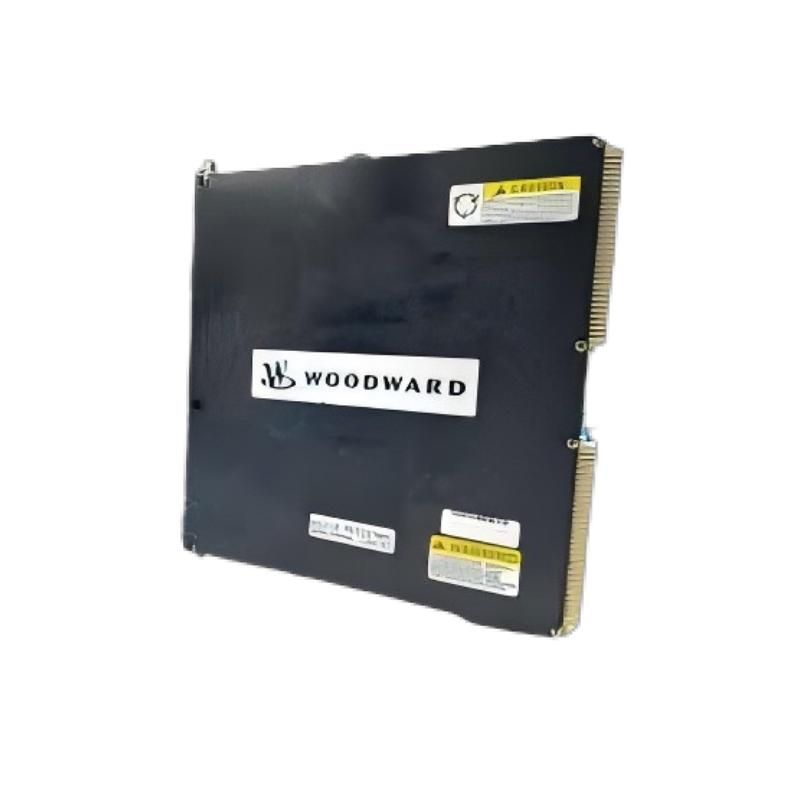

The Woodward 5466-1047 is a CPU module in Woodward’s TMR (Triple-Modular-Redundant) MicroNet series. It acts as the central processing unit in turbine, engine, and generator control systems, providing reliable core logic, communication, and redundancy management. Engineered for industrial environments, it ensures system stability, continuous operation, and fault tolerance in critical applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 5466-1047 |
| Module Type | CPU Module / Core Controller (TMR CPU5200) |
| Processor | Motorola MPC5200 at 400 MHz |
| Memory | 64 MB Flash, 128 MB RAM |
| Redundancy | Triple-modular redundancy (TMR) for high reliability and fault tolerance |
| Communication | Internal backplane bus (MicroNet/TMR architecture), serial port (RS‑232/422/485), dual Ethernet ports |
| Operating Temperature | –40 °C to +85 °C |
| Mounting | Rack-mounted within 5466-series or compatible chassis |
| Dimensions (H × W × D) | 150 × 90 × 40 mm |
| Weight | 0.45 kg |
