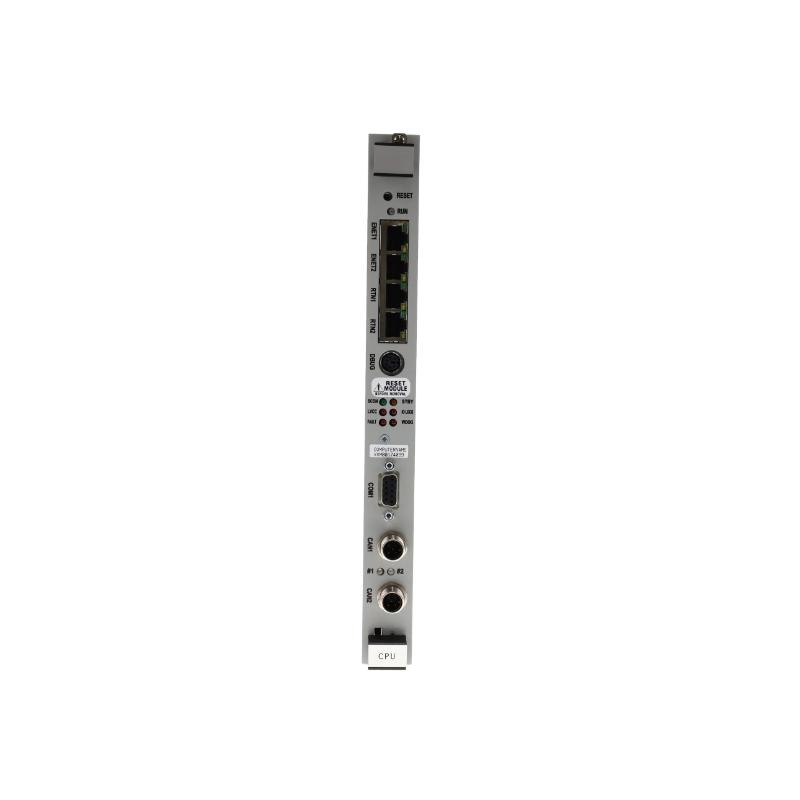

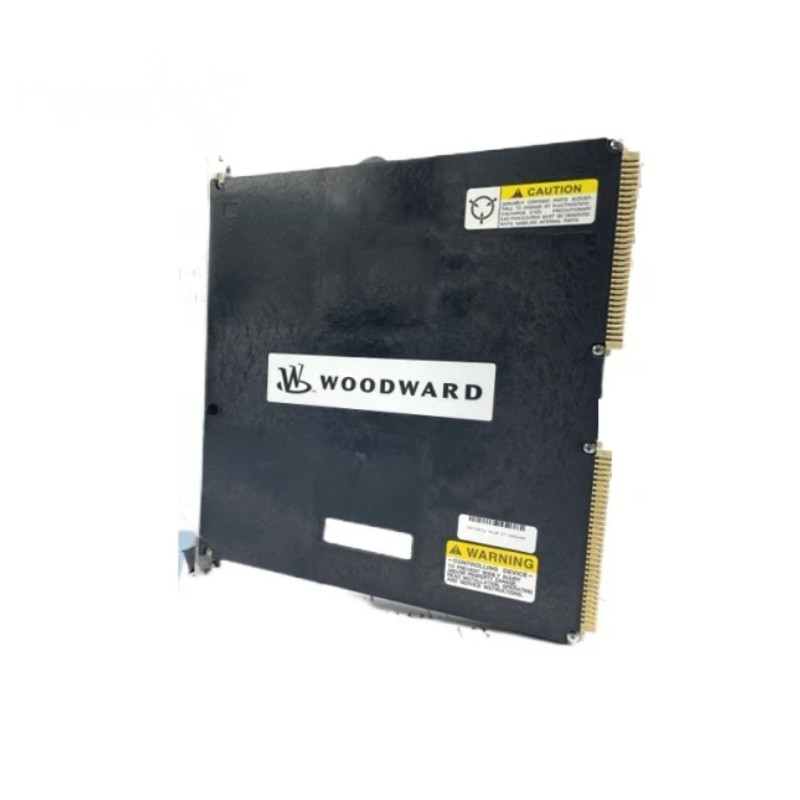

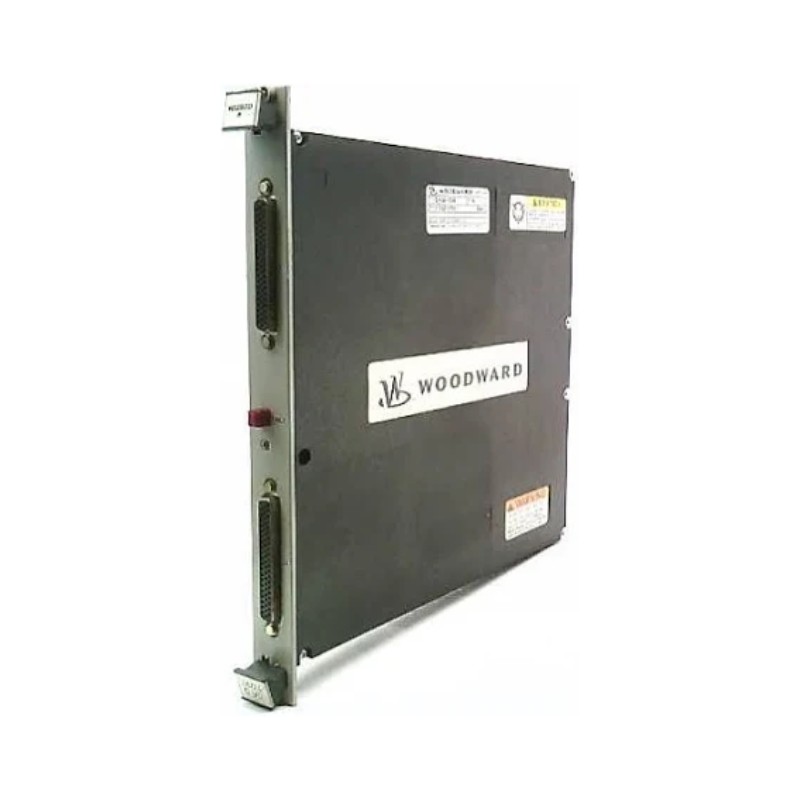

Woodward 5466-1035 Control Module

Name: Woodward 5466-1035 Control Module
Brand: Woodward
SKU: 260
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Woodward
Item No.:5466-1035
Product Origin:USA
Product Dimensions:152 × 32 × 185 mm
Product Weight:0.52 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Woodward 5466-1035 is a modular control and I/O interface module used in industrial engine, turbine, and generator control systems under the Woodward MicroNet/5466 architecture. It is designed to handle both discrete and analog signals, supporting complex control loops and ensuring reliable operation in demanding industrial environments. The module provides a flexible interface between field instrumentation and central control logic, making it a popular choice for upgrades, retrofits, and new installations where precision and durability are required.

Technical Specifications

Parameter	Specification
Model	5466-1035
Module Type	Control / Digital & Analog I/O Module
Power Supply	24 V DC (nominal)
I/O Capability	Mixed digital inputs/outputs and analog signal handling (depending on system configuration)
Communication Interface	Backplane communication bus (MicroNet/5466-series rack bus)
Mounting	Rack-mounted module, compatible with standard 5466-series chassis
Operating Temperature	–40 °C to +70 °C
Environmental Conditions	Designed for industrial operation (vibration-resistant, EMI-hardened, humidity-tolerant)
Approximate Dimensions (H × W × D)	152 × 32 × 185 mm
Approximate Weight	0.52 kg

Applications

Control and monitoring for industrial turbines, generators, and engines
Process automation in power plants, compressor stations, and marine propulsion systems
Installation in systems requiring mixed analog and digital I/O for sensors, actuators, and alarms
Retrofit or replacement of legacy control modules in existing 5466-series racks
Use in installations demanding environmental robustness (extreme temperatures, vibration, electrical noise)

Advantages

Flexible I/O support, accommodating both digital and analog signals for versatile system integration
Industrial-grade robustness, engineered for harsh environments and continuous operation
Compact rack-mounted form factor, allowing easy installation or replacement without major system redesign
Wide operating temperature range, suitable for global deployments across varied climates
Proven reliability and compatibility within 5466/MicroNet-based systems — simplifying maintenance and spares management

Technical FAQs

What kind of power supply does the 5466-1035 require?
It requires a standard 24 V DC supply.
Can it handle both analog and digital I/O?
Yes — it supports mixed digital inputs/outputs and analog signal channels depending on configuration.
What rack series is it compatible with?
It is compatible with Woodward 5466-series rack chassis.
What are its physical dimensions?
Approximately 152 × 32 × 185 mm (H × W × D).
How much does it weigh?
Around 0.52 kg.
Is it suitable for harsh environments?
Yes — rated for –40 °C to +70 °C and designed to withstand industrial vibration, electrical noise, and varying humidity.
Can it be used in retrofits?
Absolutely — it’s often used to replace older modules or expand existing control racks.
Does it support analog sensor inputs?
Yes, if system wiring and configuration support analog inputs, the module can process them.
Is the module plug-and-play in a 5466 rack?
Yes — as long as the rack is properly wired and powered, the module can be inserted for immediate operation.
What industries commonly deploy this module?
Power generation, oil & gas, marine propulsion, and any heavy-industry contexts using turbines, compressors, or large engines.
