Introduction

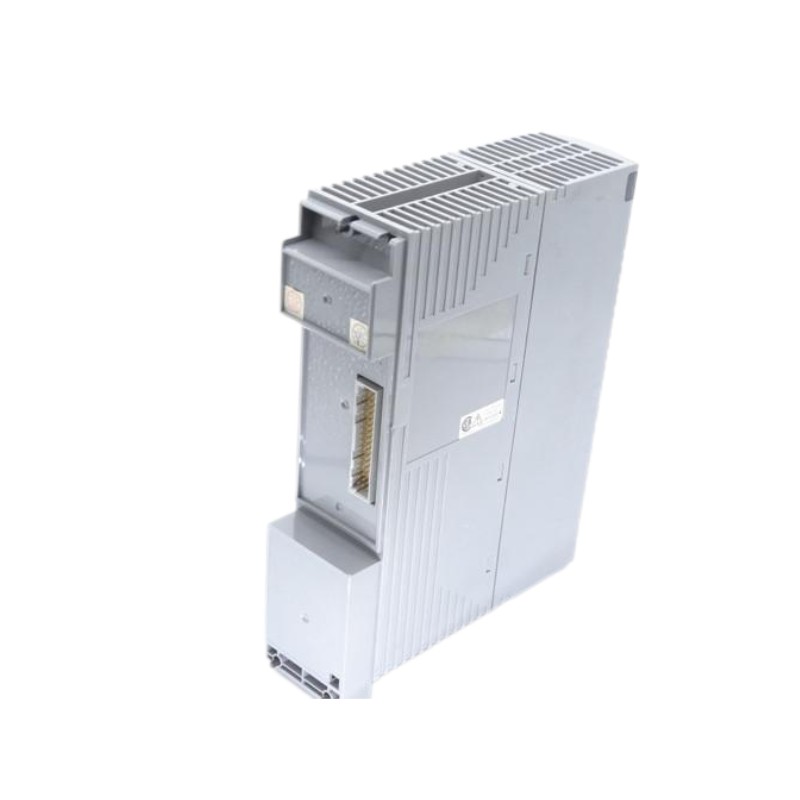

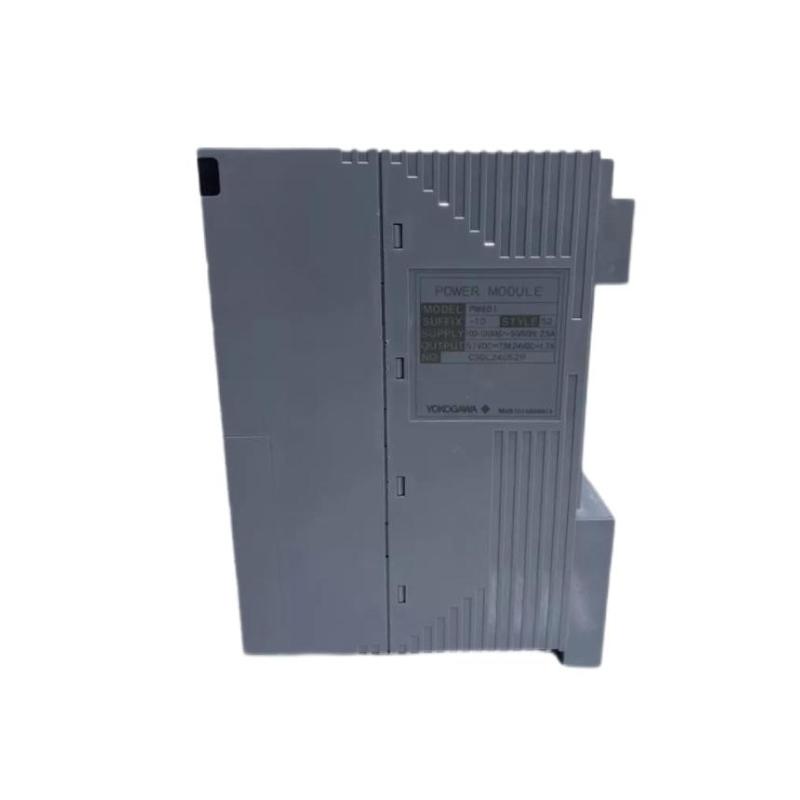

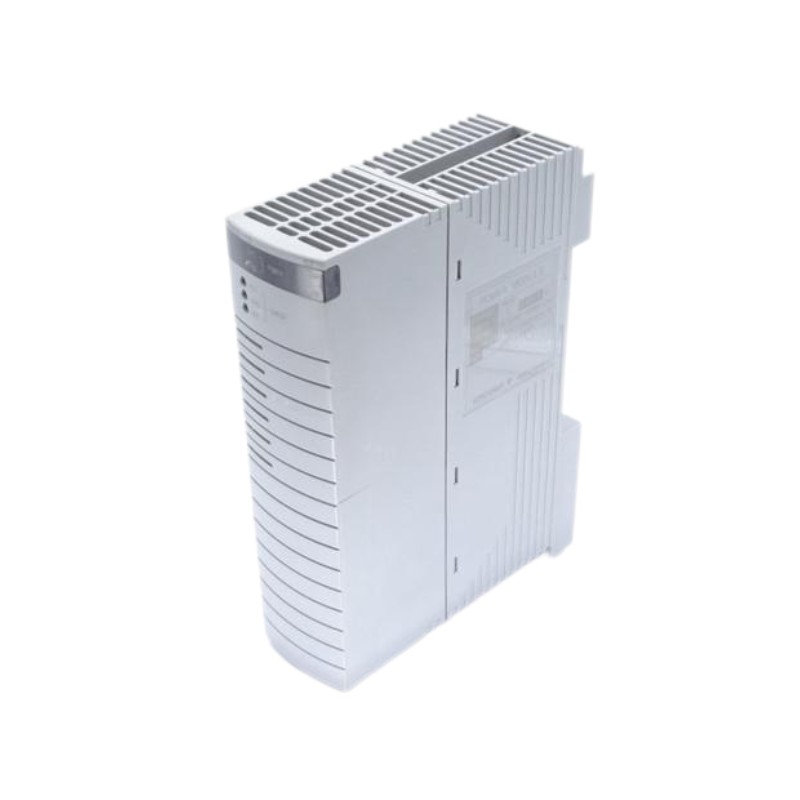

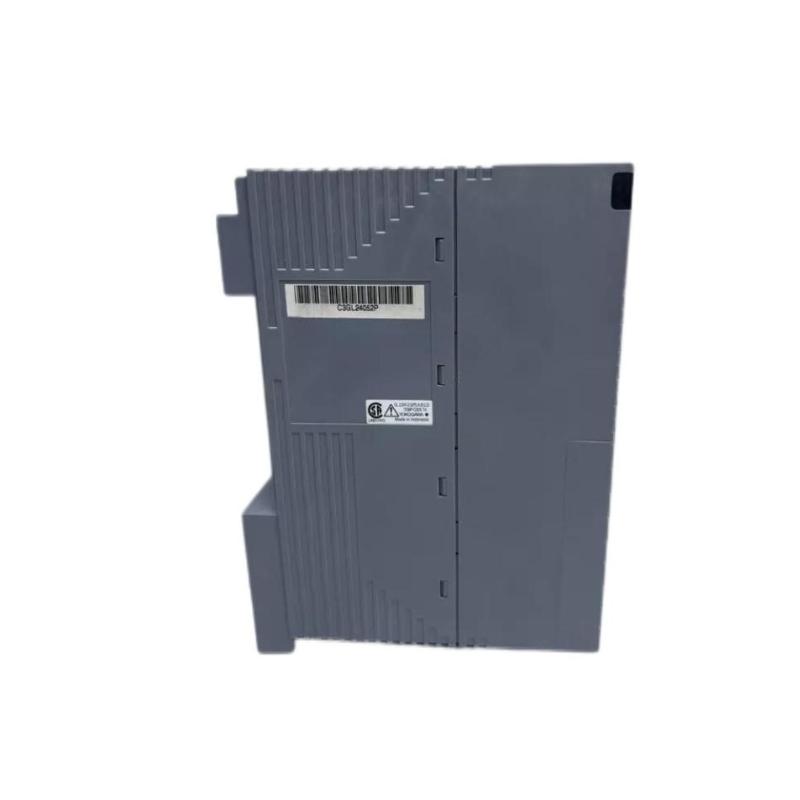

The Yokogawa PW481‑10 Power Supply Module is a high-reliability industrial power solution designed to deliver stable 24 V DC power to Yokogawa distributed control systems (DCS) and automation devices. Engineered for demanding industrial environments, this module ensures consistent power for controllers, I/O modules, and field devices, protecting sensitive electronics from fluctuations and ensuring uninterrupted system operation. Its compact design and rugged construction make it ideal for both new installations and system upgrades in process plants and automation cabinets.
Technical Specifications
| Specification | Description |
|---|---|
| Model | PW481‑10 Power Supply Module |
| Module Type | Industrial Power Supply |
| Input Voltage | 100–120 V AC ±10%, 50/60 Hz |
| Output Voltage | 24 V DC regulated |
| Output Current | Up to 2.5 A |
| Maximum Power Consumption | ~200 VA |
| Protection Features | Overvoltage, overcurrent, short-circuit |
| Mounting | DIN-rail / panel mount compatible |
| Material | Industrial-grade metal housing |
| Operating Temperature | −20°C to +60°C |
| Storage Temperature | −40°C to +85°C |
| Dimensions (WxHxD) | 51 × 203 × 152 mm |
| Weight | ~1.0 kg |
| Certifications | CE, UL, RoHS compliant |
