Introduction

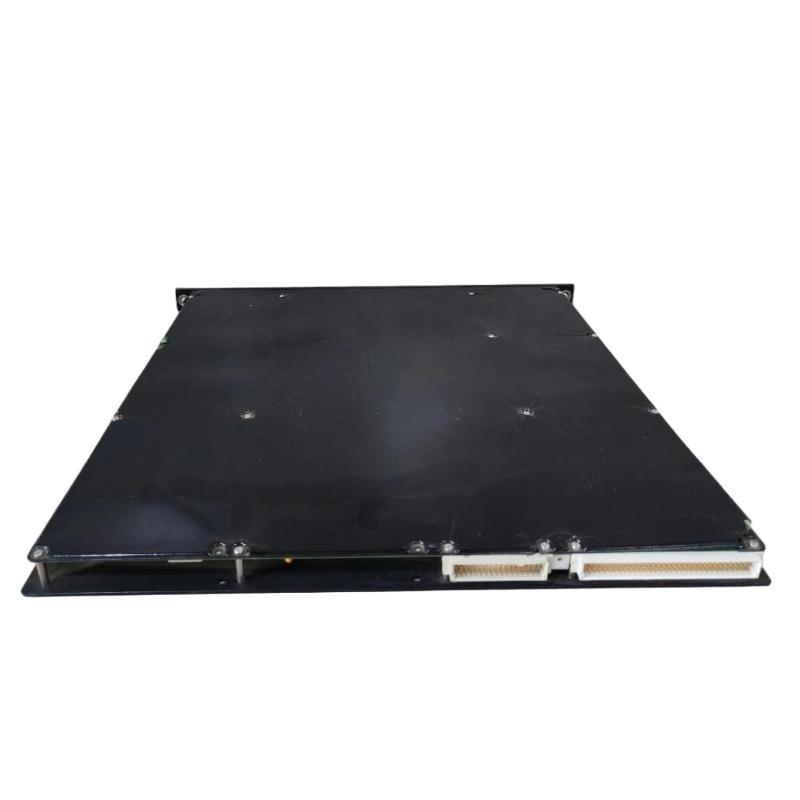

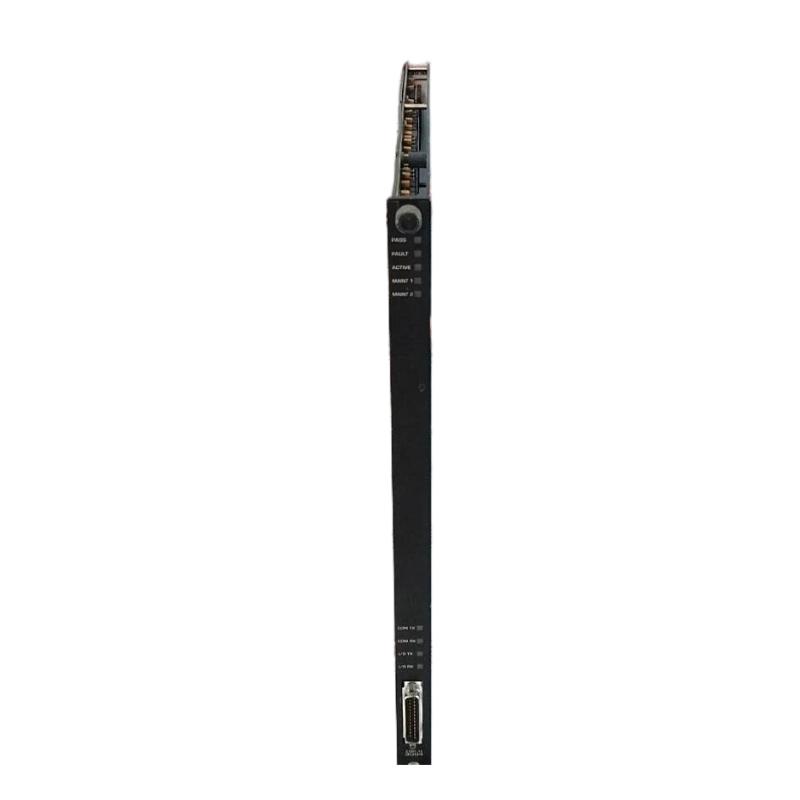

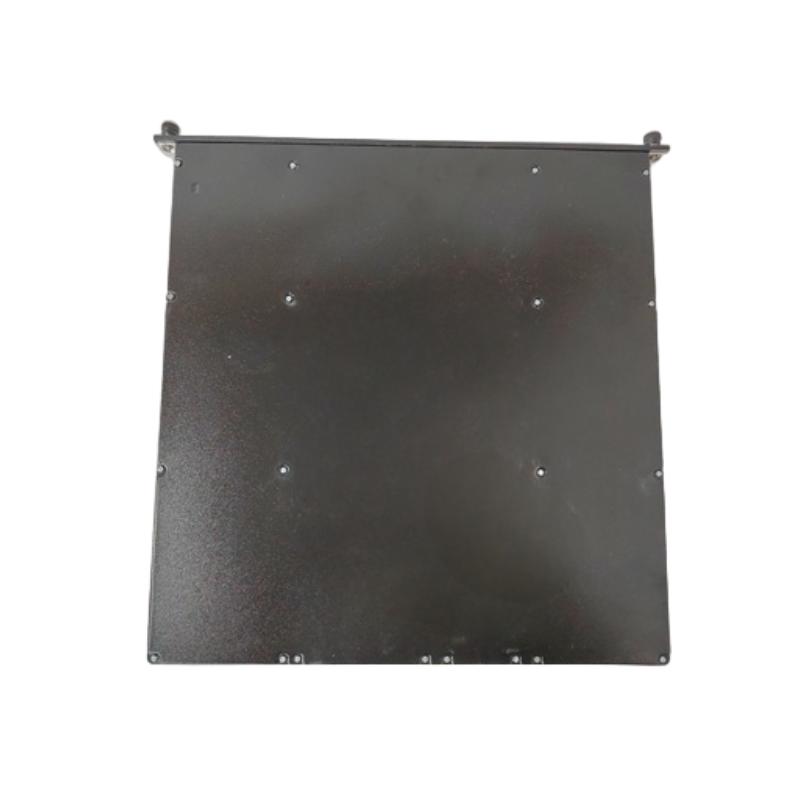

The Triconex 3706 Thermocouple Analog Input Module is designed to provide accurate and reliable processing of thermocouple signals in safety and control systems. It is primarily used for temperature measurements in industrial applications where high precision is required. The 3706 module supports multiple types of thermocouples, including K, J, T, and others, ensuring compatibility with a wide range of temperature sensors. Ideal for industries such as oil & gas, power generation, chemical processing, and manufacturing, the 3706 ensures continuous monitoring of temperature-critical processes in harsh environments. Its robust design and advanced features offer reliable signal processing and high safety standards.
Technical Specifications
| Specification | Details |
|---|
| Model Number | 3706 |
| Module Type | Thermocouple Analog Input Module |
| Dimensions (W x H x D) | 273 mm × 213 mm × 25 mm |
| Weight | 1.4 kg |
| Input Channels | 8 Channels |
| Input Type | Thermocouple (K, J, T, etc.) |
| Temperature Range | -200°C to +1800°C (depending on thermocouple type) |
| Resolution | 16-bit |
| Isolation | Galvanic Isolation |
| Accuracy | ±0.1% of Full Scale |
| Approvals | UL, CE, ATEX |
Applications
The Triconex 3706 Thermocouple Analog Input Module is suited for a wide range of applications requiring accurate temperature measurement:
-
Temperature Monitoring: Ideal for monitoring high and low-temperature conditions in industrial environments. Commonly used in power plants, chemical reactors, and refining operations.
-
Industrial Process Control: The module is used to ensure precise control of temperature in manufacturing processes, such as furnaces, ovens, and reactors.
-
Energy and Power Generation: The 3706 module is essential for temperature sensing in turbines, boilers, and other power generation equipment where precise temperature control is critical.
-
Oil & Gas: Used for monitoring temperature in drilling operations, pipeline monitoring, and refineries.
-
Food and Beverage: Ensures that temperature-sensitive processes in food production are properly controlled, especially in cooking, pasteurization, and fermentation systems.
Advantages
The Triconex 3706 Thermocouple Analog Input Module offers several key advantages for industrial applications:
-
Wide Thermocouple Compatibility: The module supports a variety of thermocouple types (K, J, T, etc.), making it highly versatile for different industrial temperature sensing needs.
-
High Accuracy: With an accuracy of ±0.1% of full scale, the module ensures precise temperature measurements, which is essential for maintaining control in critical industrial processes.
-
Galvanic Isolation: The module provides galvanic isolation between input channels, protecting the system from electrical interference, ground loops, and faults.
-
High Resolution: The 3706 offers 16-bit resolution for temperature readings, providing a high level of detail and ensuring accurate data for monitoring and control.
-
Robust Design: Built to operate in harsh industrial environments, the 3706 has a wide temperature range and is capable of withstanding extreme conditions.
-
Safety Certifications: The module is UL, CE, and ATEX certified, ensuring compliance with international safety standards, especially in hazardous environments.
Advantages
The Triconex 3706 Thermocouple Analog Input Module offers several key advantages for industrial applications:
-
Wide Thermocouple Compatibility: The module supports a variety of thermocouple types (K, J, T, etc.), making it highly versatile for different industrial temperature sensing needs.
-
High Accuracy: With an accuracy of ±0.1% of full scale, the module ensures precise temperature measurements, which is essential for maintaining control in critical industrial processes.
-
Galvanic Isolation: The module provides galvanic isolation between input channels, protecting the system from electrical interference, ground loops, and faults.
-
High Resolution: The 3706 offers 16-bit resolution for temperature readings, providing a high level of detail and ensuring accurate data for monitoring and control.
-
Robust Design: Built to operate in harsh industrial environments, the 3706 has a wide temperature range and is capable of withstanding extreme conditions.
-
Safety Certifications: The module is UL, CE, and ATEX certified, ensuring compliance with international safety standards, especially in hazardous environments.
