Introduction

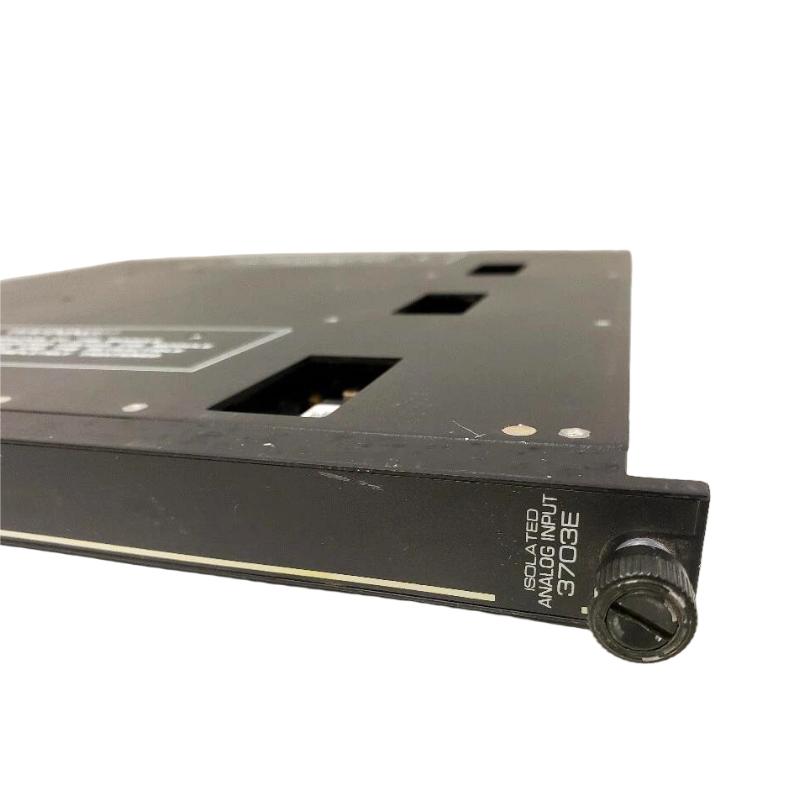

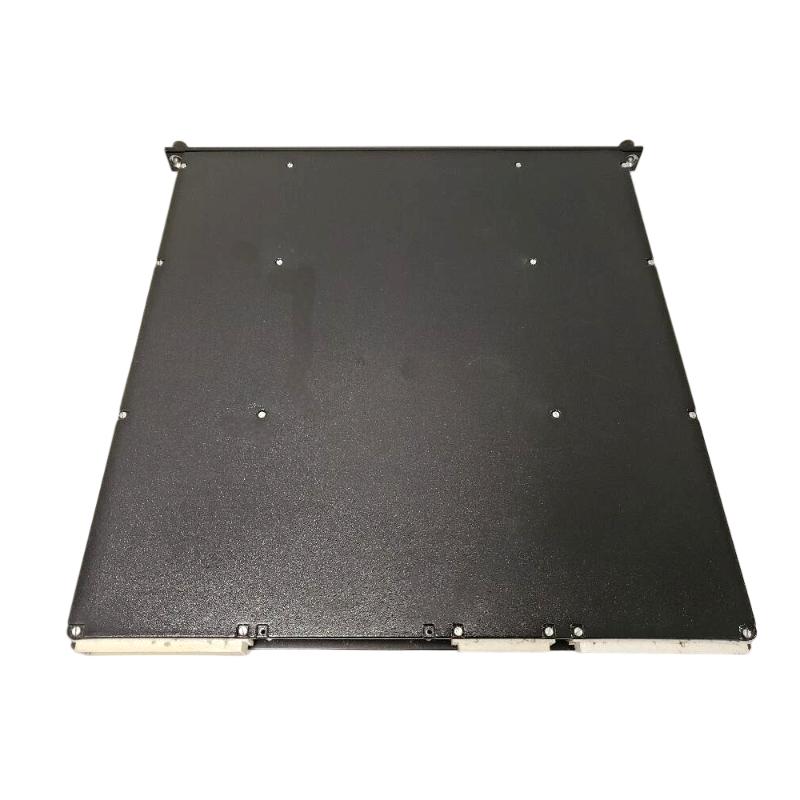

The Triconex 3703E 7400112-010 Isolated Analog Input Module is an advanced and reliable solution for processing analog signals in critical control and safety systems. Designed to handle signals such as temperature, pressure, and flow measurements, this module provides galvanic isolation between input channels to protect against electrical noise, ground loops, and faults. The 3703E module is perfect for industries that require high-reliability applications, including oil & gas, chemical processing, power generation, and manufacturing. It ensures accurate data acquisition and enables continuous monitoring of critical processes in harsh environments.
Technical Specifications
| Specification | Details |
|---|
| Model Number | 3703E 7400112-010 |
| Module Type | Isolated Analog Input Module |
| Dimensions (W x H x D) | 273 mm × 213 mm × 25 mm |
| Weight | 1.29 kg |
| Input Channels | 8 Channels |
| Input Type | Analog (4-20 mA, 0-10 V) |
| Input Voltage Range | ±10 V DC (max) |
| Input Current Range | 4-20 mA |
| Resolution | 12-bit |
| Isolation | Galvanic Isolation |
| Temperature Range | -20°C to +60°C |
| Approvals | UL, CE, ATEX |
Applications
The Triconex 3703E Isolated Analog Input Module is perfect for a wide range of applications in industries that require reliable and accurate analog signal processing:
-
Temperature Measurement: Ideal for monitoring temperature in industrial processes, such as reactors, pipelines, and power generation systems.
-
Pressure Monitoring: Processes analog signals from pressure sensors in systems that require continuous pressure monitoring, such as in oil & gas pipelines and chemical plants.
-
Flow Monitoring: Used in flow measurement systems to process the signals from flow meters, ensuring accurate flow rate measurement in industries like water treatment and chemical processing.
-
Level Sensing: Processes signals from level sensors in tanks, silos, and other storage systems to ensure accurate measurement and control of materials.
-
Control Systems: Used in control systems to integrate data from various analog sensors, allowing for better control and monitoring of industrial processes.
Advantages
The Triconex 3703E Isolated Analog Input Module offers several key advantages:
-
Galvanic Isolation: The module provides galvanic isolation between the input channels, which protects the system from electrical noise, ground loops, and faults, ensuring reliable operation in industrial environments.
-
Precise Signal Conversion: With 12-bit resolution, the 3703E module offers high-accuracy analog-to-digital conversion, enabling precise monitoring and control of industrial processes.
-
Wide Input Range: The module supports both 4-20 mA and 0-10 V input signals, making it versatile and compatible with a wide range of analog sensors.
-
Rugged Design: Built to withstand harsh industrial environments, the module operates in temperatures ranging from -20°C to +60°C, ensuring reliability across a broad range of applications.
-
Safety Certifications: The 3703E module is UL, CE, and ATEX certified, making it suitable for use in hazardous environments and ensuring compliance with international safety standards.
