Introduction

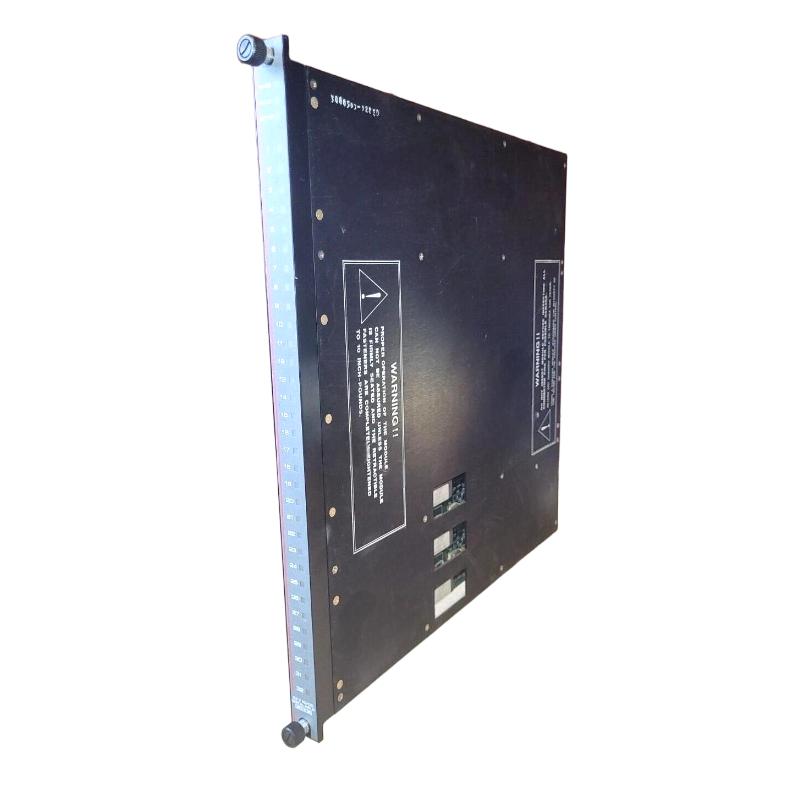

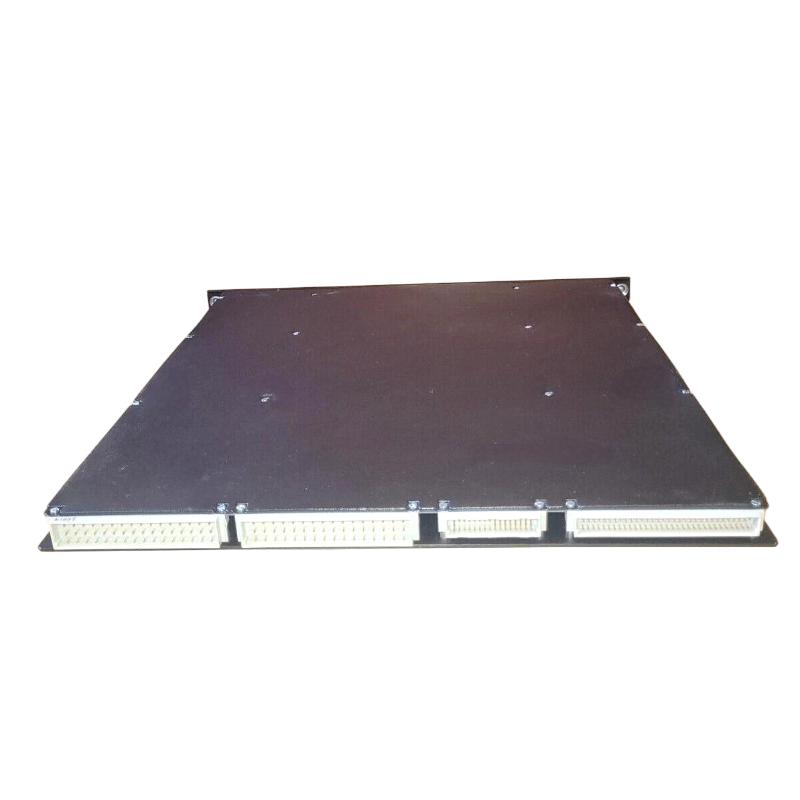

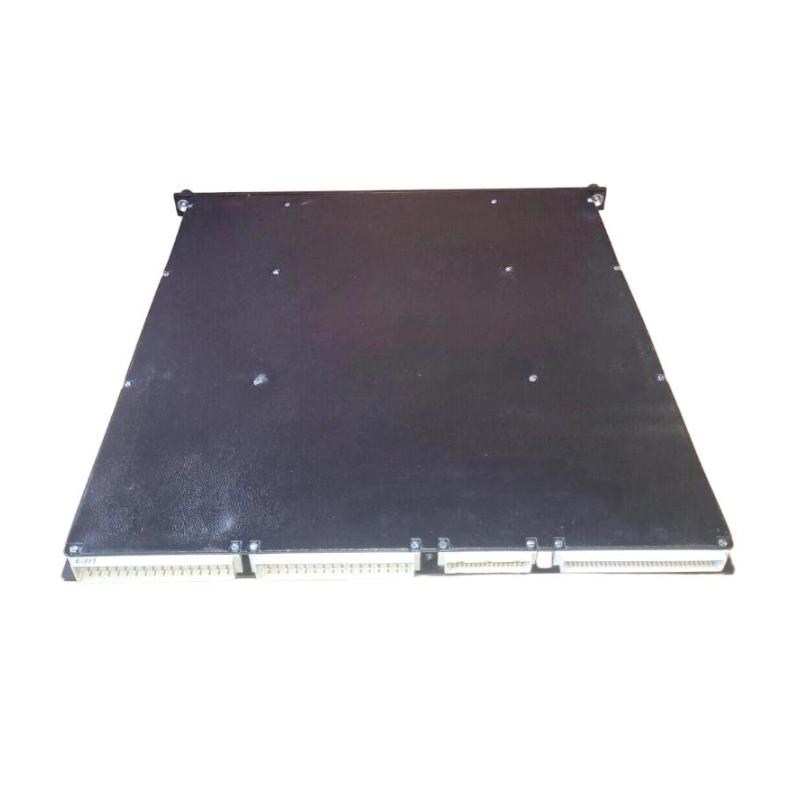

The Triconex 3533E Input Module is a high-performance component used for reliable input processing in safety and control systems. Designed to handle both digital and analog signals, the 3533E module ensures precise data acquisition and plays a vital role in maintaining system safety and performance. It is ideal for industries that require continuous monitoring of critical processes, such as oil & gas, chemical processing, power generation, and manufacturing. The module is built for robustness and operates efficiently even in harsh and demanding industrial environments.
Technical Specifications
| Specification | Details |
|---|
| Model Number | 3533E |
| Module Type | Input Module |
| Dimensions (W x H x D) | 115 mm × 230 mm × 50 mm |
| Weight | 1.851 kg |
| Input Channels | 16 Channels |
| Input Type | Digital/Analog (24 V DC / 4-20 mA) |
| Voltage Input Range | 24 V DC ±20% |
| Current Input Range | 4-20 mA |
| Isolation | Galvanic Isolation |
| Temperature Range | -20°C to +60°C |
| Approvals | UL, CE, ATEX |
Applications
The Triconex 3533E Input Module is highly versatile and suitable for various industrial applications requiring reliable input processing:
-
Industrial Automation: Used in automation systems to monitor a wide range of inputs from sensors, switches, and other devices to ensure proper functioning of control systems.
-
Oil & Gas: The module is crucial for monitoring key equipment and processes in oil and gas fields, where reliable input processing is essential for safety and performance.
-
Chemical Processing: Ideal for managing inputs from flow meters, pressure sensors, and temperature gauges in chemical plants, ensuring that critical processes are accurately monitored.
-
Power Generation: Utilized in power plants to monitor essential inputs from turbines, generators, and other equipment, ensuring that power generation systems operate safely and efficiently.
-
Manufacturing: Used in automated production lines to process digital and analog inputs from a variety of sensors and devices, contributing to operational efficiency and safety.
Advantages
The Triconex 3533E Input Module provides several advantages for industrial applications:
-
Flexible Input Handling: Capable of processing both digital (24 V DC) and analog (4-20 mA) signals, offering flexibility to interface with a variety of sensors and devices.
-
High Channel Density: With support for up to 16 input channels, the module can handle multiple signals simultaneously, making it ideal for complex monitoring systems.
-
Isolation Protection: The module features galvanic isolation between channels, ensuring protection from electrical faults and interference, which is essential for reliable operation in harsh industrial environments.
-
Wide Temperature Range: Operating from -20°C to +60°C, the 3533E is suitable for use in a wide range of industrial environments, from factory floors to remote outdoor locations.
-
Safety Certifications: The 3533E is UL, CE, and ATEX certified, making it suitable for use in hazardous environments where safety compliance is a must.
