Introduction

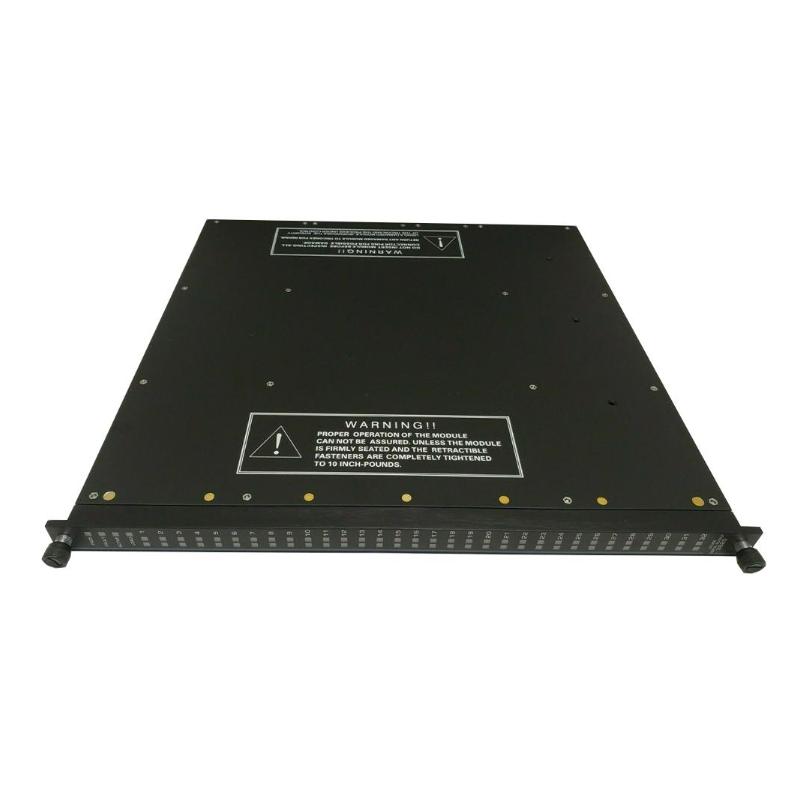

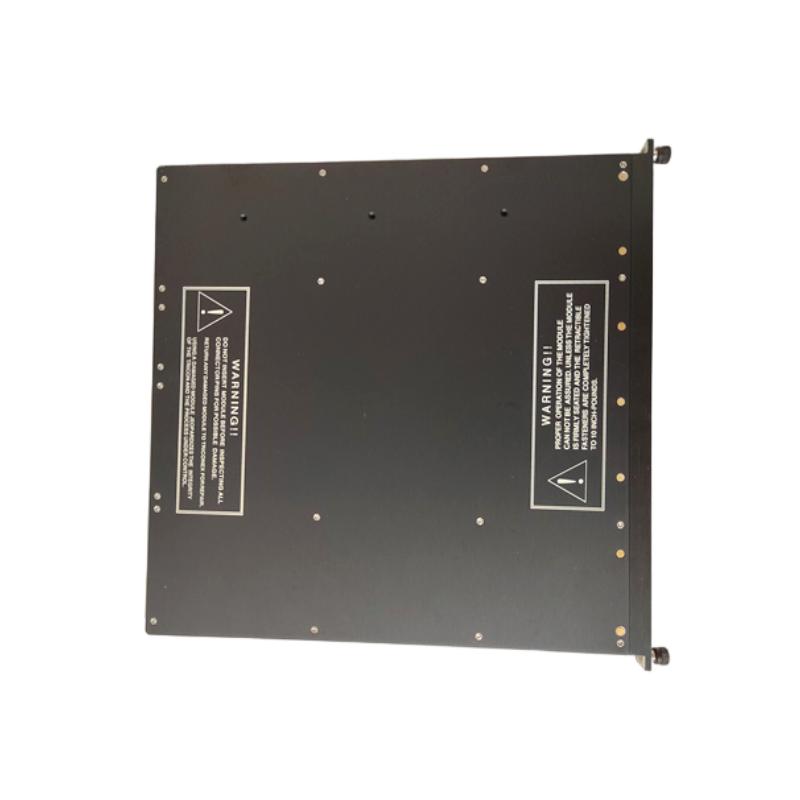

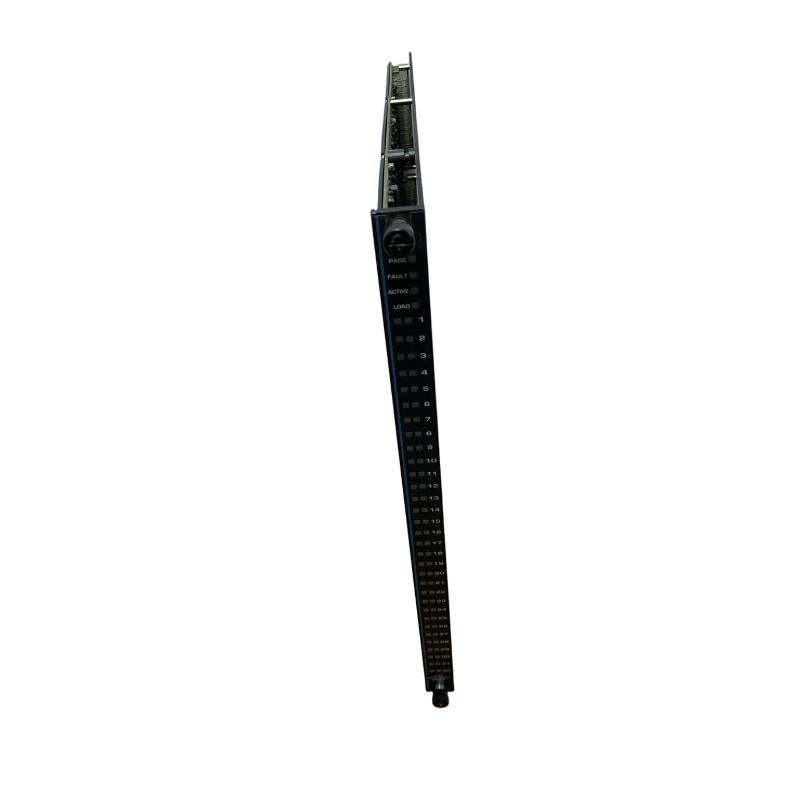

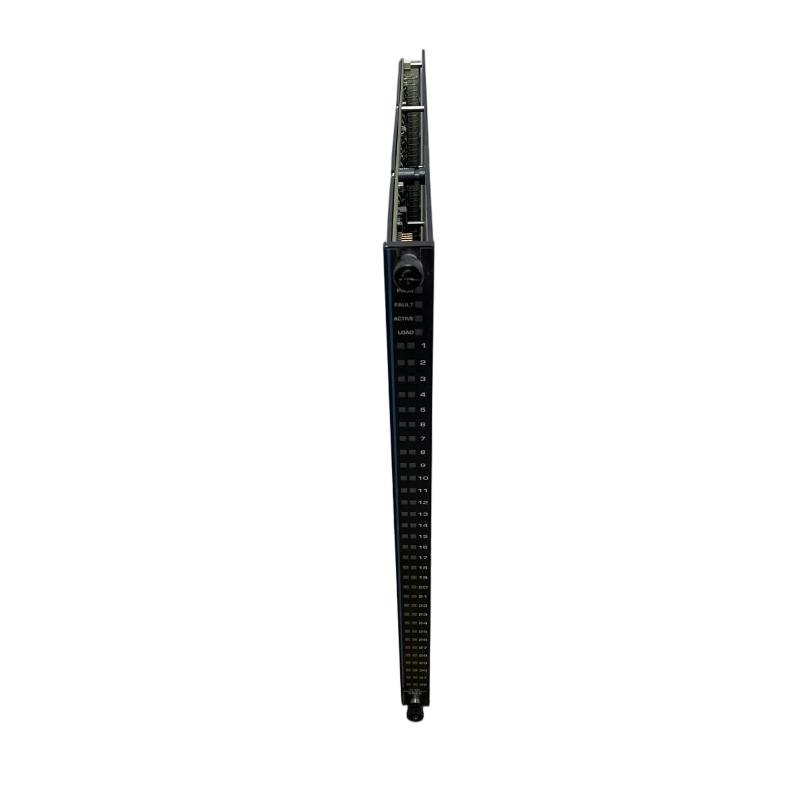

The Triconex 3526 Analog Input Module is a key component in industrial automation and safety systems, designed for the reliable processing of analog signals. This module is used to convert real-world analog signals, such as temperature, pressure, and flow readings, into digital data that can be used by control systems. The 3526 module is ideal for high-reliability applications, providing precise data acquisition for monitoring and control in industries like oil & gas, chemical processing, power generation, and manufacturing. Its rugged design and advanced features ensure that it can operate effectively even in harsh industrial environments.
Technical Specifications
| Specification | Details |
|---|
| Model Number | 3526 |
| Module Type | Analog Input Module |
| Dimensions (W x H x D) | 320 mm × 250 mm × 60 mm |
| Weight | 1.2 kg |
| Input Channels | 8 Channels |
| Input Type | Analog (4-20 mA, 0-10 V) |
| Input Voltage Range | ±10 V DC (max) |
| Input Current Range | 4-20 mA |
| Resolution | 12-bit |
| Temperature Range | -20°C to +60°C |
| Approvals | UL, CE, ATEX |
Applications
The Triconex 3526 Analog Input Module is ideal for use in a wide range of industrial applications that require accurate analog signal processing:
-
Temperature Measurement: Used in industrial systems that require precise temperature monitoring, such as in refineries, chemical plants, and HVAC systems.
-
Pressure Monitoring: Processes pressure readings from sensors in systems where pressure regulation is critical, such as in oil & gas and power generation facilities.
-
Flow Monitoring: Ideal for converting analog signals from flow meters in industries like water treatment, chemical processing, and manufacturing.
-
Level Sensing: The 3526 module is used for level monitoring in tanks, silos, and reservoirs, ensuring accurate liquid or solid level measurement.
-
Control Systems: Integrates with industrial control systems for real-time monitoring of analog signals, enabling better control of industrial processes and machinery.
Advantages
The Triconex 3526 Analog Input Module offers several key advantages for industrial applications:
-
Precise Signal Conversion: With 12-bit resolution, the module offers high-precision analog-to-digital conversion, ensuring accurate data representation for control and monitoring.
-
Wide Input Range: Supports both 4-20 mA and 0-10 V input signals, providing flexibility to work with a variety of analog sensors and devices.
-
Safety Certifications: The 3526 module is UL, CE, and ATEX certified, ensuring that it meets international safety standards for use in hazardous environments.
-
Wide Temperature Range: It operates in a temperature range from -20°C to +60°C, making it suitable for use in diverse industrial environments, from factory floors to remote locations.
-
Robust and Durable: The module is built to withstand harsh conditions, ensuring reliable performance even in challenging industrial settings.
