Technical FAQs

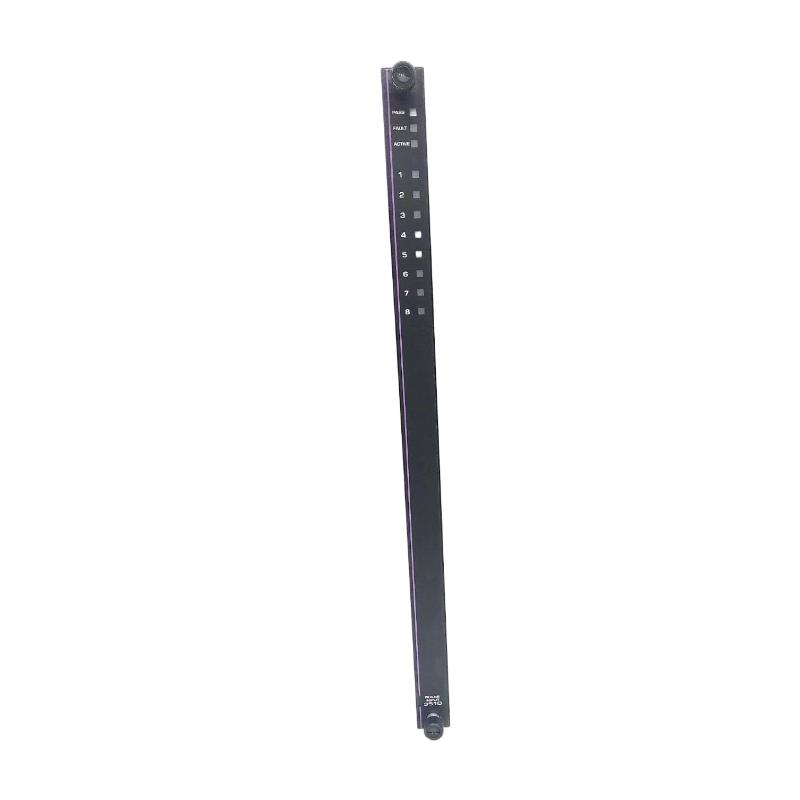

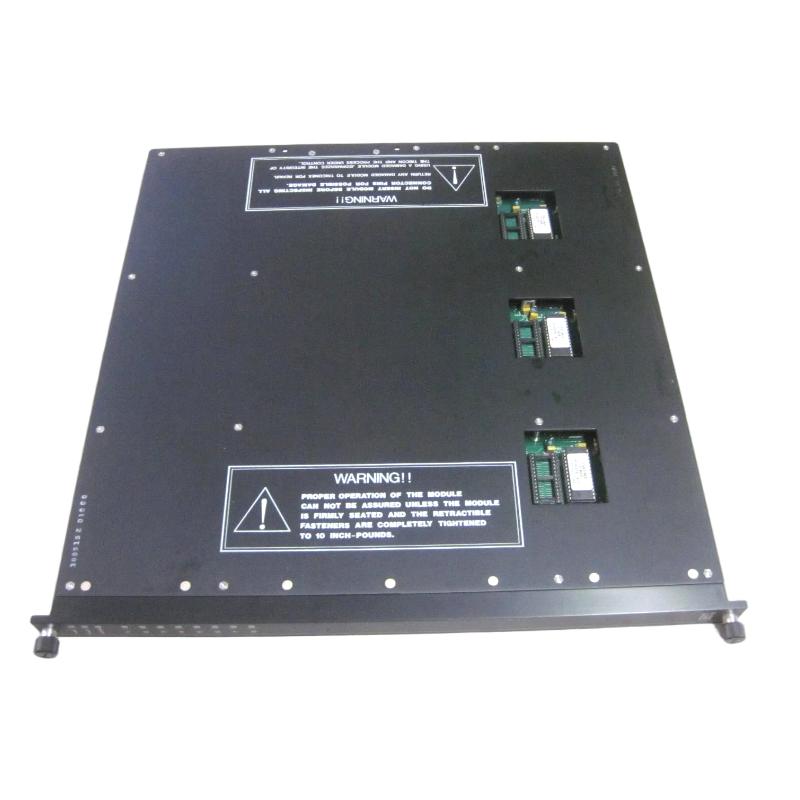

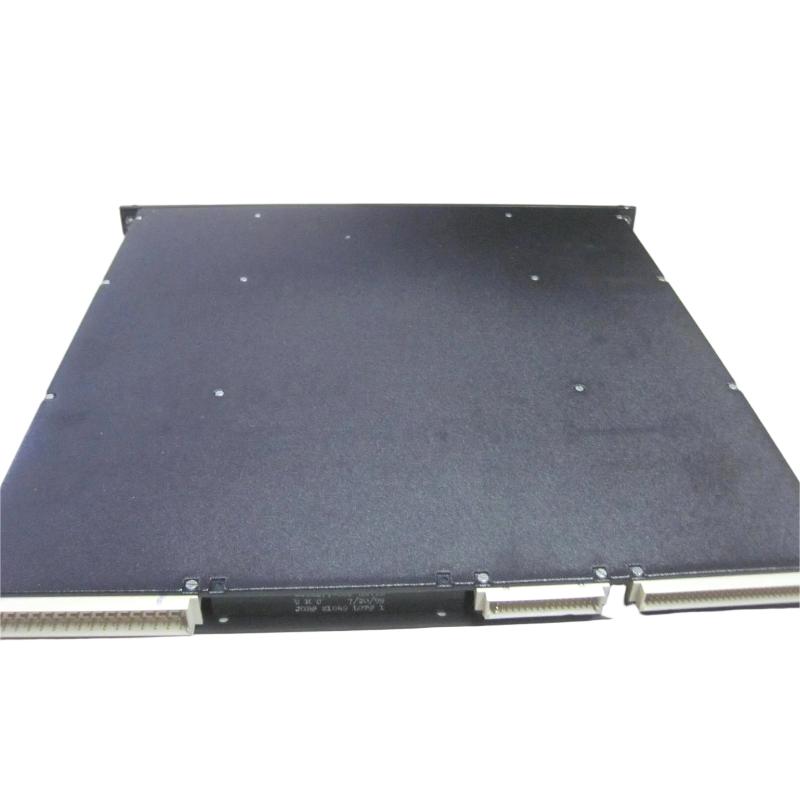

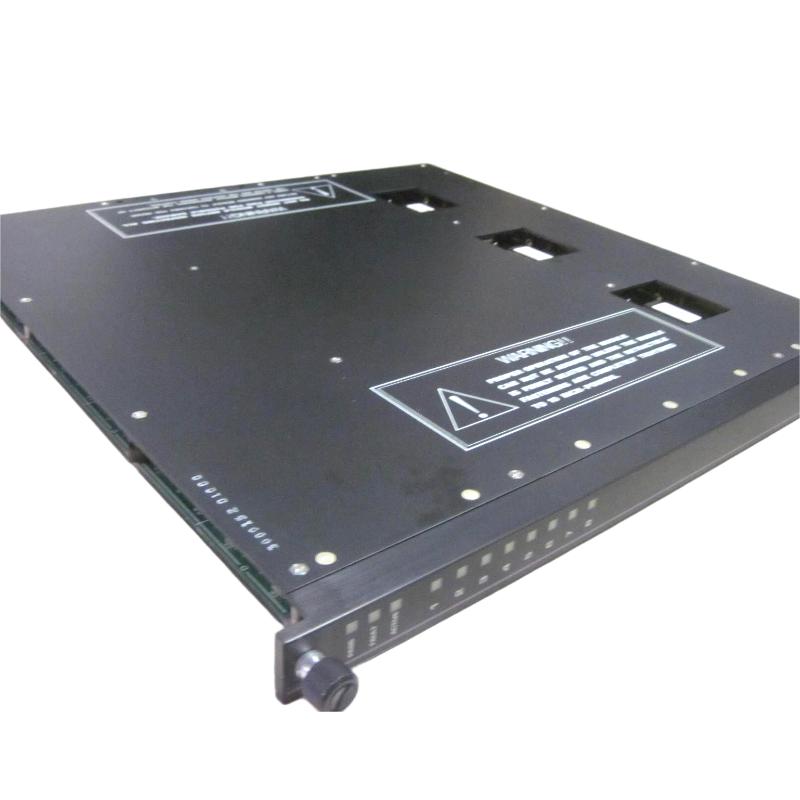

1. What is the function of the Triconex 3510 Pulse Input Card?

   • The 3510 module processes pulse signals from devices such as flow meters, encoders, and tachometers, converting these signals into valuable data for control and monitoring systems.

2. How many input channels does the 3510 module support?

   • The 3510 module supports up to 8 pulse input channels, providing flexibility in handling multiple signals simultaneously.

3. What is the maximum frequency that the 3510 module can handle?

   • The module can process pulse frequencies up to 10 kHz, making it suitable for high-speed pulse applications like flow measurement.

4. What is the minimum pulse width for the 3510 module?

   • The minimum pulse width that the module can process is 10 ms, ensuring accurate counting even for rapid pulse signals.

5. What voltage range is supported by the 3510 module?

   • The 3510 module operates within a voltage range of 24 V DC ±20%, making it compatible with most industrial pulse-input devices.

6. Does the 3510 module provide isolation between channels?

   • Yes, the module features galvanic isolation between channels to prevent interference and protect against electrical noise or faults.

7. What is the operating temperature range for the 3510 module?

   • The module operates within a temperature range of -20°C to +60°C, making it suitable for use in diverse industrial environments.

8. What certifications does the Triconex 3510 module have?

   • The 3510 module is UL, CE, and ATEX certified, ensuring compliance with international safety standards for use in hazardous environments.

9. In what industries is the 3510 Pulse Input Card commonly used?

   • The module is used in industries such as oil & gas, chemical processing, power generation, and manufacturing, where precise pulse counting and processing are critical.

10. How does the 3510 module contribute to system reliability?

    • By accurately processing pulse signals and ensuring reliable data acquisition, the module helps maintain the stability of critical control systems and reduces the risk of operational failure.
