Introduction

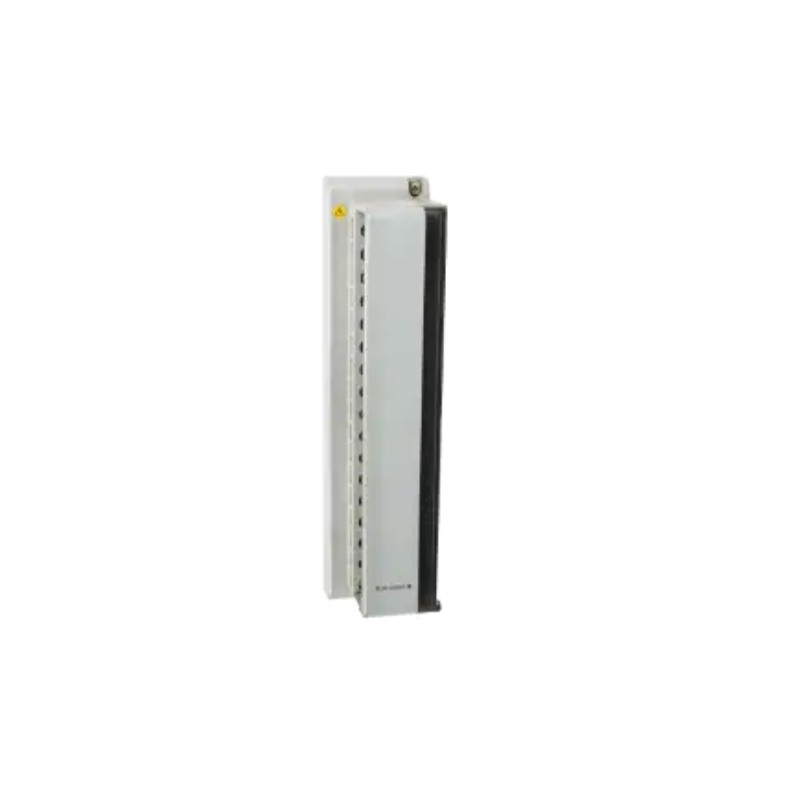

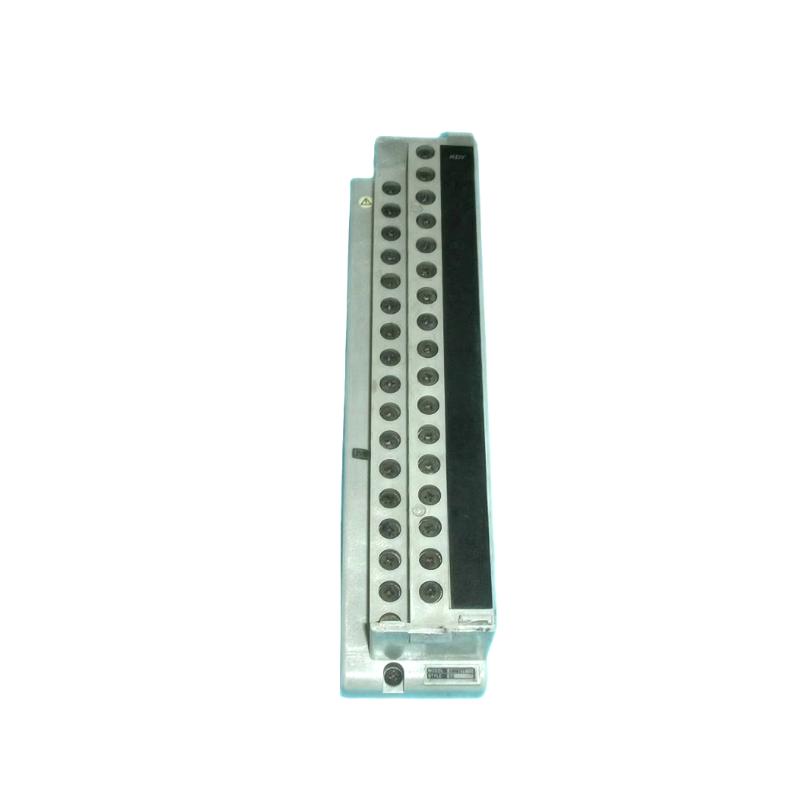

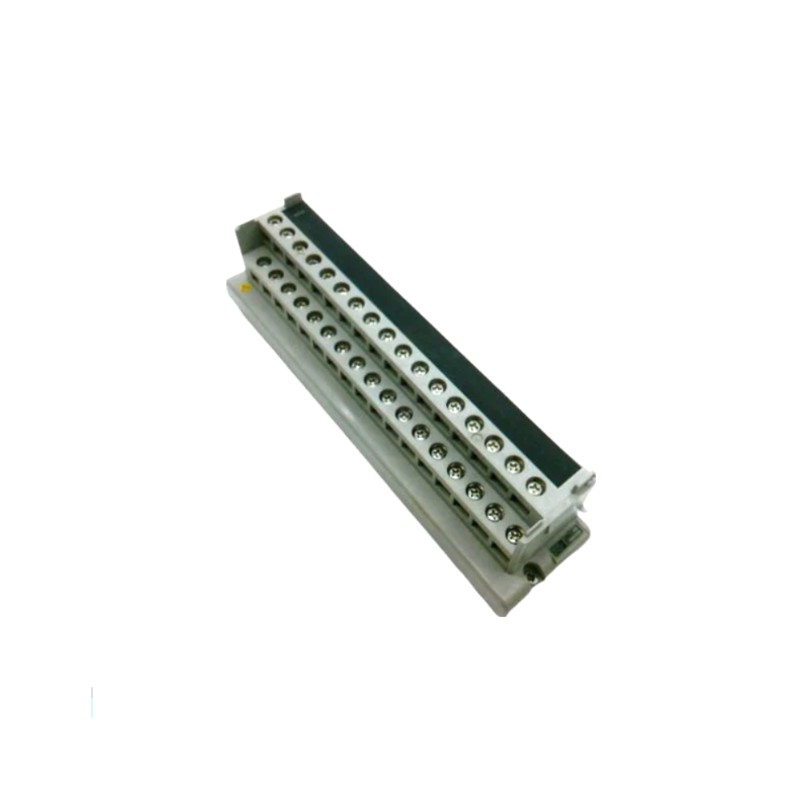

The Yokogawa AMM21T Thermocouple Input Multiplexer Module is a high‑performance signal acquisition unit engineered for industrial process control and monitoring systems. Designed to collect and condition multiple thermocouple signals, this module enables accurate temperature measurement across a wide range of field points within Yokogawa distributed control system (DCS) environments such as CENTUM VP or RIO architectures. Its multiplexing capability allows efficient utilization of I/O slots, reducing system complexity while maintaining reliable data throughput and precision.
This module is ideal for applications that require multiple temperature measurements with minimal wiring and robust signal integrity in harsh industrial conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model Number | AMM21T |
| Module Type | Thermocouple Input Multiplexer Module |
| Thermocouple Inputs | Multiple channels (system configured) |
| Supported Sensor Types | Type J, K, T, E, R, S, B (thermocouple) |
| Input Range | Industry standard thermocouple ranges per type |
| Cold Junction Compensation | Built‑in automatic compensation |
| Signal Conditioning | Filtering and linearization for thermocouple inputs |
| Resolution | High‑resolution acquisition (system dependent) |
| Accuracy | Typical industrial thermocouple accuracy per Yokogawa specifications |
| Isolation | Channel‑to‑backplane electrical isolation |
| Status Indicators | LED per channel and module status |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | ‑20 °C to 70 °C |
| Humidity | Up to 95 % non‑condensing |
| Mounting | OEM rack or distributed I/O chassis |
| Dimensions | Approx. 135 × 35 × 110 mm |
| Weight | Approx. 0.20 kg |
