Introduction

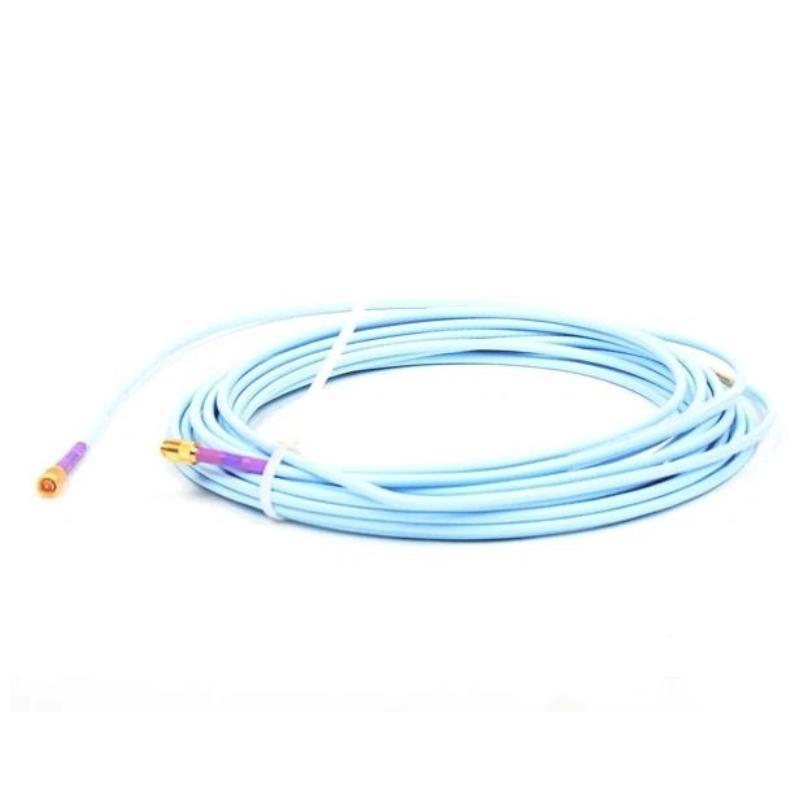

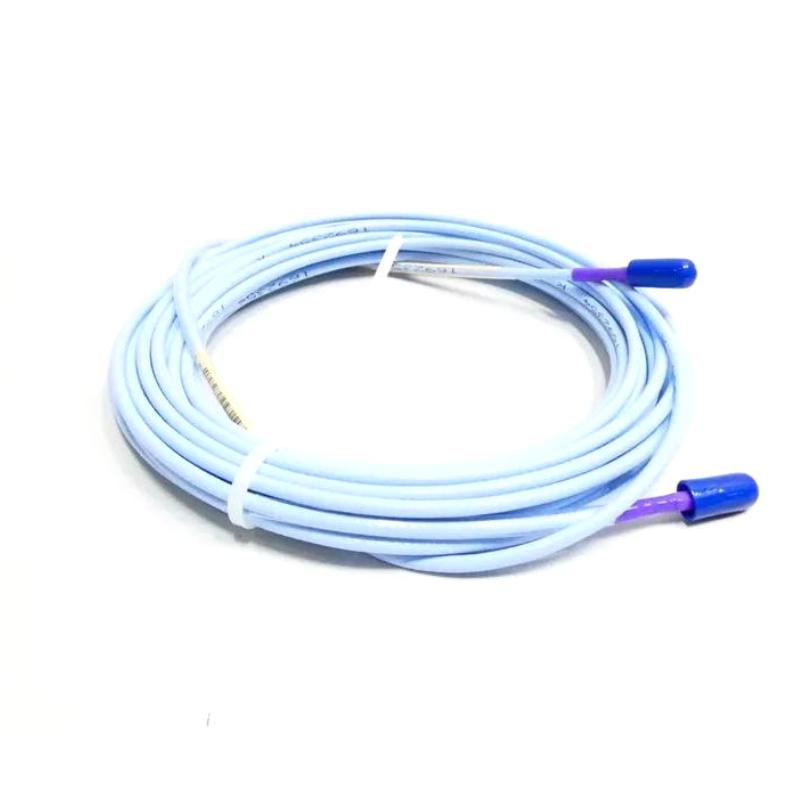

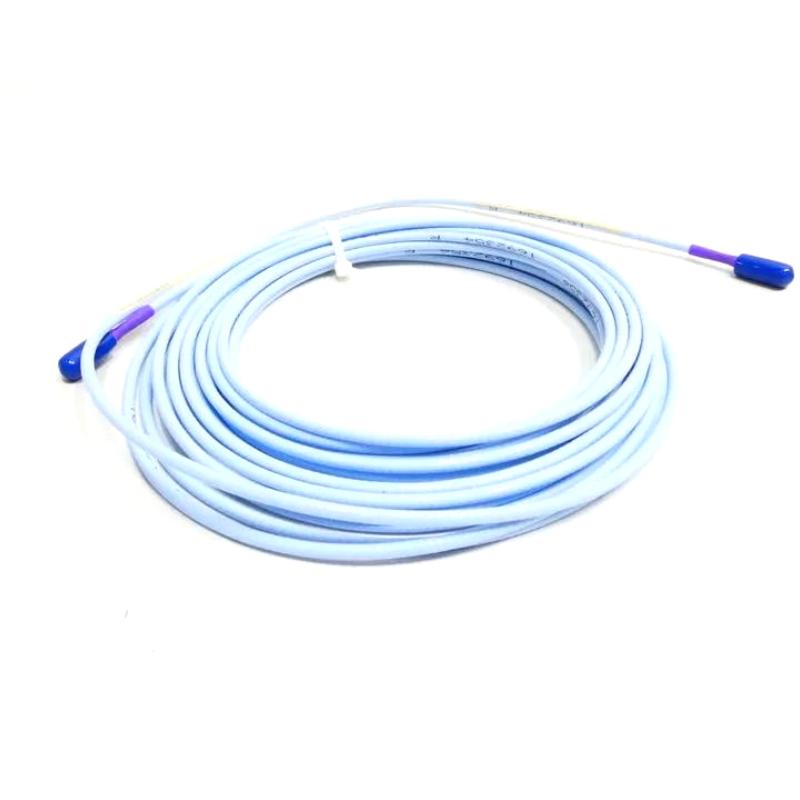

The Bently Nevada 330730‑080‑00‑05 3300 XL 11 mm Extension Cable is a rugged, industrial‑grade cable designed to extend the connection between 11 mm proximity probes and Proximitor® sensors within the 3300 XL machine condition monitoring system. Engineered for high‑integrity signal transmission in demanding plant environments, this extension cable supports reliable vibration and position measurement on critical rotating equipment such as turbines, compressors, and generators. Its precision construction and mechanical durability make it an ideal choice for applications where accurate diagnostics and long‑term system stability are essential.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330730‑080‑00‑05 |
| Product Type | 3300 XL 11 mm Extension Cable |
| Cable Length | 8.0 m (26.2 ft) |
| Cable Type | Triaxial 75 Ω with FEP insulation |
| Connector Type | Gold‑plated brass ClickLoc® connectors |
| Operating Temperature | ‑35 °C to +120 °C |
| Capacitance | Approx. 69.9 pF/m (21.3 pF/ft) |
| Weight | Approx. 0.26 kg |
| Environmental Rating | Industrial vibration and temperature‑stress applications |
| Agency Options | “05” multiple agency approval variant |
