Introduction

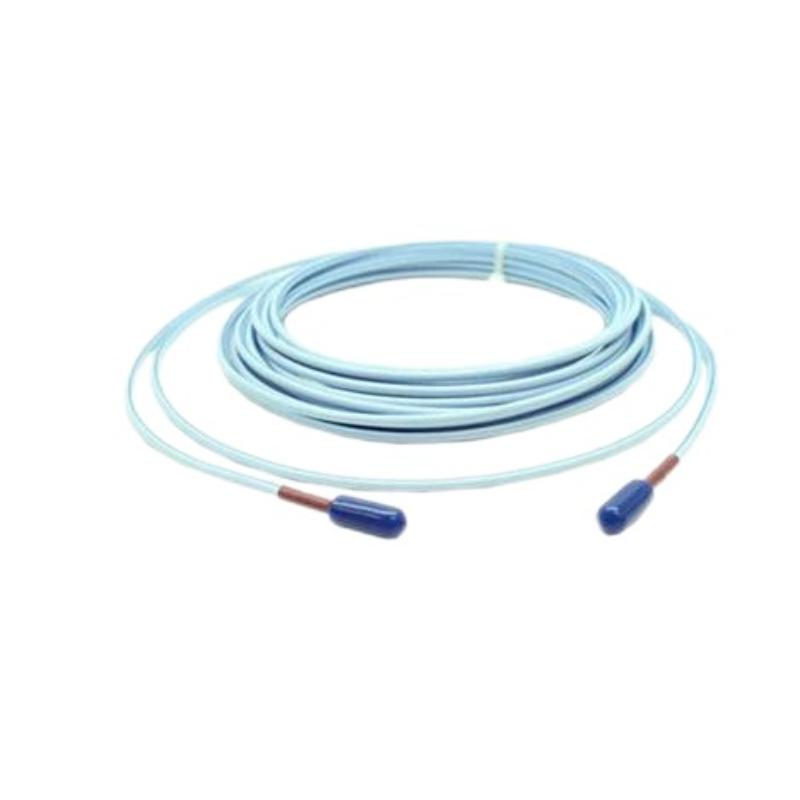

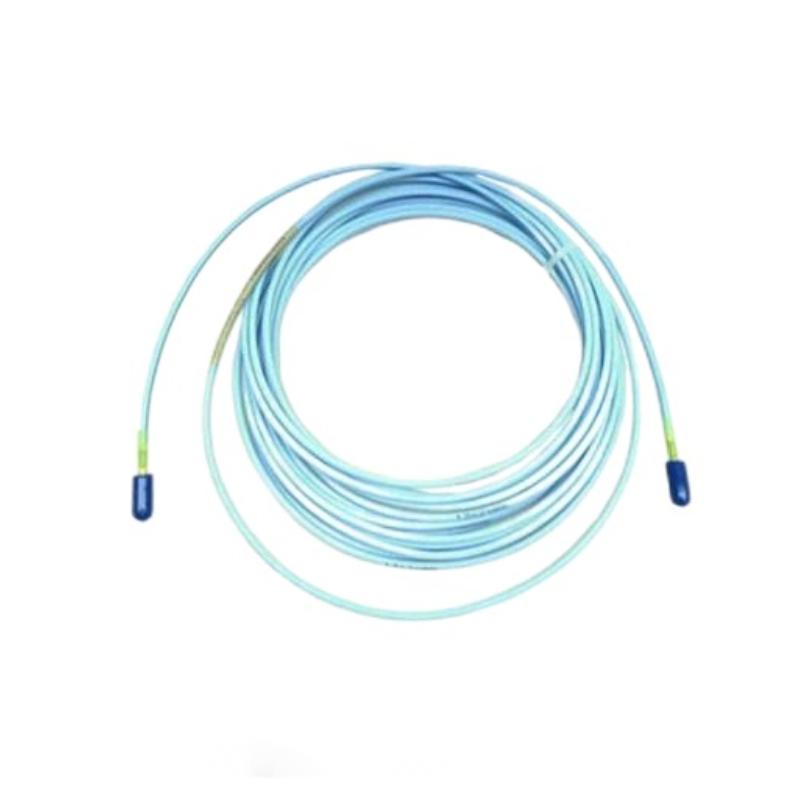

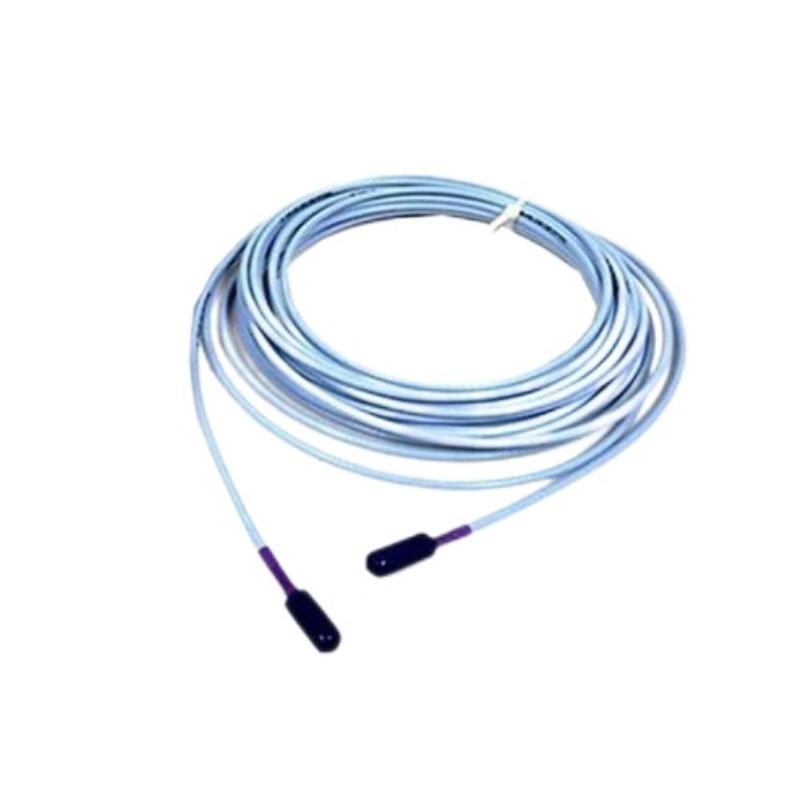

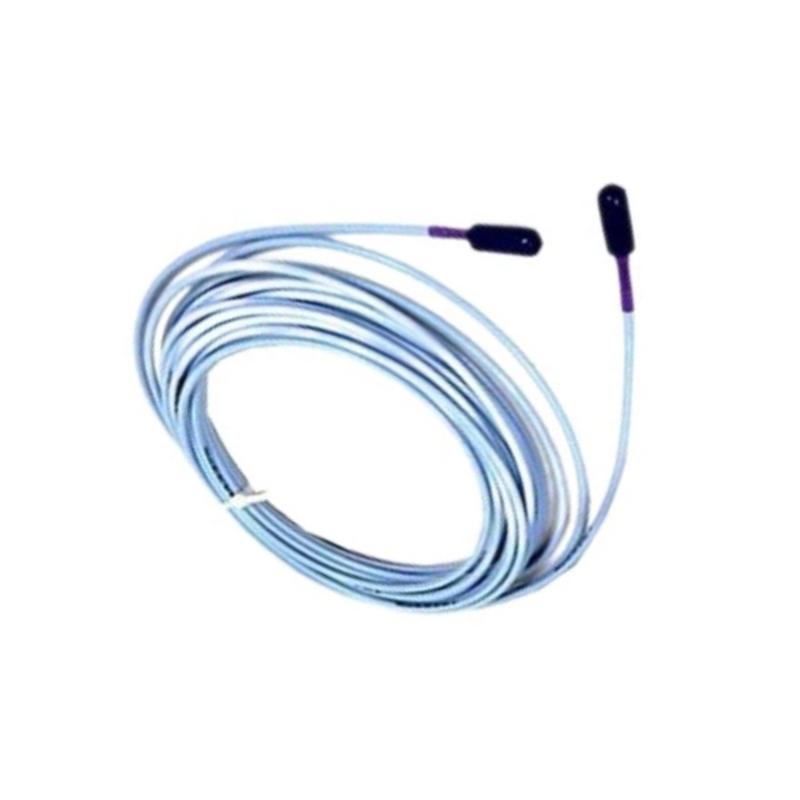

The Bently Nevada 330730‑040‑01‑00 3300 XL 11 mm Extension Cable is a purpose‑built industrial cable designed to extend the reach of proximity transducers used in high‑precision vibration and position monitoring systems. Engineered as part of the 3300 XL 11 mm Proximity Transducer System, this extension cable maintains excellent signal fidelity between the proximity probe and the Proximitor® sensor over a 4 m (13.1 ft) distance. Its rugged and optionally armored construction ensures durability in harsh environments such as turbines, compressors, pumps, and high‑speed rotating machinery monitoring installations.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330730‑040‑01‑00 |
| Product Type | 3300 XL 11 mm Extension Cable |
| Cable Length | 4.0 m (13.1 ft) |
| Cable Construction | 75 Ω triaxial design with FEP insulation |
| Connector Type | Gold‑plated brass ClickLoc™ connectors |
| Armored Option | Flexible AISI 302 stainless‑steel armor (optional) |
| Capacitance | ~69.9 pF/m (21.3 pF/ft) |
| Operating Temperature | ~‑35 °C to +120 °C |
| Environmental Rating | Designed for industrial vibration & mechanical stress |
| Weight | Approx. 0.14 kg |
| Origin | USA |
